Turbo Air TGIM-49W-N Ice Machines
Turbo Air TGIM-49W-N Ice Machines is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Turbo Air TGIM-49W-N Ice Machines
Description

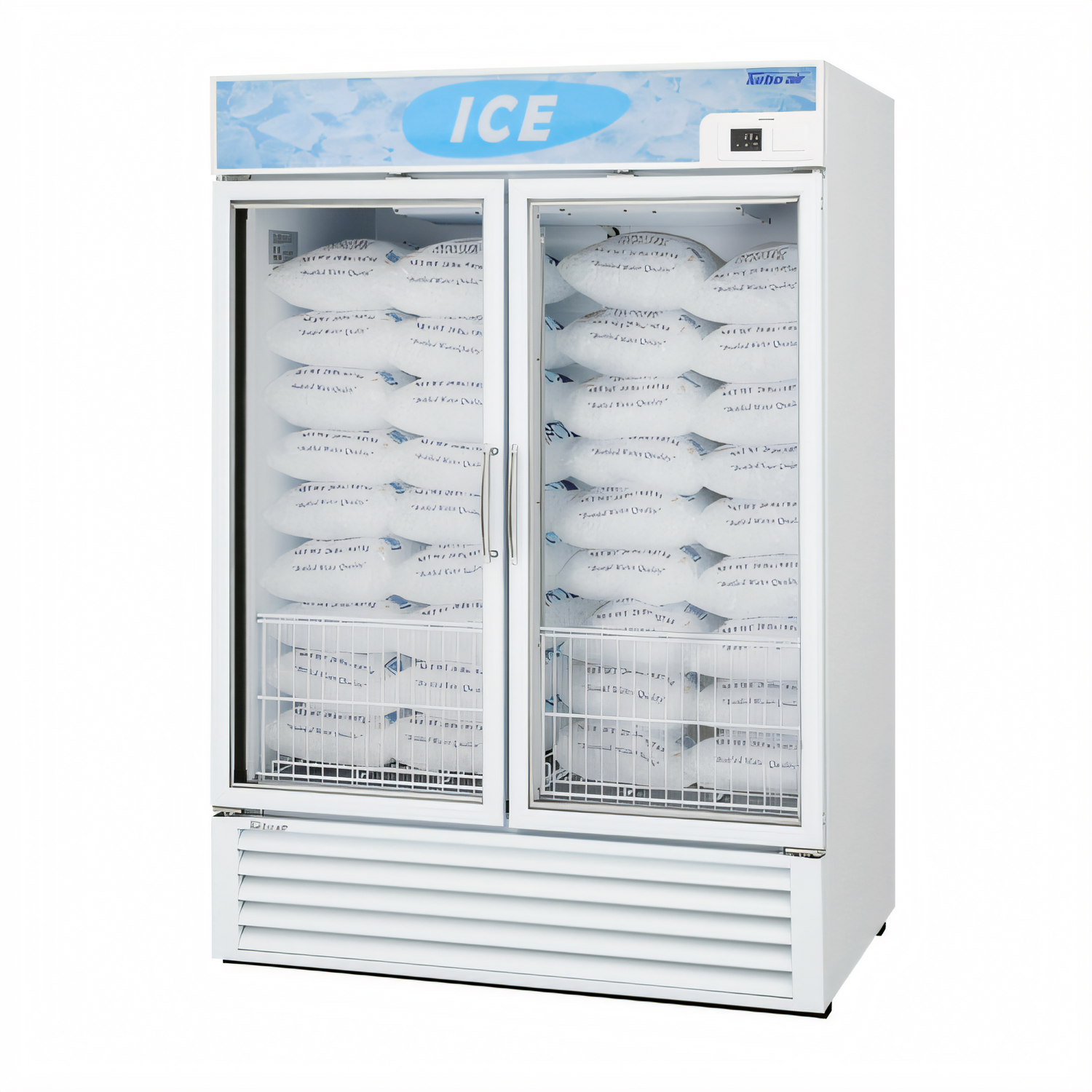

Turbo Air TGIM-49W-N Ice Merchandiser – 39.88 Cu. Ft.
Self-cleaning condenser & triple-pane glass keep your ice frozen and profits flowingEngineered for high-traffic convenience stores, supermarkets and entertainment venues, the Turbo Air TGIM-49W-N keeps pre-packaged ice rock-solid—even when outside temperatures soar. Its eco-friendly R-290 freezer system, patented self-cleaning condenser and energy-saving LED lighting work together to protect your product and lower operating costs.
Key Features
- Patented Self-Cleaning Condenser removes dust daily, preventing coil build-up and costly service calls.
- 10 °F – 15 °F freezer cabinet stops ice melt in the hottest climates—unlike refrigerator-based competitors.

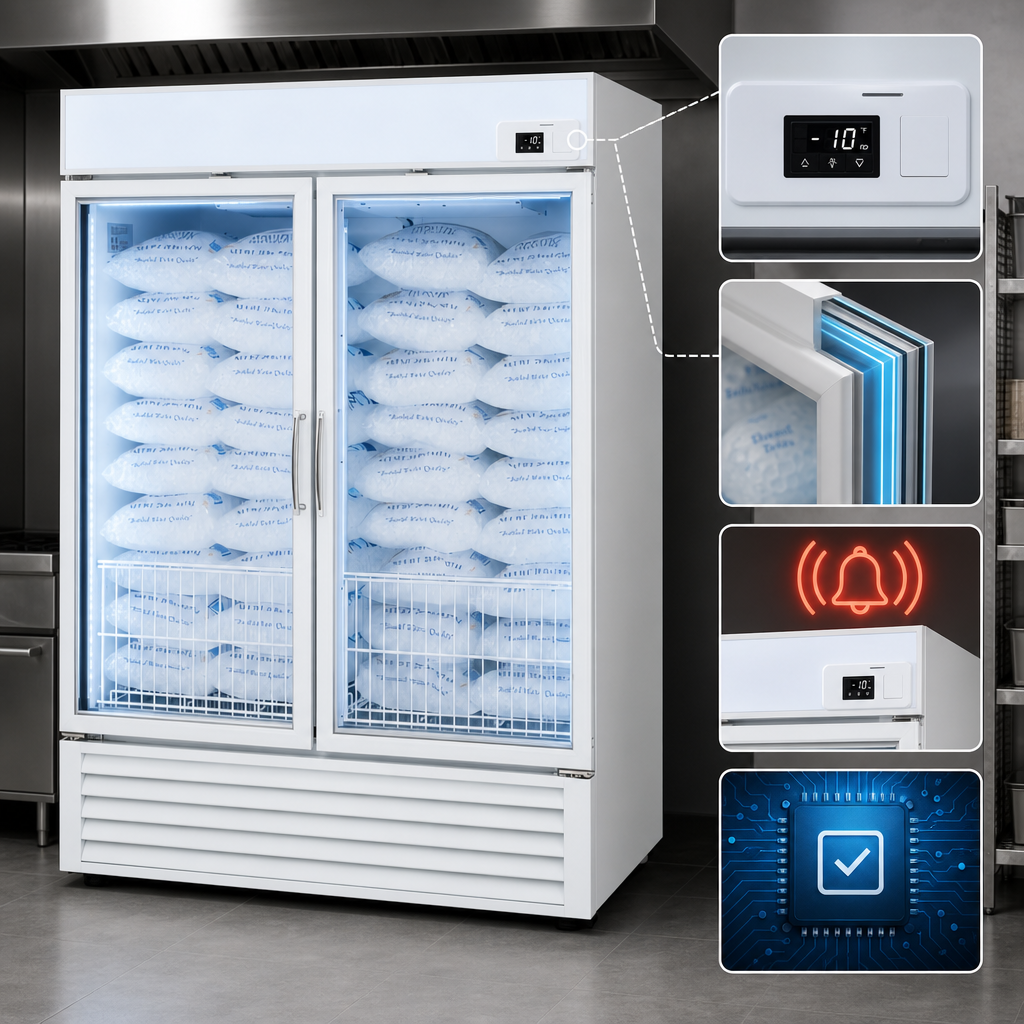

- Digital temperature control & self-diagnostics with Turbo Freeze, smart fuzzy defrost and door-ajar alarm.
- Triple-pane heated glass doors virtually eliminate condensation while showcasing product.
- Bottom-mount 3/4 HP compressor for cooler air intake, easier service and extra storage space on top.
- LED interior lighting & illuminated canopy deliver bright, uniform merchandising while using up to 75 % less energy.
- Eco-friendly R-290 refrigerant with zero ozone depletion and ultra-low global-warming potential (GWP 3).
- High-density polyurethane insulation is foamed-in-place for maximum cold retention.
- (2) heavy-duty bottom shelves keep bagged ice organized and off the floor.
- Magnetic door gaskets, anti-corrosion coated evaporator and automatic fan motor delay for long-term reliability.
Specifications
| Model | TGIM-49W-N |
|---|---|
| Capacity | 39.88 cu. ft. |
| Doors | (2) hinged, triple-pane heated glass |
| Shelves | (2) bottom shelves – 24 ¼″ × 20 ⅜″ |
| Temperature Range | 10 °F – 15 °F (-12 °C – -9 °C) |
| Compressor | 3/4 HP, bottom-mounted, self-contained |
| Refrigerant | R-290 Hydrocarbon |
| Dimensions (W × D × H) | 54 ⅜″ × 29 ¾″ × 78 ¼″ (depth excludes 1 ⅜″ door handles) |
| Interior Dimensions | 50 ½″ × 24 ⅛″ × 60 ⅜″ |
| Net / Crated Weight | 505 lb / 665 lb |
| Electrical | 115 V / 60 Hz / 1-phase, 6.7 amps, NEMA 5-20P, 7 ft cord |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year parts & labor + 3-year additional compressor |

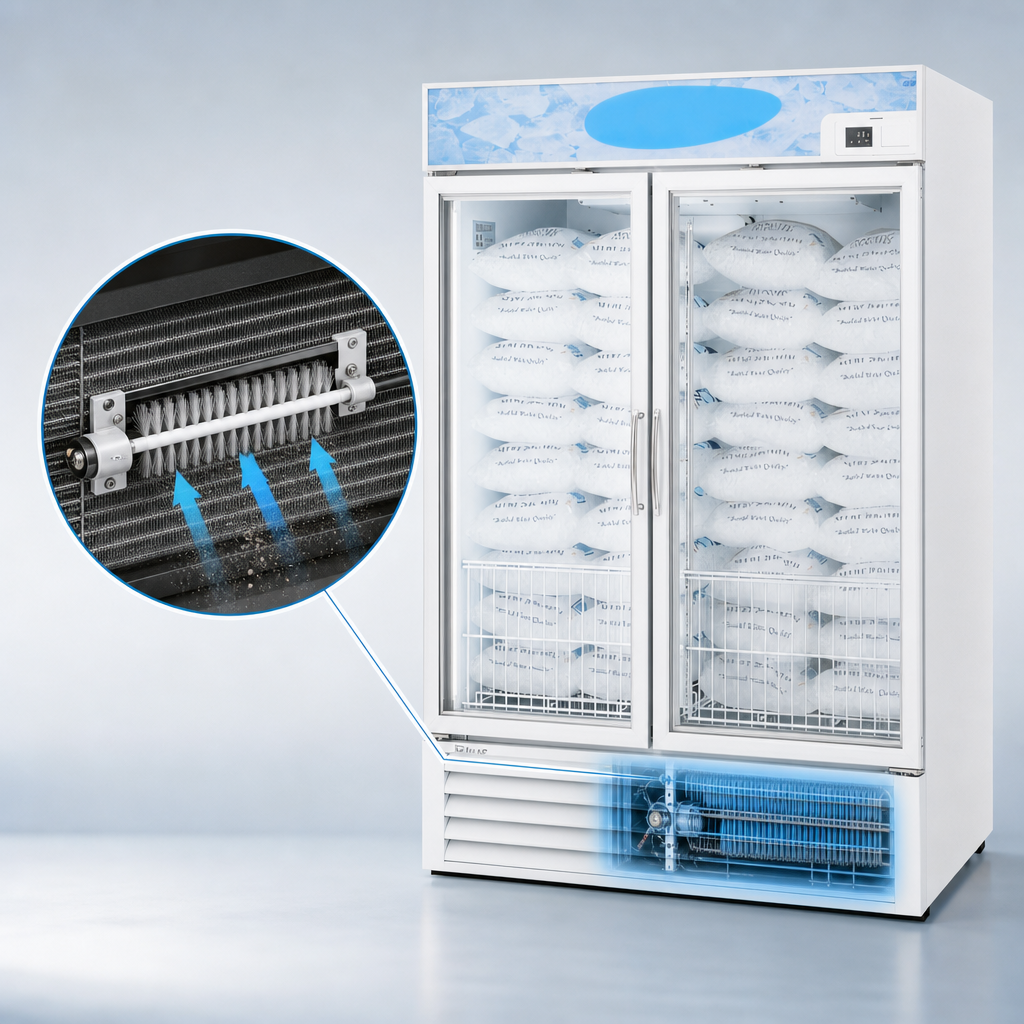

Self-Cleaning Condenser Advantage
Dust-clogged condensers are the #1 cause of refrigeration failure. Turbo Air’s exclusive system uses a fine-mesh filter and automatic rotating brush to sweep away dirt every 24 hours, ensuring consistent airflow, lower energy bills and maximum uptime.
Optional 4″ casters (brake & non-brake) and blank sign panels are available—ask your sales representative.
Design and specifications subject to change without notice.
