Turbo Air TGIM-23W-N Ice Machines
Description

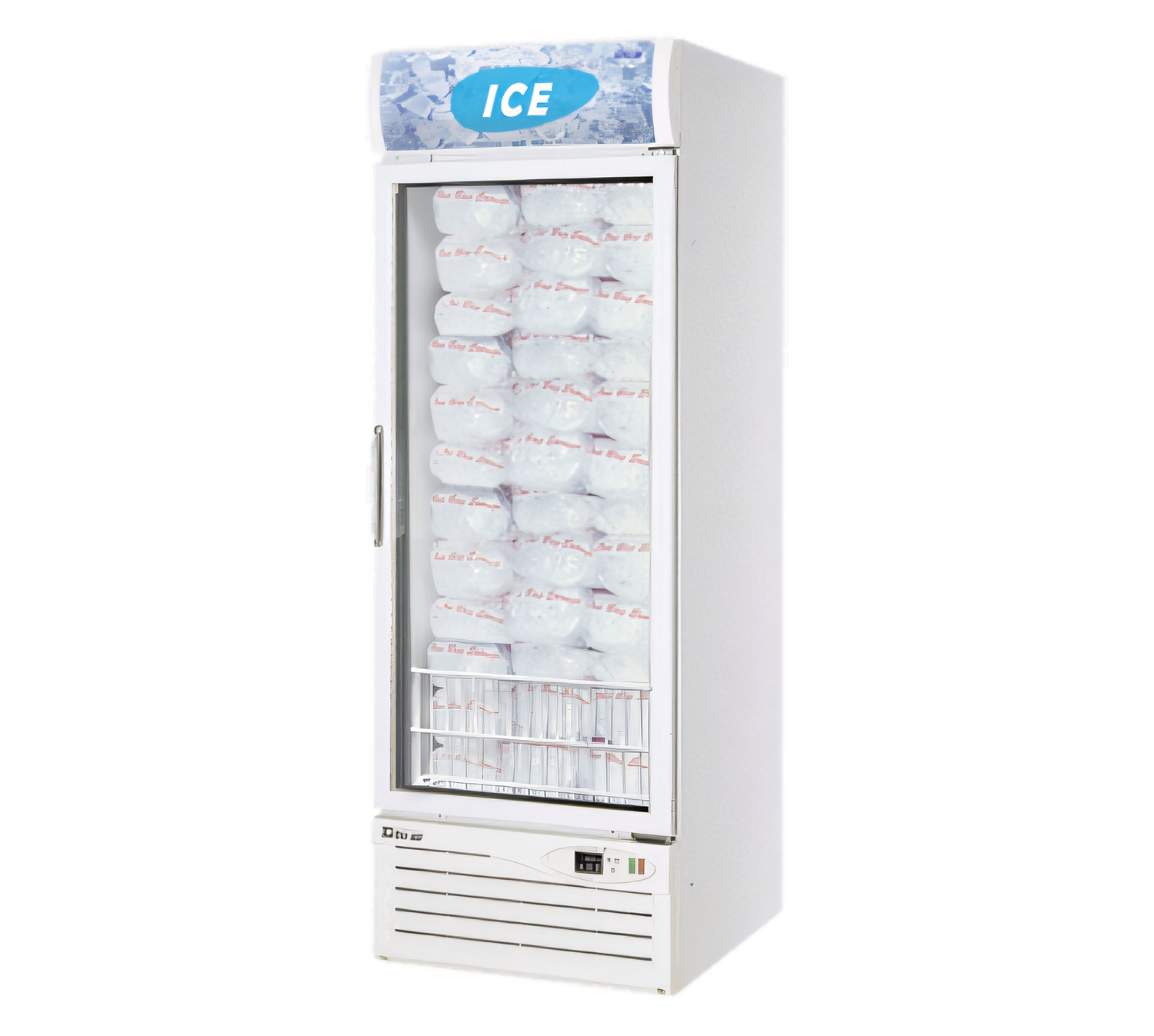

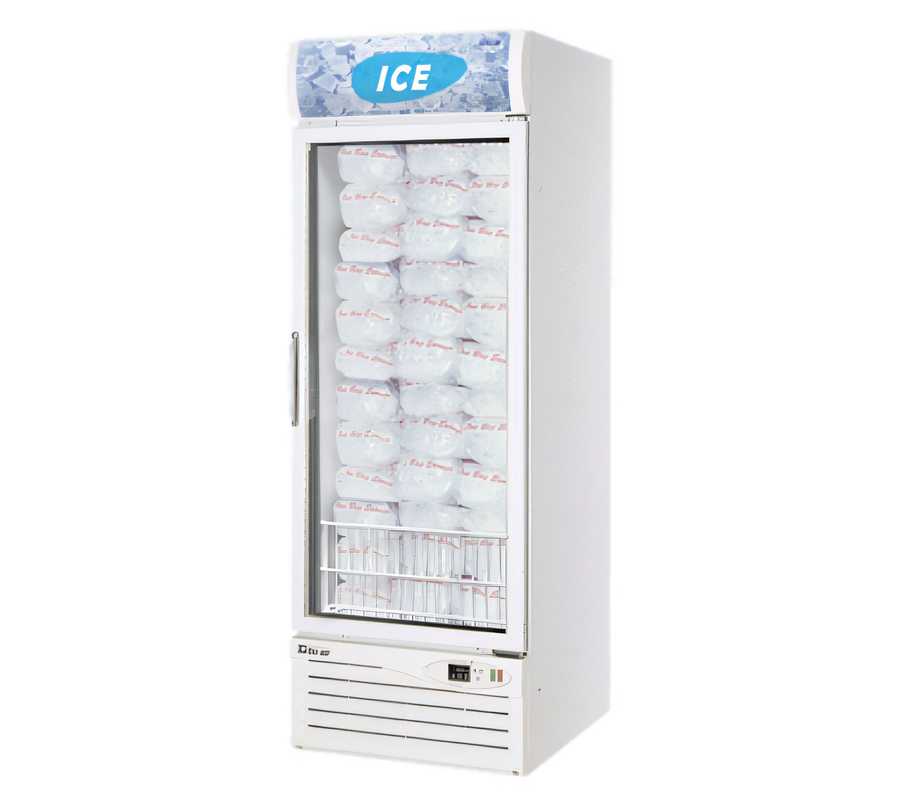

Turbo Air TGIM-23W-N Ice Merchandiser
17.7 cu. ft. • Triple-Pane Glass Door • Self-Cleaning CondenserKeep bagged ice rock-solid—even in sweltering summer heat—with Turbo Air’s ENERGY STAR® qualified TGIM-23W-N. This single-door merchandiser blends ultra-reliable freezing performance with labor-saving technology and brilliant presentation, helping you sell more ice while spending less on energy, service, and maintenance.
Why It Stands Out
- Patented Self-Cleaning Condenser automatically brushes dust from the condenser daily, preventing costly system failure.
- Ice-Dedicated Freezer System maintains an average cabinet temperature of 10 °F – 15 °F so ice stays frozen even in hot climates.
- Digital Temperature Control & Monitoring with self-diagnostics, door-open alarm, Turbo Freeze rapid cool-down, and smart defrost.

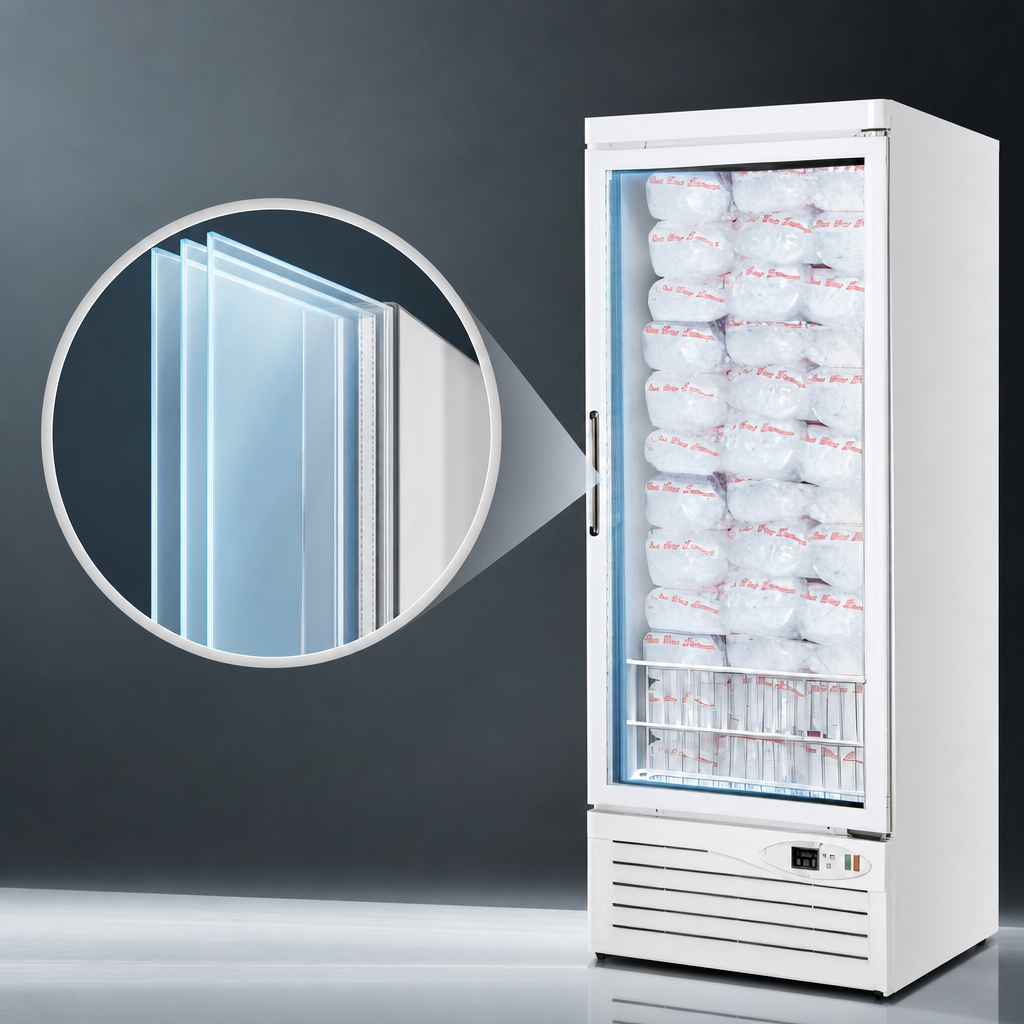

- Triple-Pane Heated Glass Door minimizes condensation and energy loss while showcasing product; lightweight construction means smoother, longer-lasting door operation.
- Bright, Long-Life LEDs illuminate the interior and lighted canopy to attract impulse sales and reduce energy use.
- Bottom-Mount Compressor offers a cooler operating environment, easier service access, and extra display space on top of the cabinet.
Energy & Eco Leadership
- ENERGY STAR® qualified to cut utility costs.
- Eco-friendly R-290 hydrocarbon refrigerant (ODP 0 / GWP 3).
- High-density, CFC-free polyurethane insulation locks in cold.
- No electric frame heaters—cabinet harnesses compressor waste heat for anti-sweat protection.
Technical Specs
| Model | TGIM-23W-N |
|---|---|
| Capacity | 17.7 cu. ft. (501 L) |
| Exterior Dimensions | 27" W × 29.75" D × 78.25" H |
| Door | (1) swing, triple-pane heated glass, magnetic gasket |
| Shelving | (1) bottom shelf, 21 3⁄8" × 20 3⁄8" |
| Temperature Range | 10 °F – 15 °F (-12 °C – -9 °C) |
| Refrigeration System | Self-contained, bottom mount, 2⁄5 HP compressor |
| Refrigerant | R-290 Hydrocarbon |
| Electrical | 115 V / 60 Hz / 1-ph • 3 A • NEMA 5-15P • 7 ft cord |
| Listings | cETLus, ETL-Sanitation, ENERGY STAR® |
| Net / Crated Weight | 334 lb / 356 lb |
Built-In Peace of Mind
- Anti-corrosion coated evaporator extends component life.
- Automatic evaporator fan motor delays prevent moisture carry-over on door opening.
- Magnetic door gasket is removable without tools for quick cleaning or replacement.
- Optional 4" casters (with or without brakes) and blank sign panel sold separately.
Warranty
2-Year Parts & Labor • Additional 3-Year Compressor Warranty (U.S.A. & Canada).
Design and specifications are subject to change without notice. Images may show optional accessories.
