Turbo Air TGF-72SDH-N Super Deluxe Glass Door Merchandisers
Turbo Air TGF-72SDH-N Super Deluxe Glass Door Merchandisers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

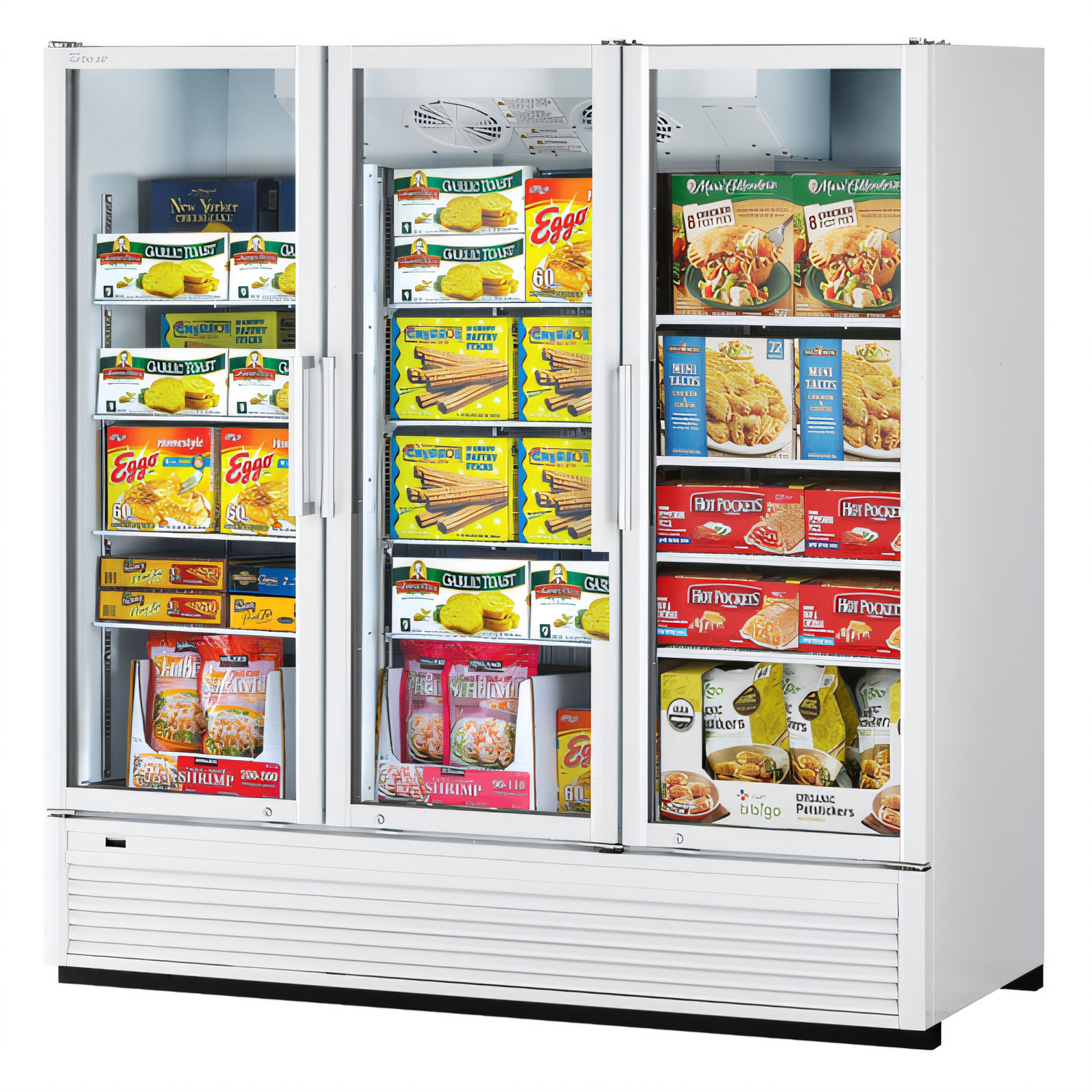

Turbo Air “Super Deluxe” 62.2 cu. ft. Glass Door Freezer Merchandiser
Model TGF-72SDH | 3 Swing Doors • -10 to -5 °F • Self-Cleaning CondenserShowcase more frozen favorites while cutting energy and maintenance costs. The Turbo Air Super Deluxe three-section merchandiser pairs a high-capacity, dual-compressor freezing system with industry-first automatic condenser cleaning—delivering dependable, frost-free performance and crystal-clear product visibility in any high-volume retail setting.
Key Performance Features

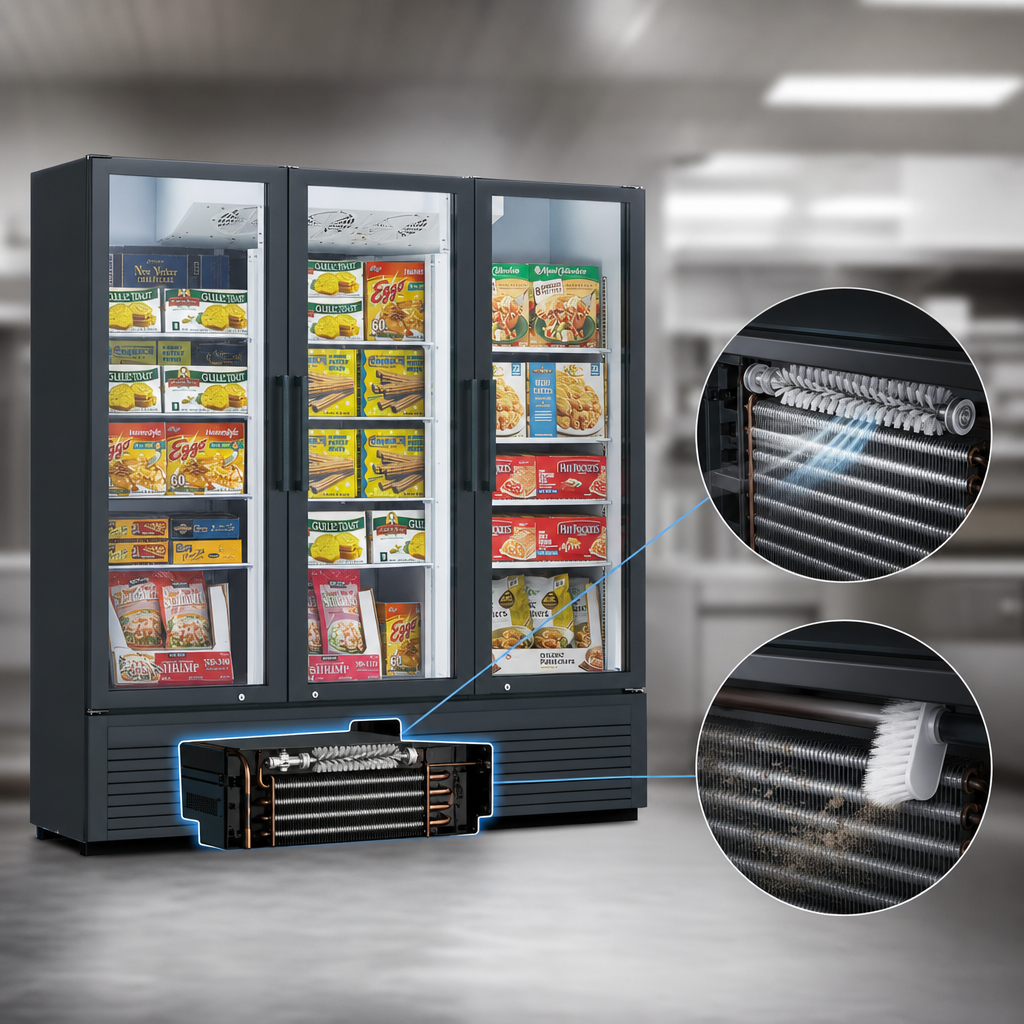

- Patented Self-Cleaning Condenser brush removes dust every 24 hrs to prevent costly service calls.
- Dual ⅔ HP bottom-mounted compressors (two-cycle system) reach -10 °F fast—even during peak traffic.
- Eco-friendly R-290 hydrocarbon refrigerant meets 2017 DOE standards (ODP 0 • GWP 3).
- Smart Defrost & Turbo Freeze modes cut ice build-up and speed product pull-down.
- Energy-saving fan control algorithm lowers running costs by up to 15 % and extends compressor life.
Visibility & Merchandising
- Three triple-pane heated glass doors minimize condensation and include factory-installed locks.
- Brilliant LED canopy & column lighting maximizes product appeal while using a fraction of the energy of fluorescents.
- Eight (8) adjustable, PE-coated wire shelves withstand heavy cartons; additional shelf kits available to reach 12 positions.
- White, easy-to-clean interior enhances light dispersion for a bright, uniform presentation.
Food Safety & Uptime Protection

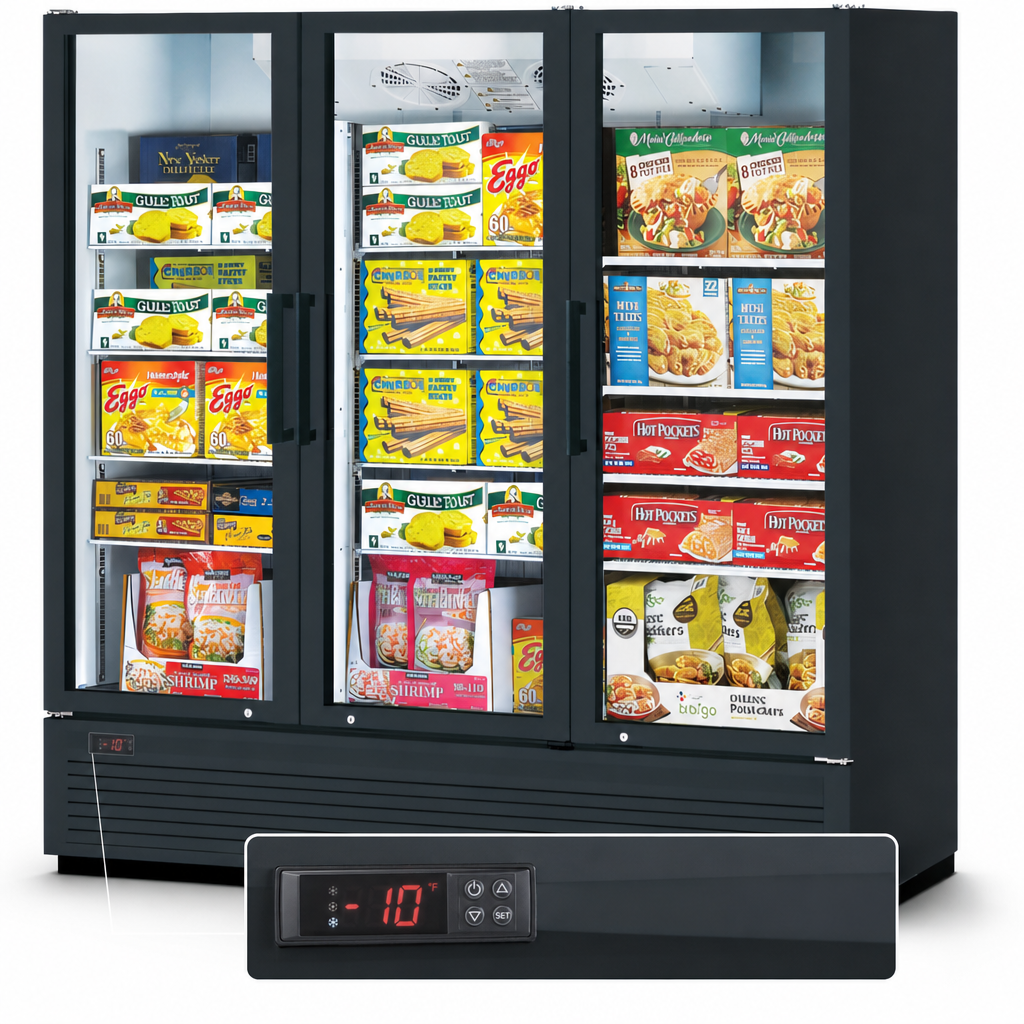

- Digital temperature controller with exterior LED read-out for at-a-glance monitoring.
- Door-open alarm, early-warning diagnostics and automatic evaporator fan delays safeguard product integrity.
- High-density, CFC-free polyurethane insulation locks in cold for maximum efficiency.
- Anti-corrosion coated evaporator extends system life in harsh, high-humidity environments.
Ideal Applications
- Supermarkets & c-stores
- Cafeterias & commissaries
- Ice-cream parlors & concession stands
- Institutional kitchens requiring packaged or grab-n-go frozen storage
Technical Specifications
Capacity | 62.2 cu. ft. (1 761 L) |
---|---|
Temperature Range | -10 °F to -5 °F (-23 °C to -21 °C) |
Exterior Dimensions* | 78 W × 31 ½ D × 79 ½ H in. |
Doors / Type | 3 swing, heated triple-pane glass |
Shelves Included | 8 adjustable PE-coated wire (up to 12 positions) |
Refrigeration System | Self-contained, bottom mount • (2) ⅔ HP compressors |
Refrigerant | R-290 Hydrocarbon |
Electrical | 115 V / 60 Hz / 1 Ph • 13.6 A • NEMA 5-20P |
Certifications | cETLus • ETL-Sanitation |
Standard Warranty | 5 yr parts & labor • 7 yr compressor |

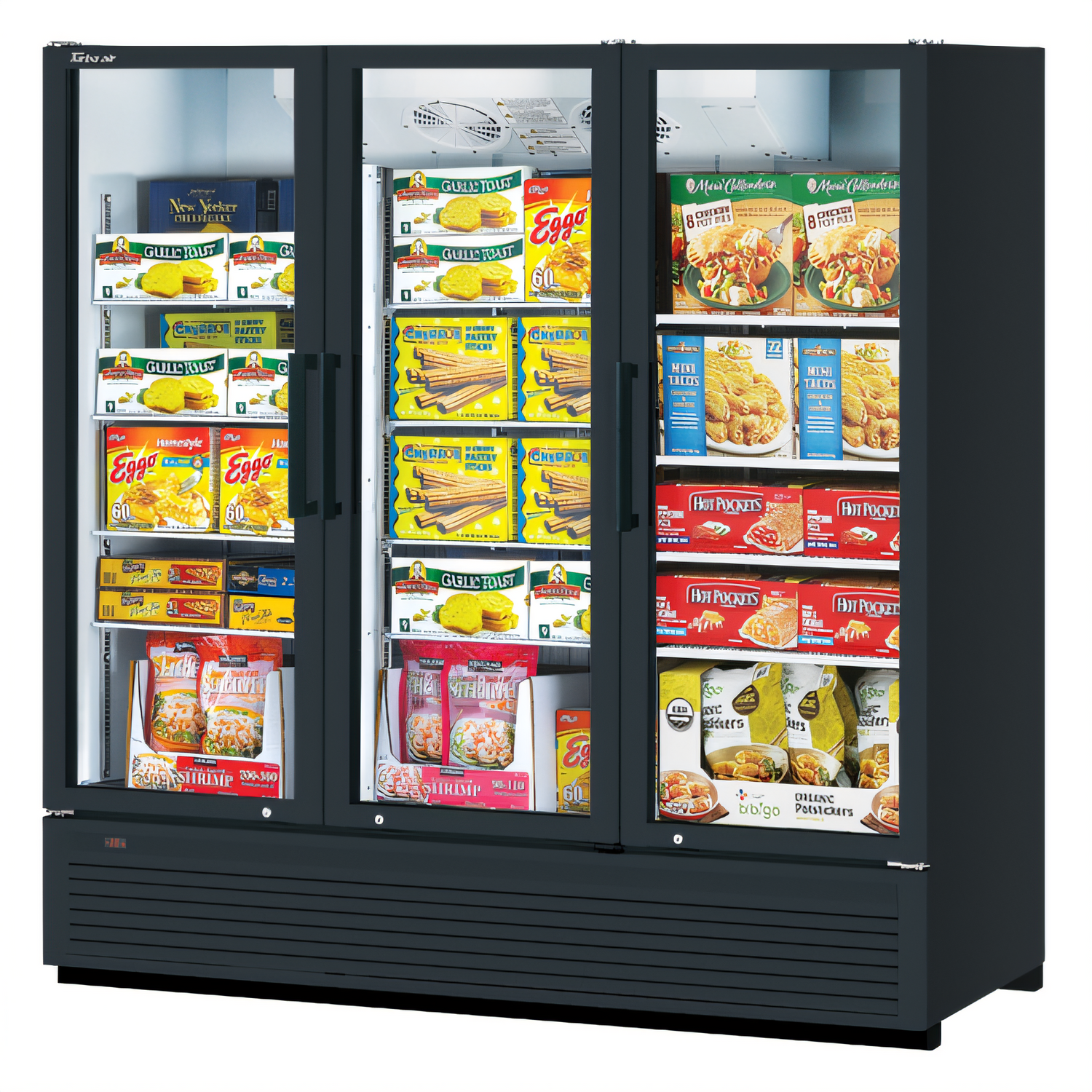

*Height excludes 2 ½ in. adjustable legs; depth excludes 2 ¼ in. door handles. Cabinet available in white (W) or black (B) exterior—please specify when ordering.
