Turbo Air TGF-72F(B)-N Glass Door Merchandisers
Description

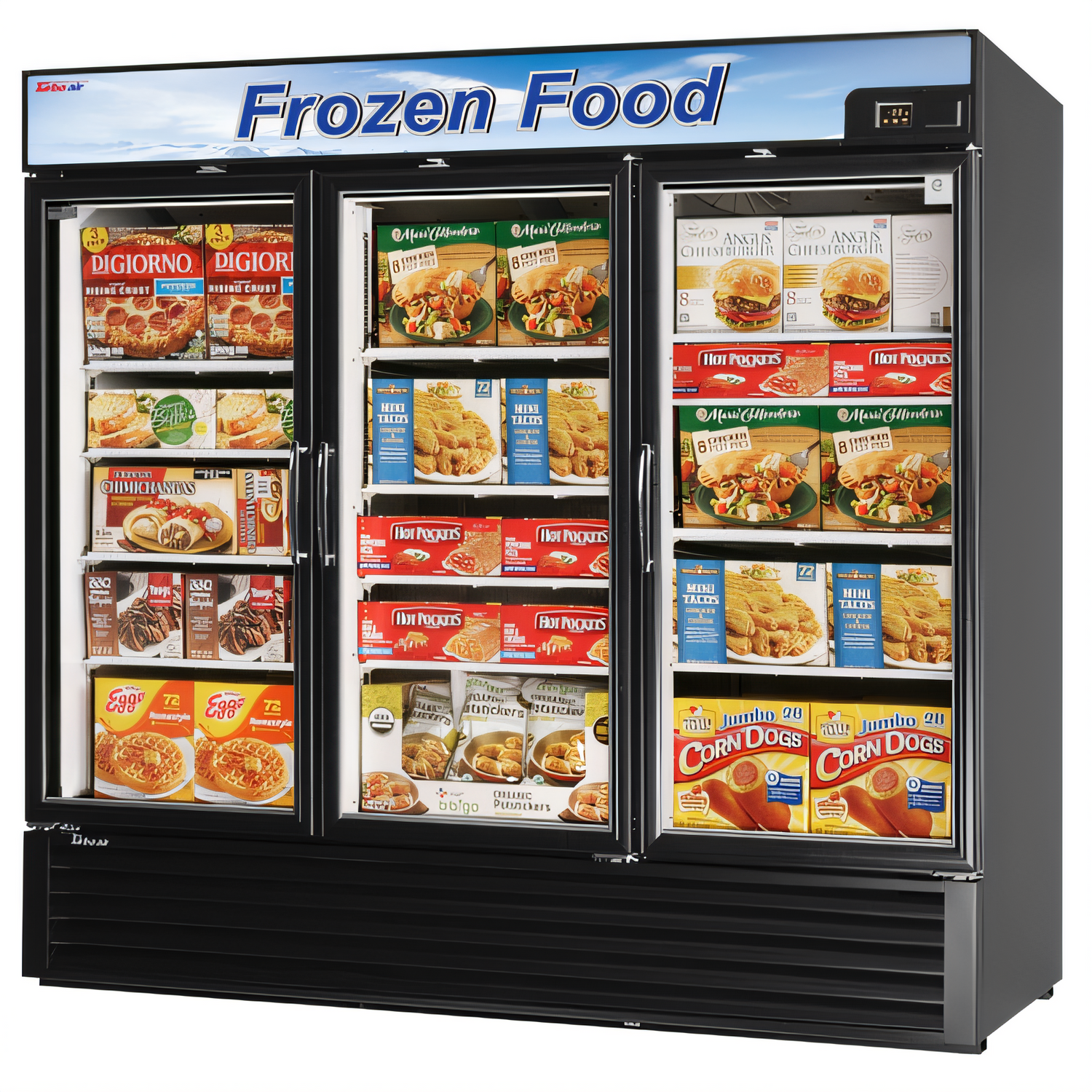

Turbo Air TGF-72F(B)-N Three-Section Glass Door Freezer Merchandiser
58.45 cu. ft. • -10°F to 5°F holding range • Bottom-mount self-contained systemShowcase frozen favorites while keeping them at peak quality with Turbo Air’s TGF-72F(B)-N. This 81 7⁄8" wide merchandiser combines high-performance refrigeration, energy-saving triple-pane heated glass doors, and brilliant LED lighting in a spacious 58.45 cu. ft. interior—perfect for supermarkets, c-stores, concessions, and cafeterias.
Key advantages
- Triple-pane heated glass doors minimize condensation and cut energy loss.

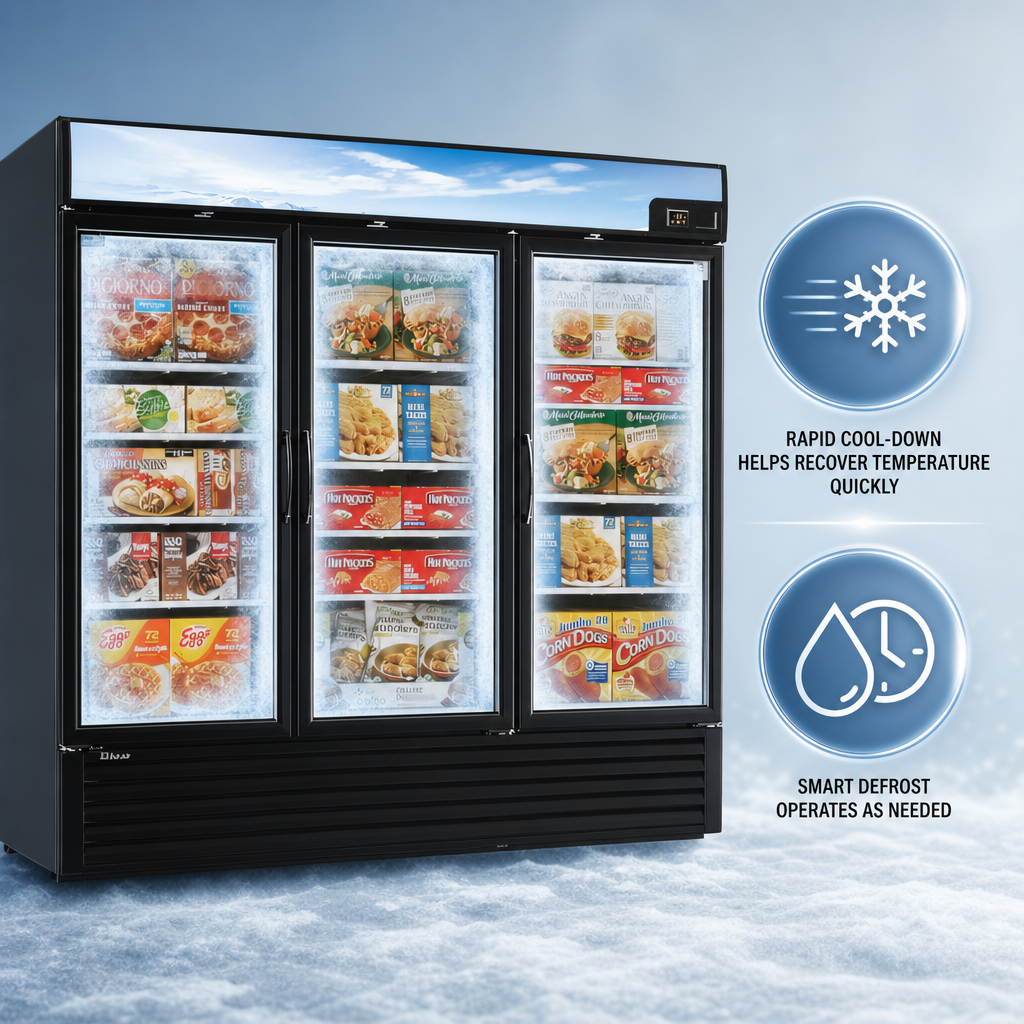

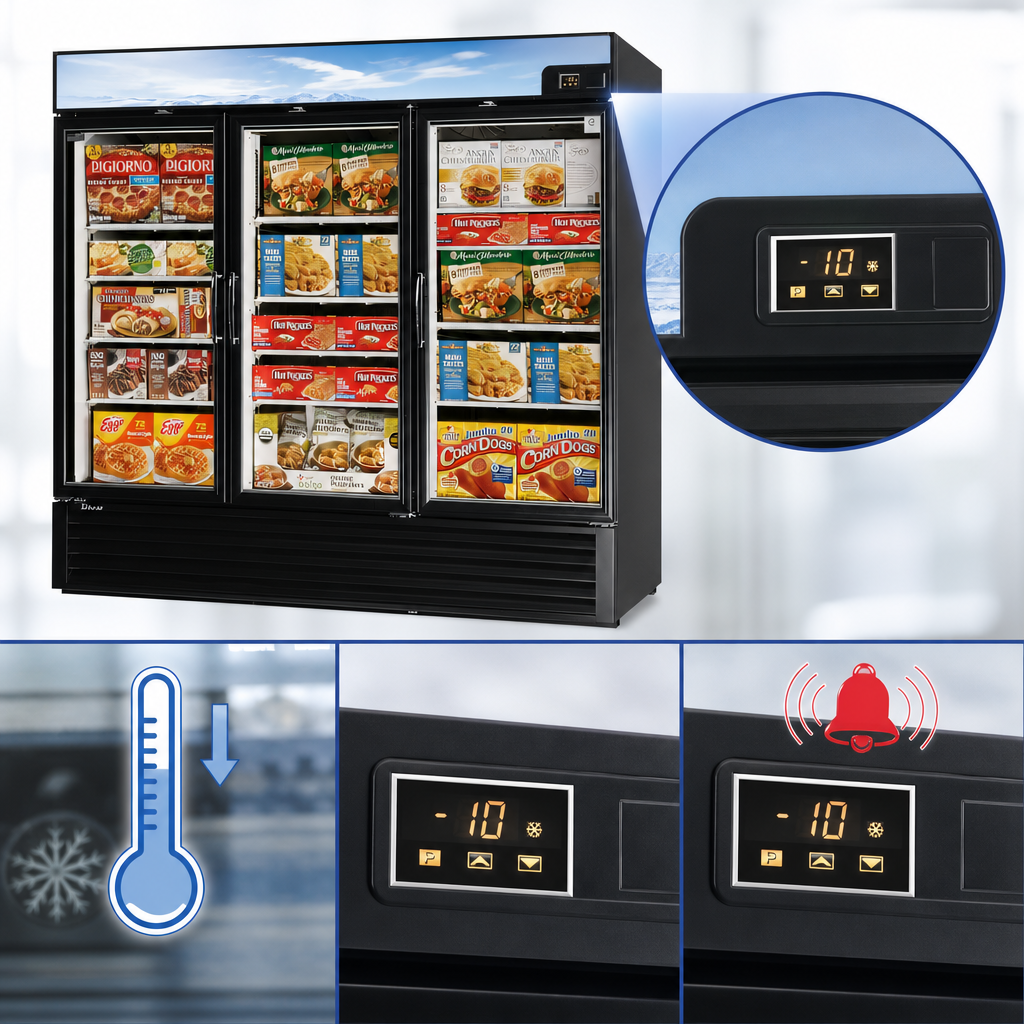

- Digital temperature controller & monitor with Turbo Freeze rapid cool-down, Smart Defrost, door-open alarm, and automatic fan motor delay.
- 12 heavy-duty, PE-coated wire shelves—fully adjustable to fit pizzas, entrées, or bagged ice.
- LED interior lighting and illuminated top sign panel for eye-catching product presentation.
- Eco-friendly R-290 hydrocarbon refrigerant (ODP 0, GWP 3).
- 115 V plug-and-play operation—no costly 220 V electrical work.
- Durable high-density polyurethane insulation and anti-corrosion coated evaporator for long service life.
Ideal for
- Grocery & convenience stores
- School & hospital cafeterias
- Stadium and arena concessions
- Any operation needing reliable frozen merchandising in a compact footprint
Specifications

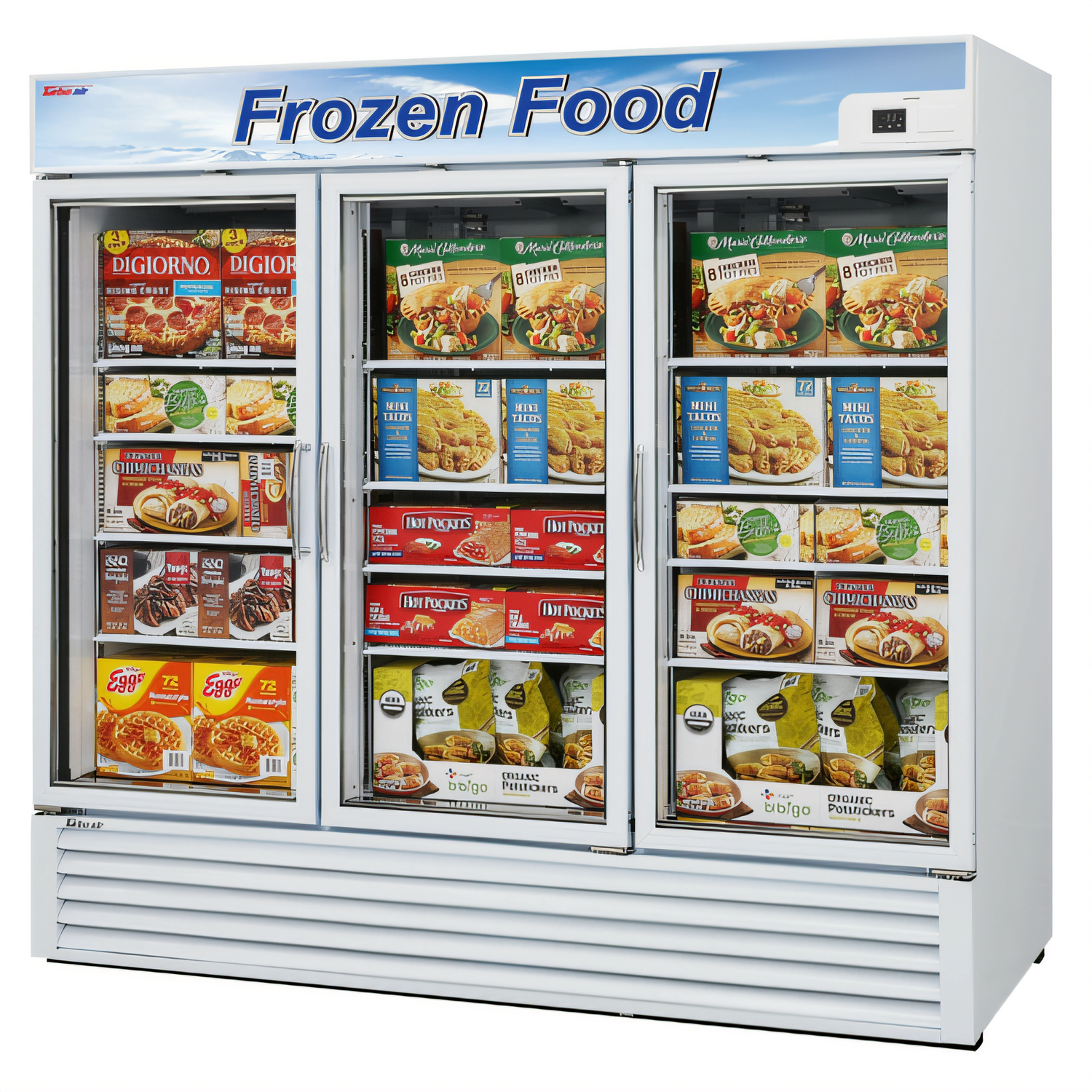

| Model | TGF-72F(B)-N (specify exterior color – black or white) |
|---|---|
| Capacity | 58.45 cu. ft. |
| Temperature Range | -10°F to 5°F (-23°C to -15°C) |
| Doors / Type | 3 hinged, self-closing, triple-pane heated glass doors |
| Shelves | 12 adjustable PE-coated wire shelves (25" W × 22 1⁄4" D) |
| Exterior Dimensions (W×D×H) | 81 7⁄8" × 29 1⁄8" × 78 1⁄4" (2079 × 741 × 1987 mm) |
| Compressor | (2) 2/3 HP bottom-mount, self-contained |
| Refrigerant | R-290 Hydrocarbon |
| Electrical | 115 V / 60 Hz / 1-phase, 15.2 A, 7 ft cord with NEMA 5-20P plug |
| Certifications | cETLus, ETL-Sanitation |
| Net / Ship Weight | 800 lb / 848 lb |
| Warranty | 2-year parts & labor, additional 3-year compressor |
Energy-smart refrigeration
Independent two-cycle refrigeration, hydrocarbon refrigerant, and LED illumination work together to slash operating costs while safeguarding the environment. The system automatically defrosts only when necessary and delays evaporator fan start-up after door openings to trap more cold air inside the cabinet.
Peace-of-mind protection
- Door-open alarm helps prevent product spoilage.
- Self-diagnosis communicates service codes for fast troubleshooting.
- High-density foamed-in insulation locks in temperatures even during busy rushes.
Need extra shelves, price tag channels, or casters? Ask us about available Turbo Air accessories when ordering.
