Turbo Air TGF-35SDH-N Super Deluxe Glass Door Merchandisers
Turbo Air TGF-35SDH-N Super Deluxe Glass Door Merchandisers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

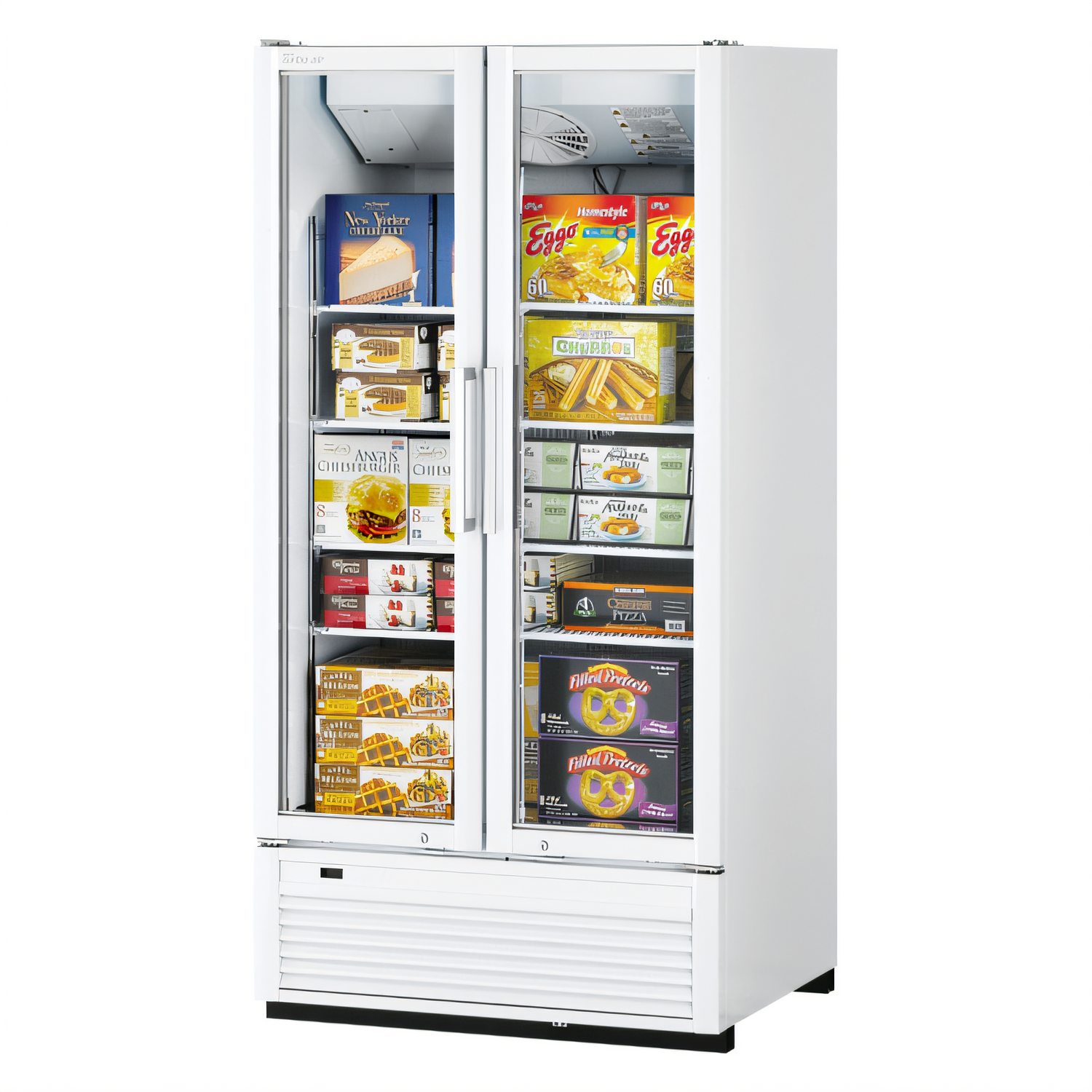

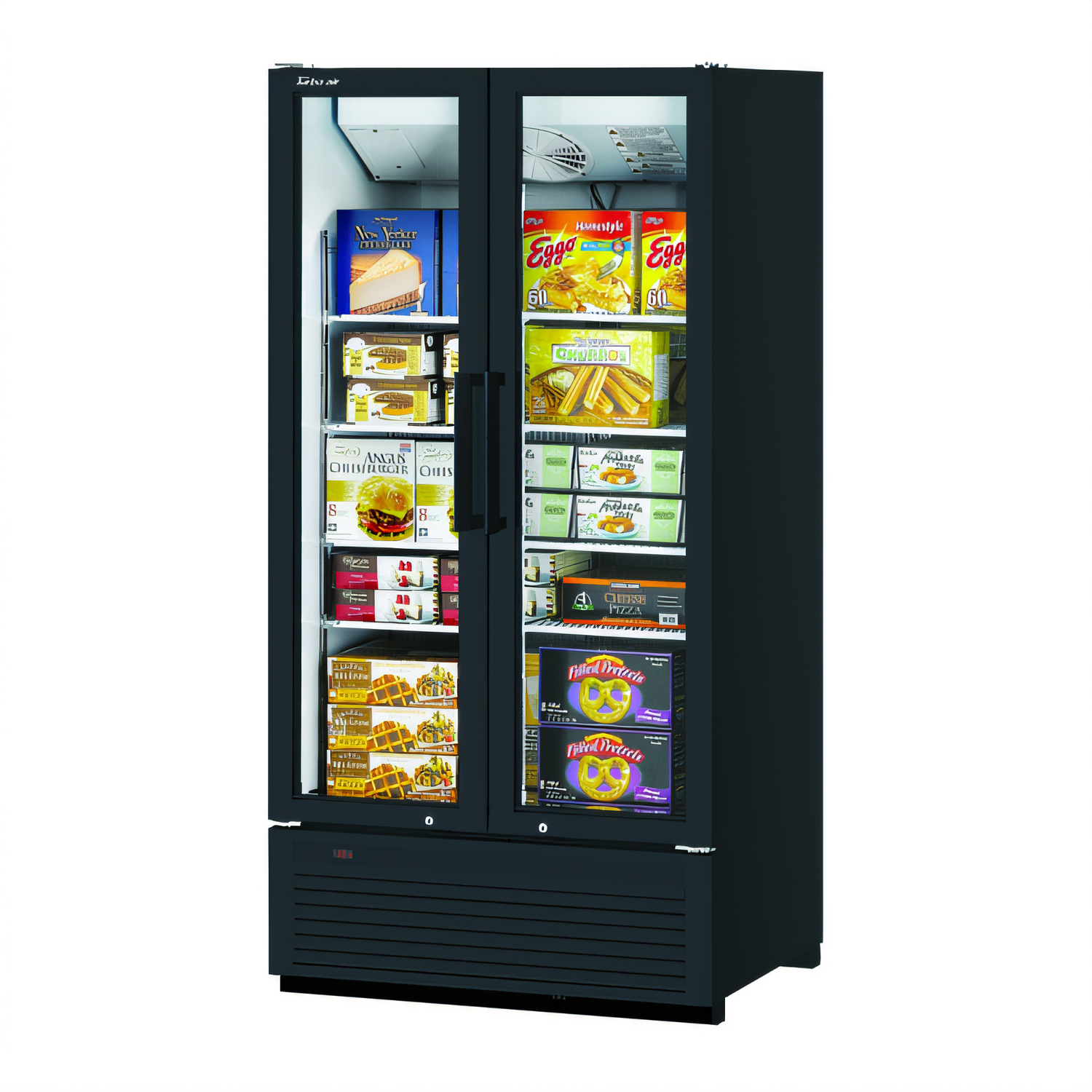

Turbo Air Super Deluxe Glass Door Freezer Merchandiser
Model TGF-35SDH-N · 30.9 cu ft · -10° to -5 °FPut your frozen best-sellers front and center while slashing maintenance time and energy costs. Turbo Air’s Super Deluxe two-section merchandiser combines brilliant product visibility with a patented self-cleaning condenser and eco-friendly R-290 refrigerant—perfect for grocery, c-store, concessions and more.
Why you’ll love it
- Patented Self-Cleaning Condenser removes dust daily to prevent system failure and costly service calls.

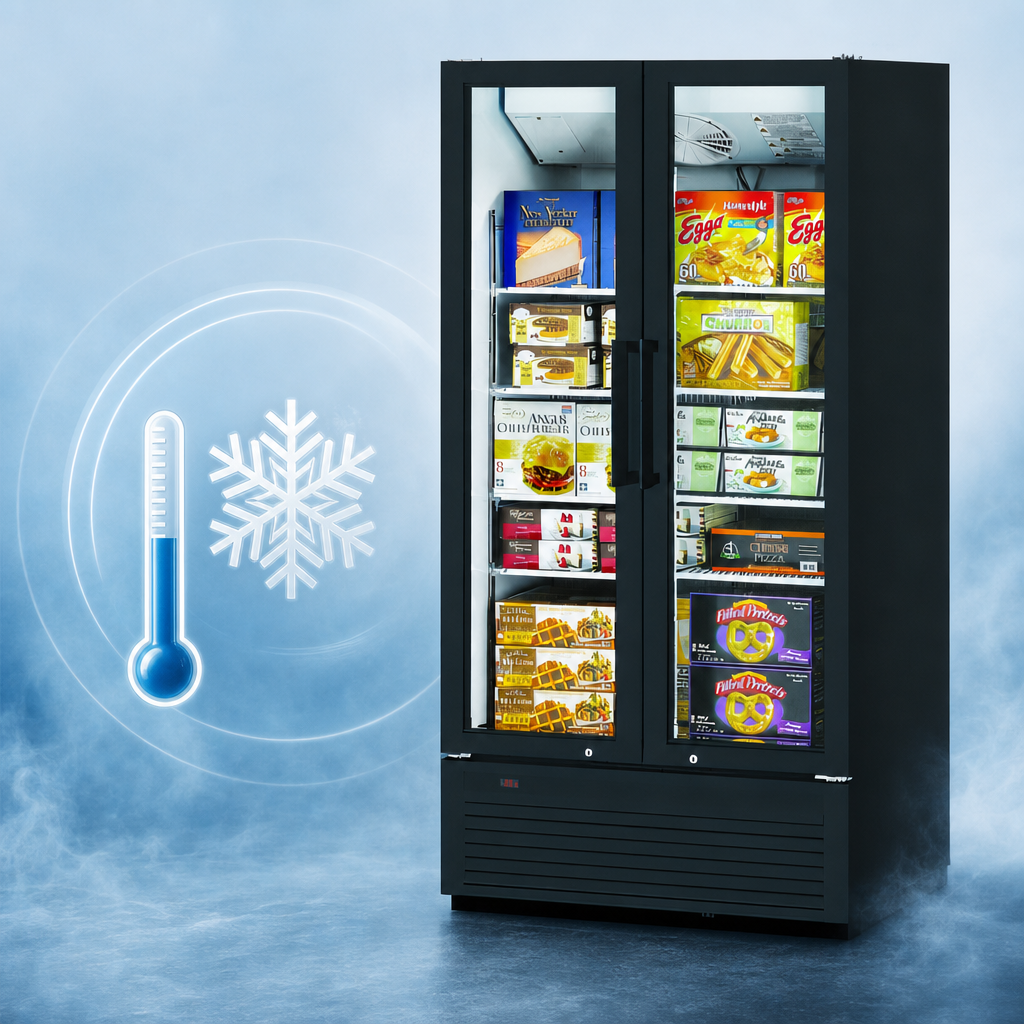

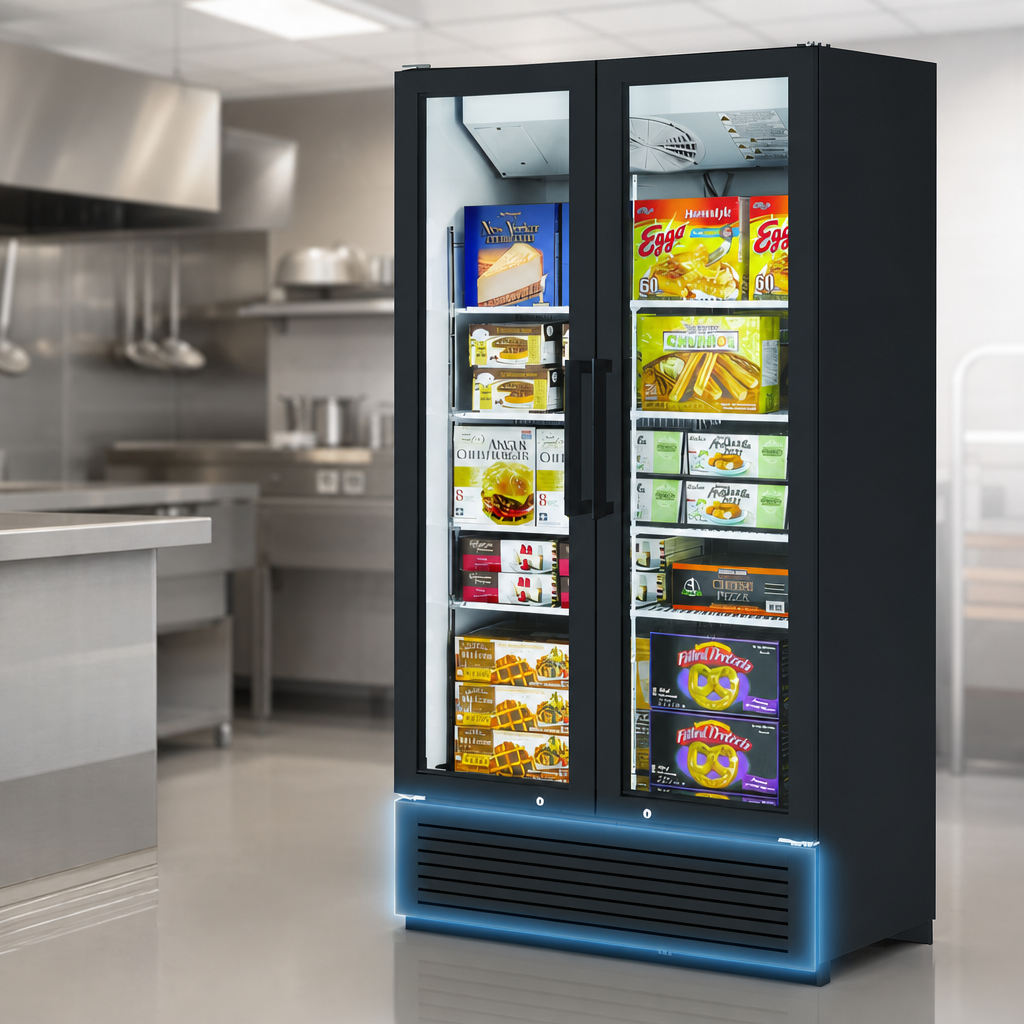

- Bottom-mounted, self-contained refrigeration maintains an ultra-cold -10° to -5 °F for rock-solid ice-cream storage.
- Triple-pane heated glass doors cut condensation, lockable for overnight security, and trigger an alarm if left open.
- Exterior digital controller with Turbo Freeze, Smart Defrost & self-diagnostics keeps operation simple and precise.
- Brilliant LED canopy + interior lighting maximizes product appeal with minimal heat and power draw.
- (8) full-width, height-adjustable PE-coated wire shelves handle heavy loads without sagging.
- Energy-saving fan algorithm trims fan runtime by up to 15 % and extends component life.
- No electric frame heater—waste heat from the compressor prevents door sweat for additional kWh savings.
- High-density, foamed-in-place polyurethane insulation locks in cold and lowers running costs.
- Natural R-290 refrigerant meets current DOE & EPA standards (ODP 0 / GWP 3).
Technical specifications
Model | TGF-35SDH-N (Super Deluxe series) |
---|---|
Capacity | 30.9 cu ft / 874 L |
Doors | 2 hinged, triple-pane heated glass |
Exterior finish | White or Black powder-coated steel (specify) |
Interior finish | White aluminum with stainless floor |
Shelves supplied | 8 adjustable PE-coated wire (17" × 22½") |
Temperature range | -10° to -5 °F (-23° to -21 °C) |
Refrigeration system | Bottom mount, self-contained, ⅔ HP |
Refrigerant | R-290 Hydrocarbon |
Voltage / Phase | 115 V / 60 Hz / 1-ph |
Amps | 6.8 A |
Plug | NEMA 5-20P (7 ft cord) |
Dimensions (W×D×H) | 39 ½" × 32 ⅛" × 79 ½"* |
Net / Ship weight | 454 lb / 519 lb |
Certifications | cETLus, ETL-Sanitation, ENERGY STAR® |
*Height includes 2 ½" adjustable legs; depth excludes 2 ¼" door handles.
Included & optional
- Factory-installed door locks & door-open alarm
- Anti-corrosion coated evaporator
- Automatic fan-motor delay for moisture control
- Optional 4" casters (brake / non-brake) and additional shelves
Best-in-class warranty
Covered by Turbo Air’s 5-year parts & labor warranty plus an additional 2-year compressor warranty – that’s 7 years of compressor protection for total peace of mind.
Need layout advice or freight quote? Our product specialists are ready to help.
