Turbo Air  |  SKU: TGF-23FAB-N

Turbo Air TGF-23FAB-N Glass Door Merchandisers

$7,508.81
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Display Refrigeration Food Merchandisers Glass Door Merchandisers Turbo Air

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

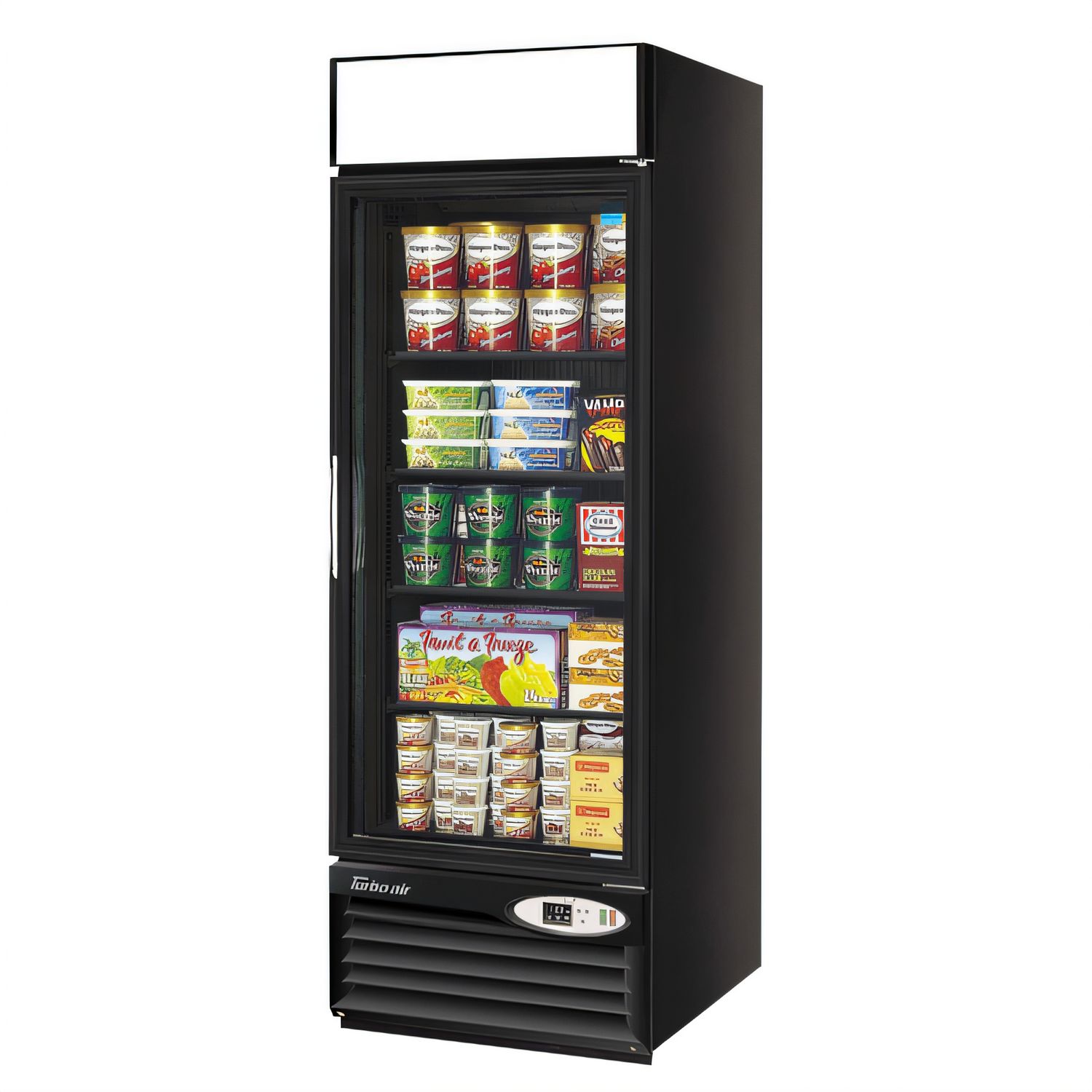

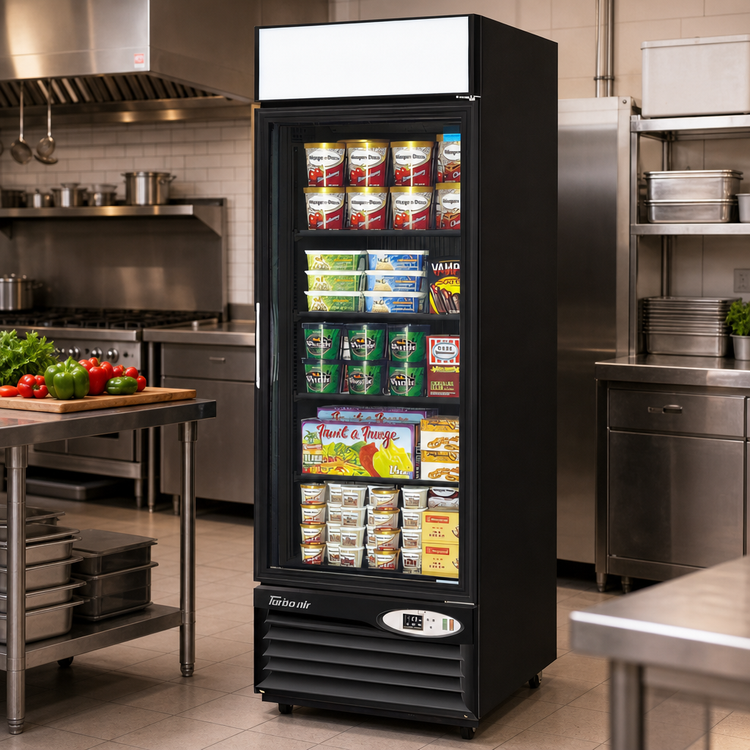

Turbo Air TGF-23FAB-N Glass Door Freezer Merchandiser

17.7 cu. ft. • 1 Hinged Swing Door • Black Exterior & Interior

Showcase ice-cream, frozen entrées or grab-and-go treats while keeping them locked at a consistent –10 °F to 5 °F. Turbo Air’s TGF-23FAB-N combines energy-saving triple-pane heated glass, brilliant LED lighting and a powerful bottom-mount compressor in a sleek, space-saving footprint that’s perfect for c-stores, coffee shops and concession stands.

Why You’ll Love It

  • Digital temperature control & monitoring with self-diagnosis, Turbo Freeze rapid cool-down and Smart Defrost for maximum food safety and efficiency.
  • Door-open alarm plus automatic evaporator fan motor delays prevent cold-air loss when stocking.

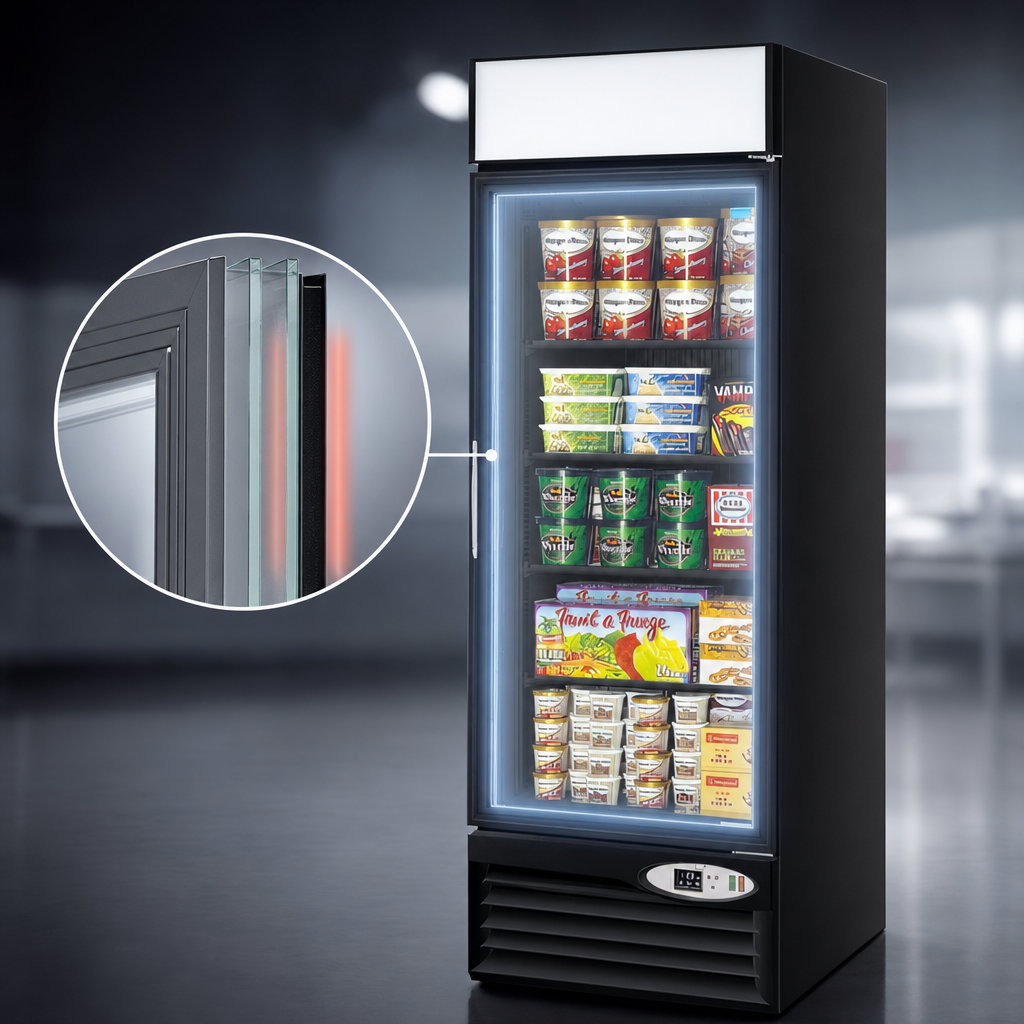

  • Triple-pane heated glass door virtually eliminates condensation and reduces energy costs.
  • Bright, long-lasting LEDs light the interior and the illuminated top sign panel to draw customer attention.
  • 4 adjustable, heavy-duty PE-coated wire shelves adapt to product changes in seconds.
  • Eco-friendly R-290 hydrocarbon refrigerant meets the latest DOE & EPA standards (ODP 0 / GWP 3).
  • Ergonomic self-closing door with magnetic gasket and easy-grip handle enhances customer convenience.
  • High-density polyurethane insulation is foamed-in-place for superior cold retention.
  • Anti-corrosion coated evaporator extends equipment life in high-humidity environments.

Technical Specifications

Model TGF-23FAB-N
Capacity 17.7 cu. ft. (501 L)
Door type 1 hinged swing, triple-pane heated glass, self-closing
Shelves (included) 4 adjustable PE-coated wire shelves – 21 ½" × 22 ½"
Exterior dimensions 27" W × 29 ¾" D × 78 ¼" H
Add 1 ⅜" to depth for door handle.
Interior dimensions 23" W × 24 ⅛" D × 60 ⅜" H
Temperature range –10 °F to 5 °F (–23 °C to –15 °C)

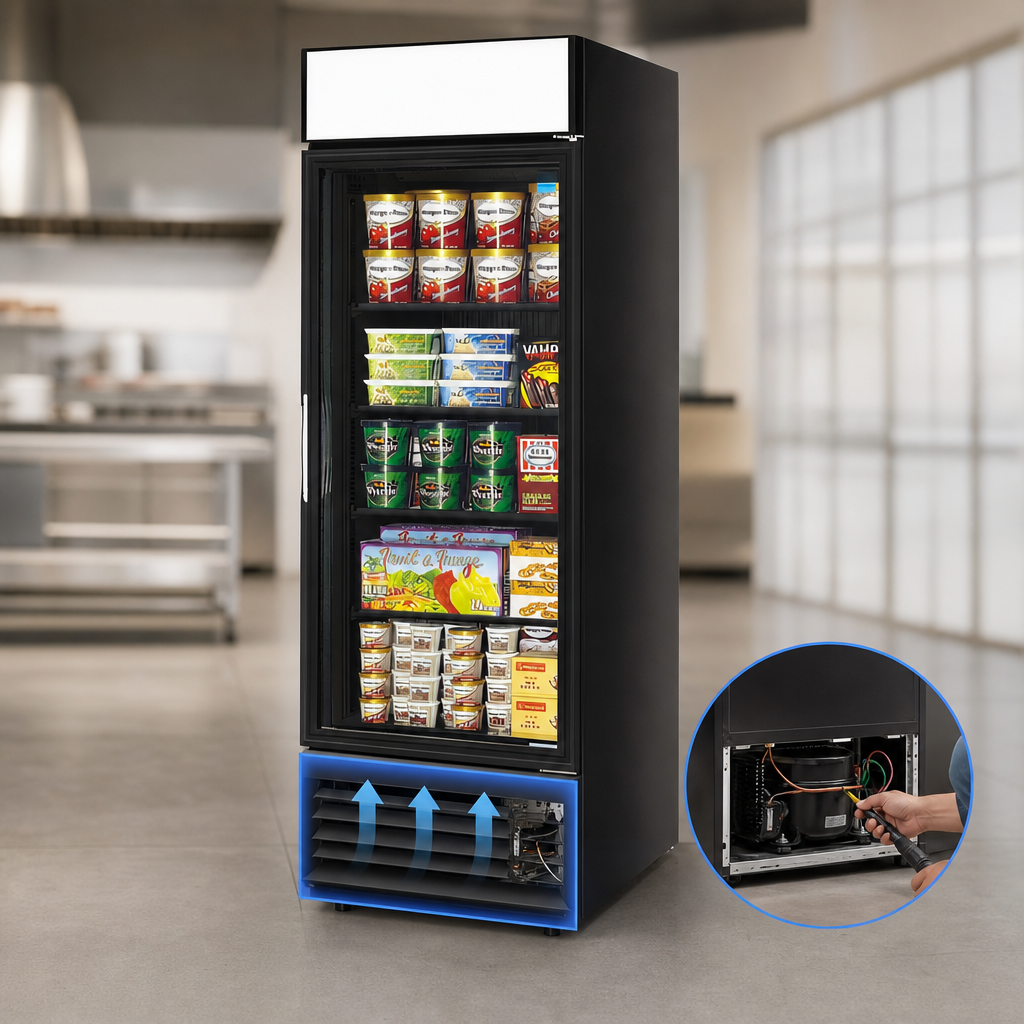

Compressor Bottom-mount, ⅔ HP
Refrigerant R-290 (hydrocarbon)
Electrical 115 V / 60 Hz / 1-phase, 5.3 A, NEMA 5-15P
7 ft. power cord
Net / Crated weight 355 lb / 376 lb
Certifications cETLus, ETL-Sanitation, ISO 9001:2008
Warranty 2 years parts & labor + 3 additional years on compressor

Included

  • LED interior lighting & top sign panel
  • Magnetic door gasket (field-replaceable)
  • Door-open alarm & automatic fan delay
  • Adjustable digital controller with easy-read LED display

Popular Accessories (sold separately)

  • 4" swivel casters – locking & non-locking sets
  • Additional PE-coated shelf kits
  • Price-tag molding strips
  • Blank replacement sign panel
Installation note: Allow adequate clearance at the rear and sides for proper ventilation. This unit is intended for indoor use on a dedicated 115 V circuit.

Features & Specs

Manufacturer

Turbo Air

Certifications

cETLus, ETL-Sanitation

Height

78.25in

Width

27.0in

Depth

29.13in

Shipping Weight

376.0lbs

Depth (front - back)

standard

Size

1 section

Doors

hinged

Compressor HP

2/3 HP

Capacity

9 - 23 cu. ft.

Refrigeration

self-contained, bottom mounted

Exterior Finish

black

Specifications

Glass door merchandisers, Swing door freezer, one-section, 17.7 cu. ft. capacity, 27"W x 29-1/8"D x 78-1/4"H, bottom mount self-contained refrigeration, (1) hinged triple pane heated glass door, (4) adjustable PE coated wire shelves, LED lighting, digital temperature controller, monitoring system, door opening alarm, automatic fan motor delays, Turbo freezing, smart defrost, LED top sign panel, black exterior and interior, R290 Hydrocarbon refrigerant, 2/3 HP, 115v/60/1-ph, 5.3 amps, cord with NEMA 5-15P, cETLus, ETL-Sanitation
