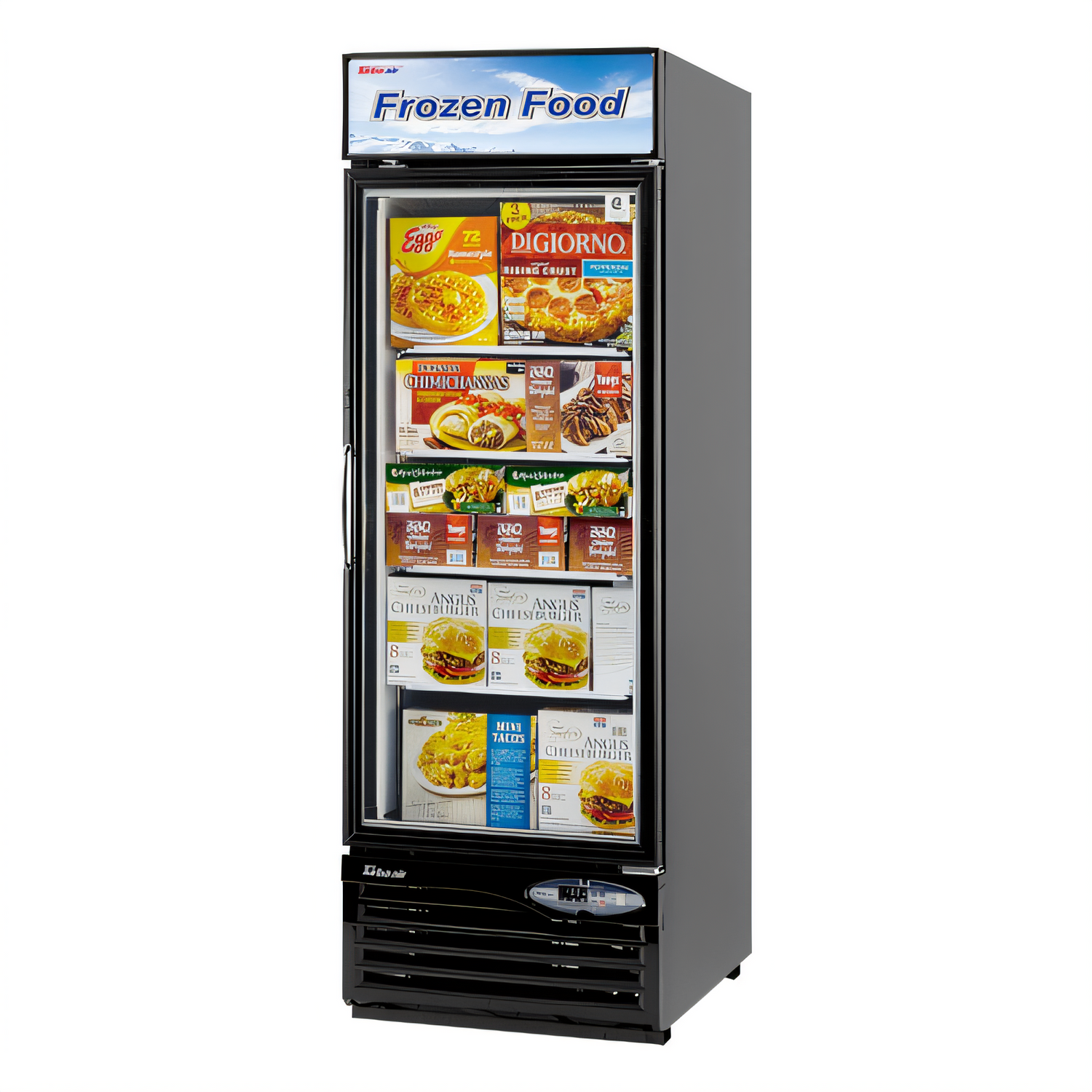

Turbo Air TGF-23F(B)-N One-Section Glass Door Freezer Merchandiser
17.7 cu. ft. • -10°F to 5°F holding range • Bottom-mount self-containedShowcase ice-cream, entrées, and grab-and-go meals in crystal-clear style while keeping them safely frozen. The Turbo Air TGF-23F(B)-N combines eye-catching LED illumination, smart energy-saving technology, and rugged construction to deliver years of reliable merchandising performance.
Key features

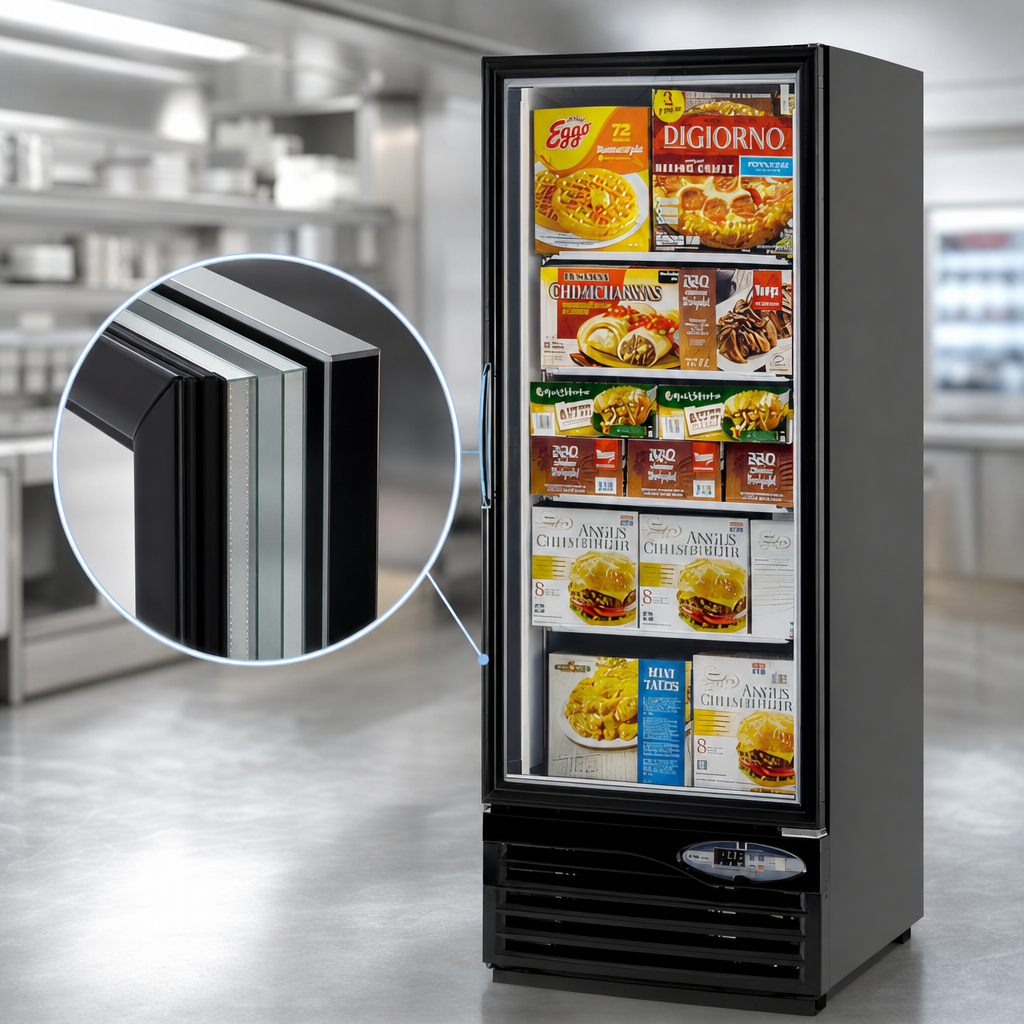

- Hinged triple-pane heated glass door virtually eliminates condensation and maximises product visibility.
- Bright, long-lasting LED interior lighting + top sign panel attracts impulse buyers while cutting utility costs.

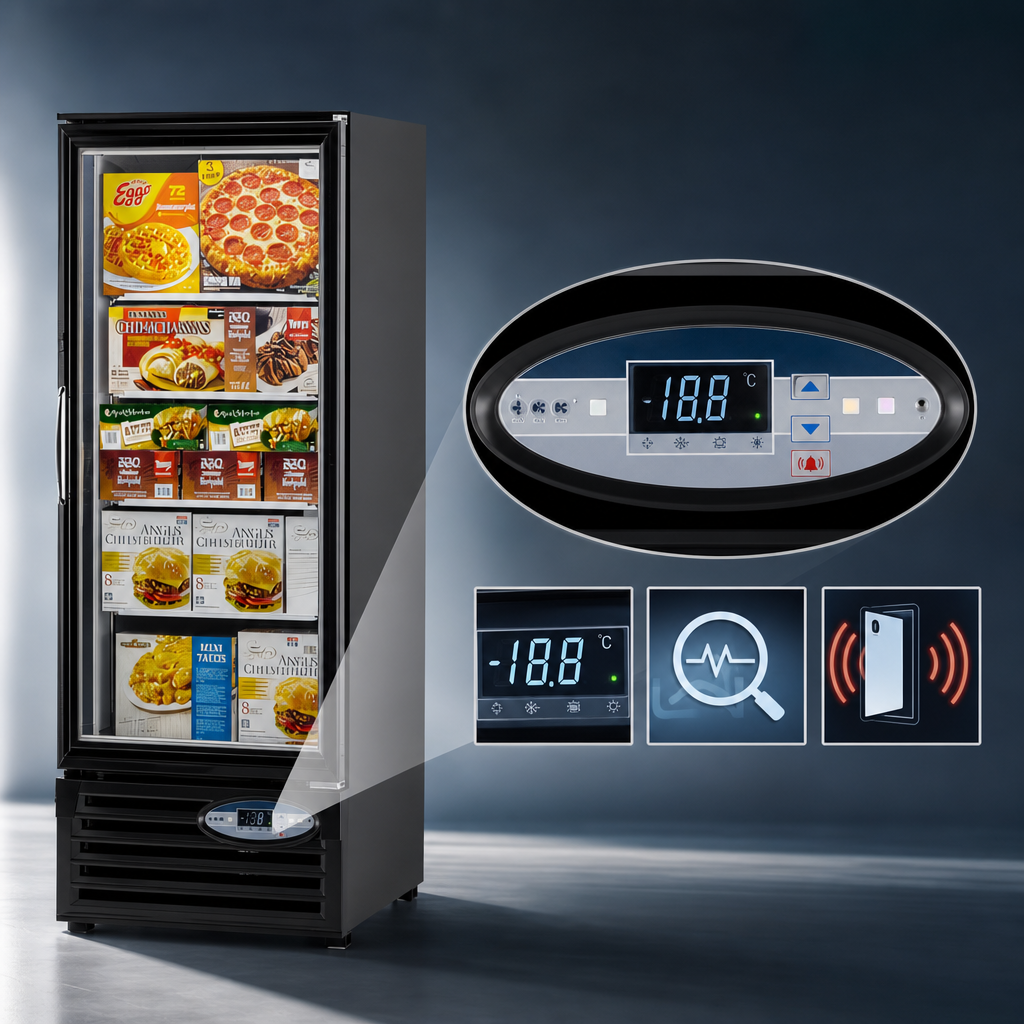

- Precise digital controller & monitoring system with door-open alarm, Turbo Freeze rapid pull-down, Smart Defrost, and automatic fan-delay for rock-solid temperature consistency.
- Eco-friendly R-290 hydrocarbon refrigerant meets DOE 2017 efficiency standards (ODP 0 / GWP 3).
- (4) adjustable heavy-duty PE-coated wire shelves handle everything from pints to pizza boxes.
- High-density polyurethane insulation and anti-corrosion coated evaporator for maximum cold retention and durability.
- Ergonomic easy-grip handle, self-closing door, and magnetic gaskets streamline customer interaction and product rotation.

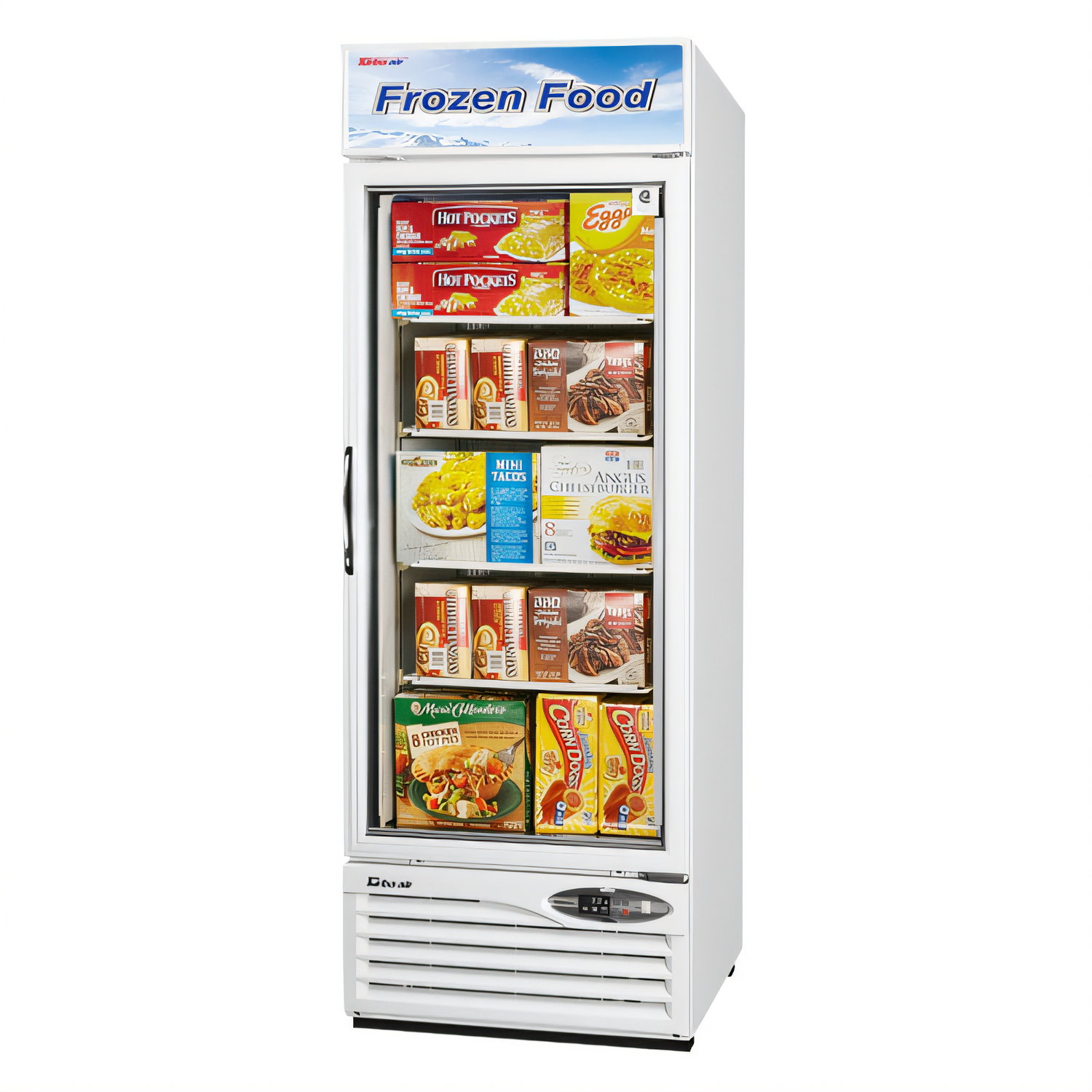

- Specify your look: Black or White exterior (no up-charge).
At-a-glance specs
Model | TGF-23F(B)-N |
---|---|
Net capacity | 17.7 cu. ft. (501 L) |
Doors | 1 swinging, triple-pane heated glass |
Shelves | 4 adjustable PE-coated wire |
Holding range | -10°F to 5°F (-23°C to -15°C) |
Exterior dimensions | 27" W × 29 ¾" D × 78 ¼" H |
Compressor | 2 ⁄ 3 HP, bottom-mounted |
Refrigerant | R-290 (hydrocarbon) |
Electrical | 115 V / 60 Hz / 1 Ø, 5.3 A, 7 ft cord, NEMA 5-15P |
Certifications | cETLus, ETL-Sanitation |
Shipping weight | Approx. 376 lb (170 kg) |
Warranty | 2-year parts & labor + additional 3-year compressor |
Smart refrigeration technology
- Digital control & diagnostics provide real-time readouts and self-diagnosis to minimise downtime.
- Turbo Freeze speeds recovery after restocking—perfect for busy rushes.
- Smart Defrost activates only when ice build-up is detected, saving energy and preventing freezer burn.
- Automatic fan motor delay keeps cold air inside the cabinet when the door is opened.
Perfect for
- Convenience stores & fuel stations
- Supermarkets & specialty grocers
- Campus, healthcare & corporate grab-and-go zones
- Quick-service restaurants & bars
Need 4" casters, extra shelves, or a blank sign panel? Ask our team for available accessories and we’ll customise your order.
