Turbo Air

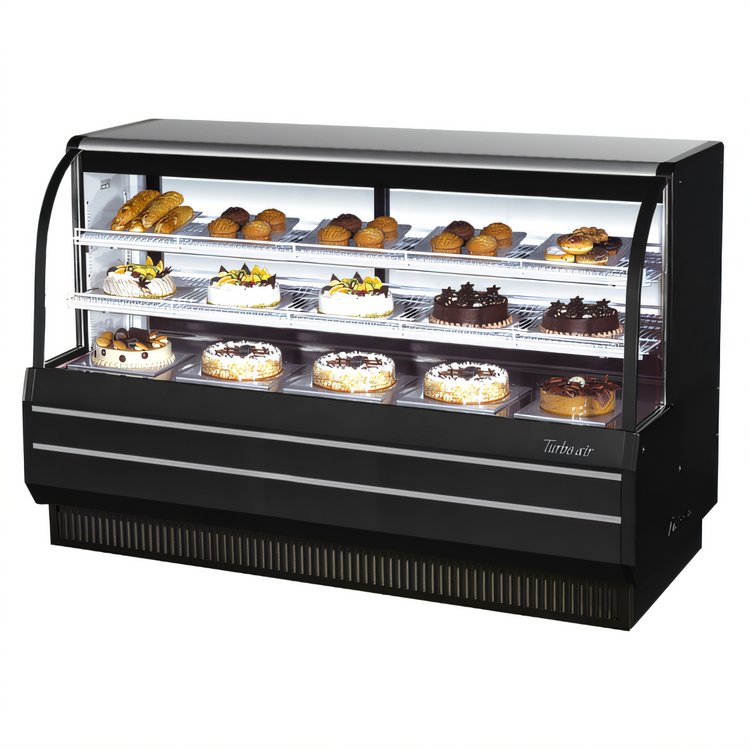

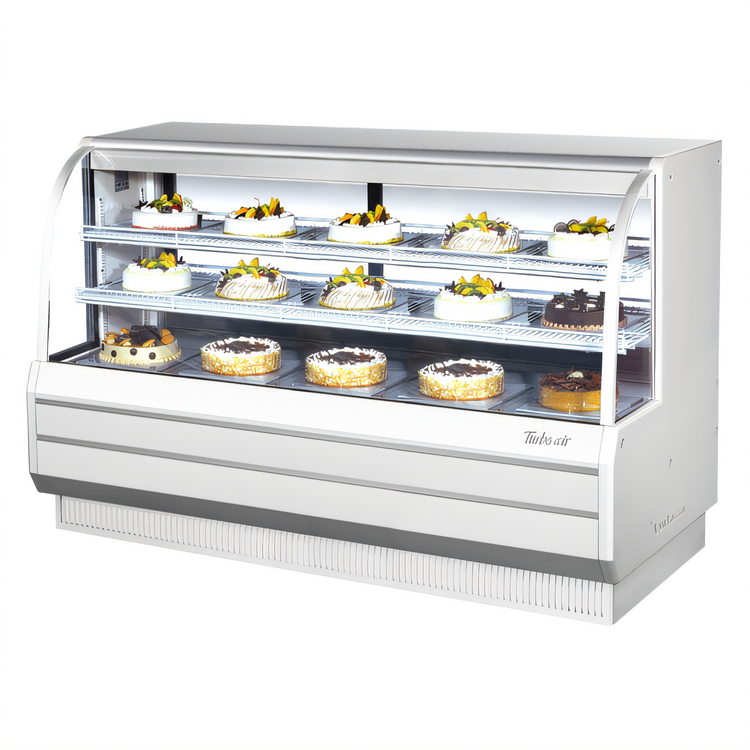

Turbo Air Full-Service Curved Glass Refrigerated Bakery Display Case, 72 1/2-Inch Wide, 23.2 Cu. Ft., Self-Contained, R-290

SKU: TCGB-72-W(B)-N
$15,362.43
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bakery Display Cases Best Sellers Commercial Refrigeration Commercial Refrigerators New Arrivals Restaurant Equipment Turbo Air

Turbo Air Full-Service Curved Glass Refrigerated Bakery Display Case, 72 1/2-Inch Wide, 23.2 Cu. Ft., Self-Contained, R-290

Self-Cleaning Condenser, Sliding Rear Doors, White or Black Exterior Options

Display bakery items in a high-visibility case that maintains 33°F to 41°F while helping reduce maintenance with a patented self-cleaning condenser.

  • 72 1/2-inch-wide refrigerated bakery display case with 23.2 cu. ft. of capacity
  • Curved tempered front glass and LED shelf lighting create strong product visibility
  • Self-contained R-290 refrigeration requires no plumbing
  • Includes 2 adjustable cantilevered wire shelves and sliding rear doors for easy loading
  • Self-cleaning condenser helps keep the system clear of dust buildup
  • Available in white or black exterior options to match your storefront

Overall Dimensions:

72.5"W x 34.25"D x 49.87"H

Product Weight:

847.0 lb

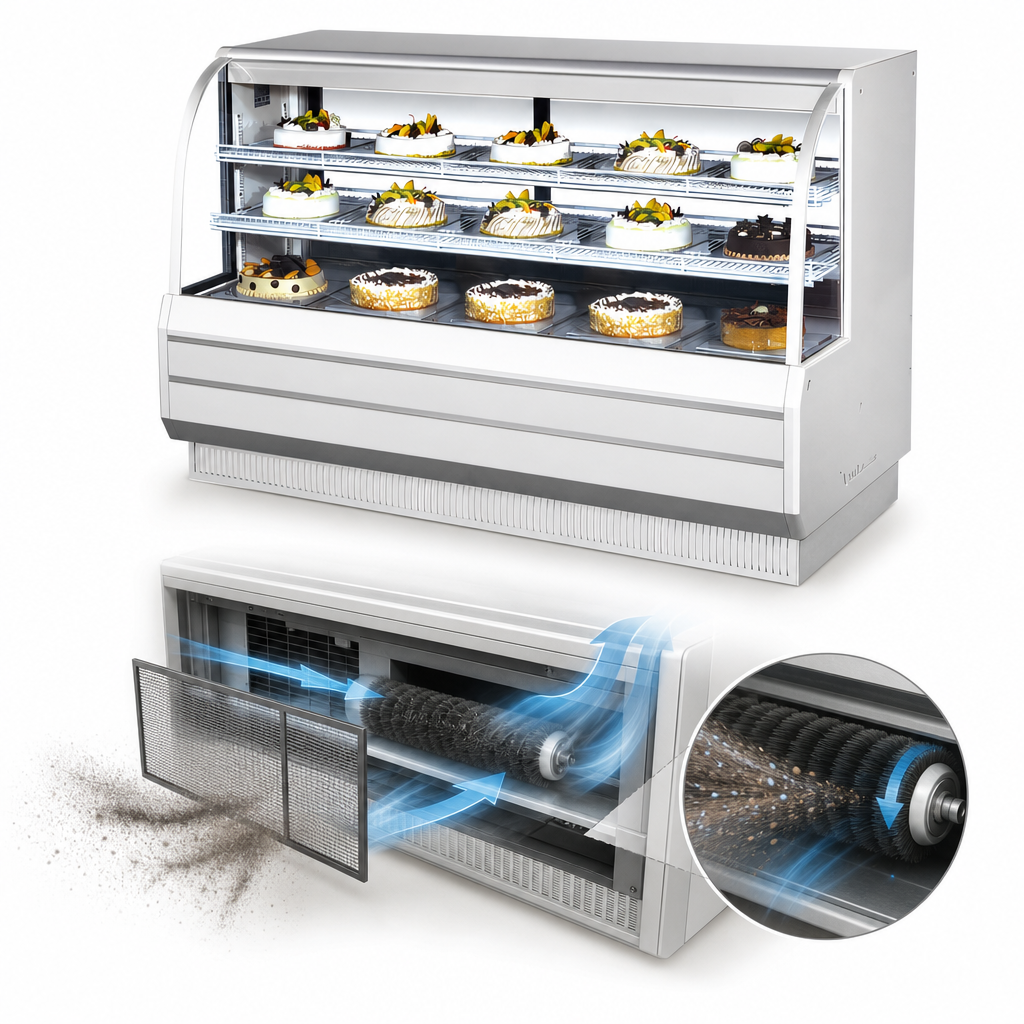

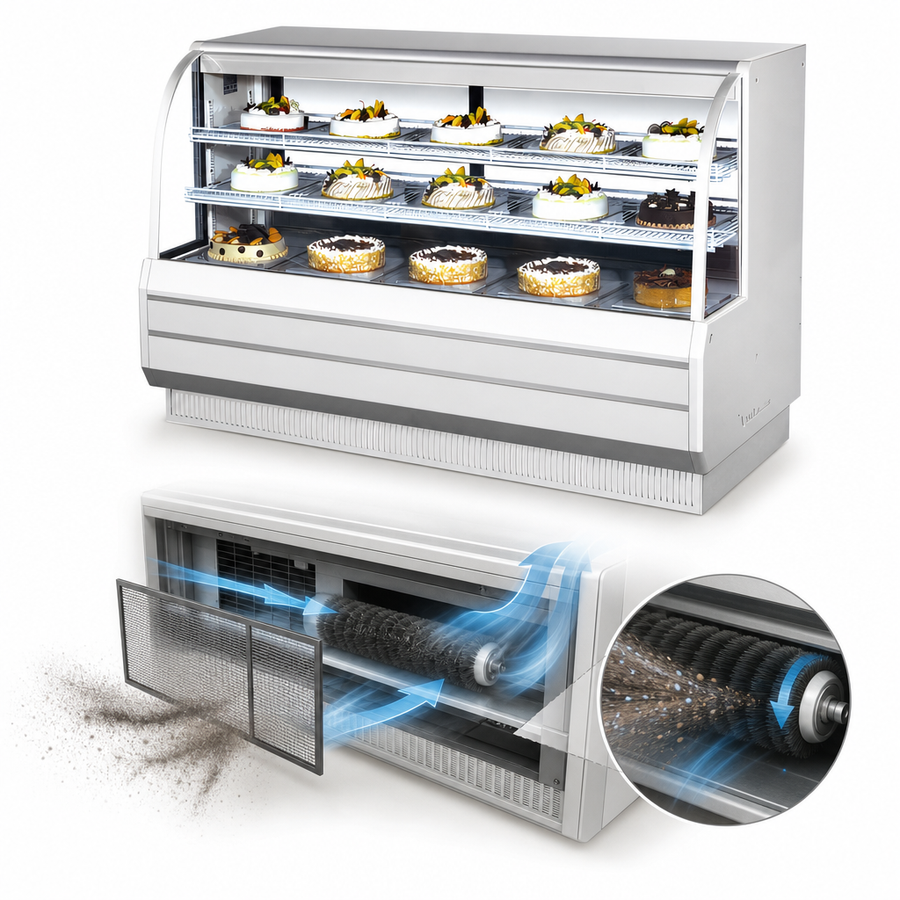

Patented Self-Cleaning Condenser

A front mesh filter and rotating brush help remove dust buildup automatically to support reliable performance and lower maintenance.

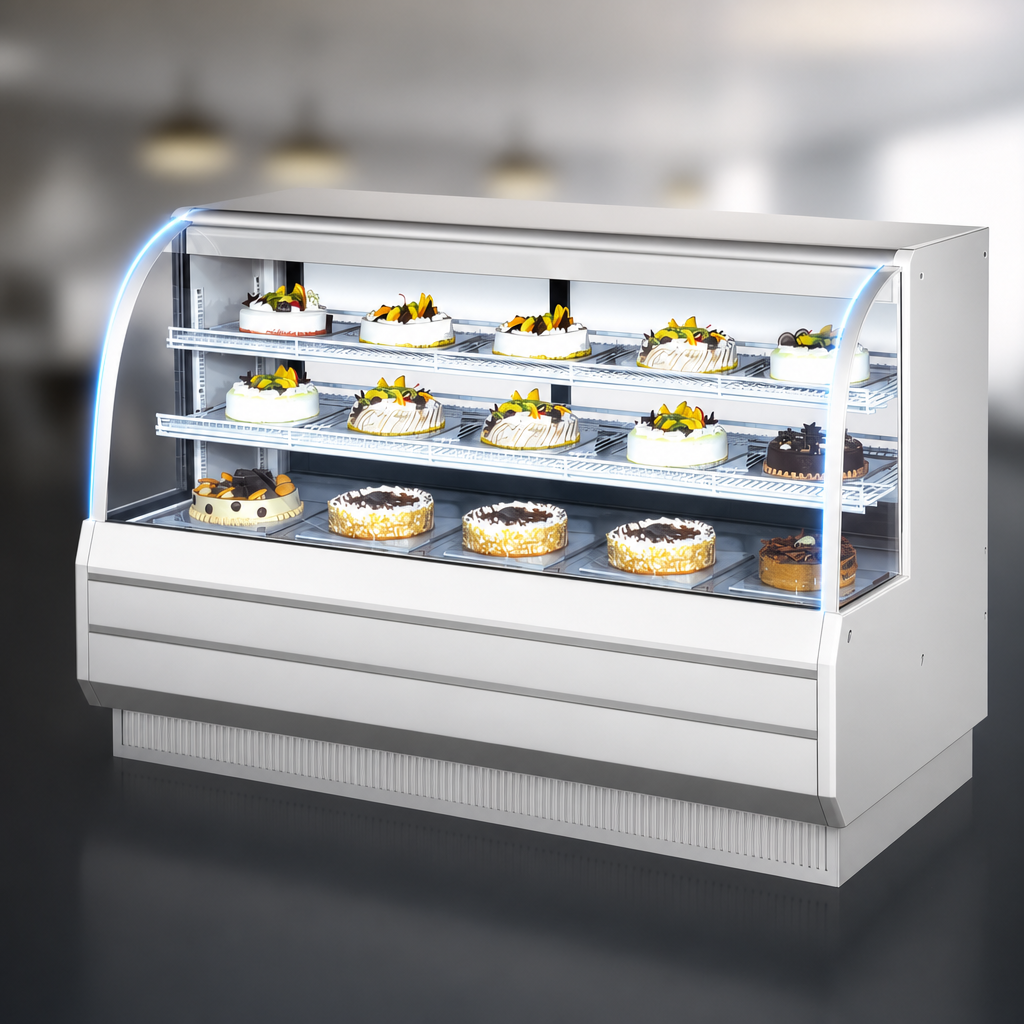

Curved Tempered Front Glass

The curved glass front and minimal-frame Euro design provide excellent product visibility for attractive merchandising.

Self-Contained R-290 Refrigeration

Built-in refrigeration uses eco-friendly R-290 hydrocarbon refrigerant and requires no plumbing connection.

LED Shelf Lighting

LED lighting under each shelf helps highlight bakery items and improve display presentation.

Adjustable Cantilevered Wire Shelves

Two adjustable wire shelves can be moved and tilted to help organize and present different bakery products.

Sliding Rear Doors

Rear sliding doors make it easier to load and unload products from the back of the case.

High-Density Polyurethane Insulation

Foamed-in-place insulation helps the cabinet retain temperature efficiently.

Digital Temperature Control

A digital electronic thermostat with defrost control supports consistent refrigerated operation.

Stainless Steel Floor and Airflow Grille

Durable stainless steel floor and airflow grille improve cleanliness and wear resistance in the display area.

Bolt-Height Adjustment

Bolt height can be adjusted up to 2-3/4 inches for installation flexibility.

Type Refrigerated Bakery Display Case
Style Curved Glass
Installation Type Floor Model
Capacity 23.2 Cu. Ft.
Refrigeration Type Self-Contained
Refrigerant Type R-290
Controls Digital Electronic Thermostat
Temperature Range 33°F to 41°F
Shelf Quantity 2
Voltage 115 Volts
Amps 8.6 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 4 7/8 Feet
Material Steel
Finish Anti-Rust Coated Paint
Selling Unit Each
Units Per Case 1
Shipping Width 73 Inches
Shipping Depth 35 Inches
Shipping Height 50 Inches
Shipping Weight 847 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2-year parts and labor; additional 3-year compressor warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

No. It uses a self-contained refrigeration system, so no plumbing is required.
The case is designed to hold products at approximately 33°F to 41°F.
It includes 2 adjustable cantilevered wire shelves.
It operates on 115 Volts, 60 Hz, 1-phase power and draws 8.6 amps with a NEMA 5-15P plug.
White and black exterior colors come standard.
