Key specifications
- Amps
- 7.8 Amps
- Phase
- 1-Phase
- Dimensions
- 72.5"W × 30.0"D × 50.5"H
- Type
- Deli Case
- Style
- High Profile
- Installation Type
- Floor Model
Spec sheet

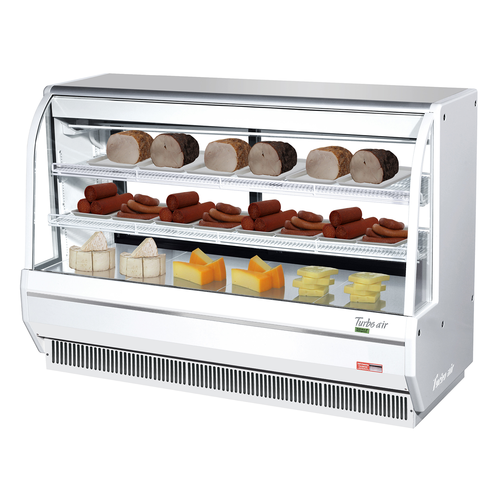

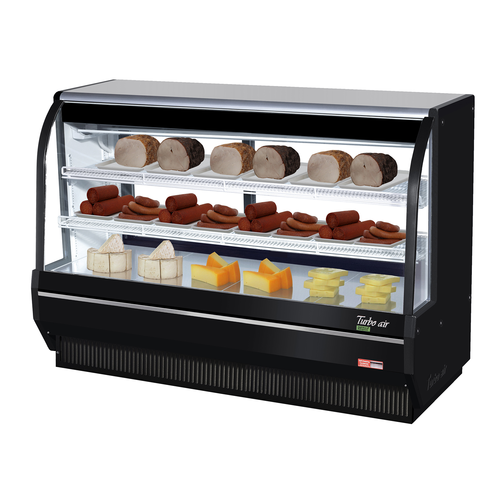

Turbo Air TCDD-72H-W(B)-N High-Profile Curved Glass Full-Service Refrigerated Deli Case, 72.5 in., Self-Contained, 2 Shelves
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
High-profile refrigerated deli display. This full-service deli case provides 24.7 cu. ft. of refrigerated capacity in a self-contained design with a 33°F to 41°F temperature range.
- Curved tempered front glass supports product visibility.
- Two adjustable cantilevered wire shelves with LED interior lighting under each shelf.
- Sliding rear doors support product loading and unloading.
- Non-peel, anti-rust-coated paint steel exterior with a stainless steel floor and airflow grille.
- A self-cleaning condenser device uses a fine mesh filter and rotating brush to remove condenser buildup daily.
- Rear access to the compressor compartment supports service access.
- Electrical configuration is 115 Volts, 60 Hz, 1-Phase, 7.8 Amps, with a NEMA 5-15P plug.
Overall Dimensions:
72.5"W x 30.0"D x 50.5"HProduct Weight:
777.0 lbSelf-Cleaning Condenser
A fine mesh filter and rotating brush remove condenser buildup daily.
Self-Contained Refrigeration
The self-contained system requires no plumbing.
Curved Tempered Front Glass
Curved tempered front glass supports product visibility.
Adjustable Cantilevered Wire Shelves
Includes two adjustable cantilevered wire shelves.
LED Interior Lighting
LED lighting is positioned under each shelf.
Sliding Rear Doors
Sliding rear doors support product loading and unloading.
Rear Compressor Access
The compressor compartment is accessible from the rear.
