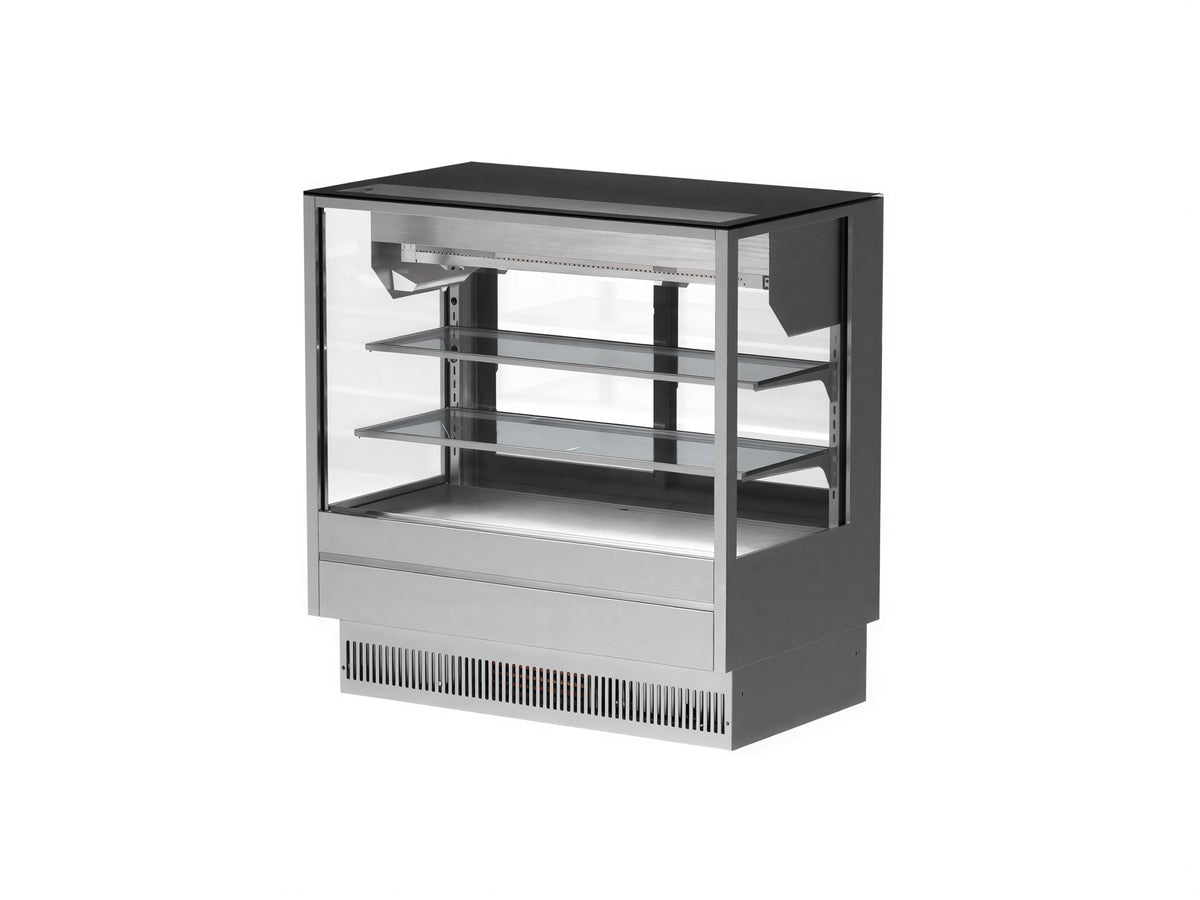

Turbo Air TCDD-48H-UF-S-N Refrigerated Deli Case, Straight Glass, Self-Contained, 2 Shelves, 48-1/2"W x 29-5/8"D x 49-7/8"H
$14,169.47
/each
Ships in 7–10 business days
- Amperage
- 7.0 A
- Dimensions
- 48.5"W × 29.63"D × 49.88"H
- Case Type
- Direct cooling deli case
- Service Type
- Full service
- Refrigeration
- Self-contained
- Net Capacity
- 16.32 cu. ft.
Specifications
Case Type
Direct cooling deli case
Service Type
Full service
Refrigeration
Self-contained
Net Capacity
16.32 cu. ft.
Front Glass
Straight tempered front glass
Rear Doors
Sliding
Shelf Quantity
2
Shelf Type
PE-coated wire
Interior Lighting
LED lighting under each shelf
Condenser
Self-cleaning condenser device
Refrigerant
R-290 hydrocarbon
Compressor
1/3 HP
Voltage
115 V / 60 Hz / 1 ph
Amperage
7.0 A
Plug Type
NEMA 5-15P
Net Weight
461 lb
Description
The Turbo Air TCDD-48H-UF-S-N is a direct cooling, self-contained refrigerated deli case with a 16.32 cu. ft. capacity and straight tempered front glass.
- Self-cleaning condenser device helps remove condenser dust buildup.
- Sliding rear doors support product loading and unloading.
- Two PE-coated wire shelves are illuminated by LED lighting underneath each shelf.
- The unit uses R-290 hydrocarbon refrigerant and operates on 115 V electrical service.
- An easy-access control panel and rear-access compressor compartment support service access.
Overall Dimensions:
48.5"W x 29.63"D x 49.88"HProduct Weight:
528.8 lbSelf-cleaning condenser
A fine-mesh filter and rotating brush remove condenser buildup daily.
Straight tempered front glass
The straight tempered front glass provides product visibility.
Self-contained refrigeration
The self-contained system requires no plumbing.
Sliding rear doors
Sliding rear doors support product loading and unloading.
Two-shelf display
Includes two PE-coated wire shelves.
LED interior lighting
LED lighting is positioned under each shelf.
Service access
Includes an easy-access control panel and rear-access compressor compartment.
R-290 refrigerant
Uses R-290 hydrocarbon refrigerant.
Documentation
Certifications & Compliance
Frequently Asked Questions
The TCDD-48H-UF-S-N has a 16.32 cu. ft. net capacity.
It includes two PE-coated wire shelves.
No. The self-contained system requires no plumbing.
It operates on 115 V / 60 Hz / 1-phase power, draws 7.0 amps, and uses a NEMA 5-15P plug.
It uses R-290 hydrocarbon refrigerant.
The product measures 48.5 inches wide by 29.63 inches deep by 49.88 inches high.
Product literature lists a 2-year parts and labor warranty plus an additional 3-year warranty on the compressor, for U.S.A. only.
