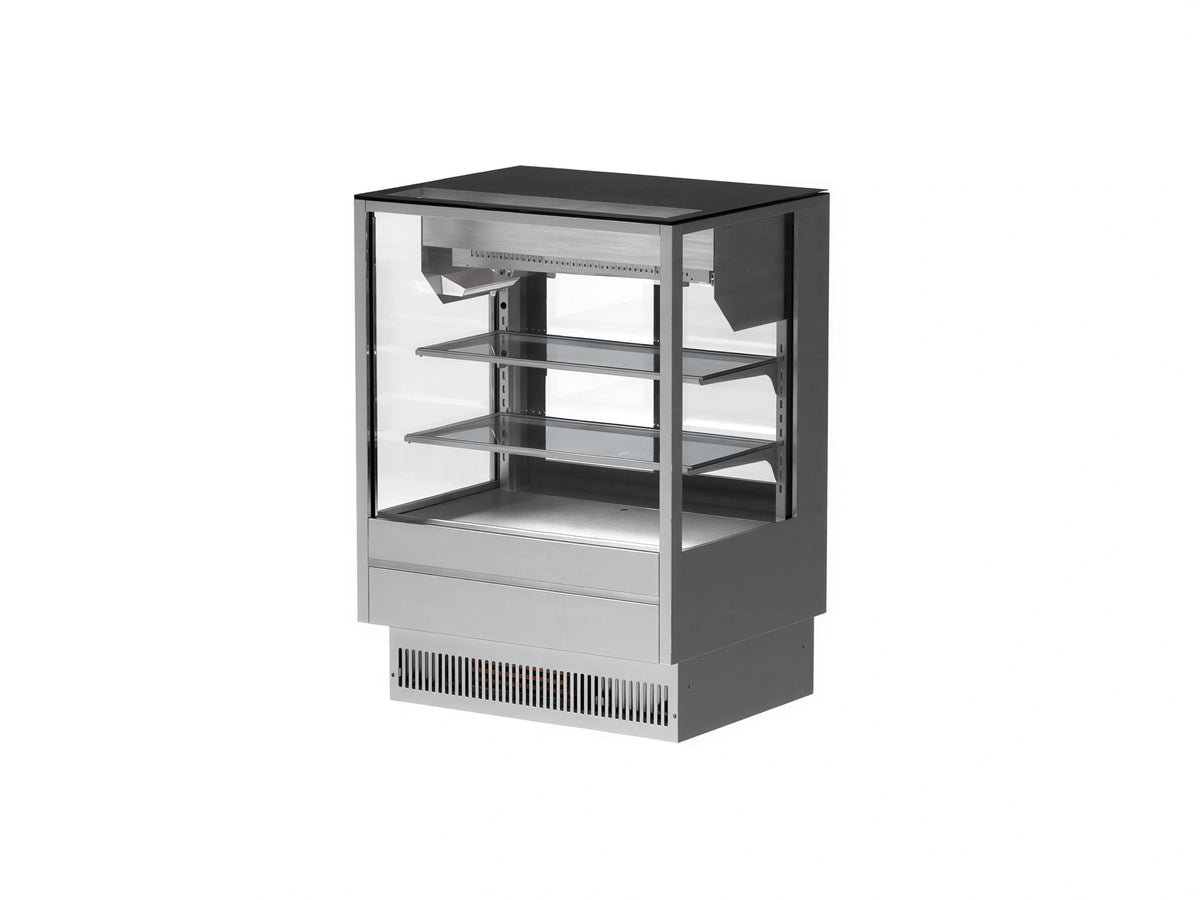

Turbo Air TCDD-36H-UF-S-N Refrigerated Full-Service Deli Case, Straight Glass, Self-Contained, 2 Shelves, 36-1/2"W
- Amperage
- 7.0 amps
- Phase
- 1 phase
- Dimensions
- 36.5"W × 29.63"D × 49.88"H
- Cooling Type
- Direct cooling
- Refrigeration
- Self-contained
- Service Type
- Full service
Specifications
Description
The Turbo Air TCDD-36H-UF-S-N is a self-contained direct-cooling refrigerated deli case with a full-service configuration and 11.97 cu. ft. capacity.
- Straight tempered front glass and sliding rear doors support product display and access.
- Two PE-coated wire shelves are illuminated by LED lighting underneath each shelf.
- A self-cleaning condenser device, R-290 hydrocarbon refrigerant, and rear-access compressor compartment are included.
- The unit operates at 115 V, 60 Hz, single phase, draws 7.0 amps, and uses a NEMA 5-15P plug.
Overall Dimensions:
36.5"W x 29.63"D x 49.88"HProduct Weight:
399.3 lbDirect cooling
Refrigerated direct-cooling deli case design.
Self-contained refrigeration
Self-contained system with no plumbing required.
Straight tempered front glass
Straight tempered glass provides the front display surface.
Sliding rear doors
Sliding rear doors support product loading and unloading.
PE-coated wire shelves
Includes two PE-coated wire shelves.
LED interior lighting
LED lighting is positioned under each shelf.
Self-cleaning condenser
The condenser device uses a fine mesh filter and a rotating brush that moves daily to remove buildup.
R-290 refrigerant
Uses R-290 hydrocarbon refrigerant.
Easy-access control panel
Equipped with an easy-access control panel.
Rear-access compressor compartment
Provides rear access to the compressor compartment.
