Description

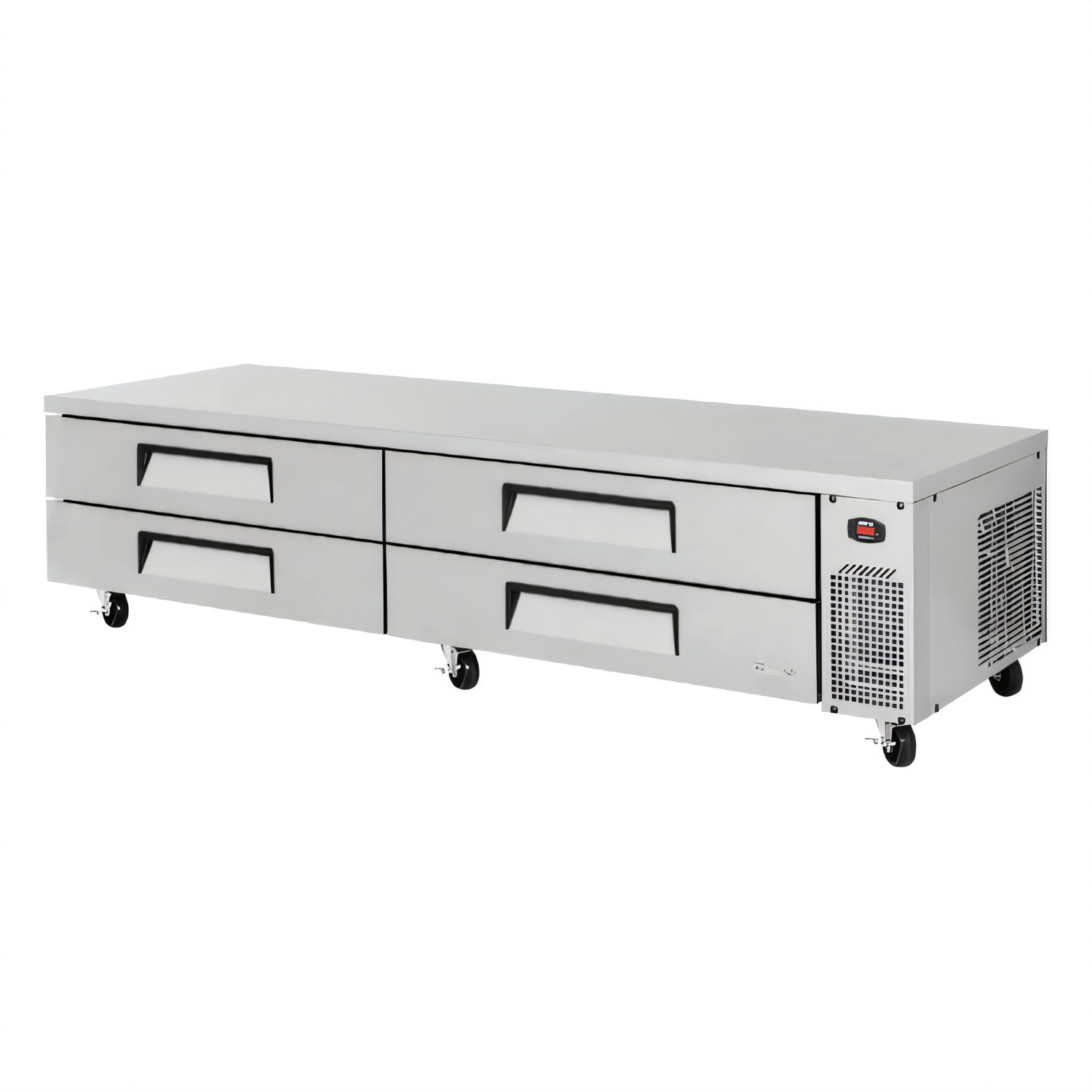

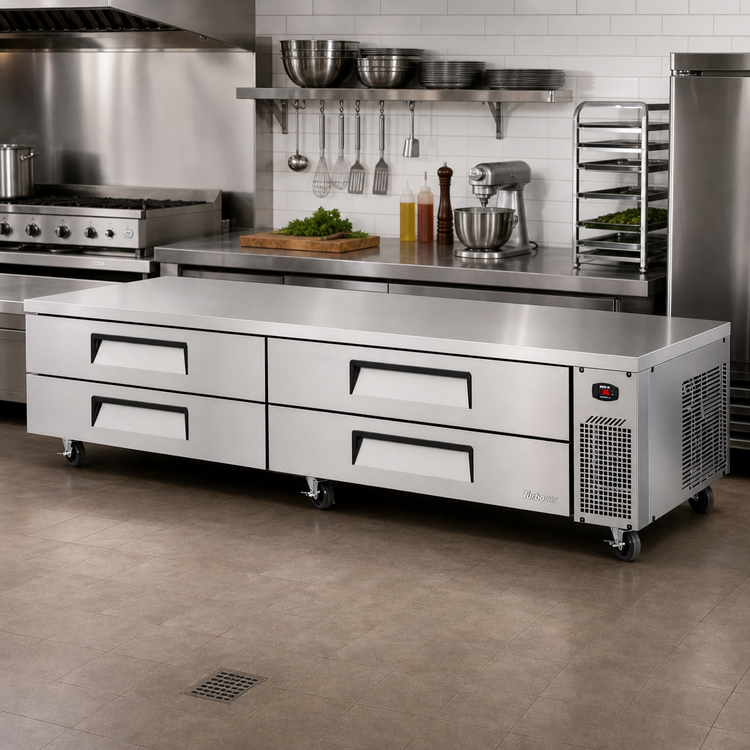

Turbo Air Super Deluxe 96" Chef Base Refrigerator

Model TCBE-96SDR-N | 4-Drawer Side-Mounted Self-Contained Unit

Maximise your cookline efficiency with the Turbo Air Super Deluxe chef base that keeps 18.6 cu. ft. of chilled ingredients right where you need them—directly beneath up to 1,435 lb of countertop equipment. From its patented self-cleaning condenser to its heavy-duty 16-gauge stainless top, this is the rugged, low-maintenance refrigeration solution kitchens count on every shift.

Key Features

  • Patented Self-Cleaning Condenser sweeps dust away daily to help prevent costly downtime.
  • 4 durable drawers with recessed handles; each holds three 6"-deep full-size pans (pans not included).
  • Reinforced 16 ga. one-piece stainless top is insulated to block heat migration and supports heavy equipment.

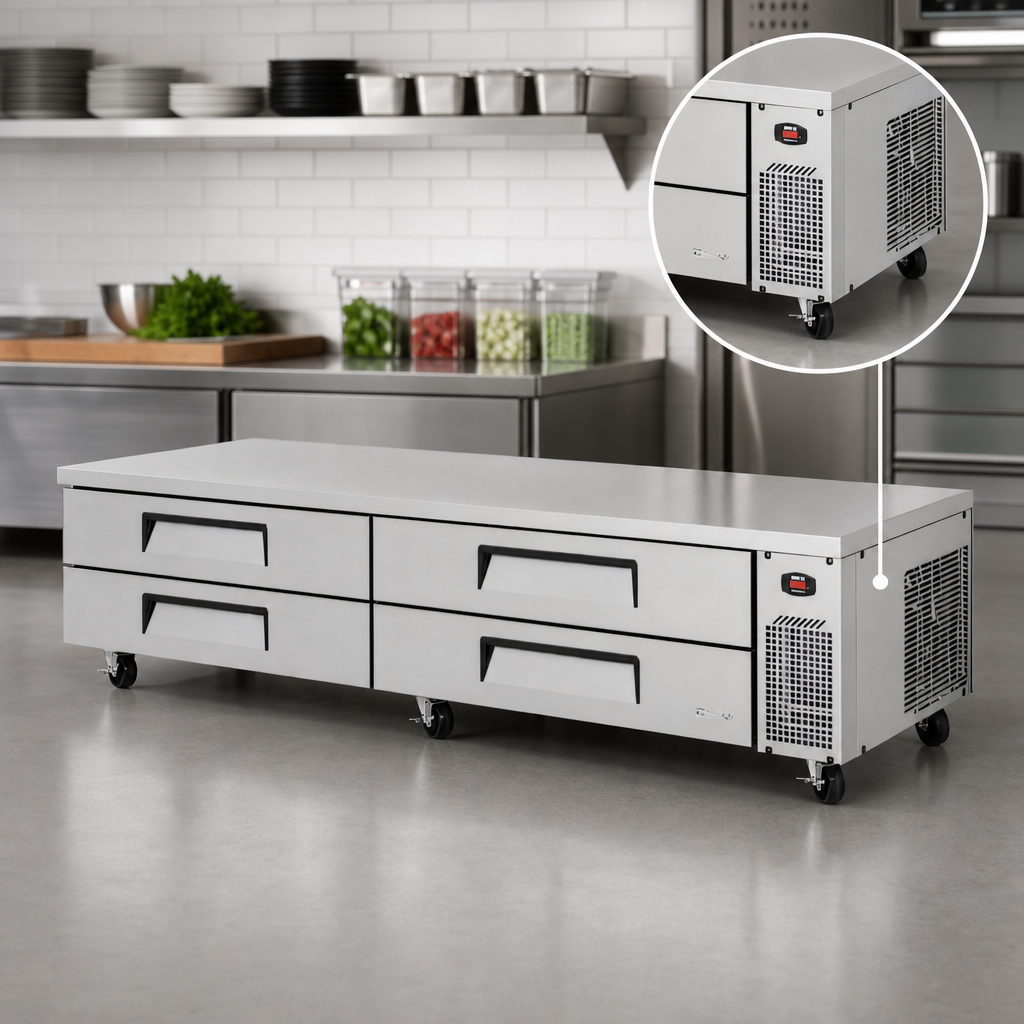

  • Eco-friendly R-290 refrigerant and high-efficiency 2/5 HP side-mounted compressor with front air intake.
  • Digital temperature control maintains 33 °F – 38 °F for optimum food safety.
  • High-density, CFC-free polyurethane insulation & anti-corrosion coated evaporator prolong cabinet life.
  • 4" swivel casters (locking front) standard; optional 6" stainless legs available.
  • 5-Year parts & labour / 7-Year compressor warranty for total peace of mind.

Specifications

Exterior dimensions 96 3⁄8" W × 32" D × 20 1⁄4" H*
Net capacity 18.6 cu. ft.
Drawers / pan capacity 4 drawers  |  3 full-size pans per drawer (6" deep)
Temperature range 33 °F – 38 °F
Countertop load rating 1,435 lb
Refrigerant R-290 (hydrocarbon)
Compressor horsepower 2/5 HP, side-mounted
Voltage / phase 115 V / 60 Hz / 1-ph
Amperage 6.3 A
Plug NEMA 5-15P, 9 ft cord
Net / ship weight 484 lb / 517 lb
Certifications cETLus, ETL-Sanitation
Warranty 5 yr parts & labour | 7 yr compressor

*Height shown excludes 5" caster height. Depth shown excludes 1" rear spacers. Drawer pans are not included.

Features & Specs

Manufacturer

Turbo Air

Brand_name

Super Deluxe

Certifications

cETLus, ETL-Sanitation

Height

25.25in

Width

96.38in

Depth

32.0in

Shipping Weight

517.0lbs

Width

85" - 96" wide

Drawer Qty

4 drawers

Top Finish

stainless steel top

Refrigeration

self-contained, side mounted

Compressor HP

3/8 HP

Exterior Finish

all stainless steel exterior

Specifications

Super Deluxe Chef Base Refrigerator, 96-3/8"W x 32"D x 20-1/4"H, 18.6 cu. ft. side mounted self-contained refrigeration system, self-cleaning condenser device, (4) durable drawers with recessed handles, accommodates pans up to 6" deep, capacity: (3) full size pans per drawer (NOT included) 16 ga. stainless steel one-piece reinforced insulated top, stainless steel front & sides, digital temperature display, R290 Hydrocarbon refrigerant, 2/5 HP, 115v/60/1-ph, 6.3 amps, NEMA 5-15P, cETLus, ETL-Sanitation
