Description

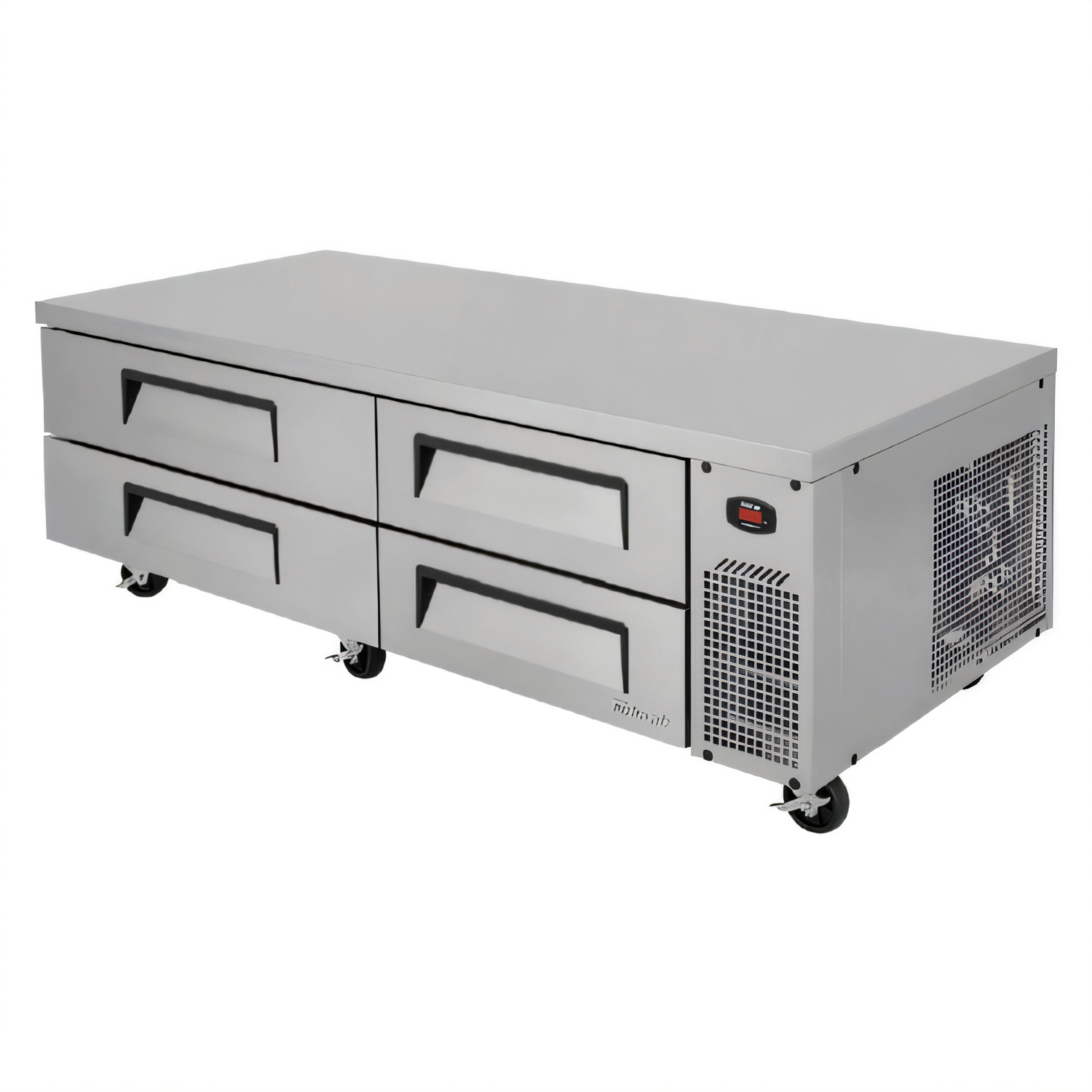

Turbo Air “Super Deluxe” Chef Base Refrigerator
Model TCBE-72SDR-N · 72" W × 32" D × 20-1/4" HBuilt for demanding commercial kitchens, the 72-inch Super Deluxe chef base combines high-capacity cold storage with an ultra-strong, fully insulated work top that supports up to 1,192 lb. of countertop equipment. Turbo Air’s patented Self-Cleaning Condenser and eco-friendly R-290 refrigerant deliver worry-free performance while saving energy and maintenance dollars.
Why You’ll Love It

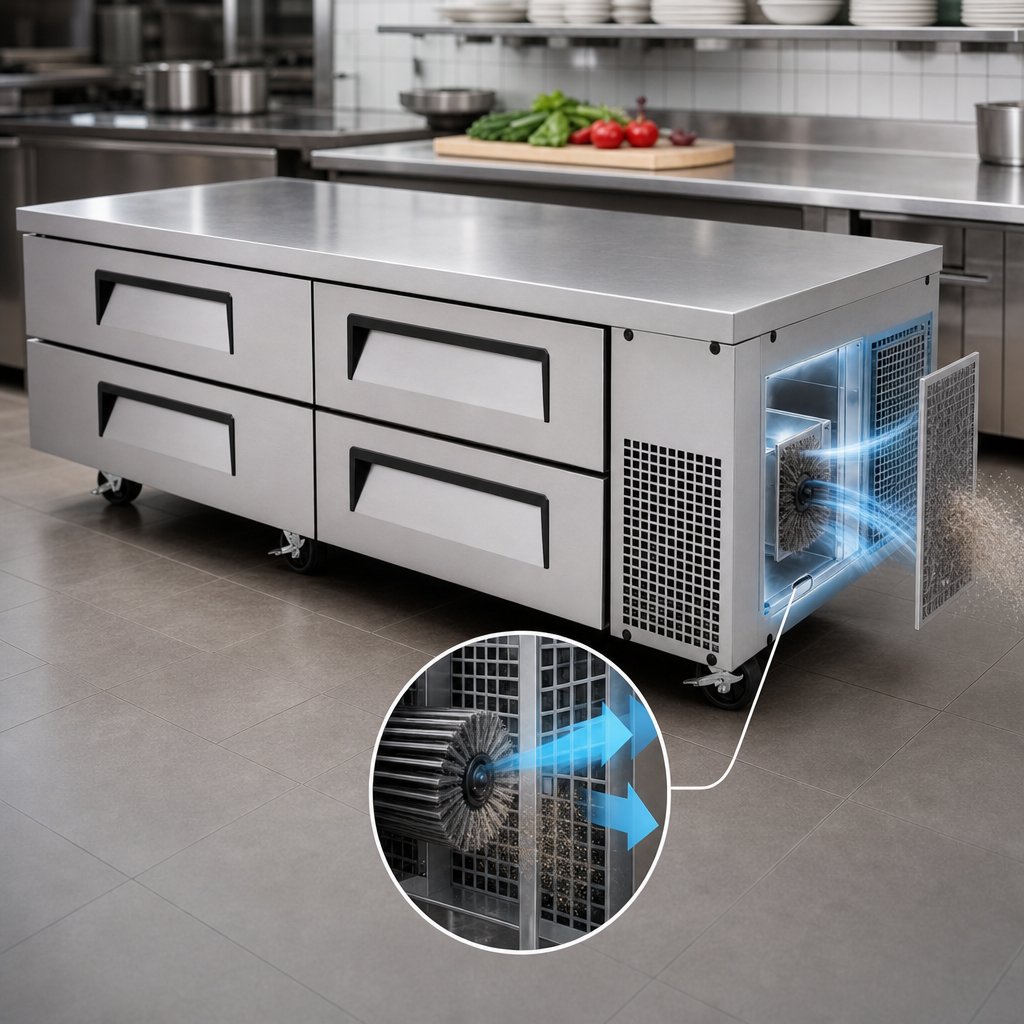

- Patented Self-Cleaning Condenser automatically brushes dust off the condenser daily, preventing costly downtime.
- Heavy-duty 16 ga. one-piece stainless work top is reinforced and insulated to stop heat transfer to the refrigerated base.
- Side-mounted, 1/4+ HP compressor for easy service access and front-breathing installation in tight lines.
- 4 full-extension drawers fit two full-size (12" × 20") pans up to 6" deep per drawer (pans not included).
- Digital front temperature display; factory-set to hold a food-safe 33 °F – 38 °F.
- High-density, CFC-free polyurethane insulation retains cold and adds structural rigidity.
- Eco-conscious R-290 hydrocarbon refrigerant (ODP 0, GWP 3).
- 4" swivel casters standard for smooth mobility; optional 6" stainless legs available.
Perfect For
- Griddles, charbroilers, countertop fryers & hot plates (up to 1,192 lb. combined)
- Restaurants needing quick access to proteins & mise en place beneath the cooking line
- Hotels, caterers and commissaries seeking energy-efficient refrigerated chef bases
Technical Specifications
Exterior dimensions* | 72" W × 32" D × 20-1/4" H |
---|---|
Interior capacity | 12.66 cu. ft. |
Drawers / pan capacity | 4 drawers · 2 full-size pans (6" deep) per drawer |
Countertop load limit | 1,192 lb. |
Temperature range | 33 °F – 38 °F |
Refrigerant | R-290 (hydrocarbon) |
Compressor | 1/4+ HP, side-mounted, self-contained |
Voltage / phase | 115 V / 60 Hz / 1-ph · 5.6 amp |
Plug | NEMA 5-15P, 9 ft. cord |
Net / ship weight | 352 lb. / 418 lb. |
Casters | 4" diameter swivel (standard) |
Certifications | cETLus, ETL-Sanitation, ENERGY STAR® |
*Depth excludes 1" rear spacers. Height excludes 5" casters.
Drawer pans are shown for illustration only and are not included.
Industry-Leading Warranty
Enjoy peace of mind with a 5-year parts & labor warranty plus a 7-year compressor warranty (U.S.A. only). Register your unit within 7 days of purchase to activate full coverage.
