Turbo Air TCBE-72SDR-E-N Super Deluxe Undercounter & Worktop Refrigeration
Turbo Air TCBE-72SDR-E-N Super Deluxe Undercounter & Worktop Refrigeration is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

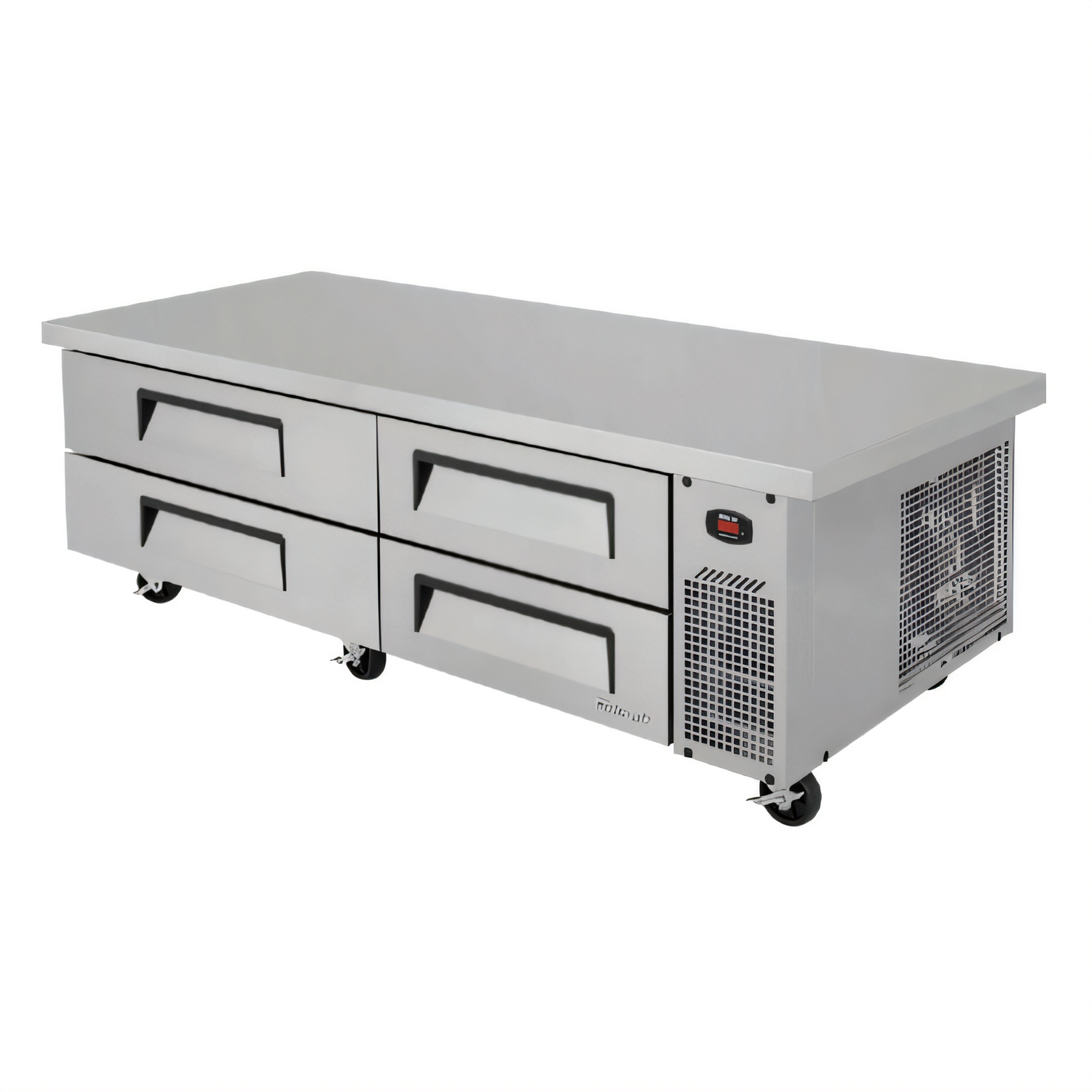

Turbo Air “Super Deluxe” Chef Base Refrigerator – Extended Top
Model TCBE-72SDR-E-N | 78" W • 4 Drawers • Self-Cleaning CondenserBuilt to keep cooked food, ingredients, and heavy countertop equipment right where busy chefs need them, the Turbo Air Super Deluxe Extended-Top Chef Base pairs rock-solid construction with energy-smart refrigeration. A patented self-cleaning condenser, eco-friendly R-290 refrigerant, and a weight-bearing 16-gauge stainless steel top make this 78-inch unit an all-in-one refrigeration solution for demanding commercial kitchens.
Why You’ll Love It

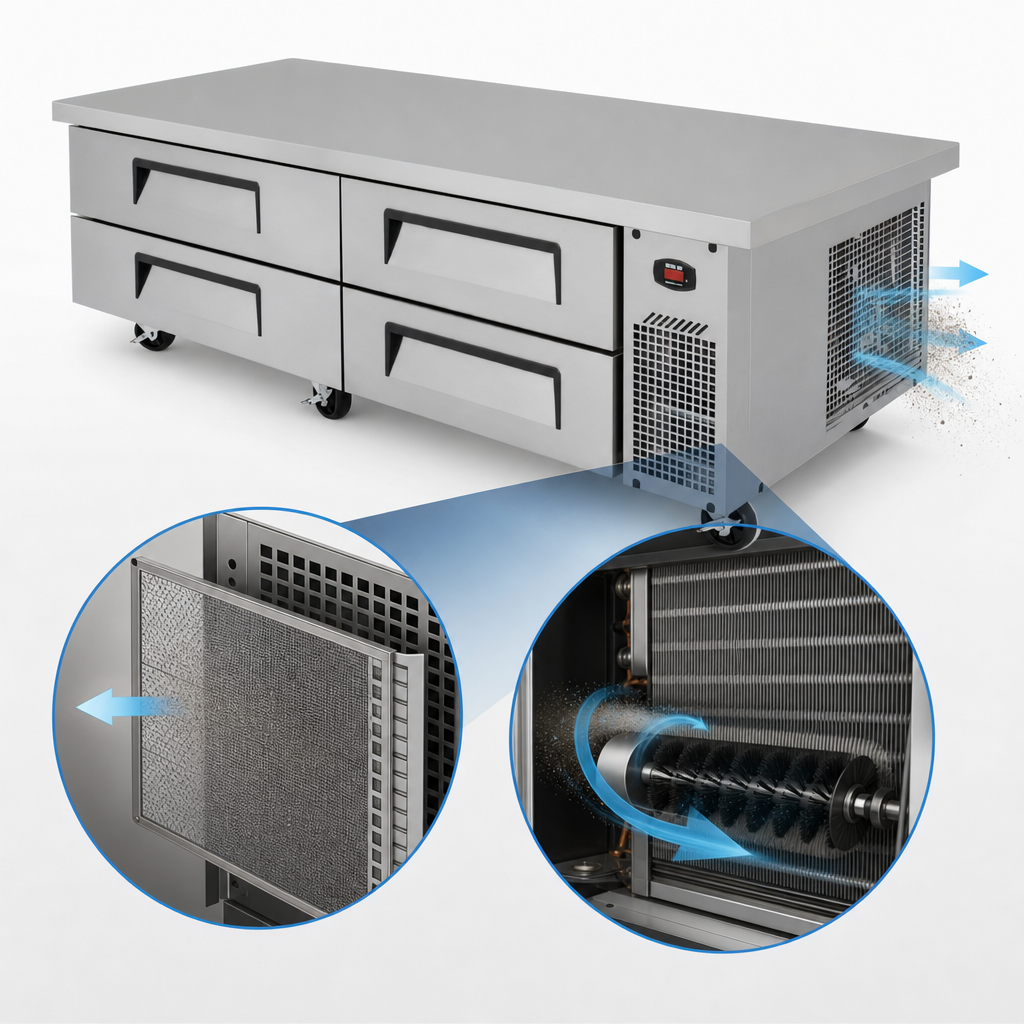

- Patented Self-Cleaning Condenser automatically brushes dust away every day to maintain peak efficiency and prevent downtime.
- Heavy-Duty Extended Top – 16 ga. one-piece, insulated stainless steel supports up to 1,192 lb. of cooking equipment without heat transfer to the cabinet.
- 4 Stainless Steel Drawers with recessed handles; each holds (2) full-size pans up to 6" deep (pans not included).
- Side-Mounted Refrigeration System with front air intake allows flush installation in tight lines and easy service access.
- 33 °F – 38 °F holding range regulated by a digital controller and front-panel temperature display.
- Eco-Friendly R-290 hydrocarbon refrigerant (ODP 0, GWP 3) meets the latest DOE & EPA standards.
- High-density CFC-free polyurethane insulation & anti-corrosion coated evaporator for long-term reliability.
- Pre-installed 4" swivel casters (front locking) for smooth mobility; optional 6" legs available.
- 5-Year Parts & Labor / 7-Year Compressor Warranty (U.S.A.).
Technical Specifications
Model | TCBE-72SDR-E-N |
---|---|
Exterior Dimensions | 78" W × 32" D × 20 1/4" H* |
Net Capacity | 12.66 cu. ft. |
Drawers / Pan Capacity | 4 drawers – (2) full-size pans per drawer (8 total) |
Temperature Range | 33 °F – 38 °F |
Top Weight Capacity | 1,192 lb. |
Refrigerant | R-290 Hydrocarbon |
Compressor | 1/4+ HP, side-mounted |
Electrical | 115 V / 60 Hz / 1-phase, 5.6 A |
Plug | NEMA 5-15P, 9 ft cord |
Casters | 4" swivel (2 locking) |
Certifications | cETLus, ETL-Sanitation |
Shipping Weight | 440 lb. |
*Height listed excludes 5" caster height; depth excludes 1" rear spacers. Drawer pans are not included. Actual shipping weight may vary with palletizing and packaging.
