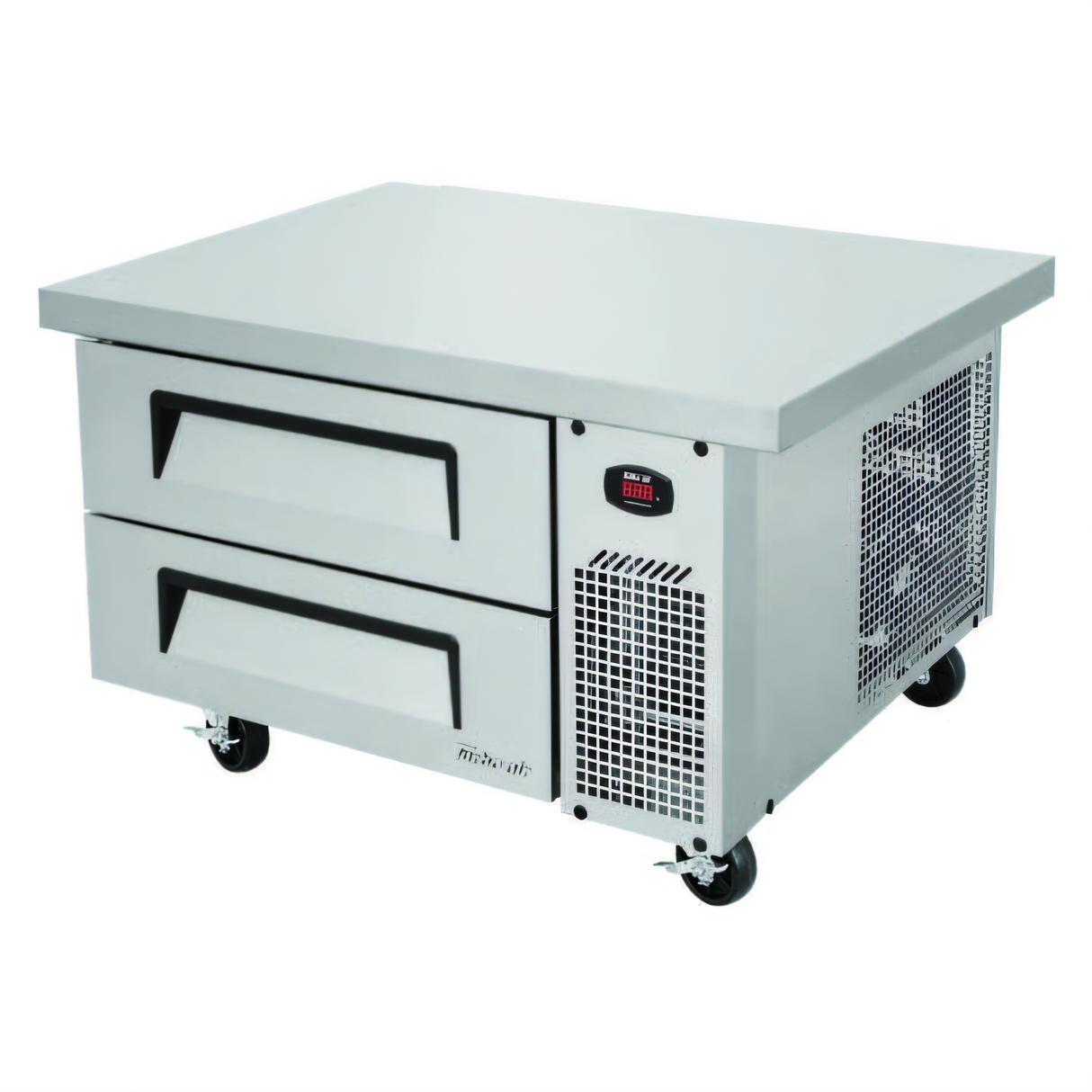

Turbo Air TCBE-36SDR-E-N6 Super Deluxe Undercounter & Worktop Refrigeration
Turbo Air Super Deluxe Chef Base Refrigerator – Extended Top
Model TCBE-36SDR-E-N6 | 41 5⁄8" W × 32" D × 20 1⁄4" HKeep ingredients safely chilled right where the action happens and support up to 788 lb. of countertop cooking equipment with Turbo Air’s premium 36 inch Super Deluxe chef base. Its patented self-cleaning condenser, digital temperature control and rugged 16-gauge stainless top deliver the reliability busy professional kitchens demand.
Key Performance & Design Features
- Patented Self-Cleaning Condenser automatically brushes dust away every 24 hrs to maintain peak efficiency.
- Reinforced, insulated 16-ga. stainless steel extended top holds up to 788 lb. of equipment without heat transfer to the refrigerated base.
- Side-mounted 1/5 HP compressor with front air intake permits flush installation and quick service access.
- Environmentally friendly R600a hydrocarbon refrigerant (zero ODP, low GWP) exceeds 2017 DOE standards.
- Front-mounted digital control & temperature display; factory preset 33 °F – 38 °F for optimal food safety.
- Two heavy-duty stainless steel drawers with recessed pulls ride on smooth glides for effortless access.
- Each drawer fits (1) full-size 12" × 20" pan + (3) 1/6-size pans up to 6" deep (pans sold separately).
- Foamed-in-place, CFC-free polyurethane insulation and anti-corrosion coated evaporator ensure long service life.
- Ships on 4" swivel casters (front locking); optional 6" stainless legs (#30221M0600).
Specifications
| Model | TCBE-36SDR-E-N6 |
|---|---|
| Capacity | 4.98 cu. ft. |
| Exterior Dimensions (W × D × H) | 41 5⁄8" × 32" × 20 1⁄4" Height does not include 5" caster clearance. |
| Drawers | 2 (stainless steel) |
| Countertop Load Rating | 788 lb. |
| Temperature Range | 33 °F – 38 °F |
| Refrigeration System | Self-contained, side-mounted; self-cleaning condenser |
| Refrigerant | R600a (hydrocarbon) |
| Compressor | 1/5 HP |
| Electrical | 115 V / 60 Hz / 1-ph, 2.8 A, NEMA 5-15P, 9 ft. cord |
| Construction | 16-ga. one-piece reinforced stainless top; stainless front & sides; high-density foam insulation |
| Casters | 4" swivel (front locking) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 5 yr parts & labor, 7 yr compressor (USA) |
Need a taller working height or stationary installation? Swap the included casters for optional 6" stainless legs.
