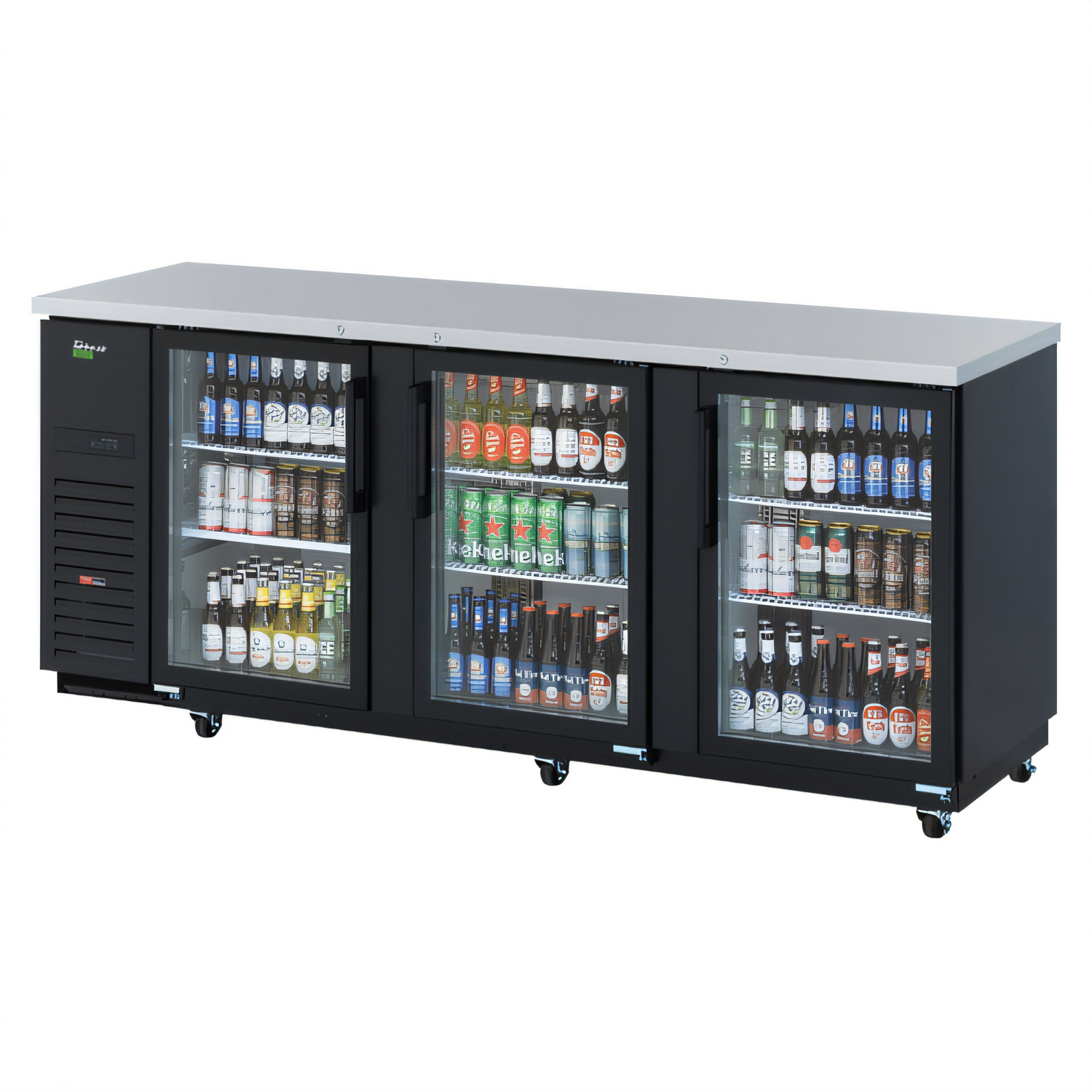

Turbo Air Super Deluxe Three-Section Glass Door Back Bar Cooler, 90-3/8" W, Front-Breathing, Side-Mount

36.47 cu. ft., 115V, R290, Stainless Steel Top

A high-capacity back bar cooler with glass doors, a self-cleaning condenser, and a front-breathing design that simplifies maintenance and merchandising.

  • Three-section cabinet with three double-pane glass doors and locks for secure, easy product viewing.
  • Self-cleaning condenser and self-contained, side-mounted refrigeration help reduce maintenance and simplify placement.
  • Eight PE-coated adjustable shelves and LED interior lighting make it easy to organize and showcase beverages.
  • Stainless steel top, stainless steel floor, and black vinyl-coated exterior are built for heavy-use bar environments.
  • R290 hydrocarbon refrigeration and ENERGY STAR efficiency support lower energy use.
  • Standard 115V single-phase power with NEMA 5-15P cord simplifies installation.

Overall Dimensions:

90.38"W x 27.25"D x 37.13"H

Product Weight:

545.0 lb

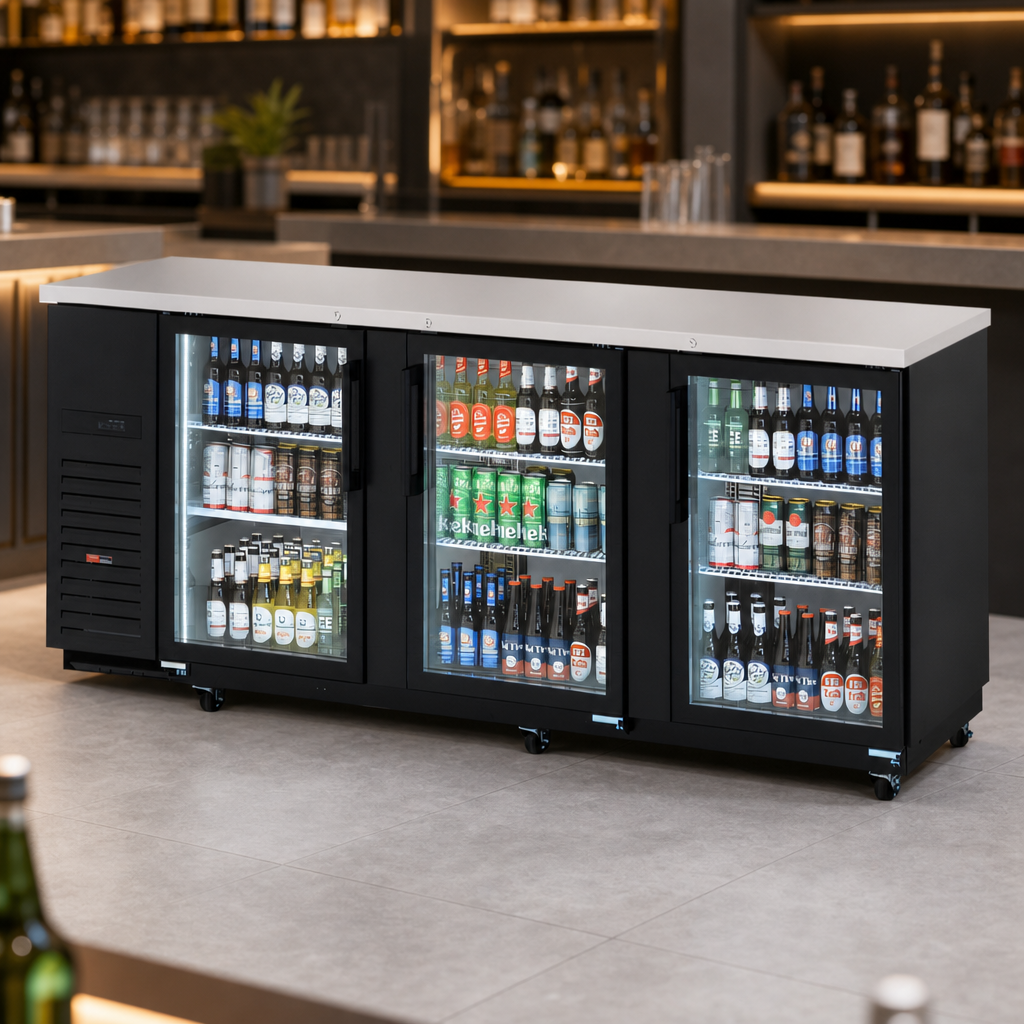

Three-Section Layout

Provides a large refrigerated storage area for back bar beverage service.

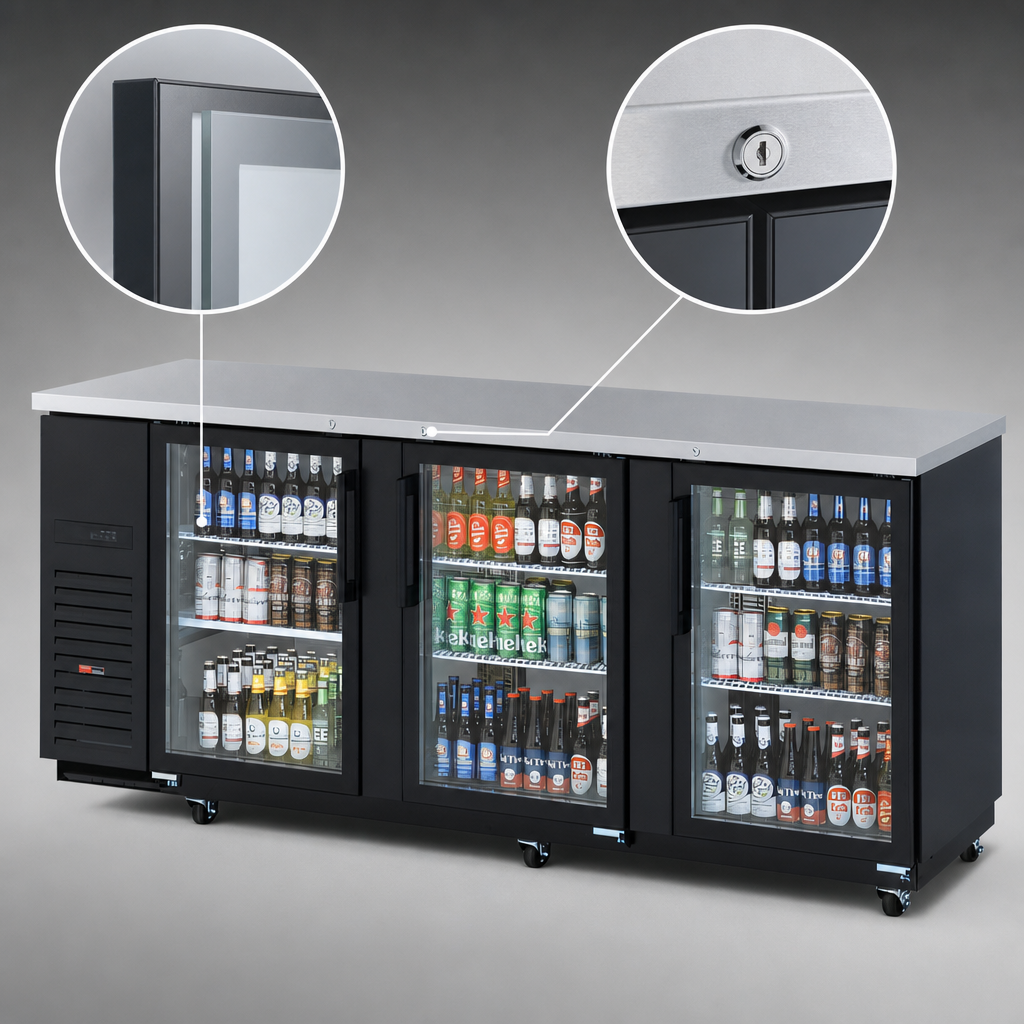

Double-Pane Glass Doors with Locks

Keeps contents visible while helping secure product during service.

Self-Cleaning Condenser

Helps reduce maintenance and supports consistent refrigeration performance.

Front-Breathing, Side-Mount Refrigeration

Supports easier placement in tight spaces while using a self-contained refrigeration system.

Eight Adjustable Shelves

PE-coated shelves provide flexible storage and organization for bottles and cans.

LED Interior Lighting

Improves visibility inside the cabinet and enhances product presentation.

Stainless Steel Top and Floor

Durable high-wear surfaces designed for busy bar environments.

R290 Hydrocarbon Refrigerant

Uses a modern hydrocarbon refrigerant for efficient refrigeration performance.

Standard Electrical Connection

Operates on 115V, 60 Hz, single-phase power with a NEMA 5-15P cord.

Type Back Bar Cooler
Style Three-Section
Installation Type Floor Model
Compartments 3
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Capacity 36.47 Cubic Feet
Material Galvanized Steel
Interior Finish Painted Galvanized Steel
Finish Black Vinyl Coated
Color Black
Voltage 115 Volts
Amps 3.6 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Selling Unit Each
Units Per Case 1
Shipping Width 91 Inches
Shipping Depth 28 Inches
Shipping Height 38 Inches
Shipping Weight 545 Pounds

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year parts and labor warranty; additional 2-year compressor warranty.

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Installation and operation manual PDF Download

Frequently Asked Questions

It measures 90-3/8 inches wide by 27-1/4 inches deep by 37-1/8 inches high and has a 36.47 cu. ft. capacity.
It includes three glass doors and eight PE-coated adjustable shelves.
It uses a self-contained, side-mounted refrigeration system with front-breathing airflow and a self-cleaning condenser.
It uses R290 hydrocarbon refrigerant.
The unit operates on 115V, 60 Hz, single-phase power and draws 3.6 amps with a NEMA 5-15P cord.
The Super Deluxe series is covered by a 5-year parts and labor warranty, plus an additional 2-year compressor warranty.
