Turbo Air  |  Radiance  |  SKU: TATG-24

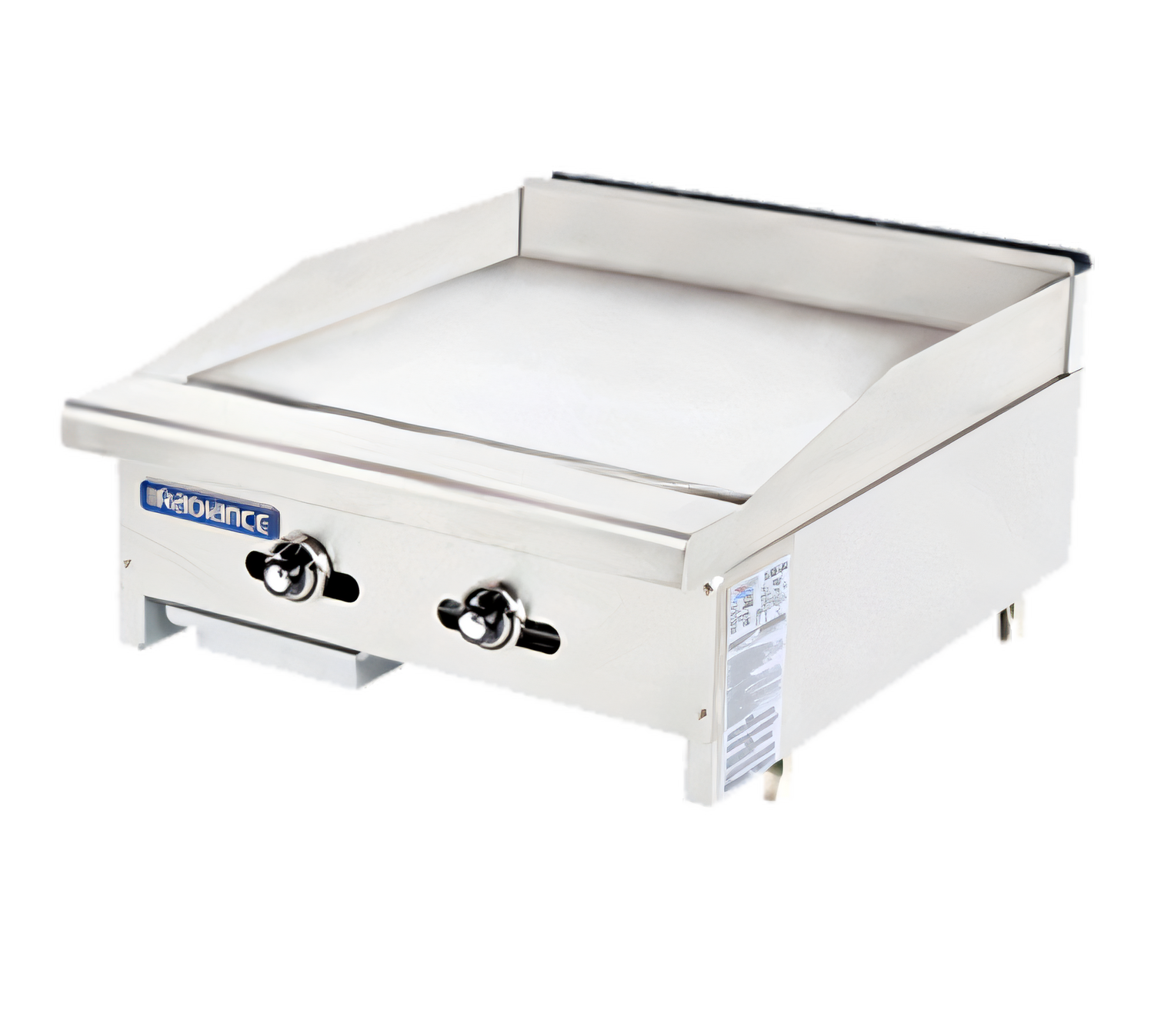

Turbo Air TATG-24 Radiance Gas Griddles

$1,927.56
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Gas Griddles Griddles & Flat Tops Turbo Air

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Radiance 24" Gas Countertop Griddle – 44,000 BTU

Model TATG-24 | by Turbo Air

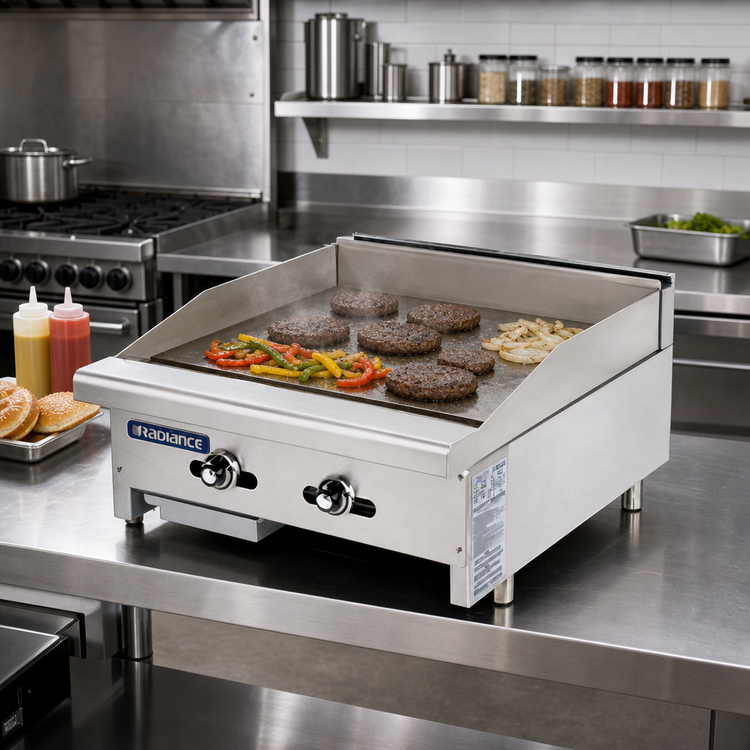

Built for breakfast bars, short-order diners, and food-truck lines alike, the Radiance TATG-24 delivers heavy-duty performance in a compact 24-inch footprint. A full-inch polished steel plate teams up with twin 22,000 BTU U-shaped burners to give you rapid heat recovery, edge-to-edge consistency, and the rugged durability demanded in commercial kitchens.

Key Features
  • Stainless steel front, sides, and 4" backsplash with tapered side splashes
  • 1" thick highly polished steel griddle plate for even heat distribution

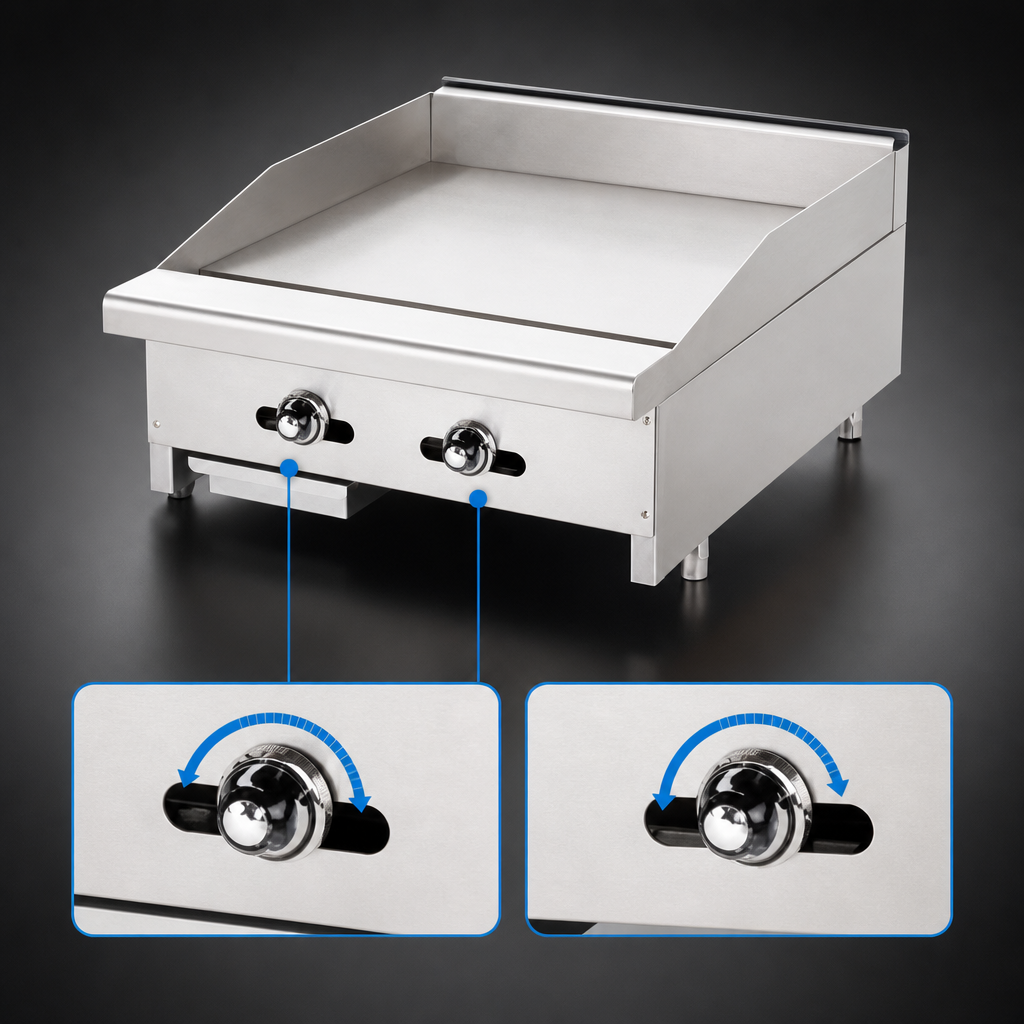

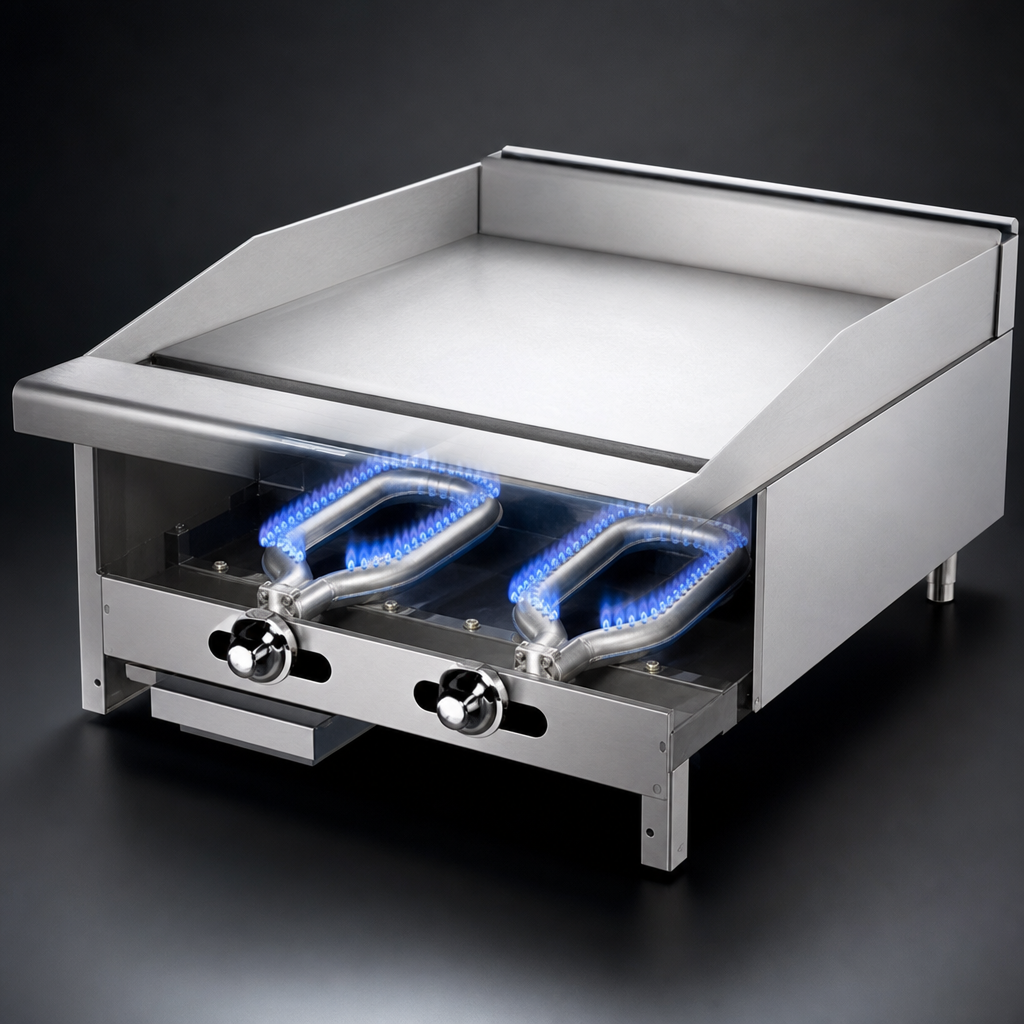

  • (2) 22,000 BTU/hr aluminized U-shaped burners—one thermostat & standing pilot for every 12"
  • 3" wide bullnose front grease trough with removable grease pan for fast cleanup
  • Ergonomic, heat-resistant PPS control knobs protect hands from hot surfaces
  • ¾" rear gas connection with pressure regulator included (NAT/LP convertible)
  • 2" stainless steel adjustable legs for leveling on any countertop
  • High-efficiency design cooks faster, recovers quicker, and saves on gas
  • CSA & CSA-Sanitation certified for safe, code-compliant operation
  • Backed by a 1-year parts & labor warranty (U.S.A. only)
Specifications
Cooking Surface (W × D) 24" × 22"
Overall Dimensions (W × D × H) 24" × 30-1/2" × 12-1/2"
Height excludes 2" leg height
Plate Thickness 1" polished steel
Burners 2 U-shaped aluminized (22,000 BTU each)
Total BTU 44,000 BTU/hr
Gas Type Natural or Propane (field convertible)
Gas Inlet / Connection ¾" NPT rear
Manifold Pressure 5" W.C. (Nat) / 10" W.C. (LP)
Regulator 3/4" – supplied
Shipping Weight Approx. 246 lb
Certifications CSA, CSA-Sanitation
Installation notice: Professional installation by a licensed gas technician is required. Unit ships set for Natural Gas and includes an LP conversion kit.
What’s in the Box
  • Radiance TATG-24 countertop griddle
  • ¾" gas pressure regulator
  • (4) 2" stainless steel legs (pre-installed)
  • LP conversion components & instructions
  • User & installation manual

Need a larger cook surface? Explore the full Radiance griddle line under Turbo Air Radiance Series.

Features & Specs

Manufacturer

Turbo Air

Brand_name

Radiance

Certifications

CSA, CSA-Sanitation

Height

12.5in

Width

24.0in

Depth

30.5in

Shipping Weight

246.0lbs

Cooking Surface Depth (front - back)

20" - 23"

Controls

thermostat / solid state controls

Cooking Surface Width (side - side)

19" - 24"

Exterior Finish

stainless steel front & sides

Griddle Plate Finish

smooth steel

Plate Thickness

1"

Specifications

Radiance Griddle, countertop, gas, 24"W x 30"D, stainless steel front & side, built-in stainless steel splash guard, 1" thick highly polished steel griddle plate, (2) burner, aluminized U shaped burners & thermostat controls for every 12", 3" wide front grease trough, removable grease pan, bullnose stainless steel front extension, 2" stainless steel standard legs, regulator included, total 44,000 BTU, CSA, CSA-Sanitation
