Key specifications

BTU
35,000 BTU
Gas Type
Natural Gas
Dimensions
36.0"W × 20.5"D × 19.0"H
Type
Salamander Broiler
Material
Stainless Steel
Gas Connection
3/4 inch
Spec sheet
Turbo Air SKU: TASM-36

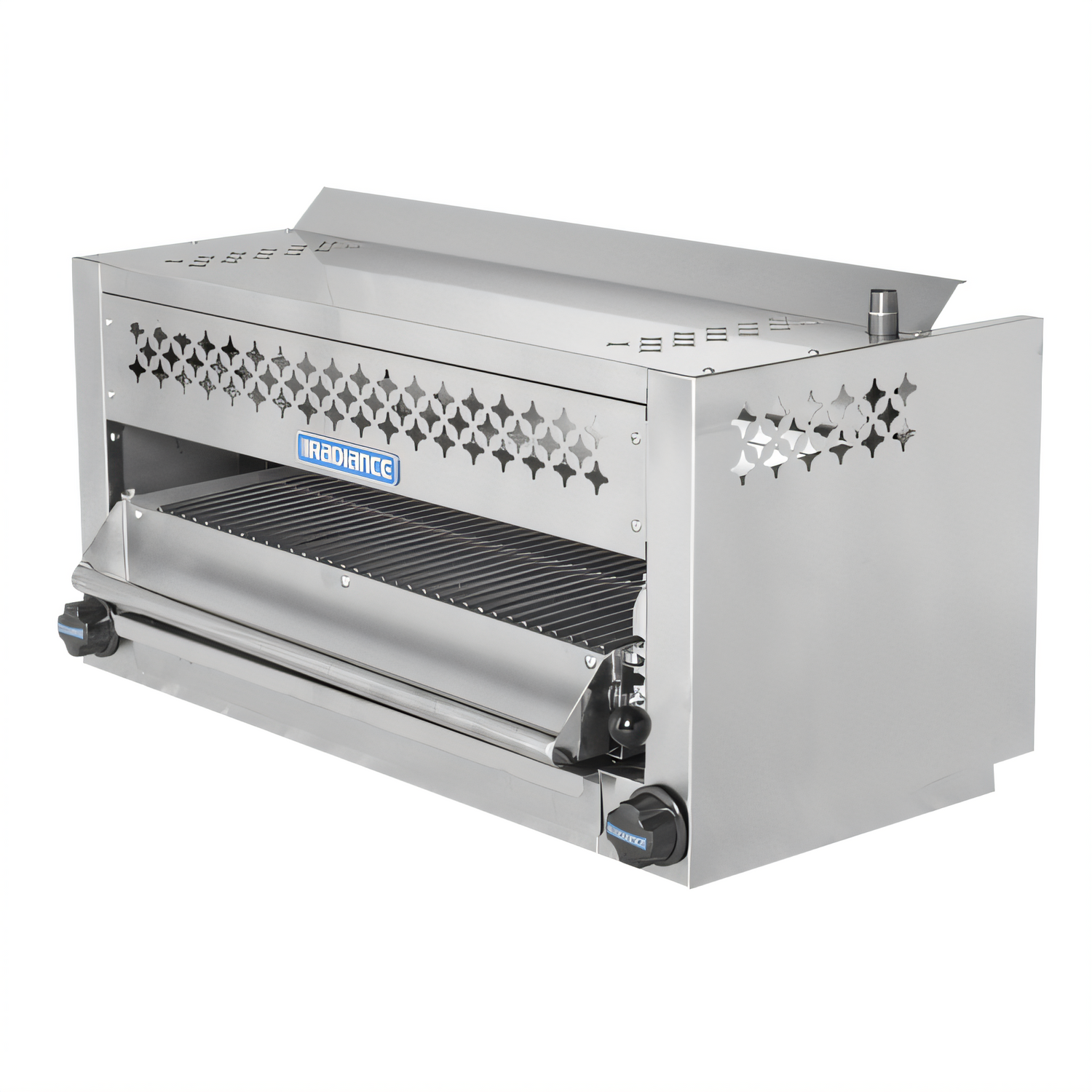

Turbo Air Bake Tech Innovation TASM-36 36-Inch Gas Salamander

$2,801.25
/each
Estimated to ship in 7–10 business days
Size
Wall mounting brackets
Gas Connector
Included: Turbo Air warranty 1 Year Parts and Labor Warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $259/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Salamander Broiler
Material Stainless Steel
Gas Type Natural Gas
BTU 35,000 BTU
Gas Connection 3/4 inch
Gas Pressure 5 in. W.C.
Controls Individual Left and Right Gas Controls
Grid Construction Spring-Balanced Roll-Out
Locking Positions 4 Positions
Grease Pan Removable
Mounting Options Range or Wall

Description

The TASM-36 is a 36-inch natural gas salamander broiler with 35,000 BTU output. It can be mounted over a Radiance range or on a wall.

  • Gas controls: Adjustable gas valve with individual left and right controls.
  • Grid: Spring-balanced stainless steel roll-out grid with four locking positions.
  • Cleaning: Removable grease pan.
  • Construction: Stainless steel front, sides, interior, and grid.

Overall Dimensions:

36.0"W x 20.5"D x 19.0"H

Product Weight:

210.0 lb

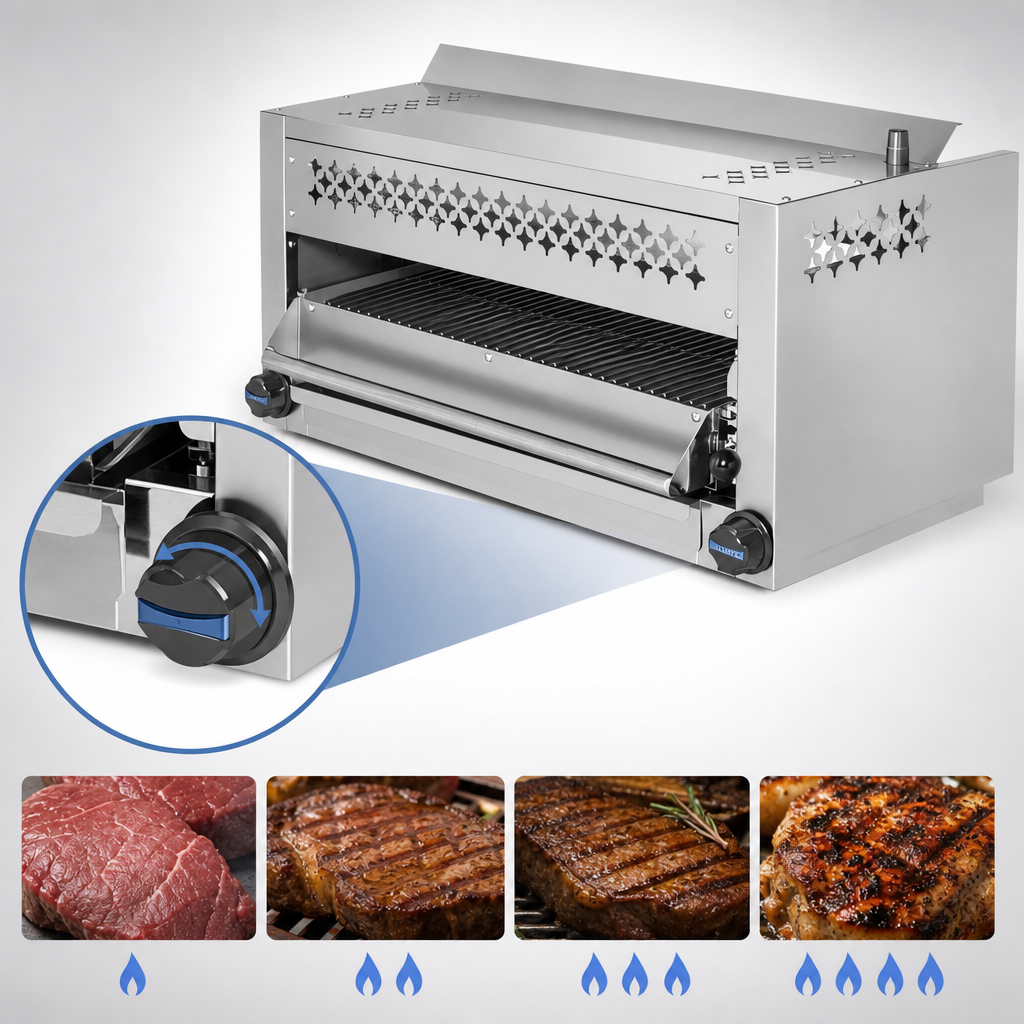

Adjustable Gas Valve

Provides adjustable gas control for the unit.

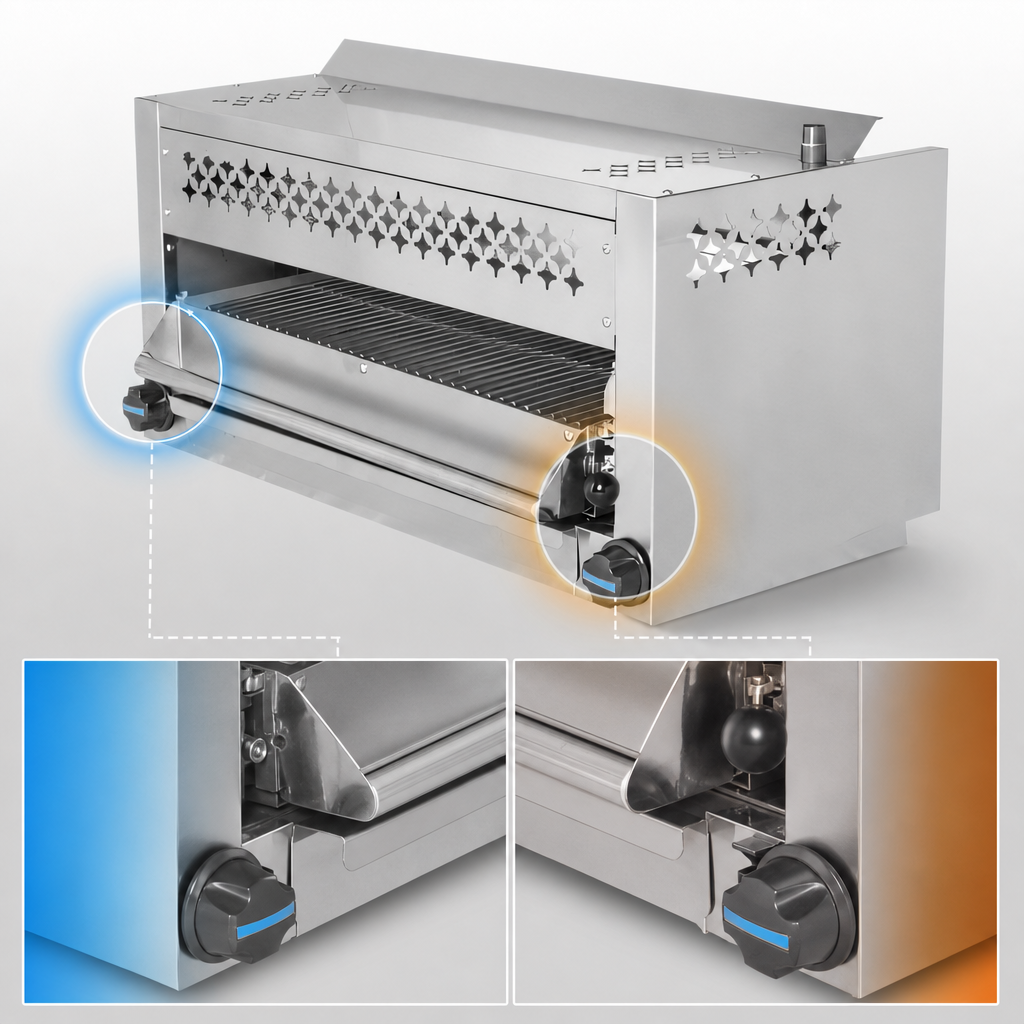

Individual Left and Right Gas Controls

Separate gas controls are provided for the left and right sides.

Spring-Balanced Roll-Out Grid

The stainless steel grid rolls out for loading and unloading and locks in four positions.

Removable Grease Pan

The removable pan supports cleaning.

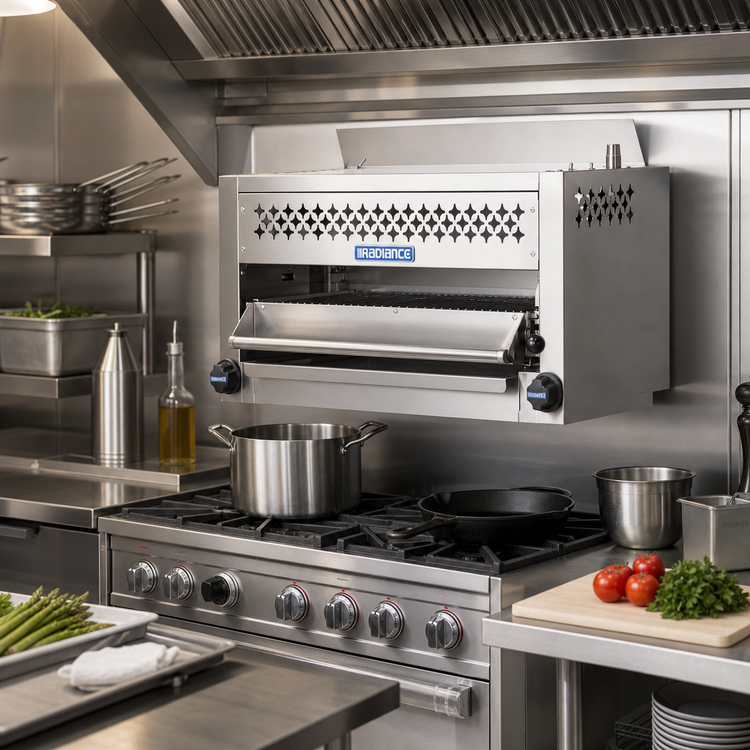

Range or Wall Mounting

The unit can be mounted over a Radiance range or on a wall.

Stainless Steel Construction

The front, sides, interior, and grid are stainless steel.

Frequently Asked Questions

The TASM-36 uses natural gas.
The total output is 35,000 BTU.
It can be mounted over a Radiance range or on a wall.
Yes. The spring-balanced stainless steel grid rolls out for loading and unloading and has four locking positions.
Yes. The TASM-36 has a removable grease pan.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
