Key specifications

BTU
25,000 BTU
Gas Type
Natural Gas
Dimensions
24.0"W × 20.5"D × 19.0"H
Type
Salamander Broiler
Material
Stainless Steel
Controls
Adjustable Gas Valve
Spec sheet
Turbo Air SKU: TASM-24

Turbo Air Bake Tech Innovation TASM-24 24-Inch Gas Salamander

$2,614.50
/each
Estimated to ship in 7–10 business days
Size
Wall mounting brackets
Gas Connector
Included: Turbo Air warranty 1 Year Parts and Labor Warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $242/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Salamander Broiler
Material Stainless Steel
Gas Type Natural Gas
BTU 25,000 BTU
Controls Adjustable Gas Valve
Gas Connection 3/4 in
Grid Locking Positions 4 Positions
Width 24 in
Depth 20.5 in
Height 19 in
Weight 155 lb

Description

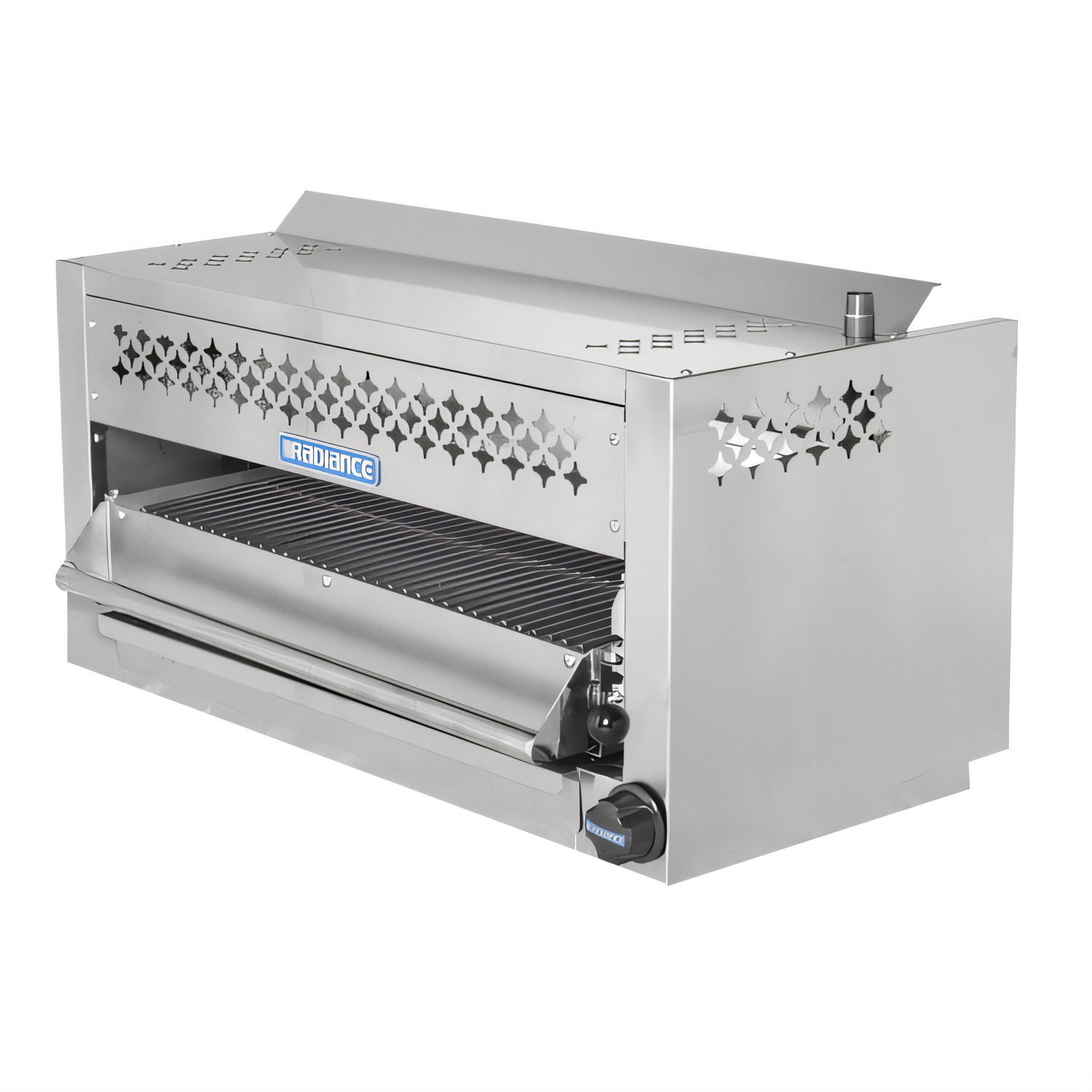

The TASM-24 is a 24-inch natural gas salamander broiler with a 25,000 BTU rating and stainless steel construction.

It can be mounted over a Radiance range or on a wall. The spring-balanced roll-out grid is stainless steel and has four locking positions, while the removable grease pan supports easy cleaning.

  • Gas: Natural gas
  • Grid: Spring-balanced, roll-out stainless steel grid with four locking positions
  • Construction: Stainless steel front, sides, and interior

Overall Dimensions:

24.0"W x 20.5"D x 19.0"H

Product Weight:

155.0 lb

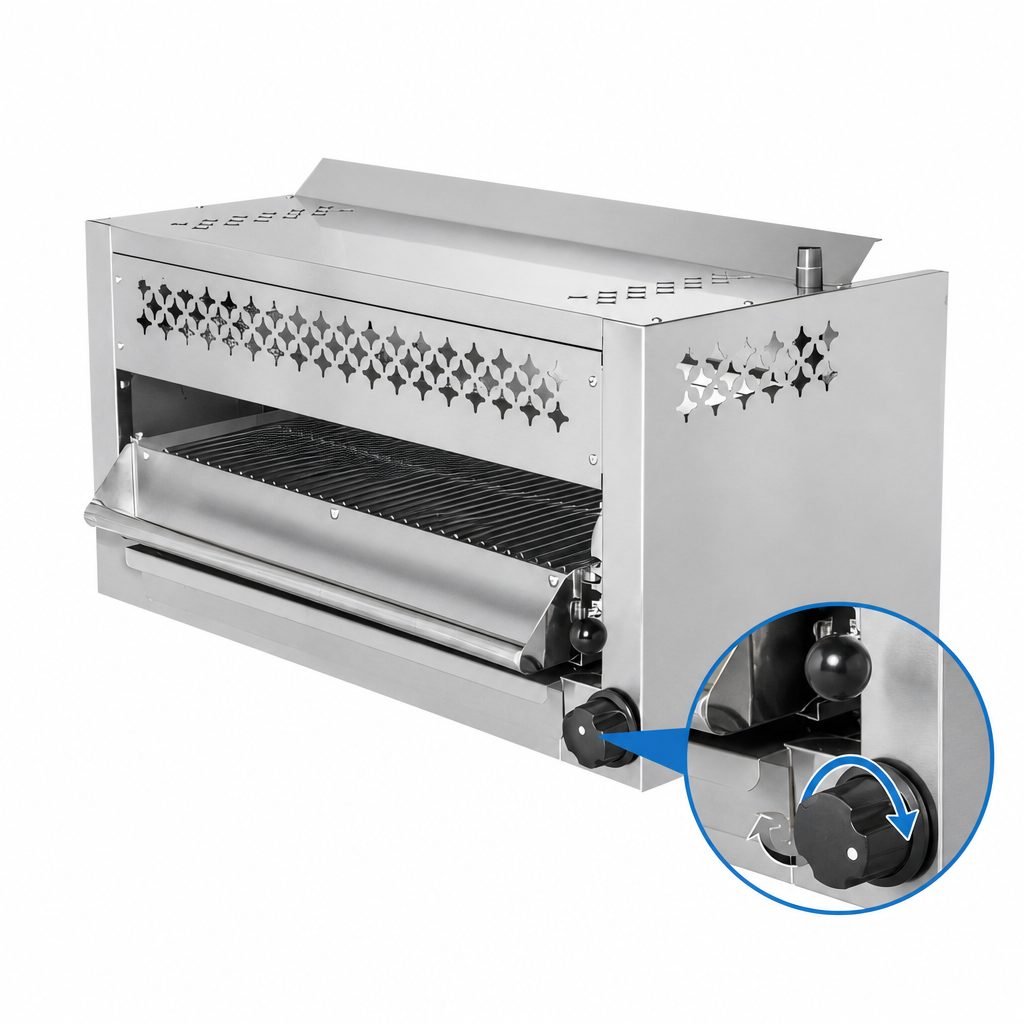

Adjustable Gas Valve

The unit has an adjustable gas valve.

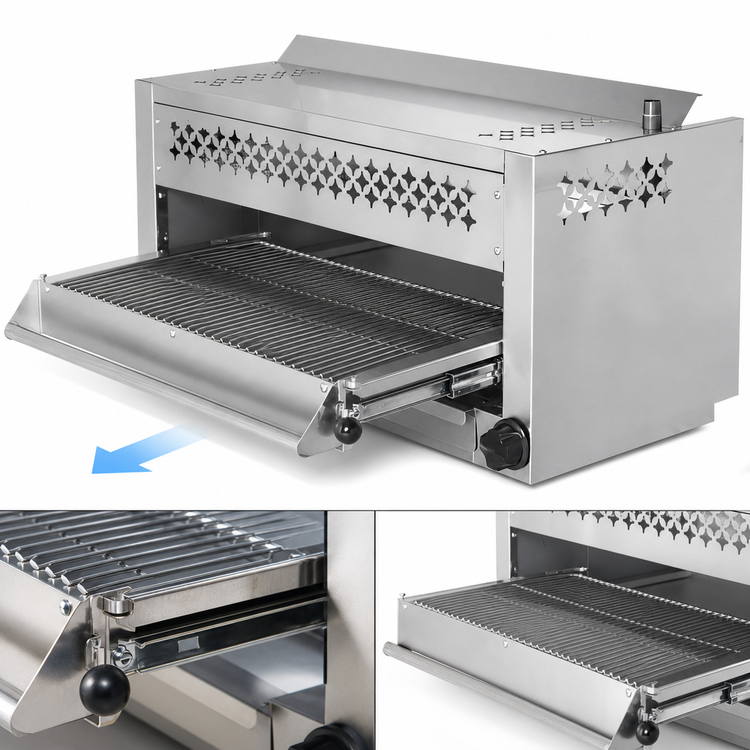

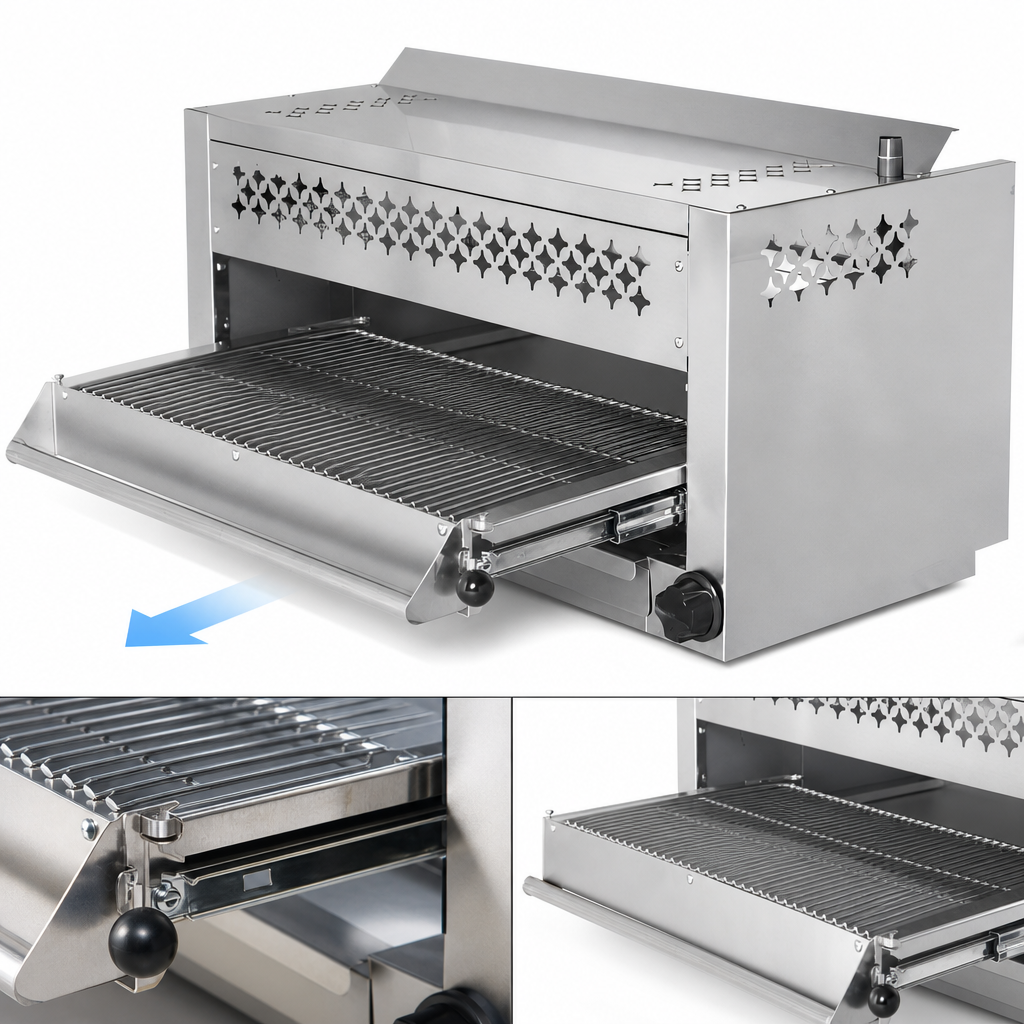

Spring-Balanced Roll-Out Grid

The stainless steel grid rolls out for loading and unloading and has four locking positions.

Stainless Steel Construction

The front, sides, interior, and grid are stainless steel.

Removable Grease Pan

The removable grease pan supports easy cleaning.

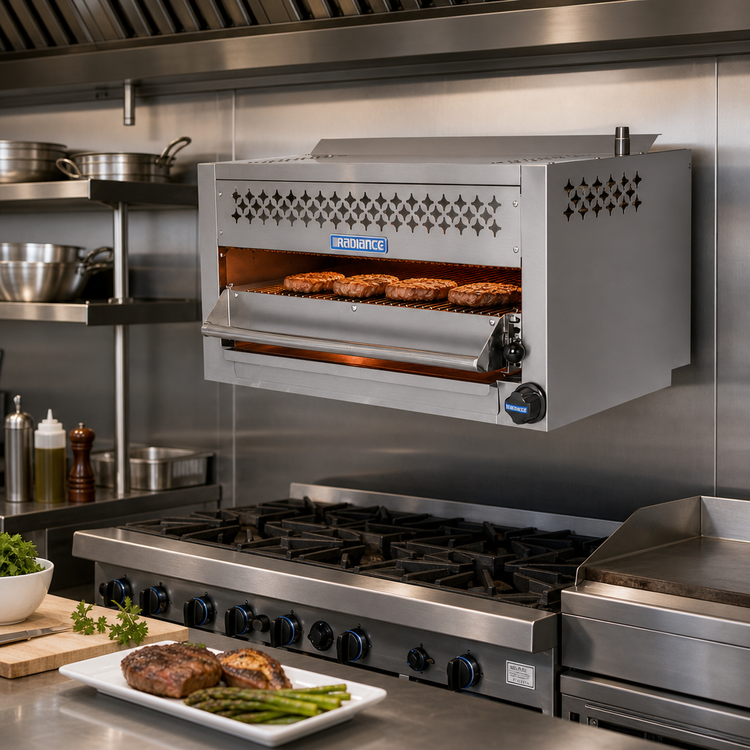

Range or Wall Mounting

The unit can be mounted over a Radiance range or on a wall. Range mounting brackets are standard, and wall mounting brackets are optional.

Frequently Asked Questions

The TASM-24 uses natural gas.
The unit has a 25,000 BTU rating.
It can be mounted over a Radiance range or on a wall. Range mounting brackets are standard, while wall mounting brackets are optional.
Yes. The spring-balanced roll-out stainless steel grid has four locking positions.
The product is 24 in wide, 20.5 in deep, and 19 in high.
The product has a 1 Year Parts and Labor Warranty applicable in the U.S.A. only.
