Turbo Air

Bake Tech Innovation Radiance 48-Inch Natural Gas Infrared Cheesemelter with Wall or Range Mount

SKU: TACM-48
$2,950.65
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Charbroilers & Grills Cheese Melters Cheesemelters New Arrivals Restaurant Equipment Turbo Air

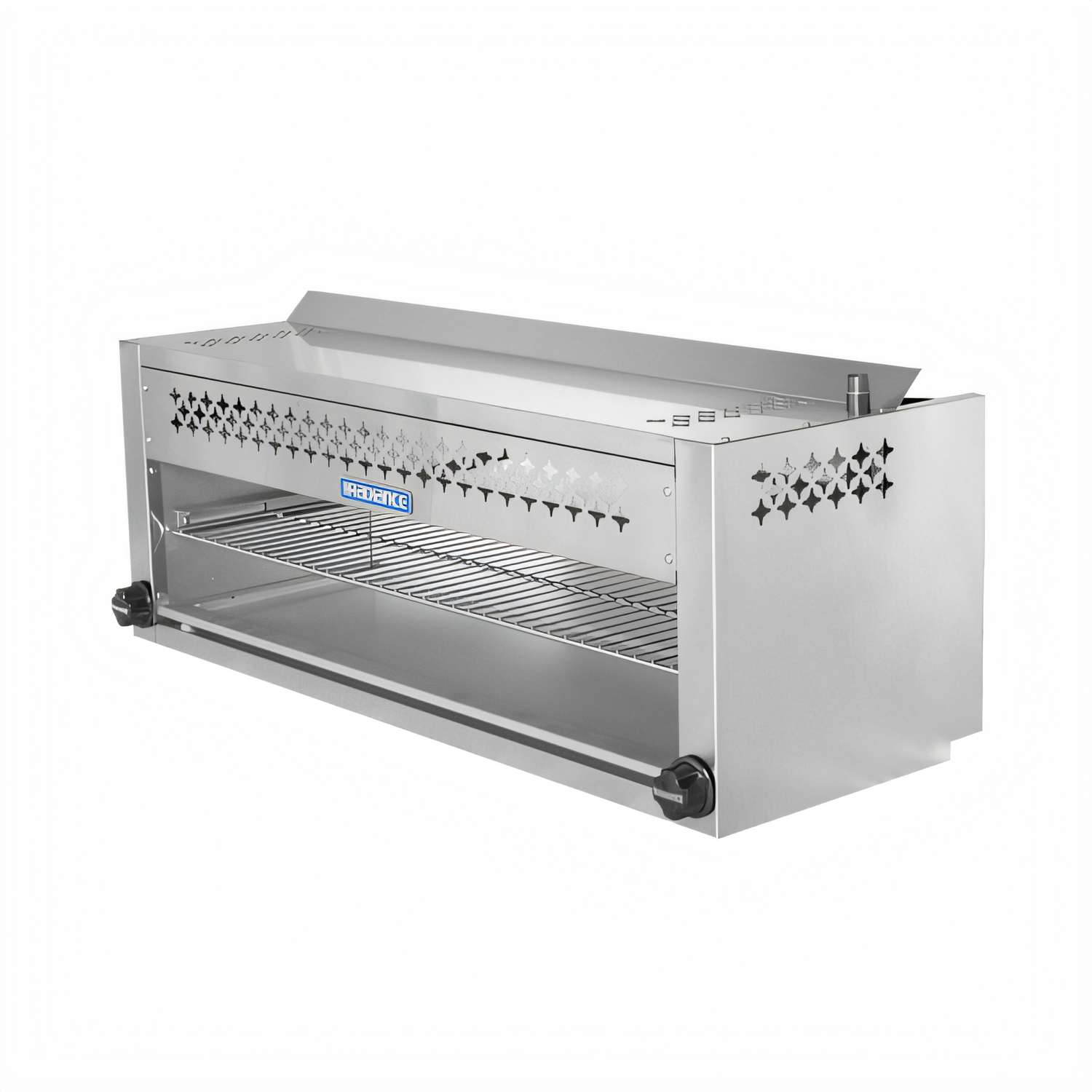

Bake Tech Innovation Radiance 48-Inch Natural Gas Infrared Cheesemelter with Wall or Range Mount

40,000 BTU, Stainless Steel, Adjustable Gas Valve

Deliver fast, high-heat finishing with a 48-inch infrared cheesemelter that offers flexible mounting and precise gas control.

  • 48-inch natural gas cheesemelter with a 40,000 BTU infra-red burner
  • Mounts over a Radiance range or on the wall for flexible installation
  • Stainless steel front, sides, and interior for durability and easy cleaning
  • Adjustable gas valve plus individual left and right gas controls for better heat management
  • Chrome-plated heavy-duty rack and protective burner screen for reliable operation
  • CSA certified for safety and sanitation in the USA and Canada

Overall Dimensions:

48.0"W x 20.5"D x 19.0"H

Product Weight:

208.0 lb

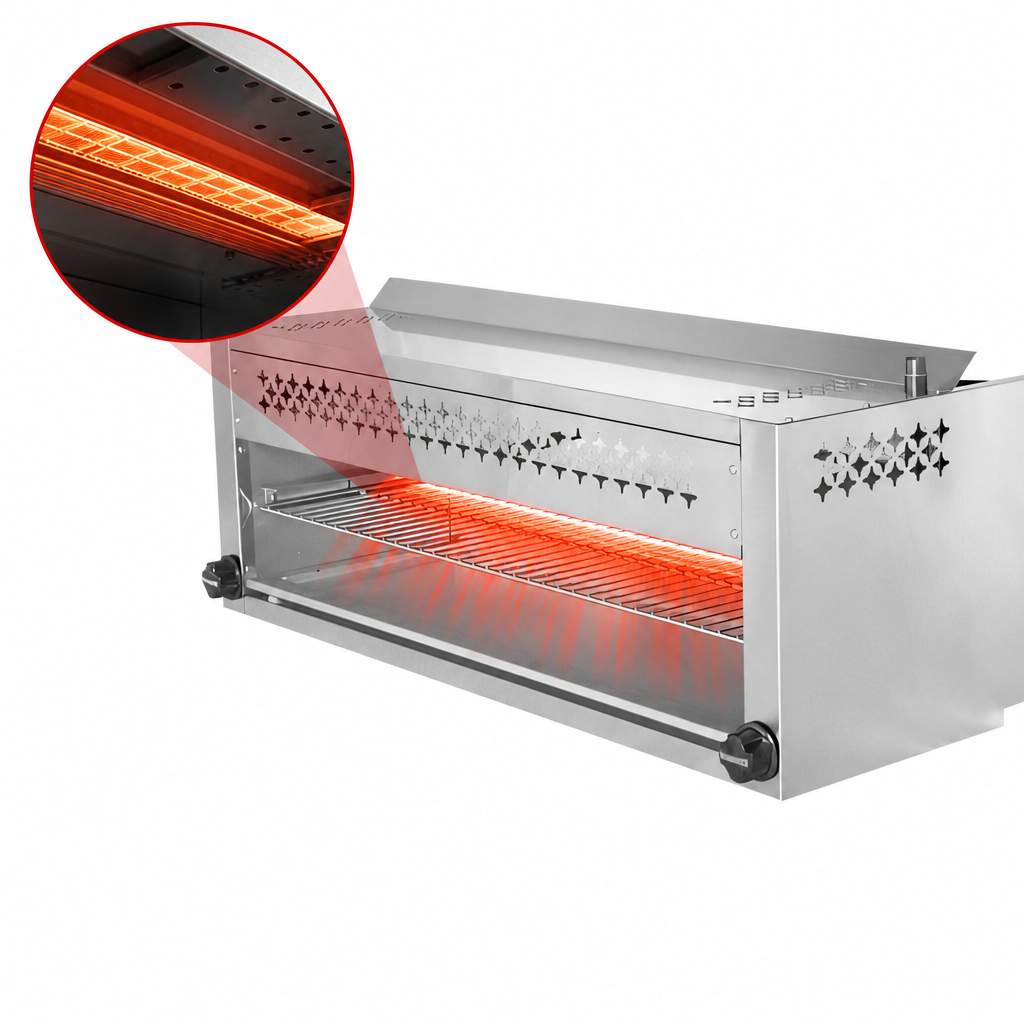

Infra-Red Burner

High-output infrared heat is ideal for melting, browning, and finishing menu items quickly.

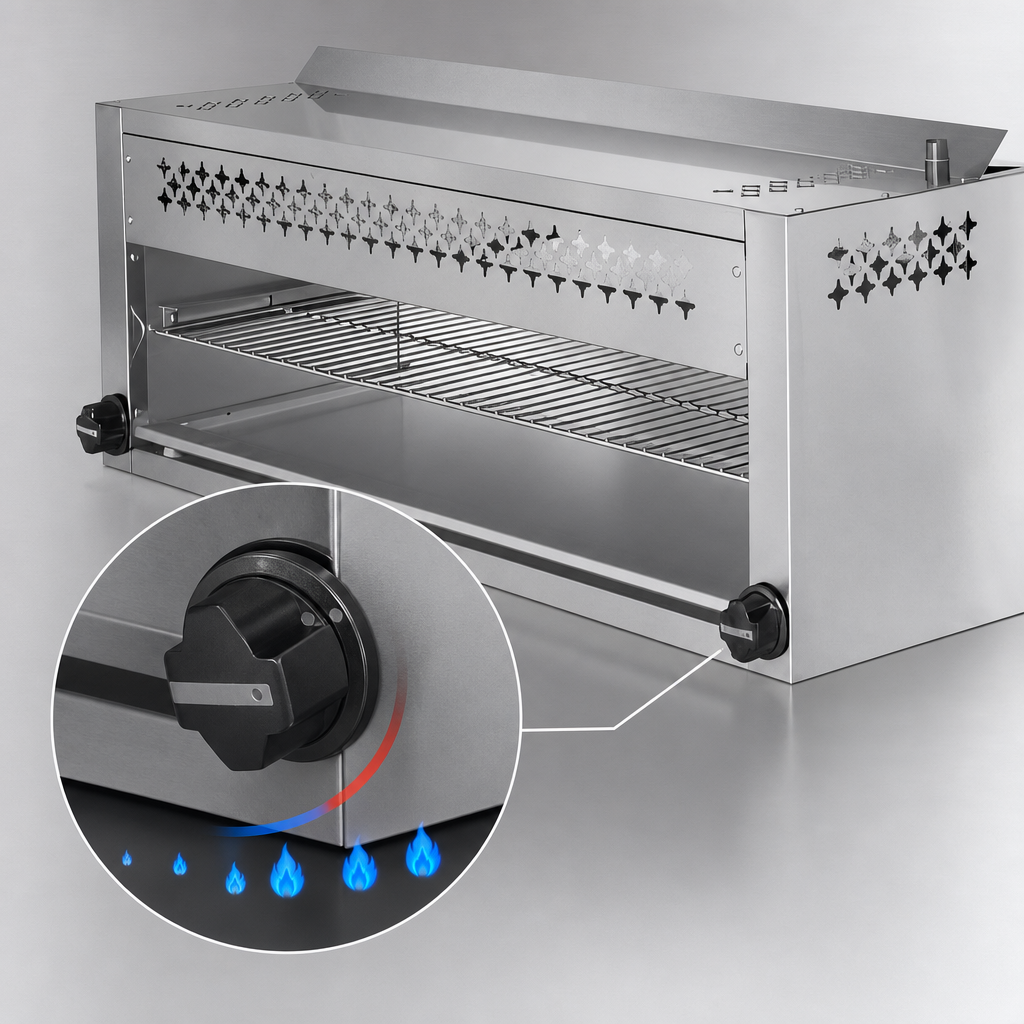

Adjustable Gas Valve

Lets operators fine-tune burner output for different foods and finishing needs.

Protective Burner Screen

Covers the infra-red burner to help protect the burner during use.

Chrome-Plated Heavy-Duty Rack

Durable rack provides a stable surface for holding product under the heat source.

Independent Left and Right Gas Controls

Separate controls allow more precise heat management across the cooking area.

Stainless Steel Construction

Stainless steel front, sides, and interior support long-lasting performance and easy cleanup.

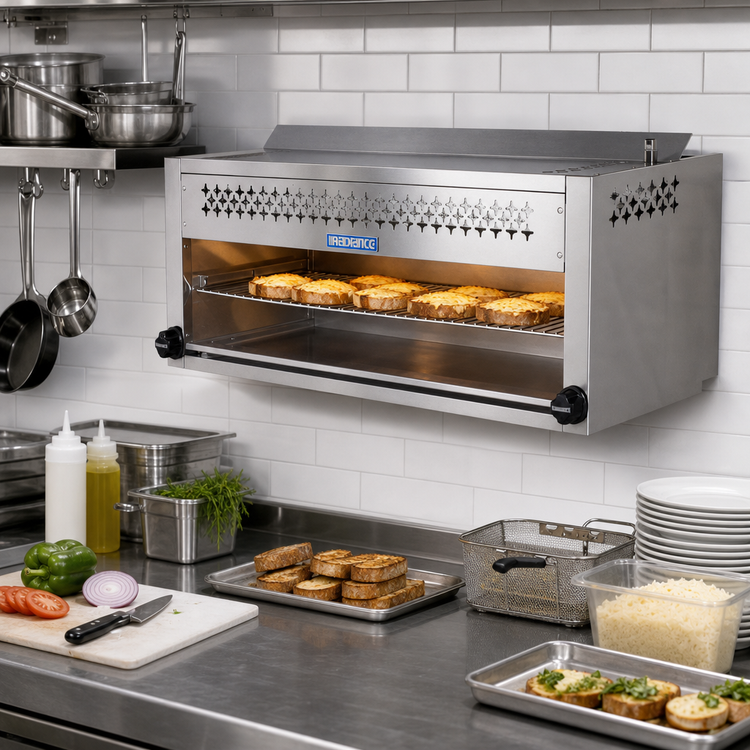

Flexible Mounting

Can be mounted over a Radiance range or on a wall; range mounting brackets are standard.

CSA Certified

Certified for safety and sanitation in the USA and Canada.

Type Cheesemelter
Style Infrared
Installation Type Wall Mounted
Controls Independent Left/Right Gas
Rack Positions 1
BTU 40,000 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 Inch
Gas Inlet Pressure 5 Inches W.C.
Material Stainless Steel
Interior Finish Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 21 Inches
Shipping Height 19 Inches
Shipping Weight 208 lb.

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Mounting instruction PDF Download

Frequently Asked Questions

This model is the natural gas version and uses a 3/4-inch gas connection with 5 inches W.C. inlet pressure.
Yes. It can be mounted over a Radiance range or on a wall.
It uses an infra-red burner with a protective screen.
Yes, it includes individual left and right gas controls.
The unit includes a 1-year parts and labor warranty.
Yes. It is CSA certified for safety and sanitation in the USA and Canada.
