Description

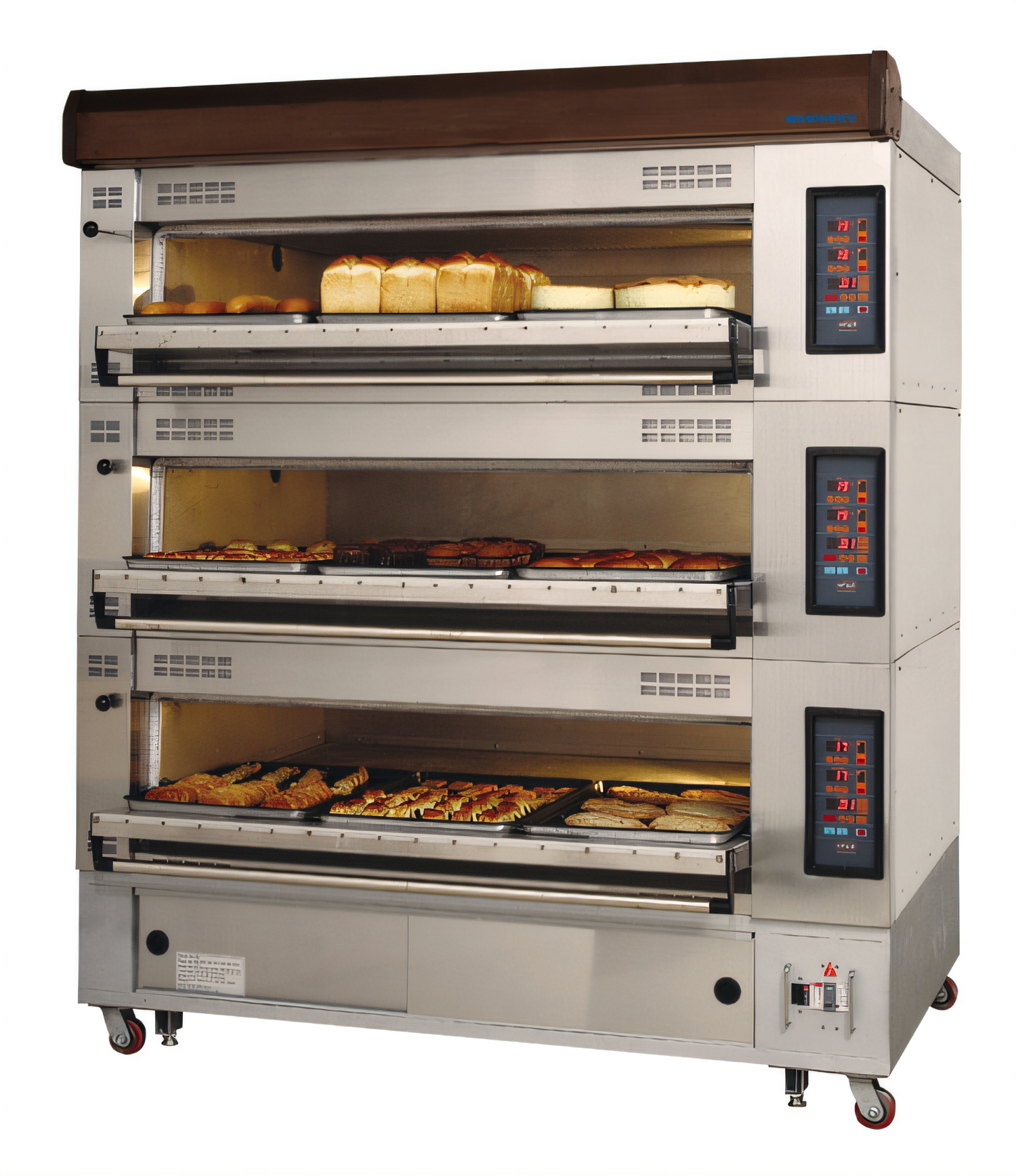

Radiance RBDO-23 3-Tier Electric Deck Oven
Holds (6) 16" × 24" Euro Trays | 13 kW | cETLus & ETL-SanitationBring authentic European deck baking to your kitchen with Turbo Air’s Radiance RBDO-23. Three independently-controlled decks, rapid microprocessor heating, and a space-saving 50-inch footprint make it the perfect centerpiece for artisan bakeries, cafés, hotels, and commissaries.
Key Features
- Three independent decks – bake different products simultaneously without flavor transfer.
- Microprocessor heating control (0 – 100%) for precise, even temperatures.
- Separate top & bottom heating elements in every deck for exact crust and crumb results.
- Overheat protection sensor for operator safety and component longevity.
- Tempered see-through windows for quick visual checks without heat loss.
- Accepts two 16" × 24" European pans per deck (six total).
- Wide 90 °F – 536 °F range handles proofing, gentle baking, or high-heat hearth loaves.
- Intuitive digital panel with timer, arrow-key adjustment, and four programmable presets.
- Uniform heat distribution and superior insulation for consistent colorization.
- Single 220 V / 3-phase electrical connection powers all decks.
- Adjustable legs and locking casters for easy leveling, moving, and cleaning.
- Optional high-pressure steam injection & ceramic stone plate (1.5 kW per deck) for artisan crusts (½" water connection required).
- Certified cETLus & ETL-Sanitation; backed by a 1-year parts & labor warranty.
Specifications
| Model | RBDO-23 |
|---|---|
| Decks / Capacity | 3 decks / 2 trays per deck (6 total) |
| Tray Size | 16" × 24" (European) |
| Exterior Dimensions (W × D × H) | 50 3/8" × 34 1/4" × 74 3/4" |
| Interior Dimensions per Deck (W × D × H) | 33 7/8" × 28 3/4" × 7 7/8" |
| Temperature Range | 90 °F – 536 °F |
| Electrical | 220 V / 60 Hz / 3-Phase, 34 A, 13 kW, AWG 11 |
| Presets | 4 programmable bake profiles |
| Net Weight | 772 lb |
| Optional Steam / Stone | Yes – 1.5 kW per deck (½" ball-valve water feed) |
| Warranty | 1-year parts & labor |
| Certifications | cETLus, ETL-Sanitation |
Design and specifications are subject to change without notice. View the latest spec sheet.
