Turbo Air PRO-77H-PT PRO Heated Cabinets & Holding Shelves
Description

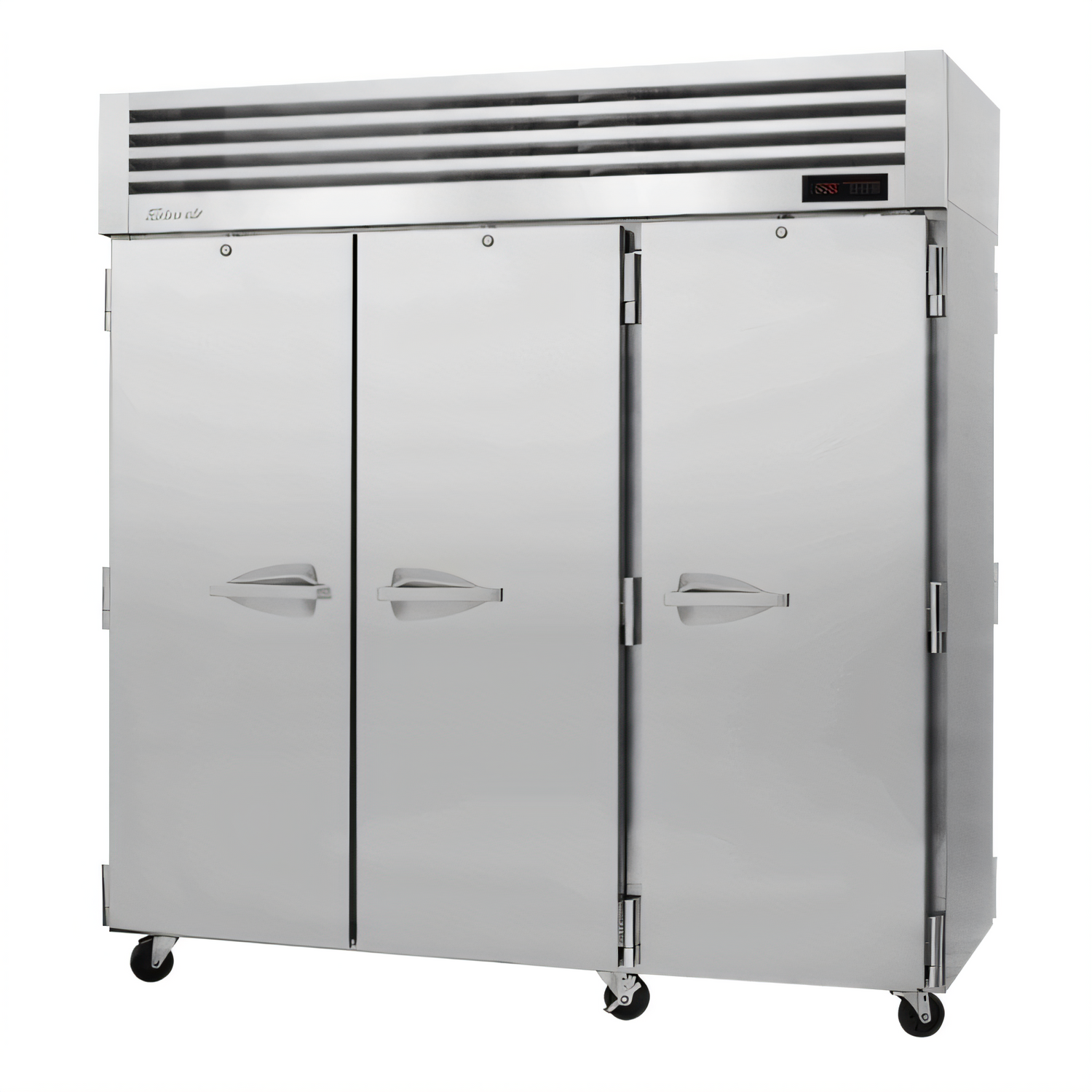

Turbo Air PRO-77H-PT Pass-Thru Heated Cabinet
78.1 cu. ft • 3-Section • 6 Solid Locking DoorsBuilt in the U.S.A. for high-volume commercial kitchens, the ENERGY STAR® qualified PRO-77H-PT keeps plated meals, sheet pans, or hotel pans at a precise 140 °F – 180 °F—even during the busiest service. Full stainless construction, a smart touchscreen controller, and lifetime-guaranteed hinges mean this pass-thru cabinet is ready for years of dependable, food-safe holding on both the cookline and the service side.
Why You’ll Love It
- Six self-closing doors with locks & stay-open feature at 120° for easy loading/unloading from either side.

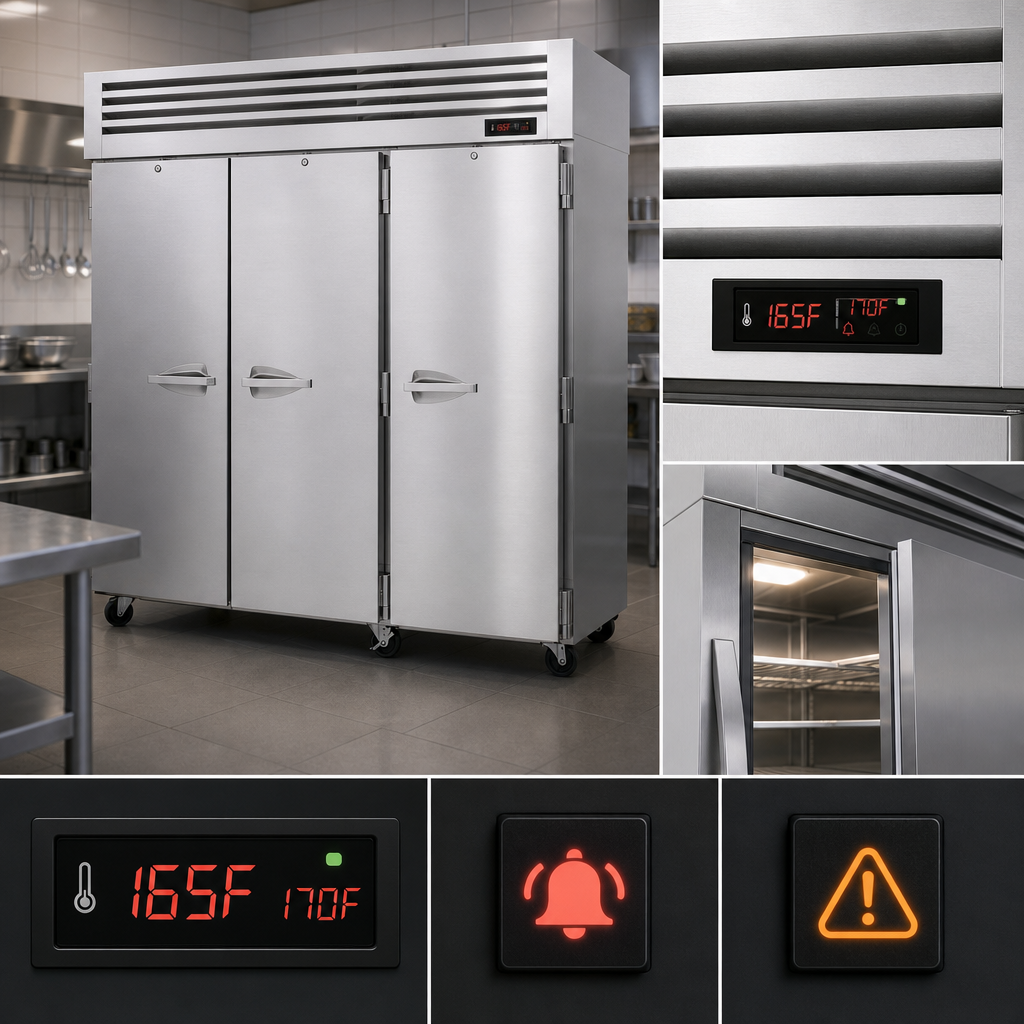

- Touch digital control & monitor system with audible door-ajar and early-warning alarms.

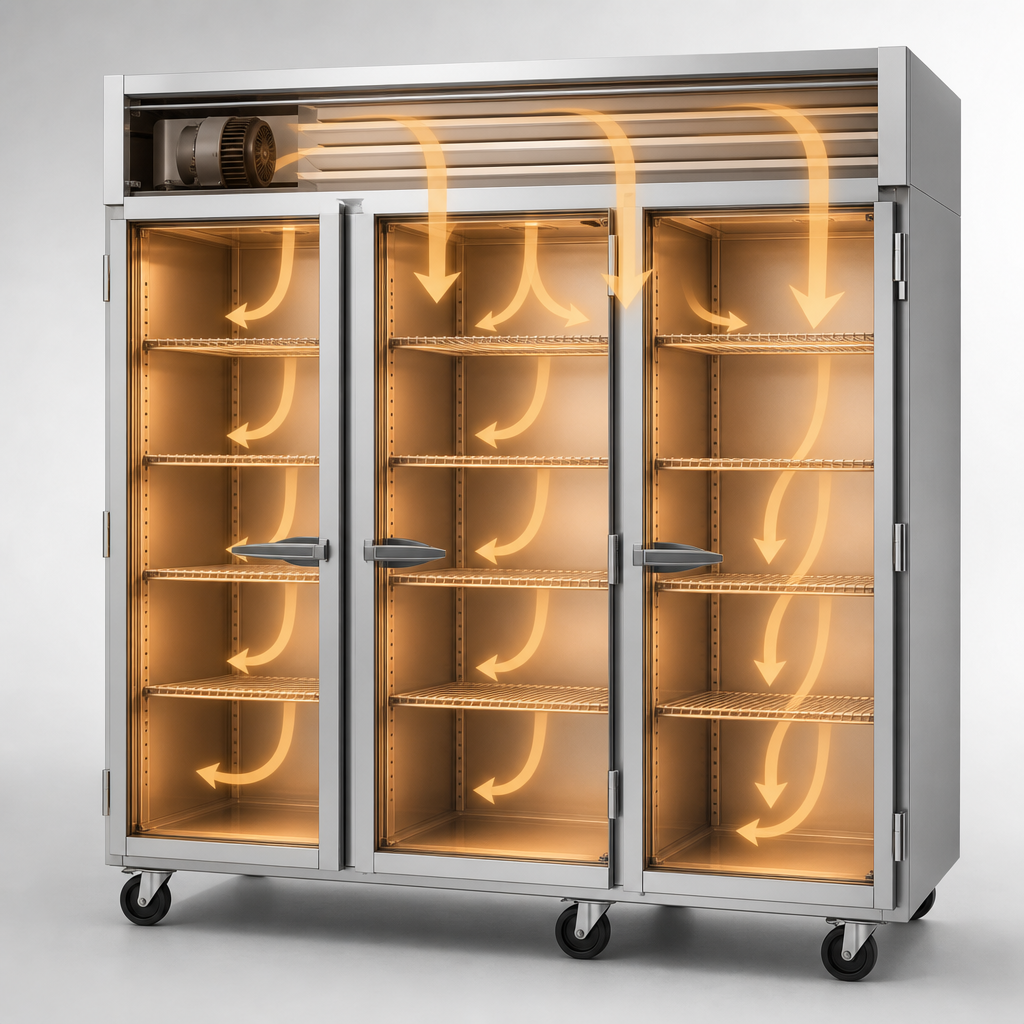

- Ducted fan air distribution delivers even heat to every shelf—no hot spots.
- All-stainless cabinet (interior + 22 ga front & sides) resists corrosion and wipes clean fast.
- Nine stainless steel wire shelves won’t peel like PVC coatings and are dishwasher-safe.
- High-density, CFC-free insulation foamed-in-place for maximum heat retention.
- Bright, long-life LED interior lighting for quick pan identification.
- 4" locking casters included; 5" casters or legs available.
- 3-year parts & labor warranty backed by Turbo Air’s nationwide service network.
Specifications
| Model | PRO-77H-PT (PRO Series) |
|---|---|
| Sections / Doors | 3 sections / 6 full-length solid doors (pass-thru) |
| Capacity | 78.1 cu. ft (2,214 L) |
| Temperature Range | 140 °F – 180 °F (60 °C – 82 °C) |
| Shelves Supplied | 9 stainless steel wire shelves |
| Shelf Size (L × D) | 22 ¾" × 26 ⅜" (L/R) | 25" × 26 ⅜" (Center) |
| Exterior Dimensions (W × D* × H†) | 77 ¾" × 36 ¼" × 78" (1,976 × 920 × 1,982 mm) |
| Net / Gross Weight | 730 lb / 798 lb |
| Construction | Stainless steel interior; 22 ga stainless front & sides; galvanized top & bottom |
| Controller | Touch digital display with alarms & ON/OFF switch |
| Interior Lighting | LED |
| Heating System | 3,000 W ducted fan-assisted |
| Electrical | 208-230 V / 115 V, 60 Hz, 1-ph, 15 A |
| Plug | NEMA L14-20P, 8 ft cord |
| Certifications | ETLus • ETL-Sanitation • ENERGY STAR® |
| Country of Origin | Made in USA |
*Depth excludes 2.5" door handles | †Height excludes 5" casters.
Warranty
Three-year parts & labor coverage. Complete details and registration form available at turboairinc.com.
