Turbo Air PRO-77H-G-PT PRO Heated Cabinets & Holding Shelves
Description

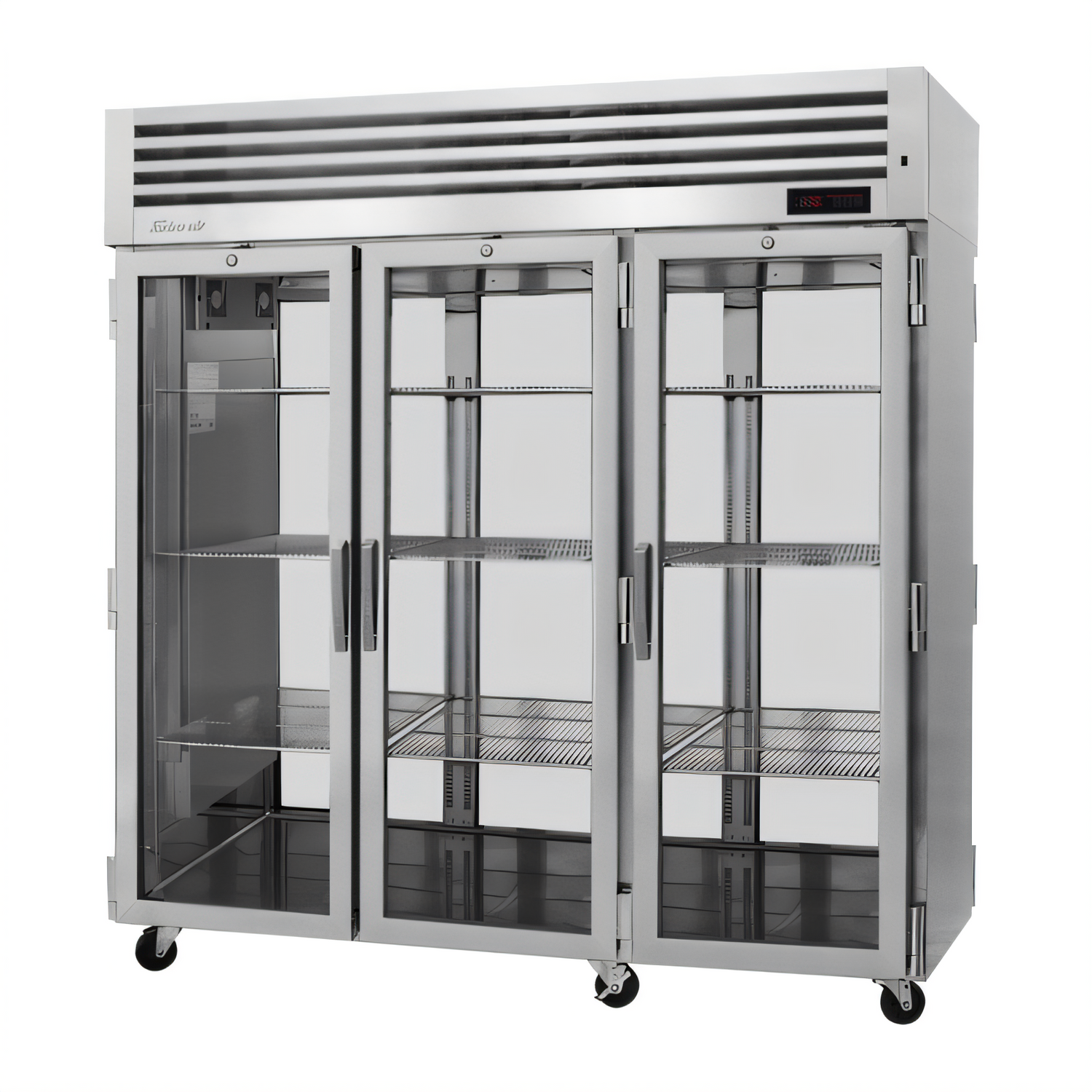

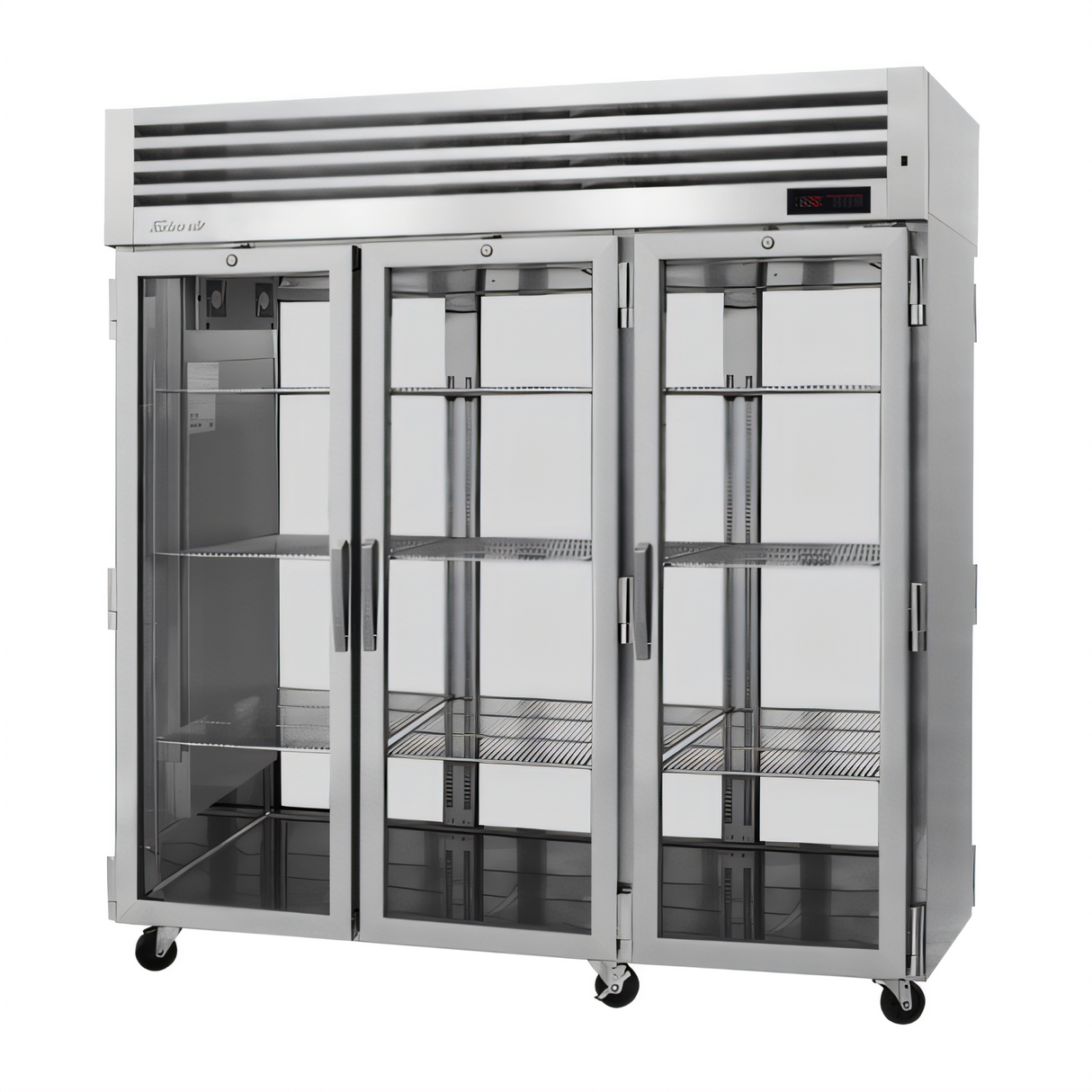

Turbo Air PRO-77H-G-PT Pass-Thru Heated Cabinet
78.1 cu. ft | Three-Section | Six Full-Length Glass DoorsKeep plated meals, sheet pans, or banquet trays hot, visible, and ready to serve on both sides of the line. The Turbo Air PRO-77H-G-PT combines heavy-duty stainless steel construction with a precise, ducted heating system that maintains food-safe temperatures between 140 °F – 180 °F. Built in America and backed by a 3-year parts & labor warranty, it’s the professional choice for high-volume kitchens, hotels, institutions, and catering operations.
Key Features
- True pass-thru design – load from the prep area, pull from the service side to streamline workflow.
- 6 self-closing, full-length glass doors with locks, stay-open feature at 120°, and lifetime-guaranteed hinges & handles.

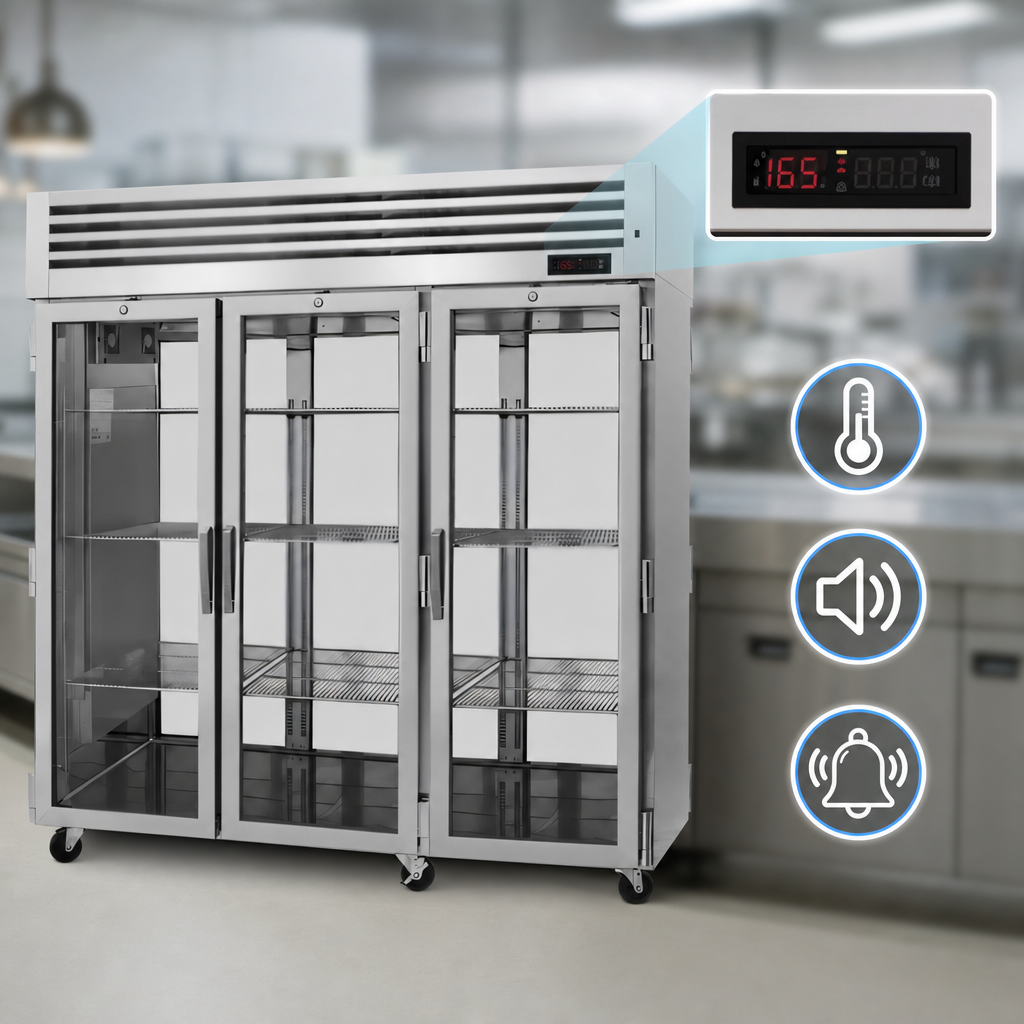

- Digital touch control & monitor with door-ajar and early-warning alarms for worry-free holding.

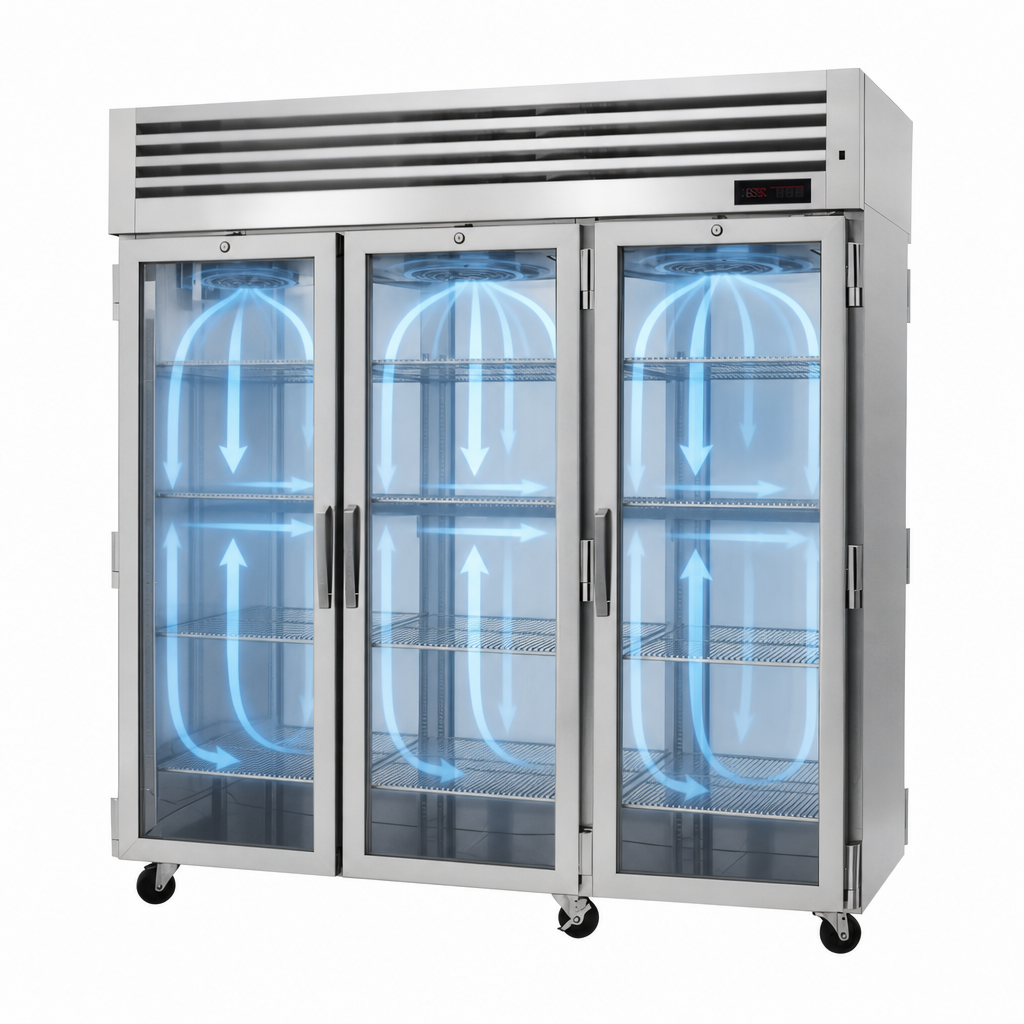

- Ducted fan air distribution ensures even heat throughout the cabinet.
- 9 heavy-duty stainless steel shelves – easier to sanitize and far more durable than PVC-coated wire.
- Patented dimmable LED lighting cuts energy use by 3-5 % while keeping product visibility high.
- High-density, CFC-free polyurethane insulation for maximum efficiency.
- Mounted on 4" swivel casters (front locking) for effortless cleaning and positioning.
- ETLus & ETL-Sanitation listed; Made in the USA.
Technical Specifications
| Model | PRO-77H-G-PT |
|---|---|
| Capacity | 78.1 cu. ft (3 sections) |
| Temperature Range | 140 °F – 180 °F (60 °C – 82 °C) |
| Doors | 6 full-length heated glass, pass-thru, self-closing & locking |
| Shelves | 9 stainless steel (removable; tray slide kits optional) |
| Exterior Dimensions (W × D × H) | 77 3/4" × 36 1/4" × 78" (add 5" for casters) |
| Interior Dimensions | 68 1/4" × 27 5/8" × 58 3/4" |
| Electrical | 208-230 V / 115 V, 60 Hz, 1-phase | 3000 W | 15 A |
| Plug | NEMA L14-20P (8 ft cord) |
| Net / Shipping Weight | 856 lb / 924 lb |
| Construction | Stainless steel interior, 22-ga stainless front & sides, galvanized top & bottom |
| Mobility | 4" swivel casters, front pair locking |
| Certifications | ETLus, ETL-Sanitation |
| Warranty | 3-year parts & labor |
| Origin | Made in USA |
Need extra shelves, tray slides, or seismic legs? Reach out and we’ll be happy to quote optional accessories. Specifications are subject to change without notice.
