Turbo Air PRO-77-6H-PT PRO Heated Cabinets & Holding Shelves
Description

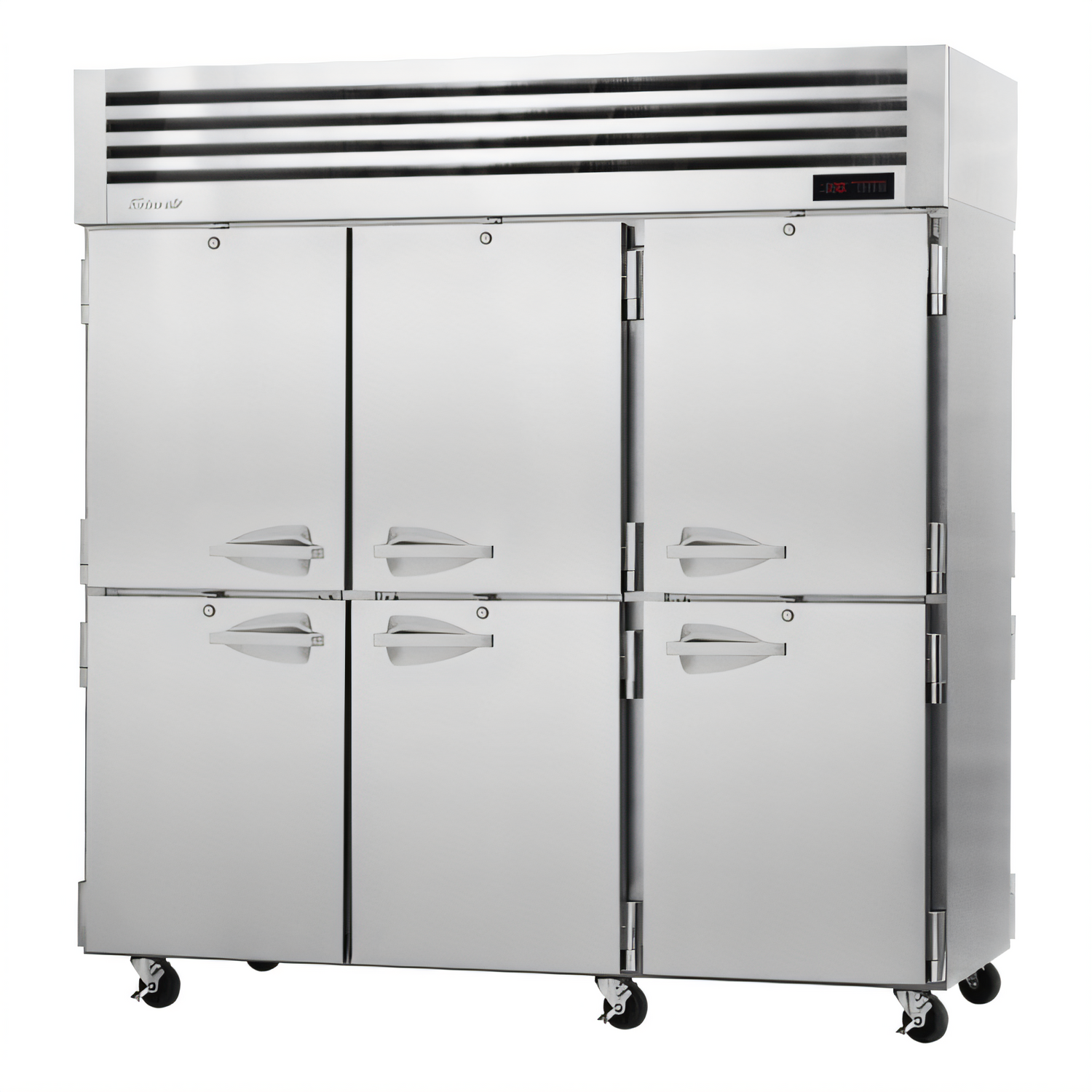

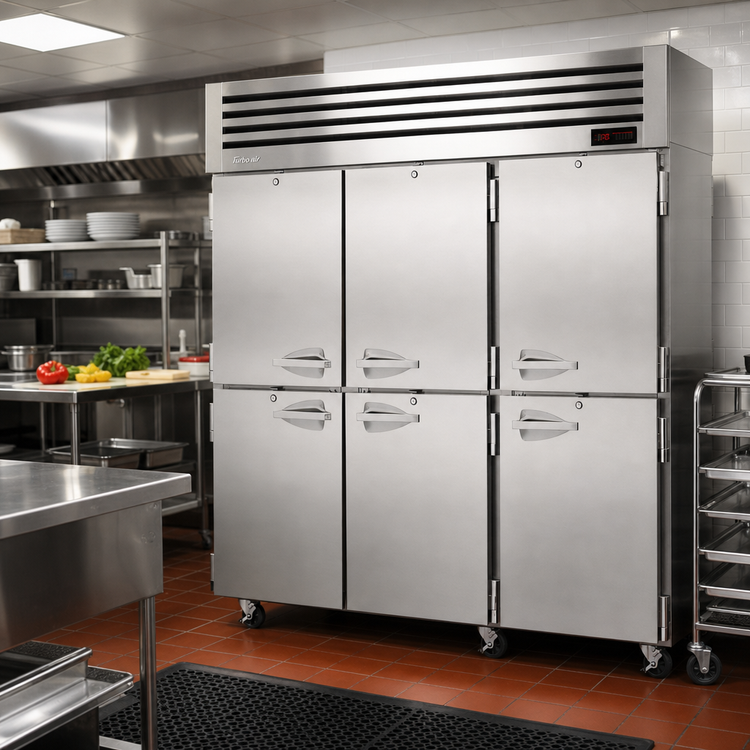

Turbo Air PRO-77-6H-PT Pass-Thru Heated Cabinet
78.1 cu ft • 3-Section • 12 Half-Solid DoorsKeep plated meals and pans service-ready with the reliability of Turbo Air’s PRO Series. The PRO-77-6H-PT delivers consistent 140 °F – 180 °F holding temperatures in a rugged, all-stainless cabinet that loads from either side—ideal for busy prep lines, banquets, and institutional kitchens.
Top Features

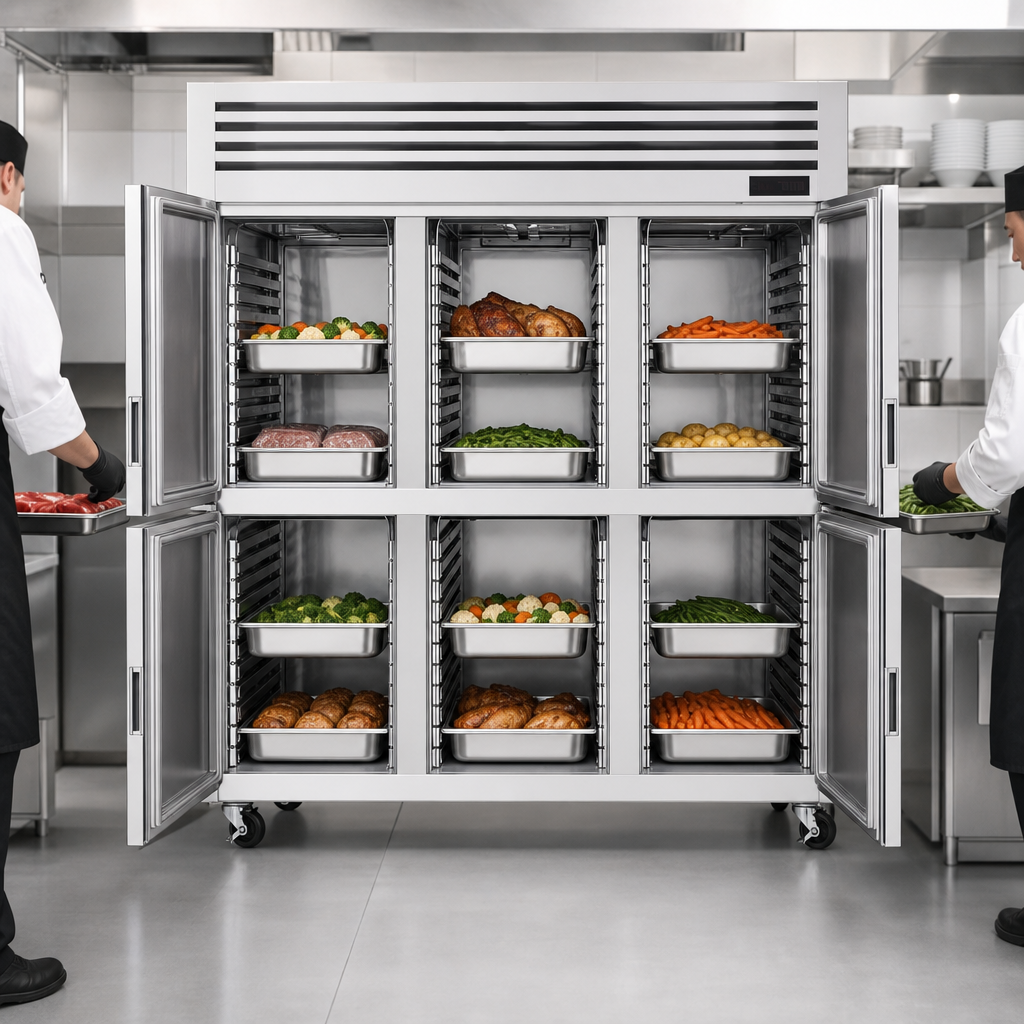

- Pass-thru convenience: 6 doors front & 6 doors rear speed up loading and service.
- Digital temperature control with touch display, door-open alarm, and on/off switch.
- Ducted fan air distribution maintains even heat throughout the food zone.
- 12 self-closing doors lock tight yet stay open at 120° for painless stocking.
- Lifetime-guaranteed heavy-duty hinges and handles.
- All stainless steel interior plus 22-gauge stainless steel front & sides for maximum hygiene and durability.
- Nine heavy-duty stainless steel wire shelves—no flaking PVC coatings.
- Bright, energy-saving LED interior lighting.
- High-density, CFC-free polyurethane insulation.
- Mounted on 4 in. swivel casters (front two locking) for easy positioning.
Key Specifications
| Model | PRO-77-6H-PT |
|---|---|
| Capacity | 78.1 cu ft / 2,213 L |

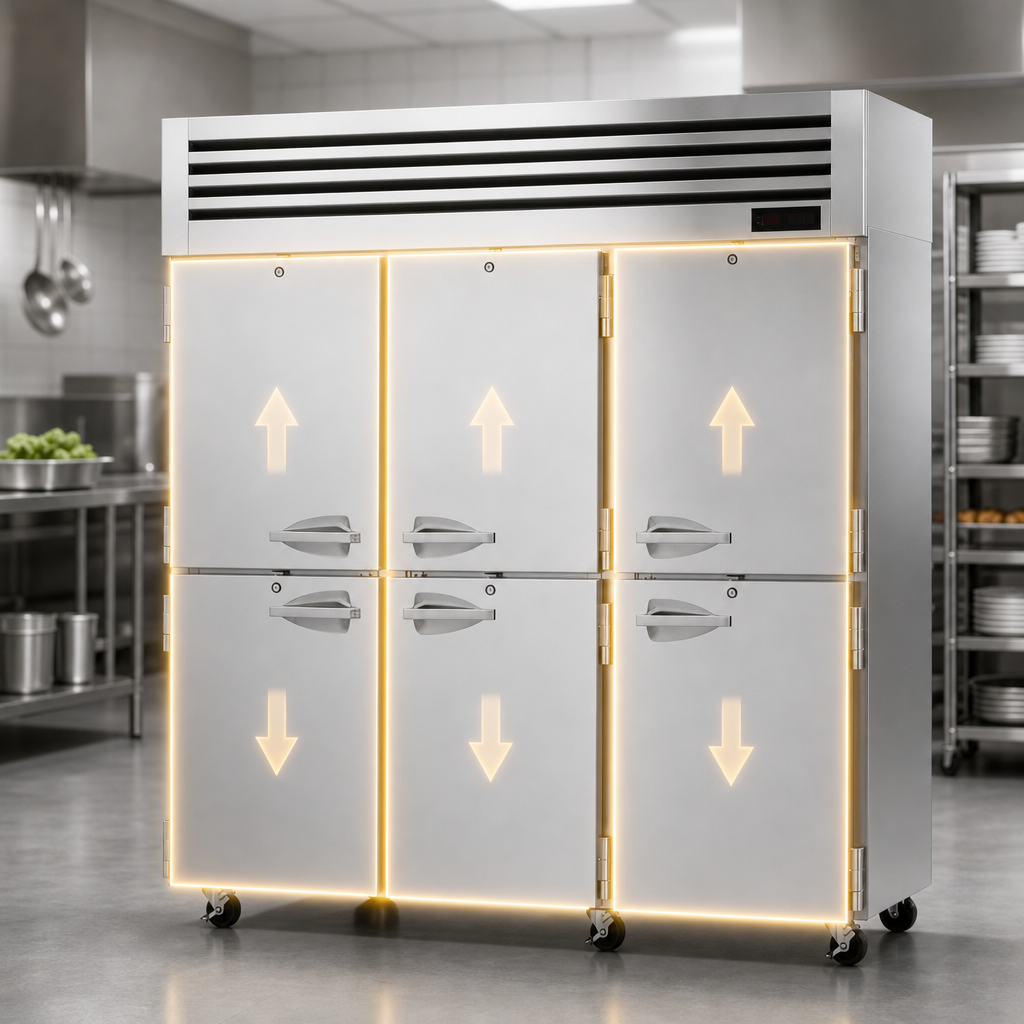

| Sections & Doors | 3 sections • 12 half-length solid doors (locking, pass-thru) |
| Temperature Range | 140 °F – 180 °F (60 °C – 82 °C) |
| Shelves Included | 9 stainless steel wire shelves (3 per section) |
| Exterior / Interior | 22-ga. stainless front & sides (galv. top & bottom) / full stainless interior |
| Electrical | 208-230 V / 115 V, 60 Hz, 1-ph, 15 A, 3,000 W |
| Plug | NEMA L14-20P, 8 ft cord |
| Dimensions (W × D × H) | 77 3⁄4 in × 36 1⁄4 in × 78 in (1,976 × 920 × 1,982 mm) |
| Shipping Weight | 894 lb / 406 kg |
| Certifications | ETLus • ETL Sanitation • Made in USA |
| Warranty | 3-year parts & labor |
Popular Accessories (sold separately)
- Additional stainless steel shelves
- Universal & pan-specific tray slide kits
- 5 in. casters, seismic legs, or 6 in. stainless legs
• Depth excludes 2.5 in. door handles. Height excludes 5 in. casters.
• Standard build ships in approximately 4 weeks.
