Turbo Air PRO-77-6H-G-PT PRO Heated Cabinets & Holding Shelves
Description

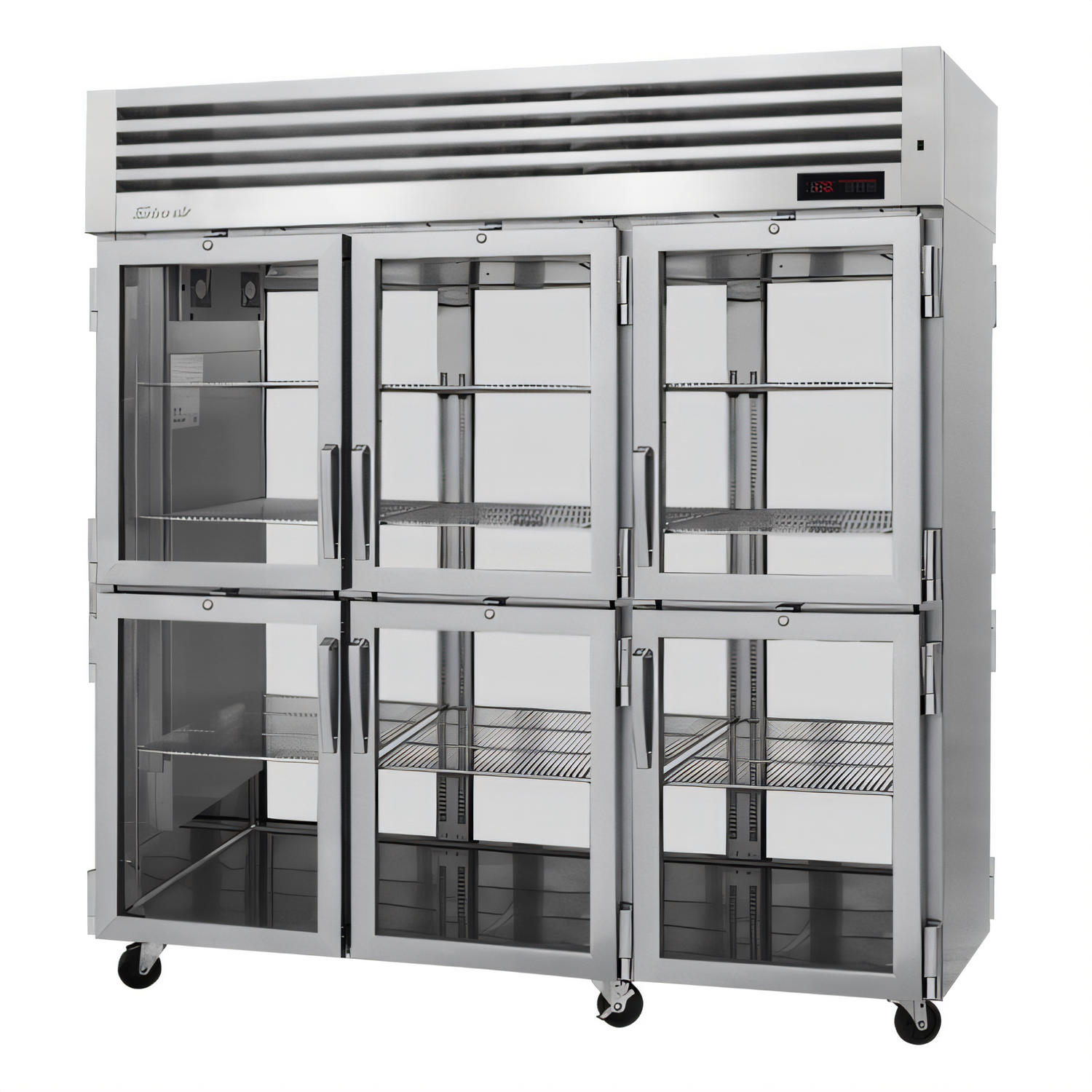

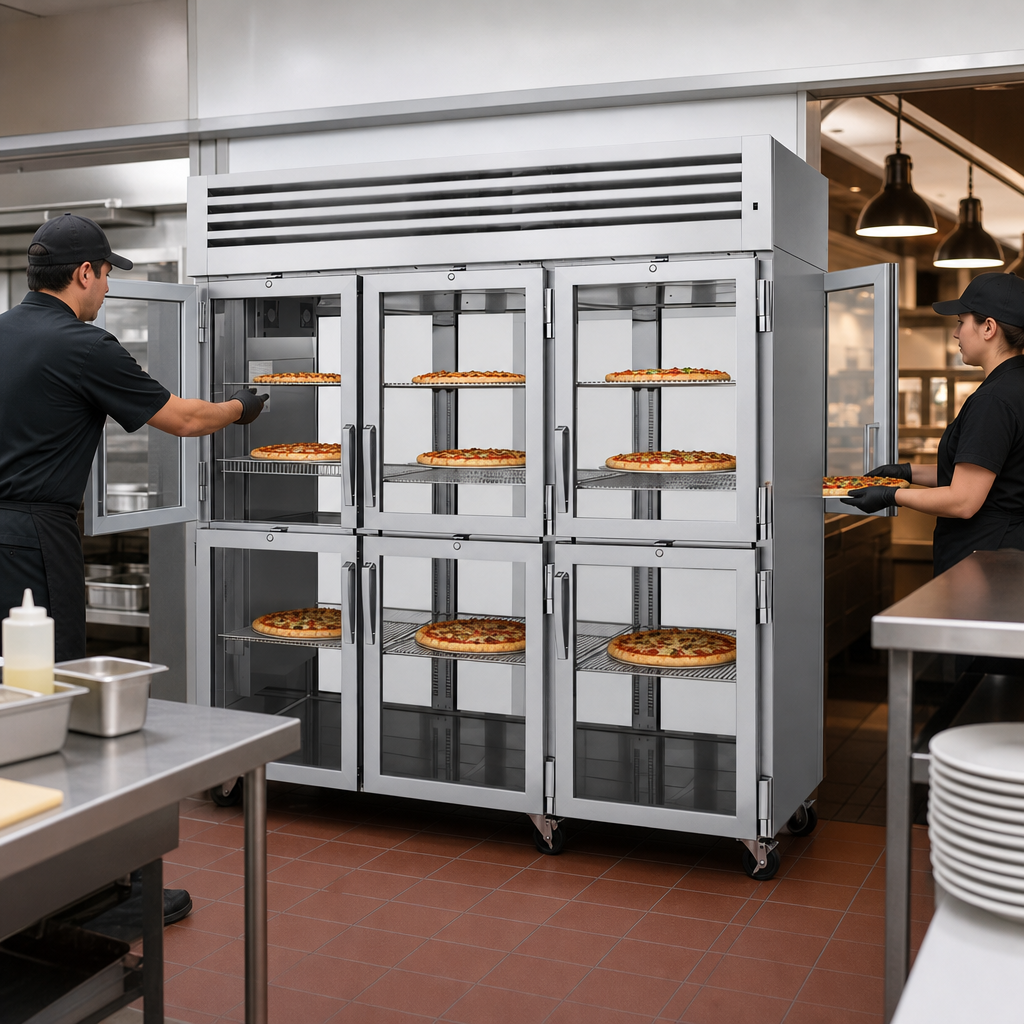

Turbo Air PRO-77-6H-G-PT Pass-Thru Heated Cabinet
PRO Series • 3-Section • 78.1 cu. ft. • Made in the USAKeep plated meals, pans and proofing trays hot, safe and instantly accessible from both sides of the kitchen line. Turbo Air’s PRO Series pass-thru heated cabinet combines a rugged, all-stainless build with intuitive digital controls and energy-saving features—engineered for the most demanding commercial kitchens and banqueting operations.
Top Features & Benefits
- 12 self-closing half-glass doors with stay-open position at 120° and integrated locks.
- Digital temperature control & monitoring system with alarm alerts and soft-touch display.
- Heated holding range: 140 °F – 180 °F maintained by a ducted fan air-distribution system for even heat.
- Lifetime-guaranteed heavy-duty hinges & door handles.
- All-stainless construction—22 ga. front & sides, stainless interior, galvanized top/bottom—for superior durability and cleanliness.
- (9) stainless-steel wire shelves (won’t chip or peel like PVC-coated racks).
- Patented LED interior lighting with dimming option reduces energy use by up to 5 %.
- High-density CFC-free polyurethane insulation foamed-in-place for maximum thermal efficiency.
- 4 in. swivel casters (front locking) standard for easy mobility and cleaning.
- Made in the USA and backed by a 3-year parts & labor warranty.
Technical Specifications
| Model | PRO-77-6H-G-PT |
|---|---|

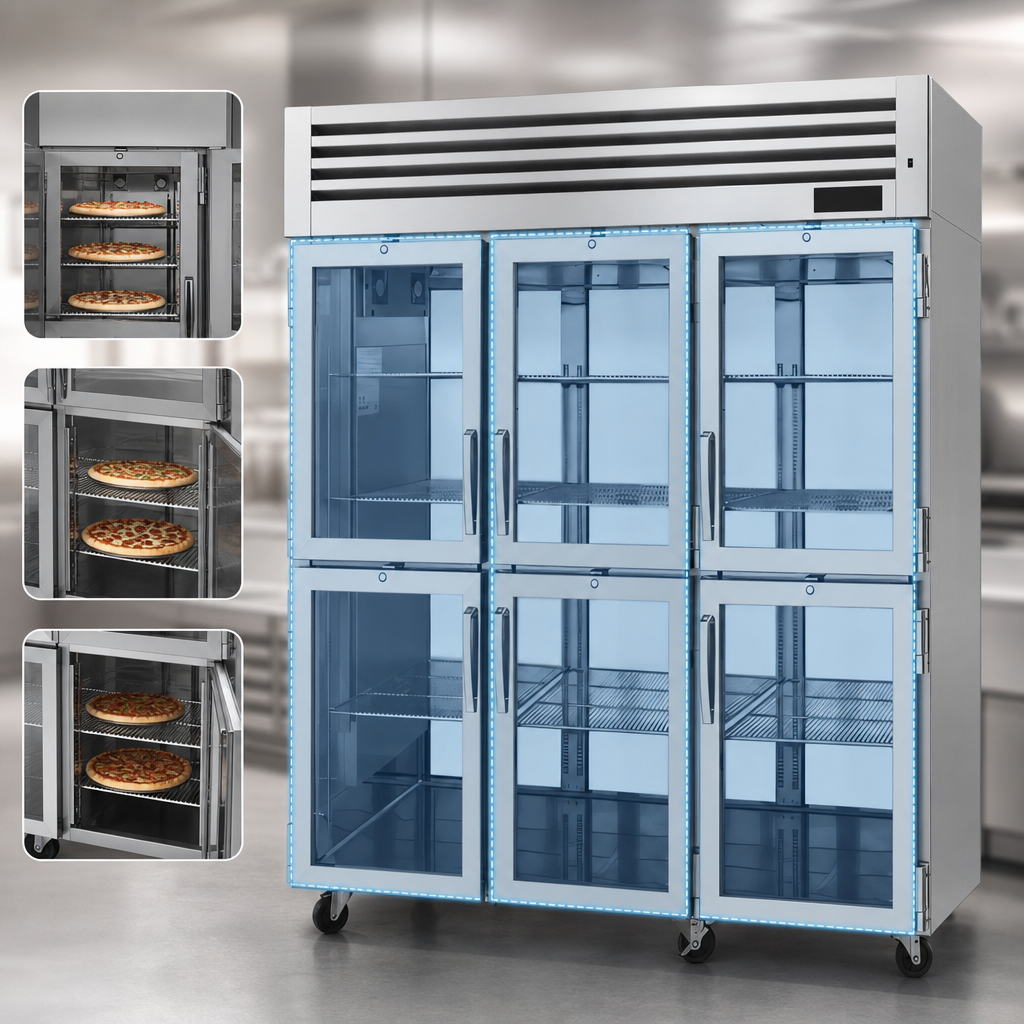

| Capacity | 78.1 cu. ft. (3 sections) |
| Door Configuration | 12 half-glass, pass-thru, self-closing with locks |
| Shelves (included) | 9 stainless-steel wire shelves |
| Temperature Range | 140 °F to 180 °F |
| Exterior Dimensions (W × D × H) | 77 3⁄4 × 36 1⁄4 × 78 in. (Height excludes 5 in. casters; depth excludes 2 1⁄2 in. handles) |
| Interior Dimensions | 68 1⁄4 × 27 5⁄8 × 58 3⁄4 in. |
| Construction | Stainless steel interior, 22 ga. stainless front & sides, galvanized top & bottom |
| Heating Power | 3000 W |
| Electrical | 208-230 V / 115 V, 60 Hz, 1-phase, 15 A |
| Plug Type | NEMA L14-20P (8 ft. cord) |
| Net / Crated Weight | 856 lb / 924 lb |
| Casters | 4 in. swivel (front locking) – optional 5 in. or legs available |
| Regulatory Listings | ETL (US) • ETL-Sanitation |
| Warranty | 3-year parts & labor, lifetime hinges/handles |
Included
- Lockable doors with magnetic gaskets (easy single-piece replacement)
- 4 in. swivel casters (front locking)
- LED interior lighting with dimming control
Popular Add-Ons
- 5 in. casters (brake / non-brake)
- 4.7 in. leveling seismic legs or 6 in. stainless legs
- Extra stainless shelves or universal tray-slide kits
Turbo Air warrants the cabinet, components and labor for three (3) years from date of installation.
Register your unit within 7 days of purchase to activate coverage.
Full warranty details ›
