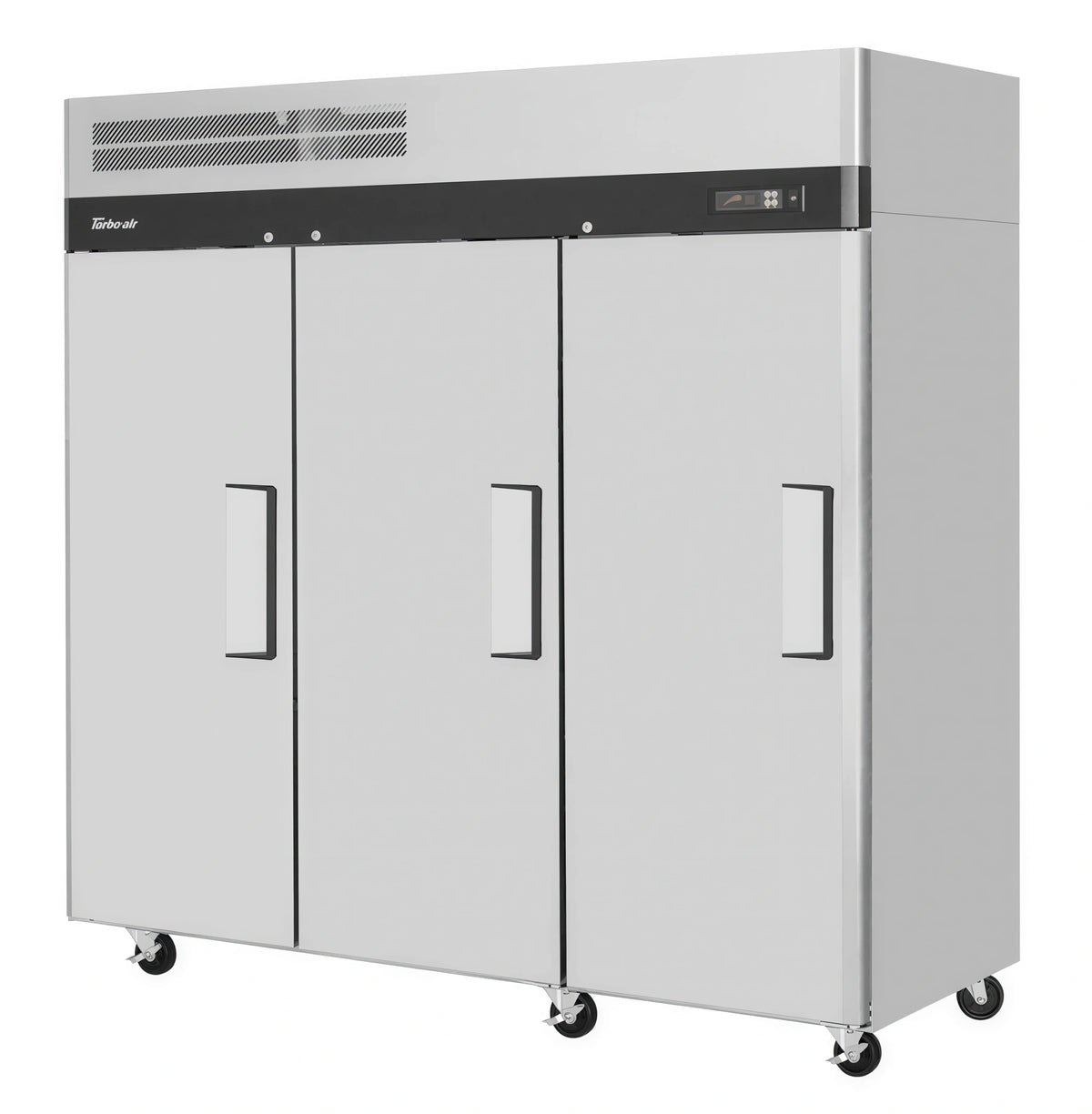

Turbo Air M3R72-3-N-AL Three-Section Reach-In Refrigerator, 65.8 cu. ft., Solid Hinged Doors, Top-Mounted Refrigeration
- Full load amperage
- 5.6 A
- Phase
- Single-phase
- Dimensions
- 77.75"W × 30.75"D × 78.0"H
- Capacity
- 65.8 cu. ft.
- Section count
- 3
- Door construction
- 3 solid, full-hinged doors
Specifications
Description
The Turbo Air M3R72-3-N-AL is a three-section reach-in refrigerator with 65.8 cu. ft. of net capacity, three solid hinged doors with locks, and a top-mounted, self-contained refrigeration system.
It features digital temperature control and monitoring, a self-cleaning condenser, LED interior lighting, and nine adjustable PE-coated wire shelves. The cabinet has a stainless steel exterior with galvanized steel top, bottom, and back, plus an aluminum interior with a stainless steel floor.
- Specified holding range of 33°F to 38°F
- R-290 hydrocarbon refrigerant
- Hot gas condensate system
- 115 V, 60 Hz, single-phase electrical service with NEMA 5-15P plug
Overall Dimensions:
77.75"W x 30.75"D x 78.0"HProduct Weight:
559.0 lbSelf-cleaning condenser
A fine mesh filter and rotating brush remove condenser dust buildup daily.
Digital temperature control and monitor system
Includes a digital display, door-seal alarms, early-warning alarms, self-diagnosis programs, rapid cool-down, and automatic evaporator fan motor delays.
Top-mounted refrigeration
The refrigerator uses a top-mounted, self-contained refrigeration system.
Hot gas condensate system
The condensate system uses treated surfaces to resist corrosion and help prevent condensate water overflow.
LED interior lighting
LED lighting illuminates the refrigerator interior.
PE-coated wire shelves
Nine adjustable, heavy-duty PE-coated wire shelves are included.
Solid insulated doors
The solid doors use high-density, CFC-free polyurethane insulation and include pressure-release devices for easier opening.
R-290 refrigerant
The unit uses R-290 hydrocarbon refrigerant.
