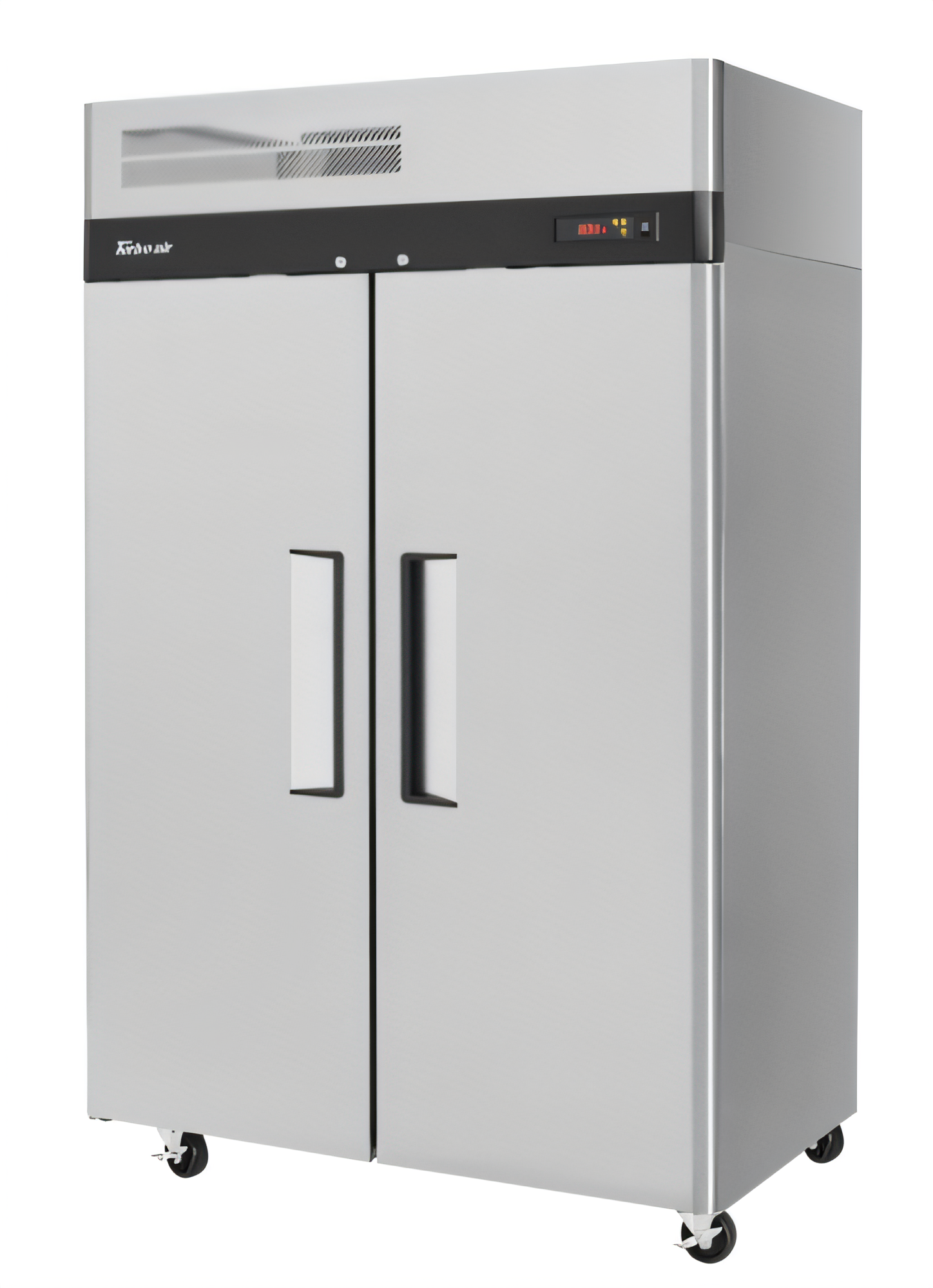

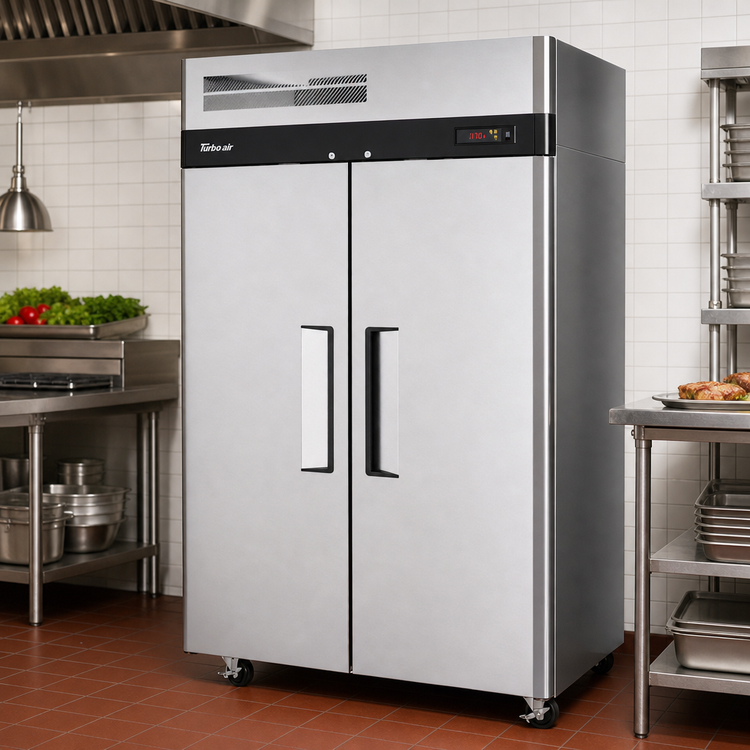

Turbo Air M3 Series 2-Section Pass-Thru Heated Holding Cabinet with Solid Doors and Universal Tray Slides

Standard Depth, Stainless Steel, 115V

Maintain safe holding temperatures with a pass-thru cabinet that delivers even heat, locking solid doors, and digital temperature monitoring.

  • Pass-thru, two-section design provides access from both sides for faster service flow.
  • Digital temperature control and monitor system helps maintain consistent holding conditions.
  • Ducted fan air distribution supports even heat throughout the food zone.
  • Stainless steel interior and exterior construction is built for durability and easy cleaning.
  • Universal tray slides are standard and fit a variety of common pan sizes.
  • LED interior lighting, locking doors, and front-lock swivel casters add convenience and usability.

Overall Dimensions:

51.75"W x 33.12"D x 78.0"H

Product Weight:

345.0 lb

Digital Temperature Control & Monitor System

Helps maintain constant temperatures and includes an alarm that sounds when doors are not sealed.

Ducted Fan Air Distribution System

Circulates heat within the cabinet to keep temperatures more even across the food zone.

Stainless Steel Cabinet Construction

Stainless steel exterior and interior construction supports durability, cleanliness, and long service life.

LED Interior Lighting

Improves visibility inside the cabinet during loading, unloading, and service.

High-Density Polyurethane Insulation

Foamed-in-place, CFC-free insulation helps the cabinet retain heat efficiently.

Universal Tray Slides Standard

Includes stainless steel tray slides that accept multiple pan sizes for flexible holding applications.

Locking Solid Pass-Thru Doors

Four solid swing doors with locks and magnetic gaskets help retain heat and secure contents.

Heated Holding Range

Designed to hold food between 140°F and 180°F for safe service.

Mobile Base with Front Locks

4-inch swivel casters with locks on the front set make positioning and stability easier.

Type Heated Cabinet
Style Pass-Thru
Installation Type Floor Model
Compartments 2
Capacity 42.9 Cu. Ft.
Controls Digital
Temperature Range 140°F to 180°F
Material Stainless Steel
Interior Finish Stainless Steel
Exterior Finish Stainless Steel Front & Sides
Voltage 115 Volts
Amps 13.5 Amps
Watts 1.55 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 52 Inches
Shipping Depth 34 Inches
Shipping Height 78 Inches
Shipping Weight 345 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3 Year Parts and Labor Warranty

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

It is a two-section pass-thru cabinet with four solid swing doors.
The cabinet is designed to hold food between 140°F and 180°F.
It operates on 115/60/1 power, draws 13.5 amps, uses 1550 watts, and comes with a NEMA 5-15P plug and 8-foot cord.
Each tray slide accepts one 6" deep full-size pan, one 18" x 26" pan, two 14" x 18" pans, or three 12" x 20" pans.
Yes, the cutsheet lists a 3-year parts and labor warranty.
Yes, standard features include door locks and 4-inch swivel casters with locks on the front set.
