Turbo Air M3H24-1-PT M3 Heated Cabinets & Holding Shelves
Description

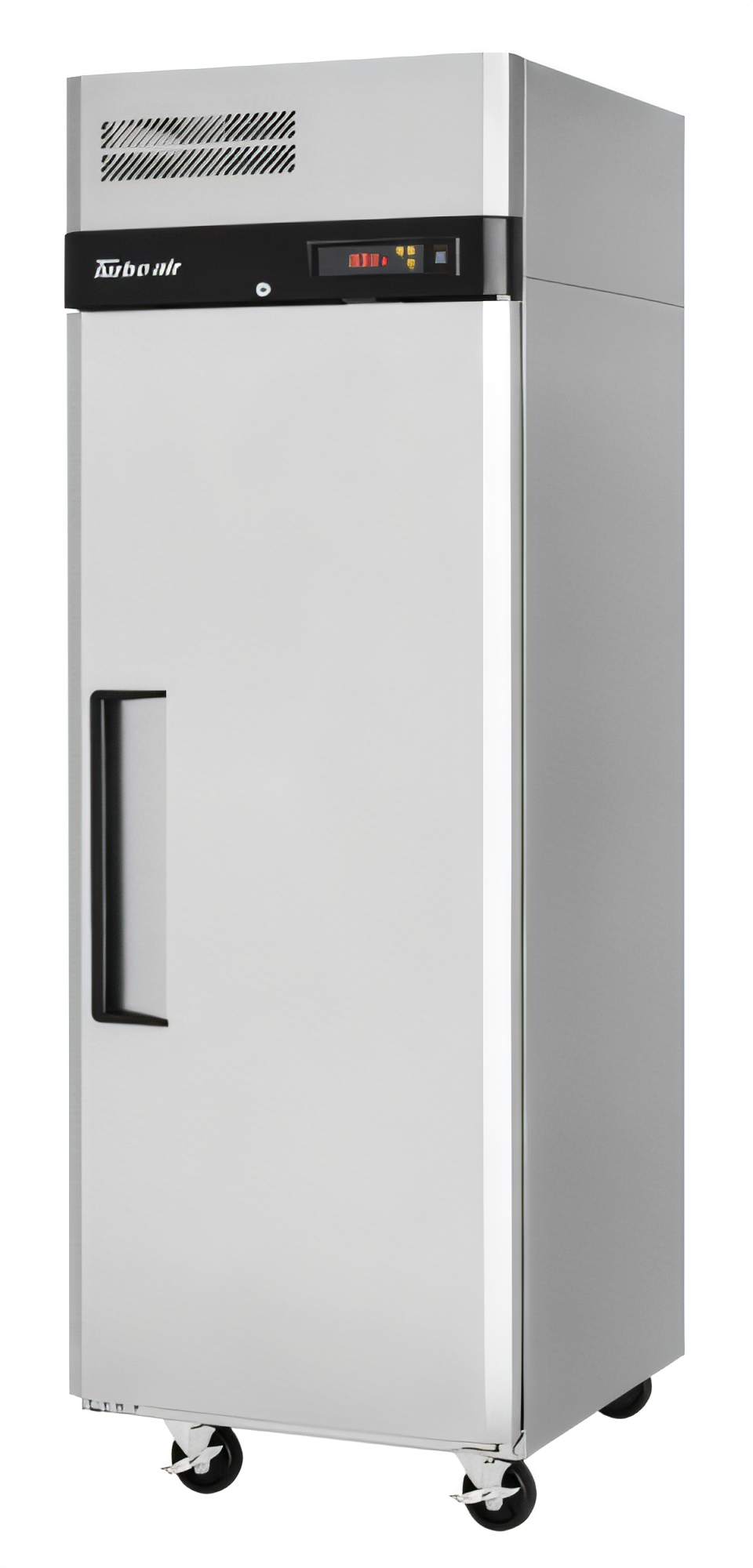

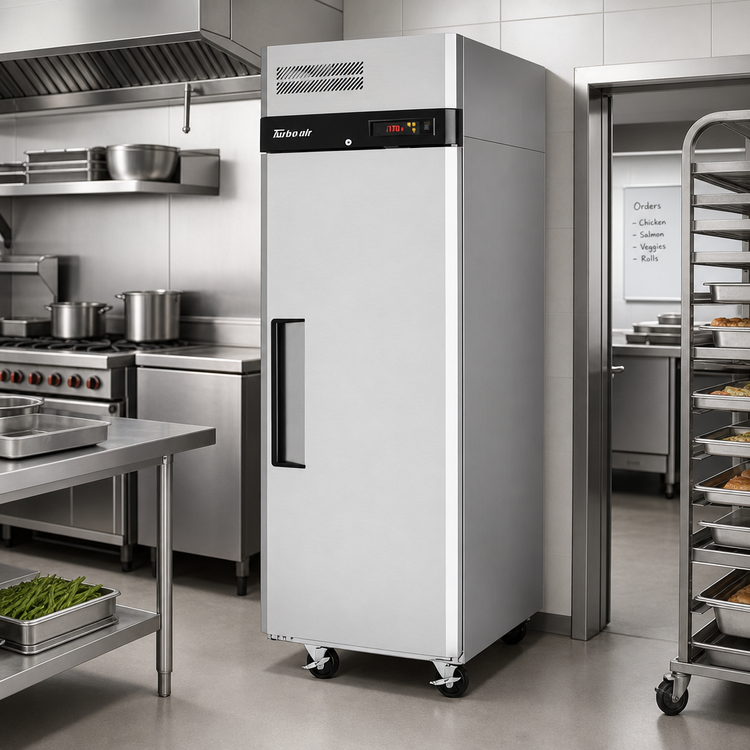

Turbo Air M3 Series Pass-Thru Heated Cabinet
Model M3H24-1-PT • 22.7 cu. ft.Keep plated meals, banquets, and baked goods hot, fresh, and ready for service with the Turbo Air M3H24-1-PT. This one-section, pass-thru heated holding cabinet delivers consistent 140 – 180 °F temperatures, rock-solid stainless-steel durability, and easy mobility—all in a slim 28 ¾" footprint.
Key Features

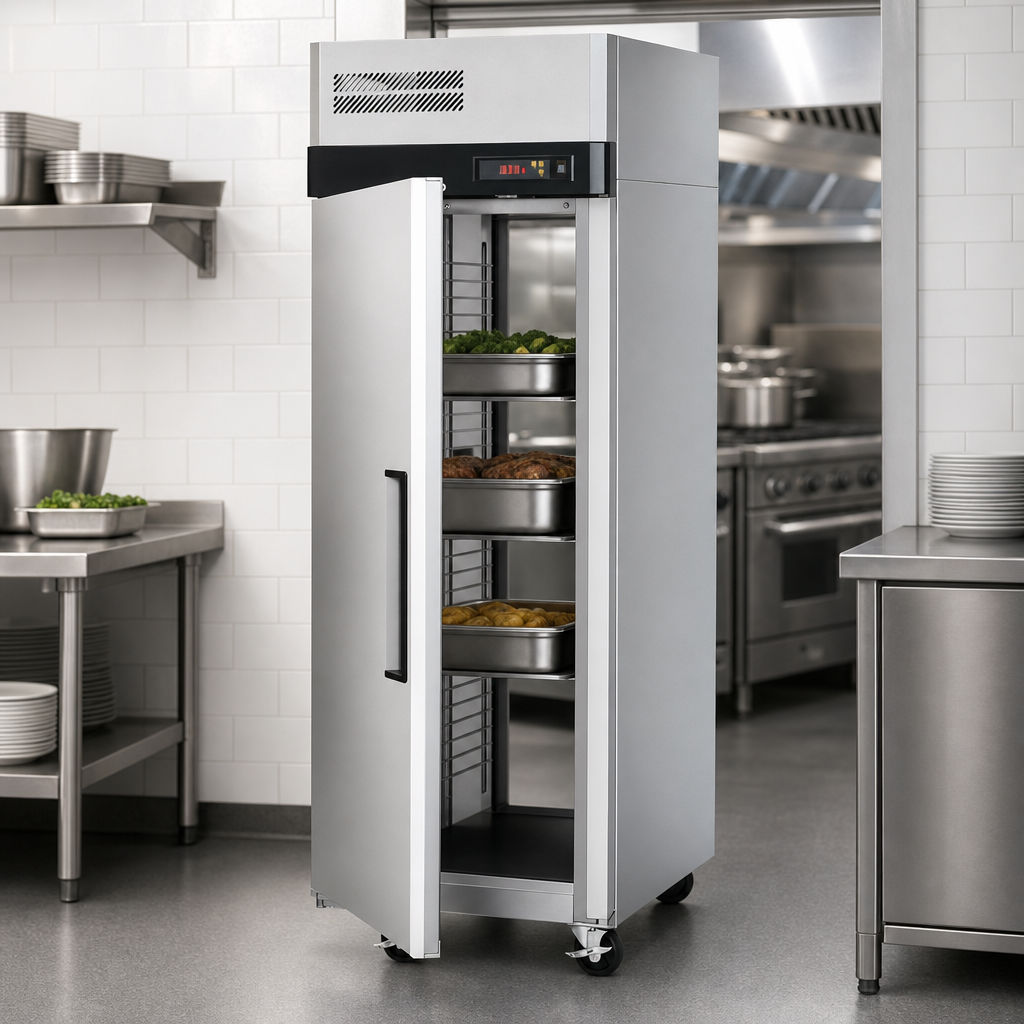

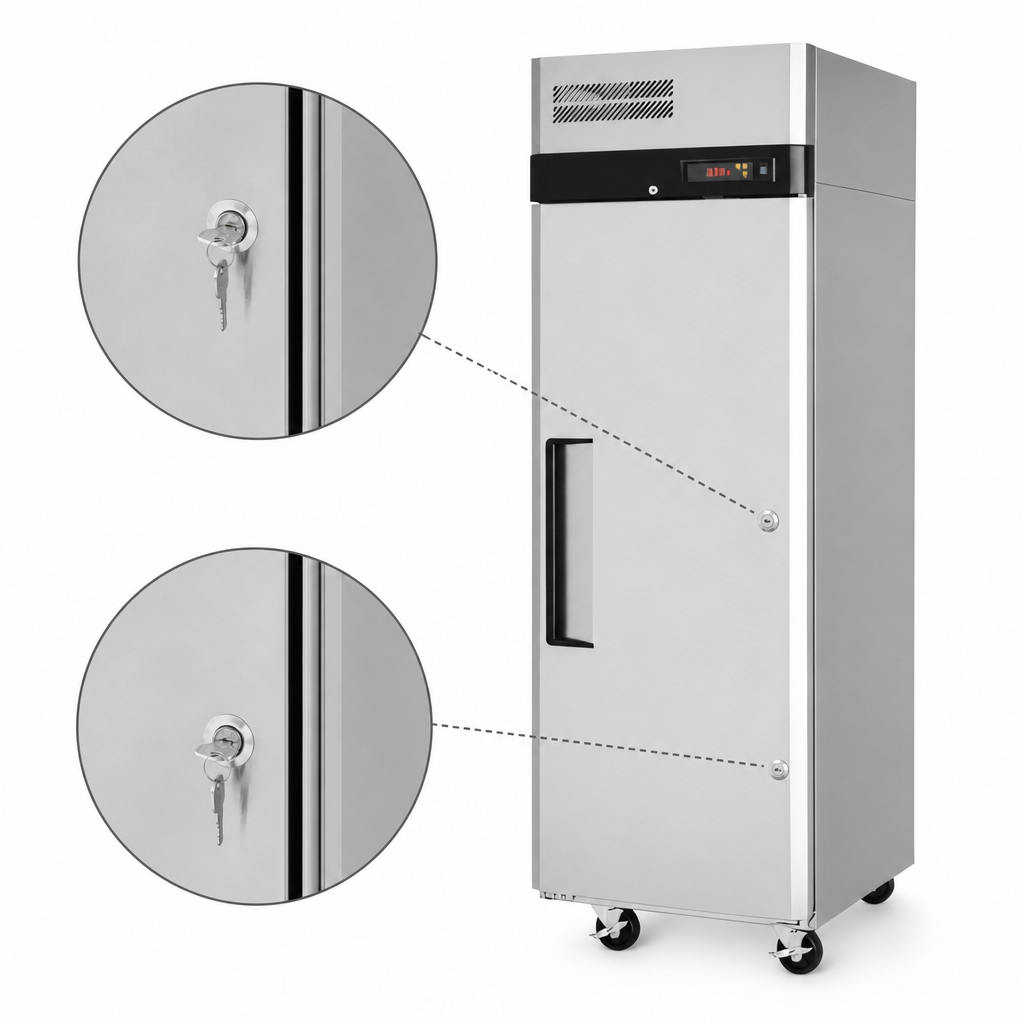

- Pass-thru layout with (2) locking solid doors—load from the kitchen, unload at the line.
- Digital temperature control & monitor system with open-door alarm.
- Ducted fan air distribution for uniform heat on every shelf.
- Bright, energy-efficient LED interior lighting.
- All-stainless interior & exterior plus foamed-in-place, CFC-free insulation.
- (3) adjustable chrome-plated wire shelves included.
- Field-reversible doors & one-piece, tool-free magnetic gaskets.
- 4" locking swivel casters—roll it wherever service demands.
Specifications
| Capacity | 22.7 cu. ft. (643 L) |
|---|---|
| Holding Temperature | 140 – 180 °F (60 – 82 °C) |
| Exterior Dimensions (W × D × H) | 28 ¾" × 33 ⅛" × 78" Height excludes 5" caster clearance. |
| Doors / Shelves | 2 solid, pass-thru / 3 chrome wire (adjustable) |
| Electrical | 950 W • 8.5 A • 115 V / 60 Hz / 1-ph • NEMA 5-15P (8 ft. cord) |
| Construction | Stainless steel interior & exterior; galvanized top, back & bottom |
| Certifications | ETLus, ETL-Sanitation, Made in USA |
| Warranty | 3-year parts & labor |
What’s Included
- (3) chrome-plated wire shelves
- (4) 4" swivel casters (front pair locking)
- Factory-installed door locks & key set
- User/installation manual
Popular Accessories (sold separately)
- 5" non-brake or brake casters
- 6" stainless-steel legs
- Half-door bun tray rack (holds six 18" × 26" pans)
- Full-door bun tray rack (holds fifteen 18" × 26" pans)
- Universal tray slides (5-pair kit)
- Additional wire shelves
