Turbo Air  |  M3  |  SKU: M3H24-1-G-TS(-L)

Turbo Air M3H24-1-G-TS(-L) M3 Heated Cabinets & Holding Shelves

$4,171.32
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets Turbo Air

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

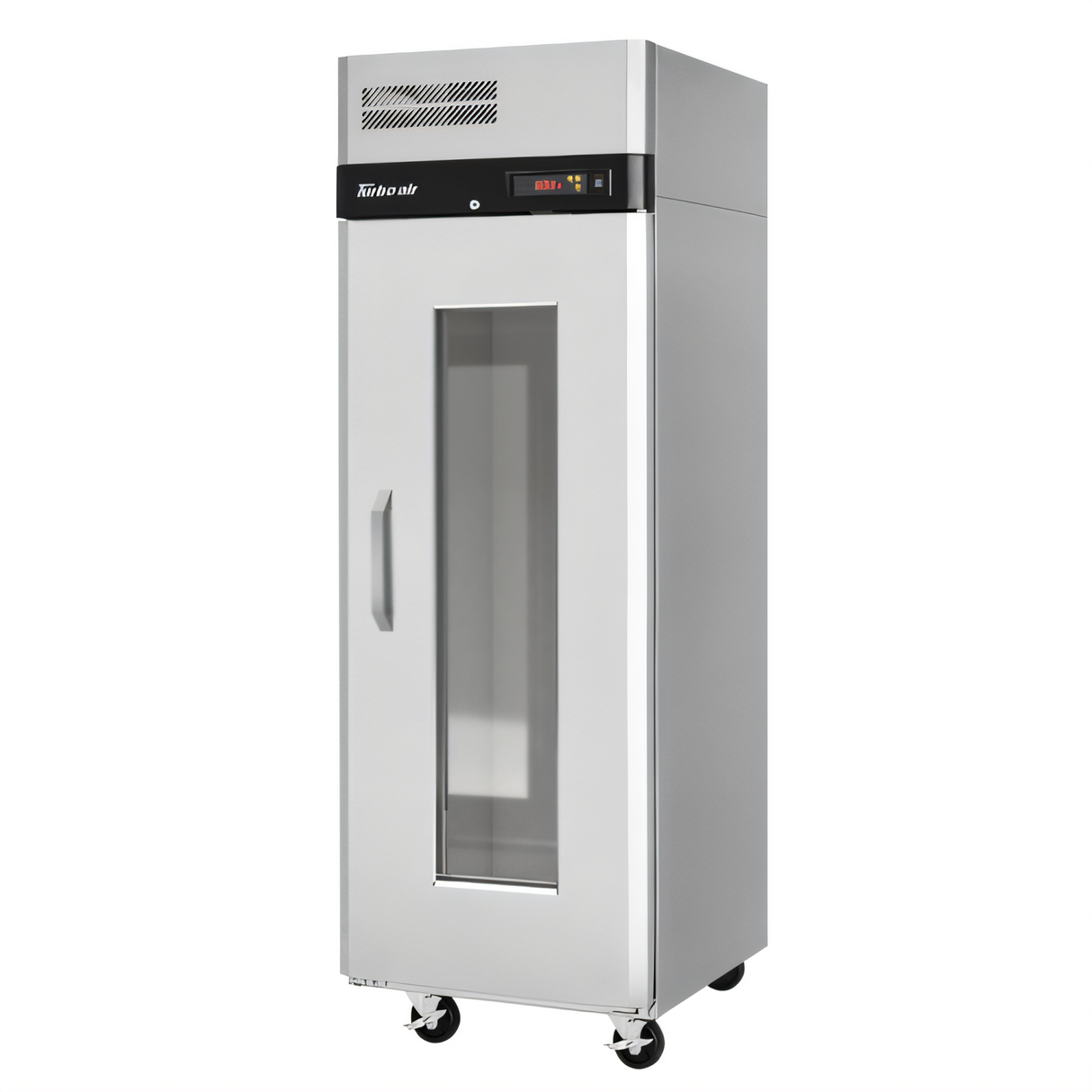

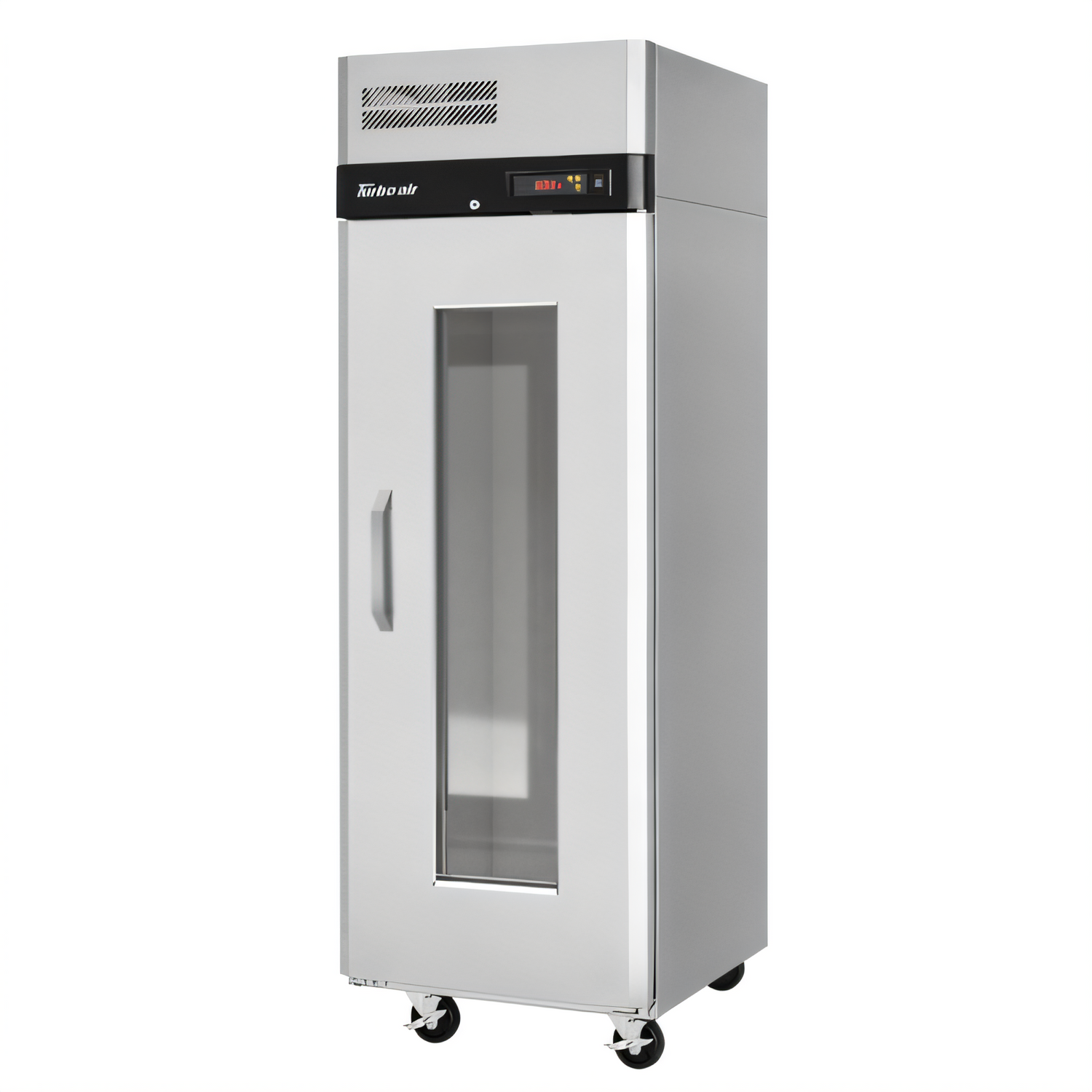

Turbo Air M3H24-1-G-TS Glass Door Heated Cabinet

M3 Series • 22.7 cu. ft. • Right-hinged, one-section reach-in

Give every batch the perfect hot-hold environment with Turbo Air’s M3H24-1-G-TS. This USA-made cabinet couples precise digital controls with a durable, all-stainless build, keeping food productively between 140 °F and 180 °F while showcasing it through a full-height glass door.

Key features

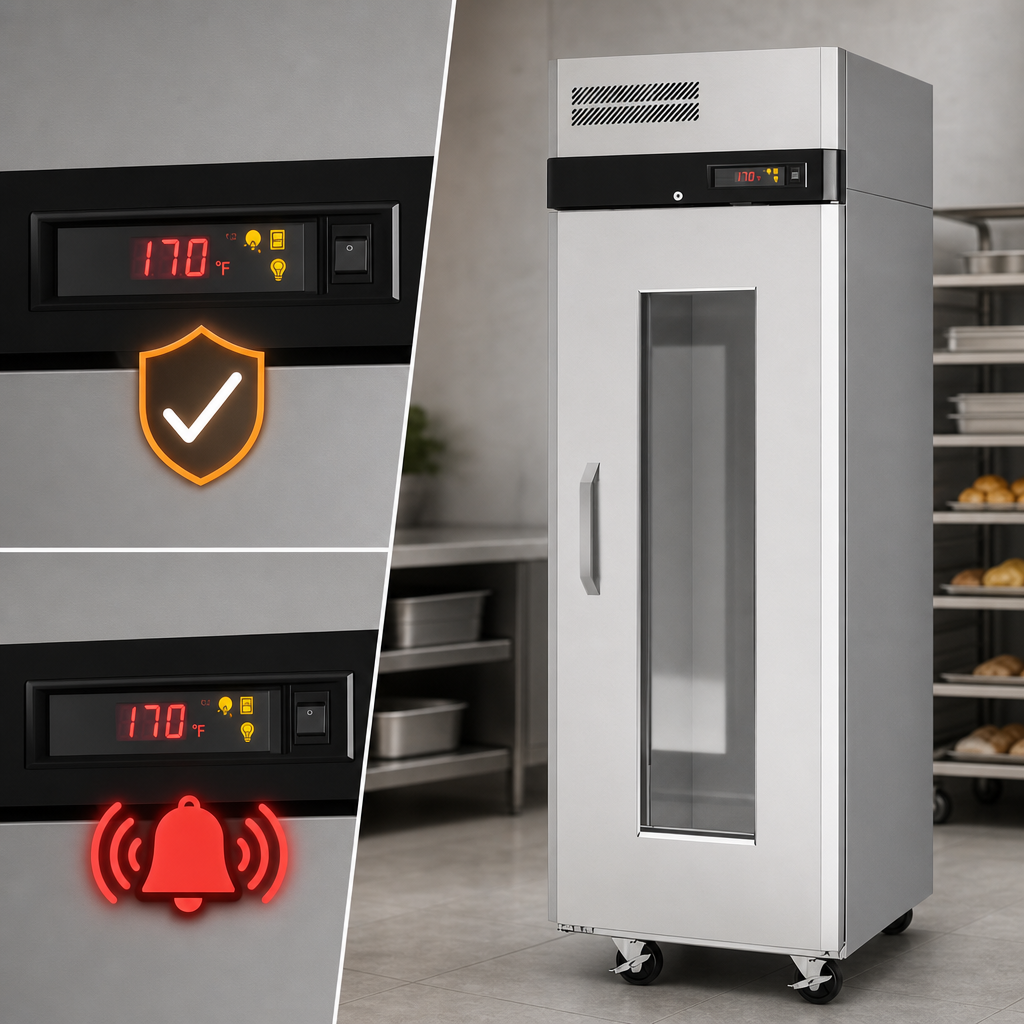

  • Digital temperature control & monitor system with open-door alarm

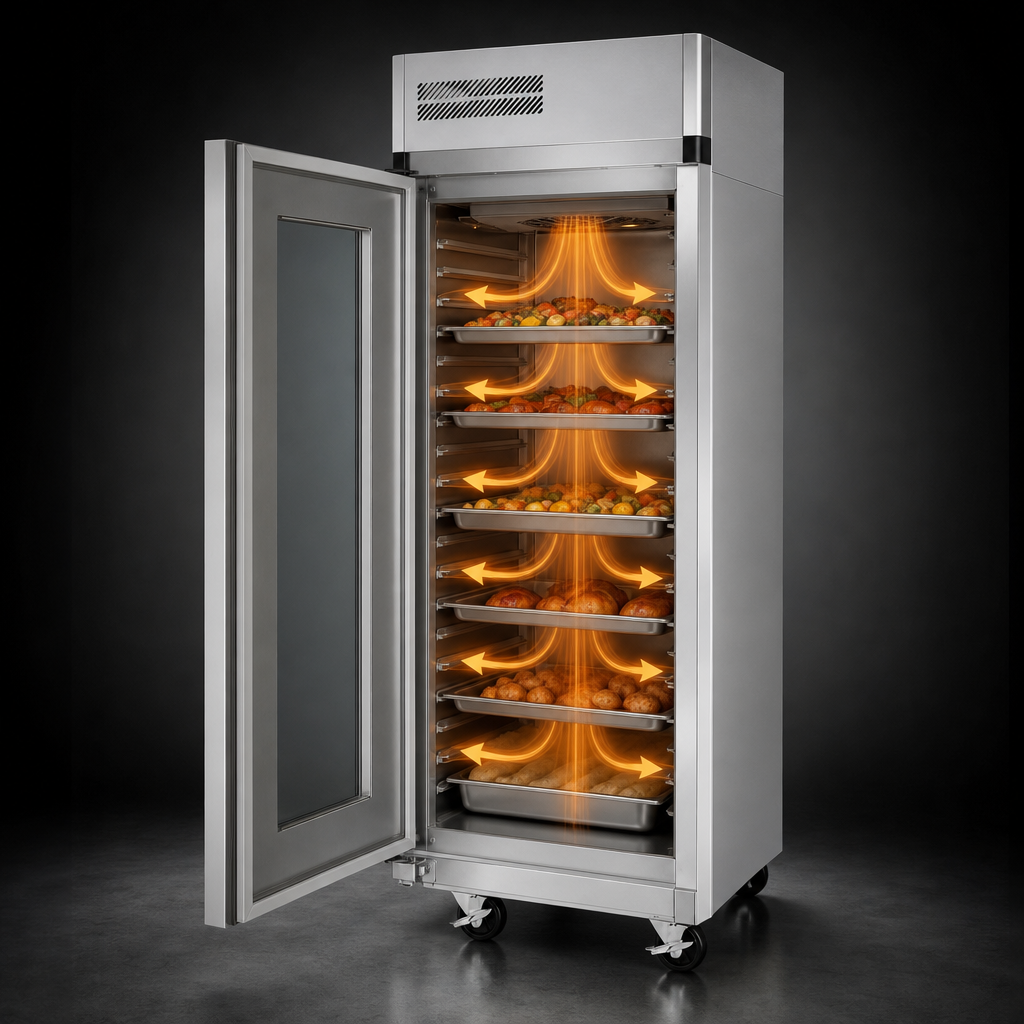

  • Ducted fan air distribution for even, rapid heat recovery
  • Lockable stainless-steel door with double-pane glass viewing window
  • Five pairs of universal tray slides (each holds 1 × 18 × 26 in sheet pan, 1 × 6 in-deep full-size hotel pan, 2 × 14 × 18 in or 3 × 12 × 20 in pans)
  • Bright, energy-saving LED interior lighting
  • High-density CFC-free polyurethane insulation, foamed-in-place
  • On/Off rocker switch on the control panel for quick shut-down
  • 4 in swivel casters (front two lock) for effortless mobility
  • Field-replaceable one-piece magnetic door gasket
  • 3-year parts & labor warranty backed by Turbo Air nationwide service

Specifications

Model M3H24-1-G-TS (right-hinged)
Capacity 22.7 cu. ft. (643 L)
Temperature range 140 °F – 180 °F (60 °C – 82 °C)
External dimensions* 28 ¾ W × 30 ¾ D × 78 H in
Internal dimensions 22 ⅜ W × 24 ⅝ D × 58 ¾ H in
Tray slide pairs (std.) 5
Construction Stainless steel exterior & interior, galvanized back/top/bottom
Electrical 115 V / 60 Hz / 1-ph, 8.5 A, 950 W, NEMA 5-15P, 8 ft cord
Casters 4 in dia. swivel (front locking)
Net / crated weight 201 lb / 244 lb
Certifications ETL US, ETL Sanitation, Made in USA

*Depth excludes 1 ⅜ in for door handle. Height excludes 5 in caster height.

Optional accessories

  • Left-hinged version (Model M3H24-1-G-TS-L)
  • 5 in casters, ½ in-dia, 13 TPI (brake or non-brake)
  • 6 in stainless-steel legs
  • Additional universal tray slide pairs
Lead time: This cabinet is built to order. Contact your sales representative for current production schedule and ship dates.

Features & Specs

Manufacturer

Turbo Air

Brand_name

M3

Certifications

ETLus, ETL-Sanitation, Made in USA

Height

78.0in

Width

28.75in

Depth

30.75in

Shipping Weight

244.0lbs

Depth

standard depth

Interior configuration

tray slides

Size

1 section

Interior Finish

stainless steel interior

Exterior Finish

all stainless steel exterior

Doors

hinged glass

Specifications

M3 Series Heated Cabinet, reach-in, one-section, 28-3/4"W x 30-3/4"D x 78"H, 22.7 cu. ft. capacity, (1) stainless steel hinged door with glass window (lockable), digital temperature control & monitor system, LED interior lighting, stainless steel universal tray slides, ducted fan air distribution system, stainless steel exterior and interior, 950 watts, 115v/60/1-ph, 8.5 amps, NEMA 5-15P, ETLus, ETL-Sanitation, MADE IN USA (lead time applies)
