Turbo Air JUF-48-N J Series Undercounter & Worktop Refrigeration
Description

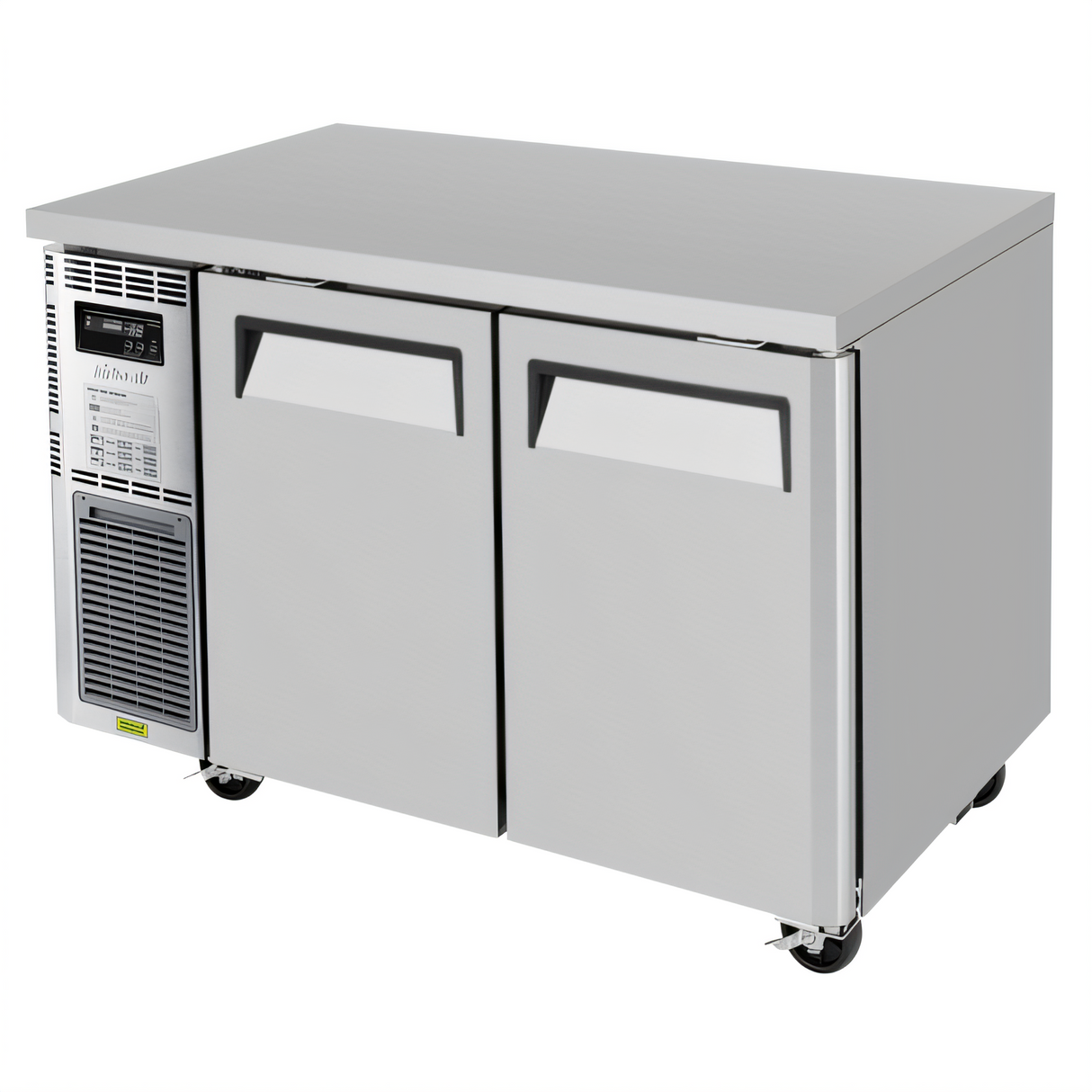

Turbo Air J Series JUF-48-N Side-Mount Undercounter Freezer
47-1/4" W | 9.93 cu. ft. | -10 °F to 0 °FMaximize prep space without sacrificing frozen storage. Designed for the tightest cooklines, the JUF-48-N breathes from the front and houses its 1/3 HP compressor on the side, so it slides flush against walls or equipment while delivering full-size freezer performance exactly where you need it.
Key Features & Benefits

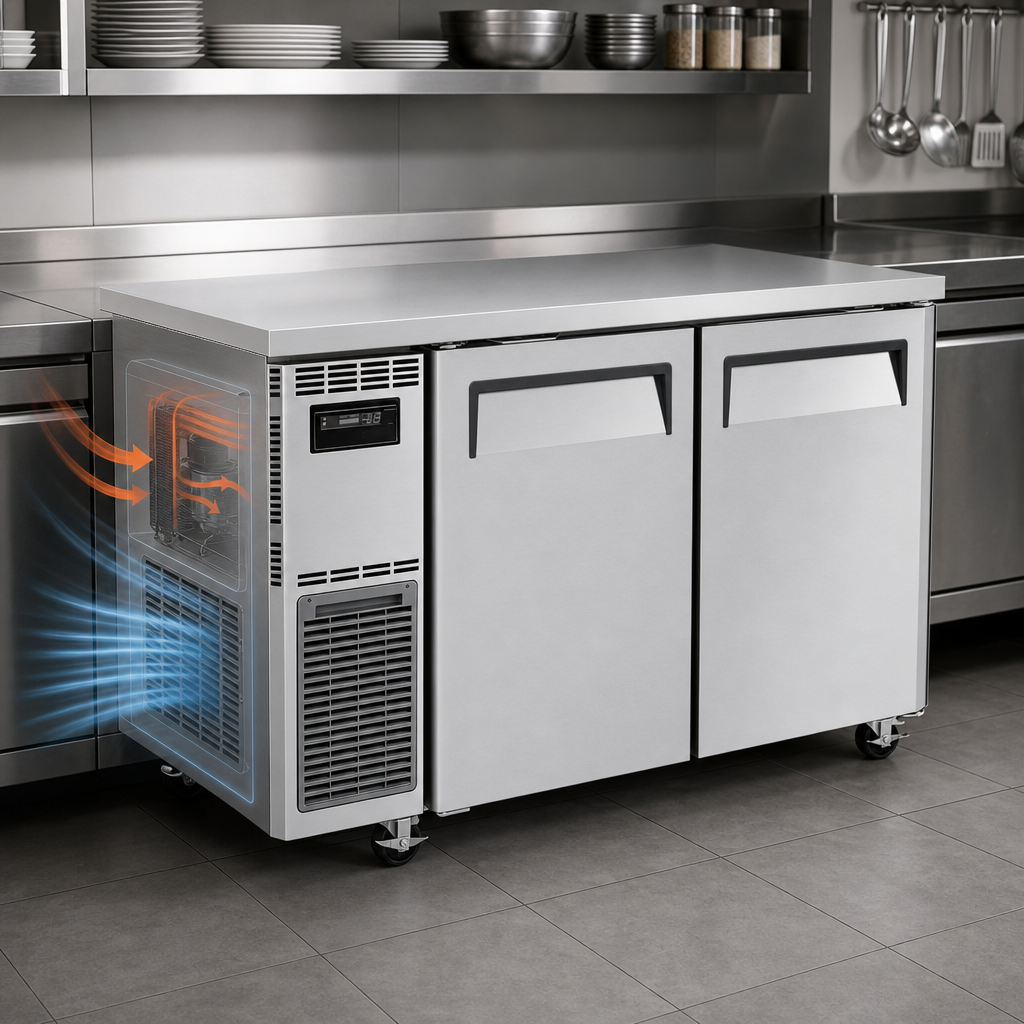

- Front-breathing, side-mount 1/3 HP compressor—no rear clearance required for service.
- External digital temperature control & LED read-out for one-touch accuracy.
- Eco-friendly R-290 hydrocarbon refrigerant (ODP 0, GWP 3) meets DOE & EPA standards.
- Stainless steel exterior with galvanized back/bottom; stainless floor & aluminum walls inside for quick wipe-downs.
- (2) self-closing stainless doors with recessed, easy-grip handles; stay-open feature past 90° for safe loading.

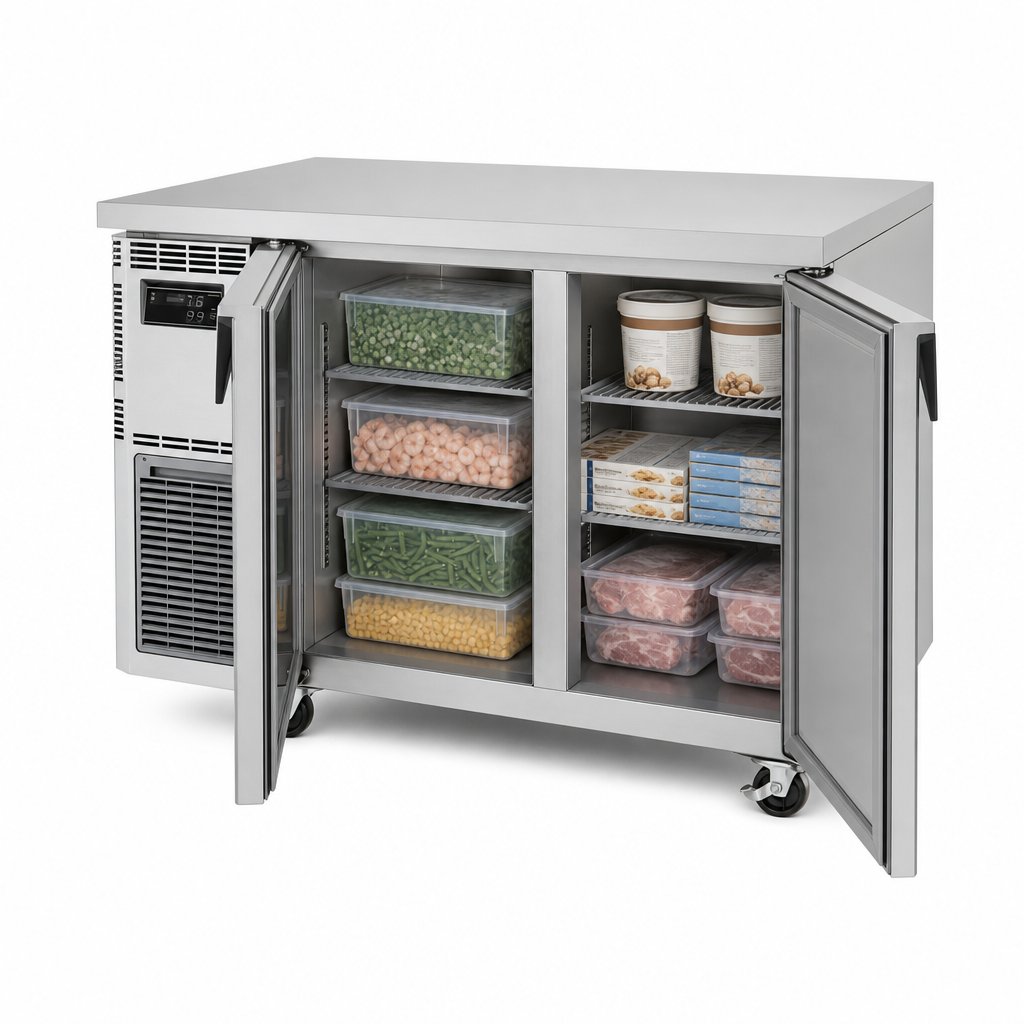

- (2) adjustable PE-coated wire shelves handle heavy product; shelf size 15-1/2" × 20-1/4".
- Bright, energy-saving LED interior lighting; fan shuts off when door is open to keep cold in.
- High-density polyurethane insulation is foamed-in-place for maximum cold retention.
- Tool-free, one-piece magnetic door gaskets speed up sanitation.
- Anti-corrosion coated evaporator & condenser brush kit included behind snap-off front grille.
- Ships on 4" locking swivel casters for effortless mobility.
Technical Specifications
| Model | JUF-48-N |
|---|---|
| Net Capacity | 9.93 cu. ft. (281 L) |
| Exterior Dimensions (W × D × H) | 47-1/4" × 27-1/2" × 28-3/4"* |
| Doors / Shelves | 2 doors / 2 adjustable shelves |
| Temperature Range | -10 °F – 0 °F (-23 °C – -18 °C) |
| Refrigerant | R-290 (Hydrocarbon) |
| Compressor | 1/3 HP, side-mount, self-contained |
| Voltage / Phase | 115 V / 60 Hz / 1-ph |
| Amperage | 2.6 A |
| Plug | NEMA 5-15P (9 ft. cord) |
| Casters | 4" swivel (front locking) |
| Certifications | cETLus, ETL-Sanitation |
| Shipping Weight | 232 lbs. (net 184 lbs.) |
*Height excludes 5" caster height; depth excludes 1" rear spacers.
Warranty
- 2-Year parts & labor coverage
- +3-Year additional compressor parts coverage (total 5 years)
Optional Accessories (sold separately)
- 1", 2.5" or 5" casters, leveling legs, or 6" stationary legs (ABS or stainless)
- Additional PE-coated wire shelf
- Factory-installed door locks
Important: This appliance uses flammable R-290 refrigerant. Service must be performed by qualified technicians only.
Looking for more sizes? Explore the complete Turbo Air J-Series to outfit every prep station.
