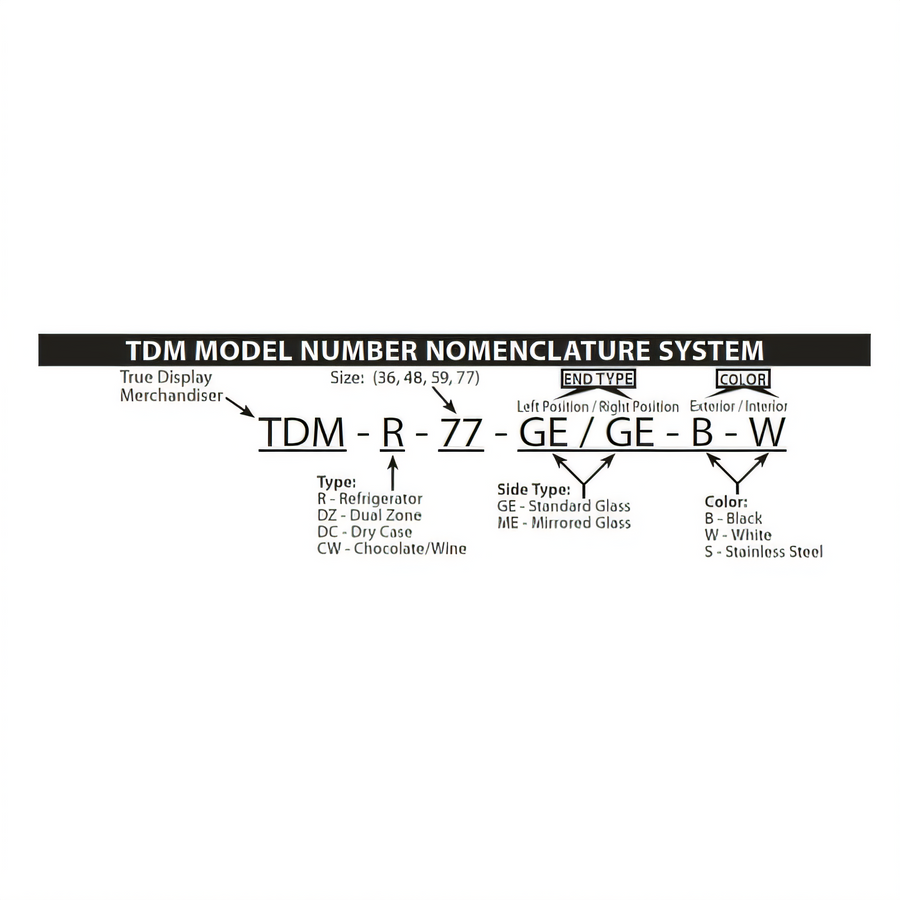

SKU: TDM-R-77-GE/GE-B-W
$9,816.42
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bakery Display Cases Best Sellers Commercial Refrigeration Commercial Refrigerators Merchandising & Display Refrigeration New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment True Mfg. – Specialty Display

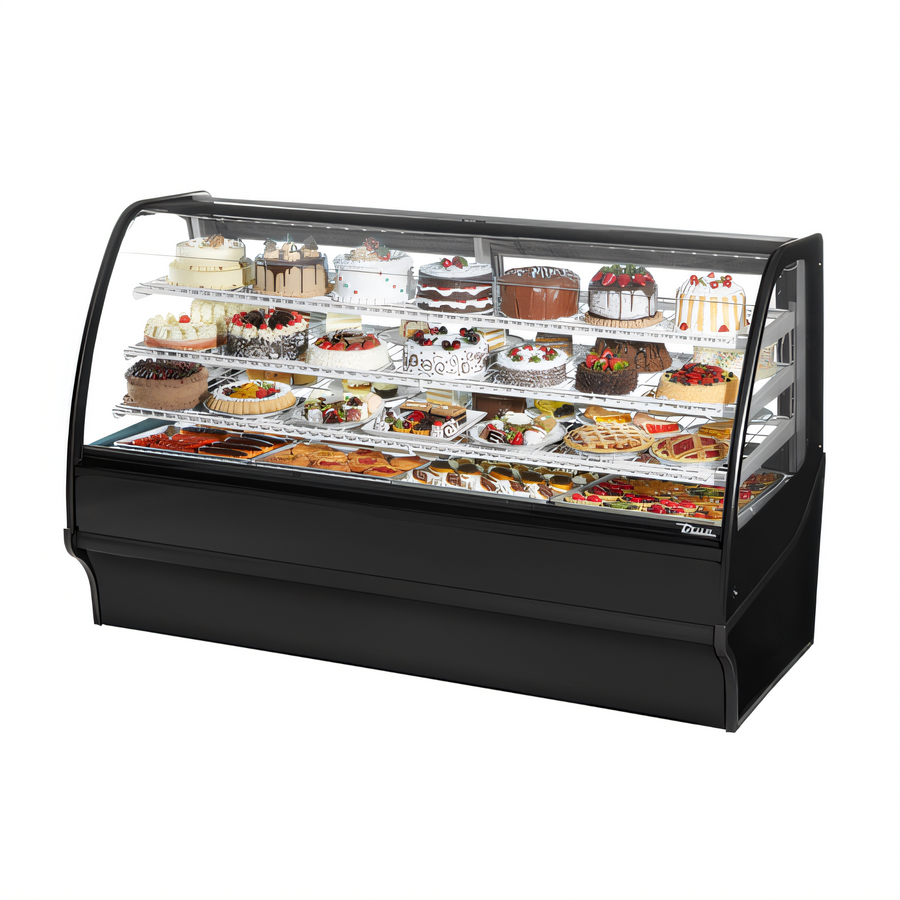

True 77 1/4 Inch Curved Glass Refrigerated Bakery Display Merchandiser with Glass Ends

Self-contained R290 refrigeration, black powder-coated exterior, white powder-coated interior

Showcase pastries, desserts, and deli items in a high-visibility curved-glass merchandiser with self-contained refrigeration and easy front and rear access.

  • Self-contained capillary tube refrigeration uses environmentally friendly R290 hydrocarbon refrigerant.
  • Curved tempered glass front, glass side panels, and glass ends create an elegant full-view display.
  • Lift-up front glass and two rear sliding glass doors make loading, service, and cleaning easier.
  • Three tiered levels of adjustable PVC-coated wire shelves support flexible merchandising.
  • LED interior lighting provides bright, even product presentation throughout the cabinet.
  • Black powder-coated exterior with a white interior delivers a clean bakery display look.

Overall Dimensions:

77.25"W x 39.0"D x 49.13"H

Product Weight:

845.0 lb

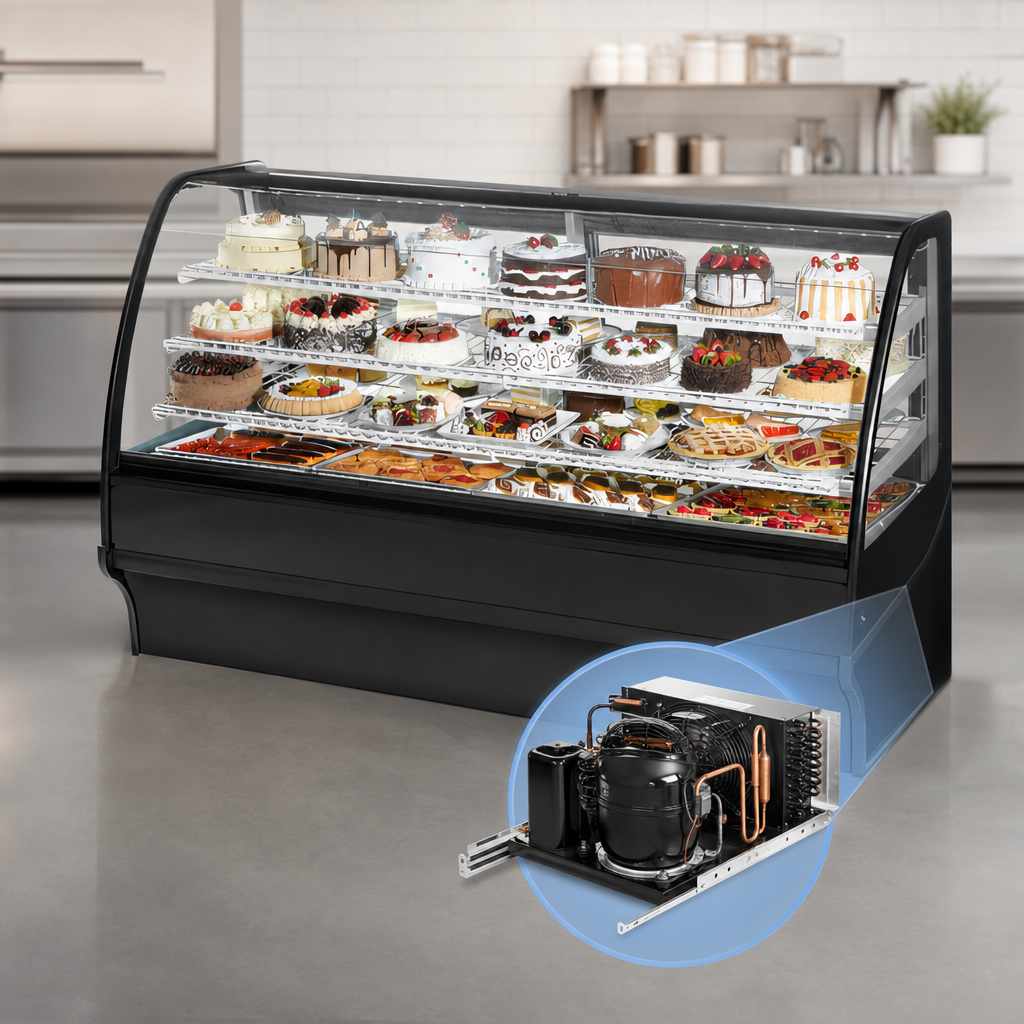

Self-Contained R290 Refrigeration

Factory-engineered refrigeration system uses R290 hydrocarbon refrigerant and a pull-out condensing unit for easier cleaning and maintenance.

Self-Contained R290 Refrigeration

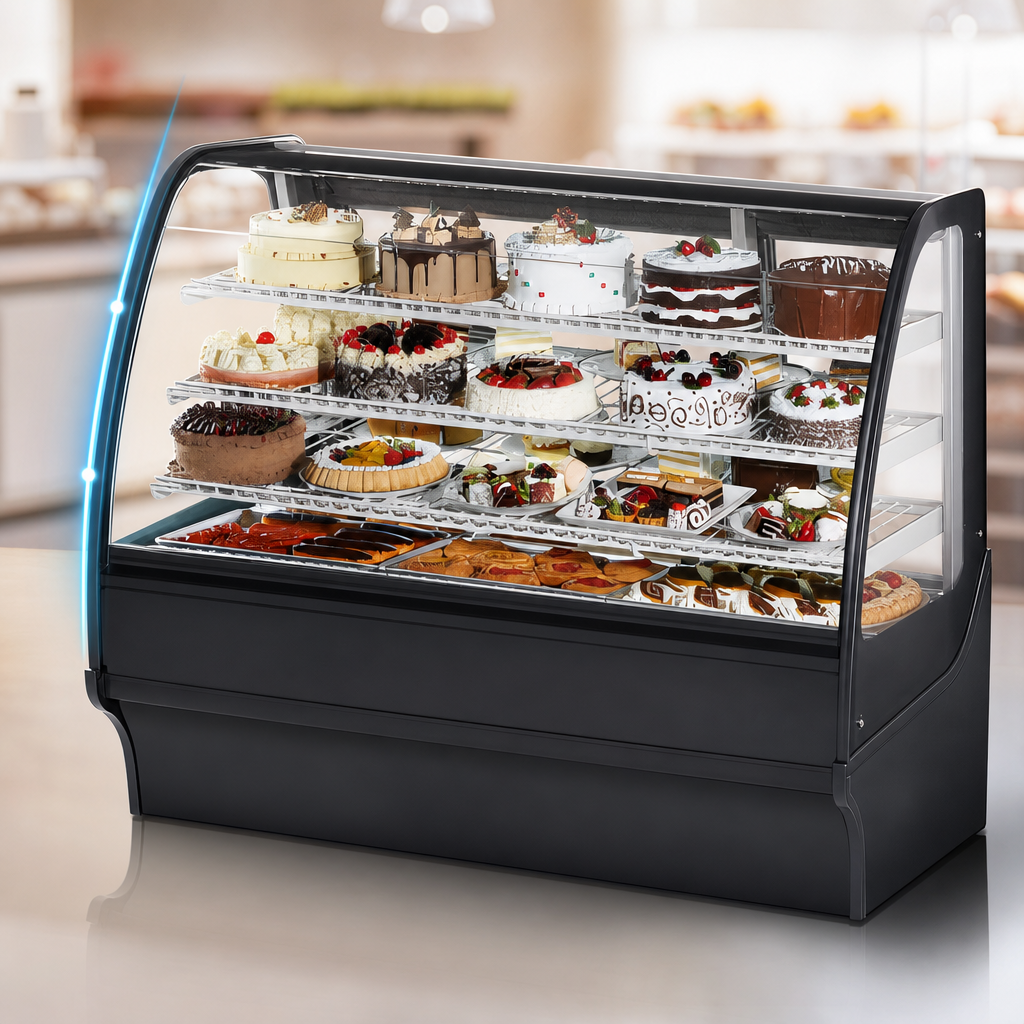

Curved Glass Display Front

Single-pane tempered curved glass front and glass side panels maximize product visibility and presentation.

Curved Glass Display Front

Lift-Up Front Glass

Front glass swings up to provide easy access for cleaning and merchandising.

Rear Sliding Glass Doors

Two rear sliding glass doors provide convenient back access for full-service operation.

Adjustable Wire Shelving

Three tiered levels of heavy-duty PVC-coated wire shelves let operators customize the display layout.

LED Interior Lighting

Safety-shielded LED lighting provides bright, even illumination across the cabinet.

Electronic Temperature Control

Electronic controls help maintain the refrigerated holding range for bakery and deli products.

Pan Capacity

Cabinet holds eight 18" x 26" display pans and twelve 12" x 18" display pans; pans are supplied by others.

Durable Cabinet Finish

Black powder-coated exterior and white powder-coated interior create a clean, professional presentation.

Companion Display Design

Designed to pair with the TDM-DC dry case display merchandiser; a 1/2" gap remains when units are banked together.

Type Refrigerated Bakery Display Case
Style Curved Glass
Service Type Full Service
Installation Type Floor Model
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Temperature Range 33°F to 41°F
Controls Electronic
Horsepower 1/2 HP
Voltage 115 Volts
Amps 12.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Material Steel
Finish Black Powder Coated
Interior Finish White Powder Coated Steel
Pan Capacity 8 18 x 26 Inch Pans and 12 12 x 18 Inch Pans
Pan Size 18 x 26 Inches; 12 x 18 Inches
Shelf Count 3
Door Count 2
Shipping Width 78 Inches
Shipping Depth 39 Inches
Shipping Height 50 Inches
Shipping Weight 845 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year labor, 7-year parts, and 7-year compressor warranty.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It uses a factory-engineered self-contained capillary tube refrigeration system with R290 hydrocarbon refrigerant.
The standard refrigerated range is 33°F to 41°F. An optional 42°F to 65°F range is available for chocolate and wine applications.
The front glass swings up for cleaning access, and there are two rear sliding glass doors for back service.
It holds eight 18" x 26" display pans and twelve 12" x 18" display pans. Pans are supplied by others.
The unit is wired for 115/60/1-phase operation, draws 12.0 amps, and includes a NEMA 5-15P plug.
TRUE's warranty includes 7-year labor, 7-year parts, and 7-year compressor coverage, subject to the warranty terms and proper installation/start-up.
