True Mfg. – Specialty Display

Full-Service Curved Glass Refrigerated Bakery Display Merchandiser, 36-1/4-Inch Wide, Self-Contained

SKU: TDM-R-36-GE/GE-B-W
$7,434.57
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Full-Service Curved Glass Refrigerated Bakery Display Merchandiser, 36-1/4-Inch Wide, Self-Contained

Glass Sides, Rear Sliding Glass Doors, Black Exterior/White Interior, 3 Shelves, R290, 115V

Showcase pastries and desserts in an elegant curved-glass case with dependable self-contained refrigeration and easy rear service access.

  • Curved glass front and glass sides create a premium, high-visibility presentation for bakery and dessert items.
  • Self-contained R290 refrigeration maintains a 33°F to 41°F cabinet temperature for refrigerated bakery and deli products.
  • Three adjustable PVC-coated wire shelves and flexible pan capacity support a variety of merchandising layouts.
  • Two rear sliding glass doors and a lift-up front glass make loading, service, and cleaning easier.
  • LED interior lighting and a black exterior/white interior deliver a polished, professional display.
  • 115V single-phase power with included cord and plug simplifies installation.

Overall Dimensions:

36.25"W x 39.0"D x 49.13"H

Product Weight:

540.0 lb

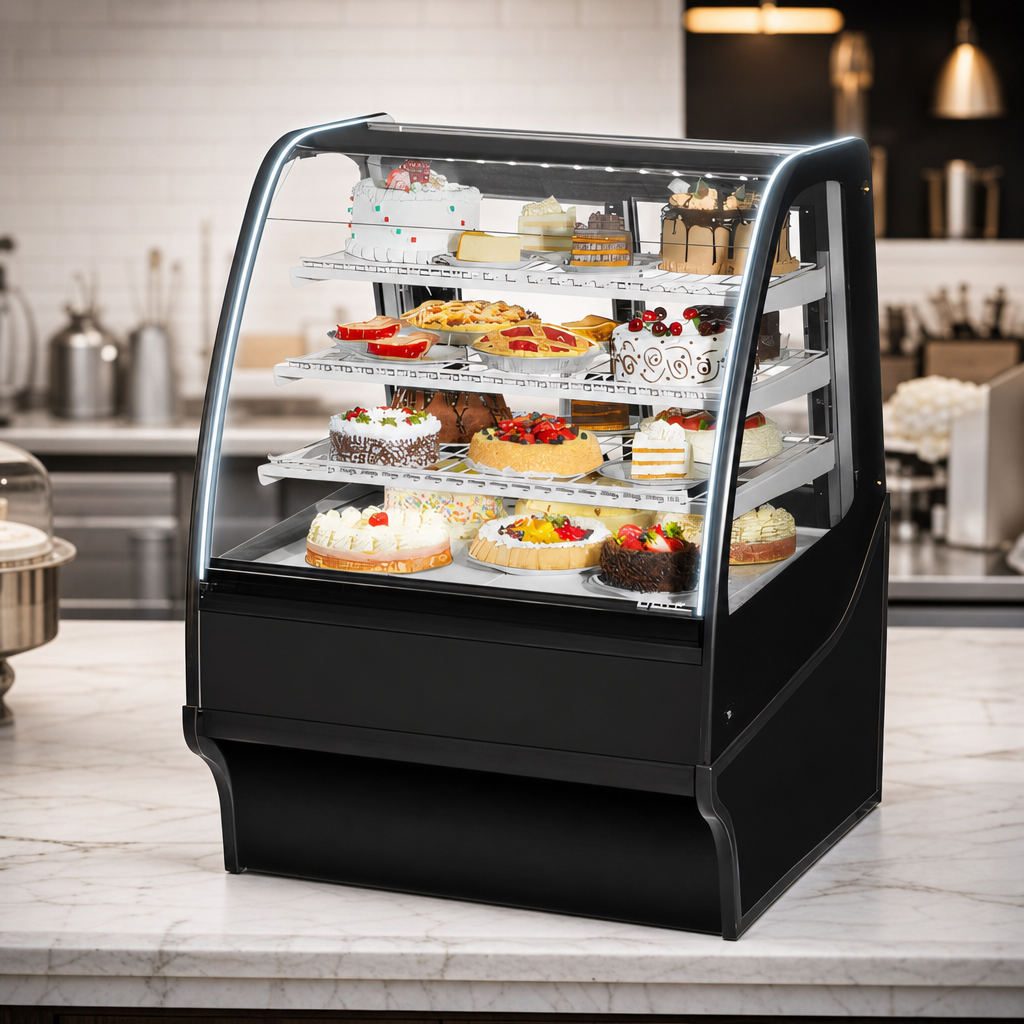

Curved Glass Front And Side Panels

Single-pane tempered glass gives the case an upscale look and maximizes product visibility.

Curved Glass Front And Side Panels

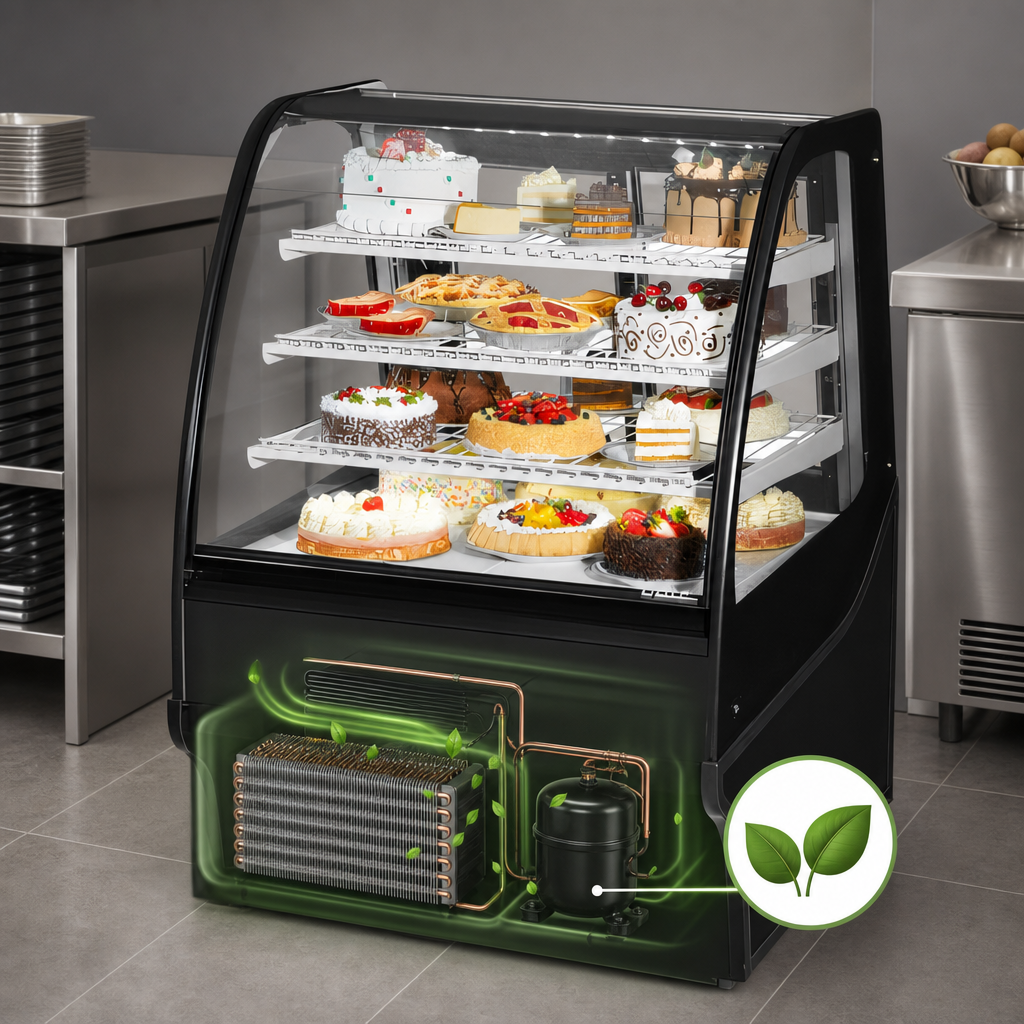

Self-Contained R290 Refrigeration

Factory-engineered capillary tube system uses environmentally friendly R290 hydrocarbon refrigerant.

Self-Contained R290 Refrigeration

Standard Bakery Temperature Range

Maintains cabinet temperatures from 33°F to 41°F for refrigerated bakery and cold deli products.

Rear Sliding Glass Doors

Two sliding rear doors provide convenient back access for restocking and service.

Adjustable Wire Shelving

Three heavy-duty PVC-coated wire shelves can be repositioned for different display needs; each shelf supports up to 150 lb.

LED Interior Lighting

Safety-shielded LED lighting helps merchandise look brighter and more even throughout the cabinet.

Lift-Up Front Glass

The front glass swings up to improve cleaning access and product handling.

Electronic Temperature Control And Pull-Out Condensing Unit

Electronic controls and a pull-out condensing unit simplify operation, cleaning, and maintenance.

Black Exterior With White Interior

Powder-coated cabinet finishes create a clean, high-end presentation.

Type Refrigerated Bakery Display Case
Style Curved Glass, Glass End
Service Type Full Service
Installation Type Floor Model
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Temperature Range 33°F to 41°F
Controls Electronic
Pan Capacity 2 18 x 26 Inch Pans, 2 9 x 26 Inch Pans, or 4 12 x 18 Inch Pans
Shelf Quantity 3
Shelf Material PVC-Coated Wire
Door Quantity 2
Material Steel
Finish Powder Coated
Interior Finish White Powder Coated
Color Black / White
Horsepower 1/4 HP
Voltage 115 Volts
Amps 10.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 37 Inches
Shipping Depth 39 Inches
Shipping Height 50 Inches
Shipping Weight 540 Pounds

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year labor, 7-year parts, and 7-year compressor warranty.

Frequently Asked Questions

The standard temperature range is 33°F to 41°F.
It comes standard with three adjustable wire shelves.
It has two rear sliding glass doors for back access and a front glass panel that swings up for cleaning access.
The unit is wired for 115/60/1 power, draws 10.0 amps, and uses a NEMA 5-15P plug. A cord and plug set is included.
The cabinet holds two 18 x 26 inch display pans, two 9 x 26 inch display pans, or four 12 x 18 inch display pans.
It uses R290 hydrocarbon refrigerant in a self-contained refrigeration system.
