True Mfg. – Residential

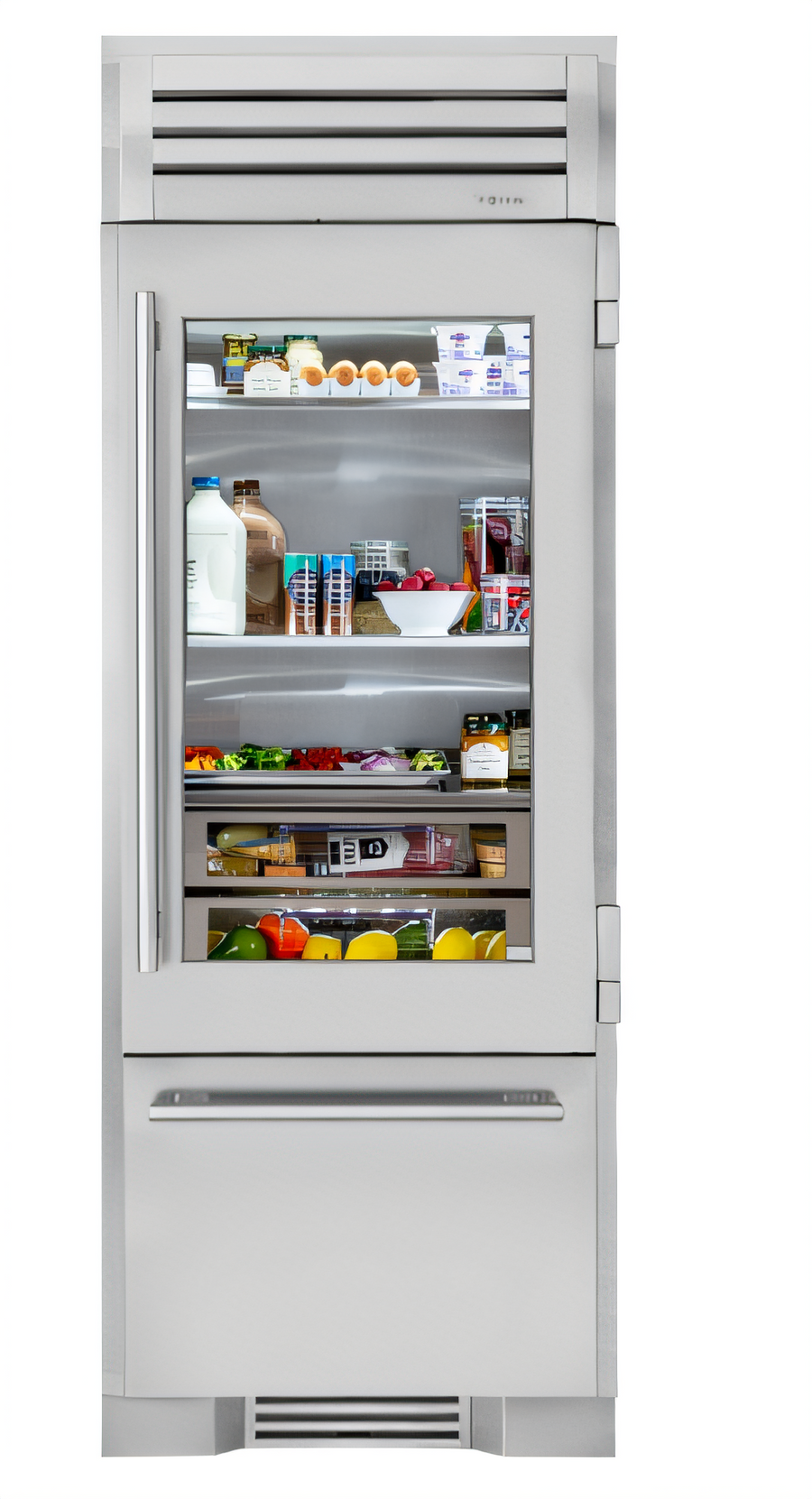

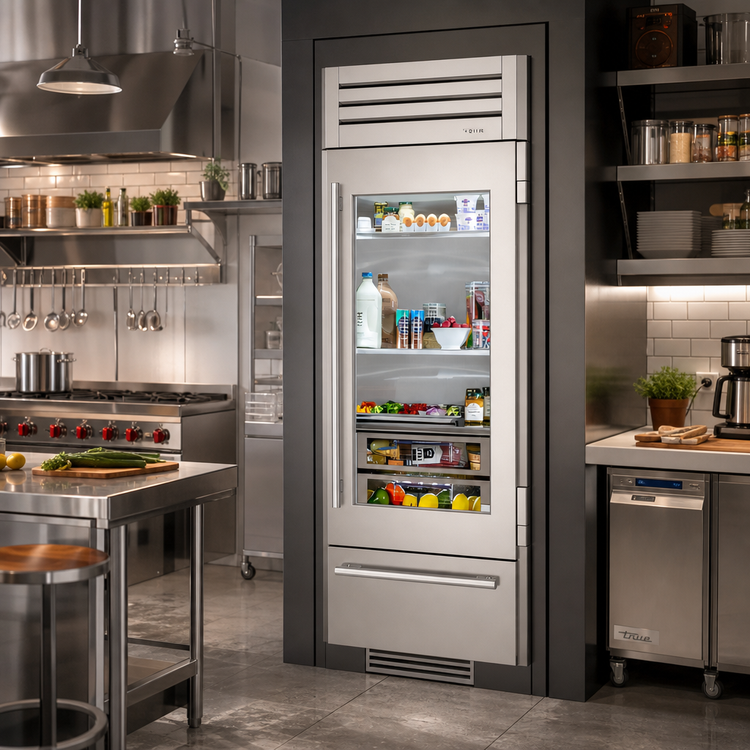

True Residential 30-Inch Upright Refrigerator/Freezer Column with Bottom Freezer, Built-In Ice Maker, Left-Hinged Stainless Glass Door

SKU: TR-30RBF-L-SG-A
$16,999.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration New Arrivals Reach-in Refrigerators Restaurant Equipment

True Residential 30-Inch Upright Refrigerator/Freezer Column with Bottom Freezer, Built-In Ice Maker, Left-Hinged Stainless Glass Door

18.1 Cu. Ft. Total Capacity, Self-Contained R-600A, 115V/1-Phase

A premium built-in 30-inch upright column that combines stainless steel construction, a left-hinged glass door, and a built-in ice maker with dedicated refrigerator and freezer cooling.

  • 30-inch built-in upright refrigerator/freezer column with bottom freezer and left-hinged stainless glass door.
  • Built-in ice maker produces up to 3 lbs. per day and stores 5 lbs. of ice.
  • 18.1 cu. ft. total capacity with separate refrigerator and freezer storage zones.
  • Dual evaporator and dual compressor design delivers dedicated cooling for each section.
  • Stainless steel interior/exterior, low-E triple pane glass door, and ramp-up LED lighting create a premium look.
  • Adjustable shelves, full-extension drawers, and tiered freezer storage help keep contents organized.

Overall Dimensions:

30.0"W x 24.0"D x 84.0"H

Product Weight:

570.0 lb

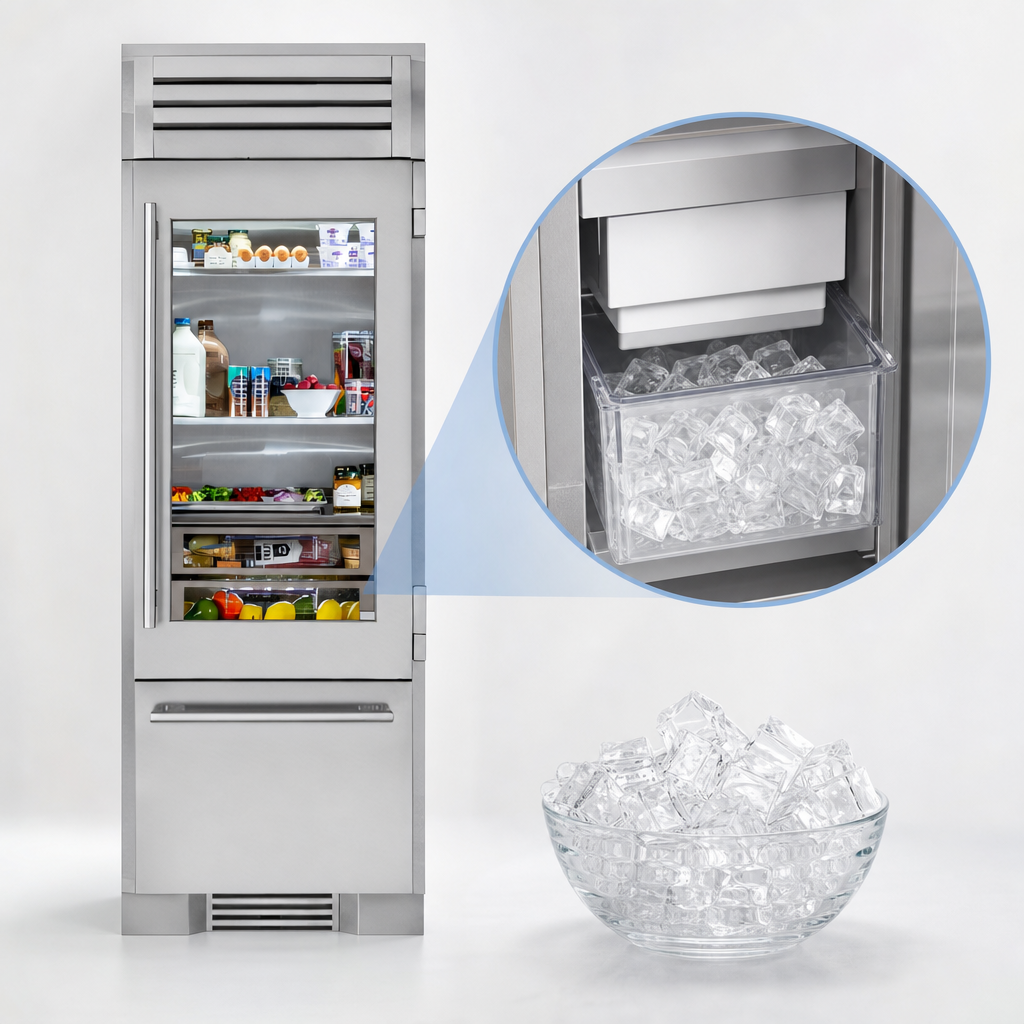

Built-In Ice Maker

Produces up to 3 lbs. per day of prism-shaped ice and provides 5 lbs. of ice storage.

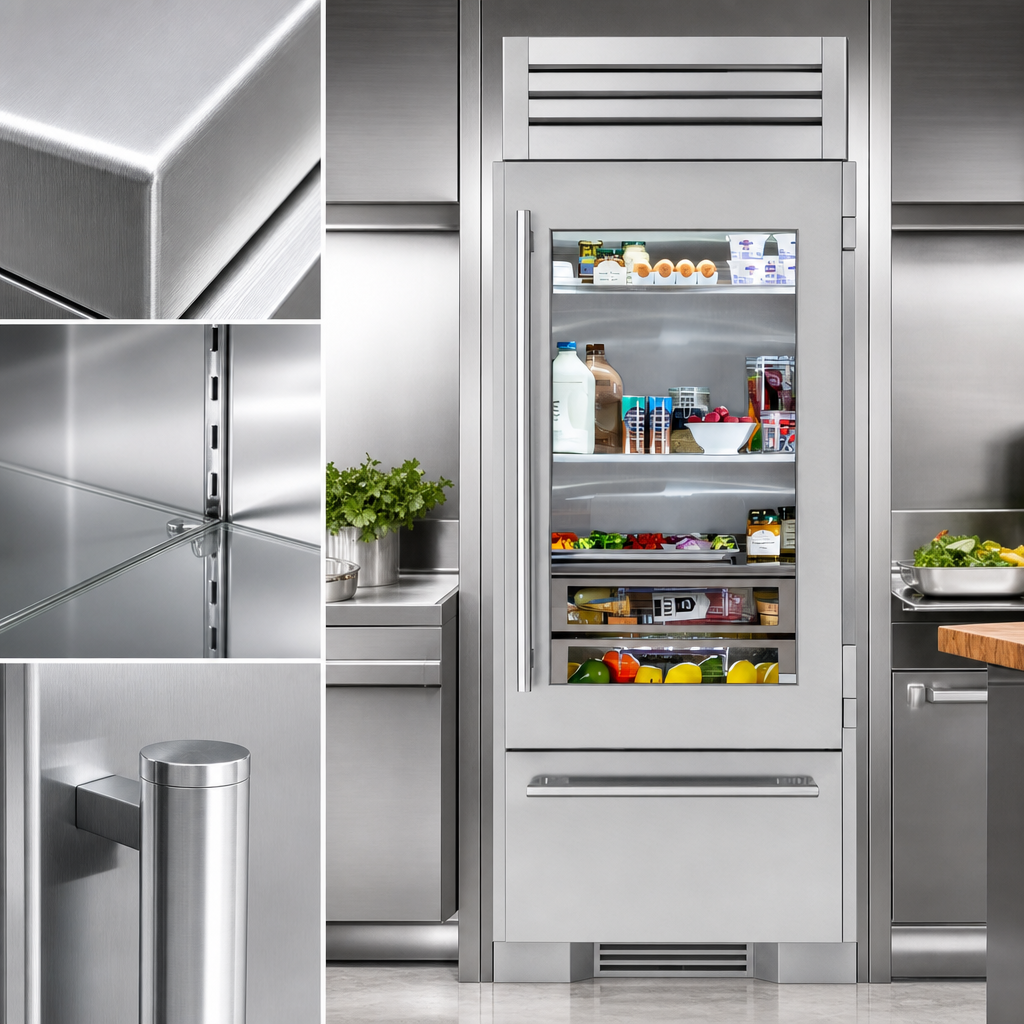

Stainless Steel Construction

300-series stainless steel interior and exterior deliver a durable, premium finish.

Low-E Triple Pane Glass Door

Energy-efficient thermal glass door with stainless frame and a 120° stay-open feature.

Dual Evaporator / Dual Compressor Cooling

Dedicated refrigeration systems for the refrigerator and freezer zones.

Ramp-Up LED Lighting

Showcase-style interior lighting brightens the cabinet from top to bottom.

Flexible Storage Layout

Includes adjustable/removable shelves, full-extension drawers, and tiered freezer drawers for organized storage.

Balanced Airflow

Cascade airflow helps maintain even temperatures throughout the cabinet.

R-600A Refrigerant

Environmentally friendly hydrocarbon refrigerant supports efficient, quiet operation.

Type Refrigerator/Freezer Column
Style Bottom Freezer
Installation Type Built-In
Capacity 18.1 Cubic Feet
Refrigerator Capacity 14.0 Cubic Feet
Freezer Capacity 4.1 Cubic Feet
Refrigerator Temperature Range 33°F to 42°F
Freezer Temperature Range -4°F to 4°F
Refrigeration Type Self-Contained Refrigeration
Refrigerant Type R-600A
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Voltage 115 Volts
Amps 1.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 9 Feet
Water Inlet Size 1 1/4 Inches O.D. Braided Stainless Steel or PEX Tubing
Water Connection Required
Flow Rate 0.5 GPM
Annual Energy Consumption 588 kWh
Ice Maker Production Up to 3 Lbs. Per Day
Ice Storage Capacity 5 Lbs.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

3-year full warranty, 6-year sealed system warranty, and 7-12 year parts-only coverage on registered products.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It produces up to 3 lbs. of ice per day and stores up to 5 lbs.
The refrigerator range is 33°F to 42°F, and the freezer range is -4°F to 4°F.
It runs on 115V, 60 Hz, single-phase power and draws 1.8 amps with a NEMA 5-15P plug.
The water supply uses 1 1/4-inch O.D. braided stainless steel or PEX tubing, with a 0.5 GPM flow rate and 30 to 100 psi operating pressure.
Yes. The right-hinged version is model TR-30RBF-R-SG-A.
Optional accessories include a joining kit, side panel(s), a 90° door stop, and a full size anti-condensation pad.
