True Mfg. – Premier Bar

True 92-Inch Four-Section Reach-In Single-Zone Refrigerated Draft Bar Cooler with Stainless Steel Top and 2 Draft Columns

SKU: TDR92-RISZ1-L-B-SSSS-1
$8,138.65
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Bar, Beverage & Wine Cooling Best Sellers Commercial Beer Dispensers Commercial Refrigeration Commercial Refrigerators New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment True Mfg. – Premier Bar

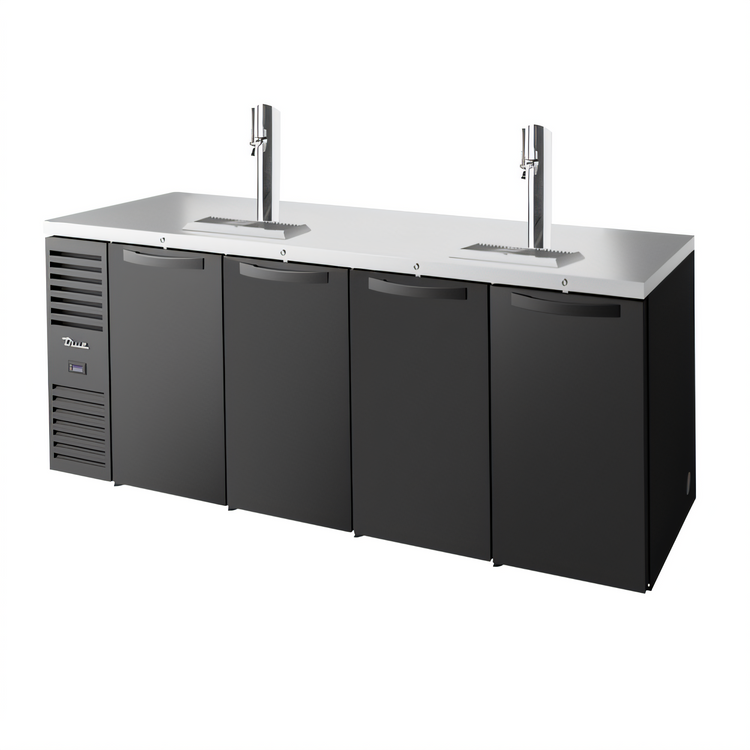

True 92-Inch Four-Section Reach-In Single-Zone Refrigerated Draft Bar Cooler with Stainless Steel Top and 2 Draft Columns

Side-Mounted Self-Contained R290, Black Powder-Coated Exterior

Built for busy bars, this 92-inch draft cooler keeps beer cold and ready to pour with self-contained R290 refrigeration, dual draft columns, and a durable stainless steel work surface.

  • Four-section, 92-inch refrigerated draft bar cooler designed for high-volume beer service.
  • Self-contained R290 refrigeration maintains product temperatures from 33°F to 38°F.
  • Two insulated 3-inch draft columns include single faucets, a 4-way manifold, and 15-inch drip trays.
  • Black powder-coated exterior with stainless steel countertop and stainless steel interior sides and floor.
  • Locking, field-reversible doors, white LED lighting, and electronic digital temperature control.
  • UL approved for outdoor use and NSF/ANSI 7 compliant for packaged or bottled product storage.

Overall Dimensions:

92.0"W x 24.88"D x 34.75"H

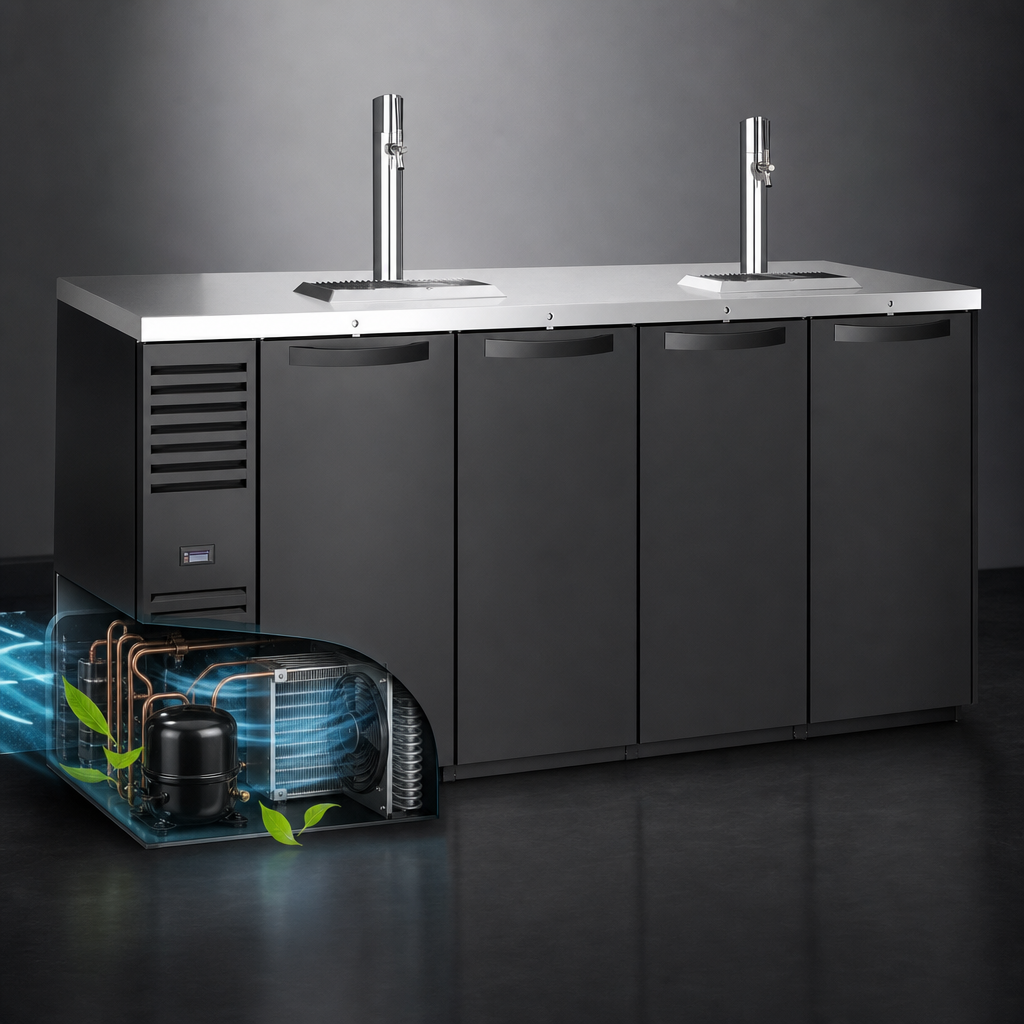

Self-Contained R290 Refrigeration

Factory-engineered forced-air refrigeration uses R290 hydrocarbon refrigerant and self-cleaning RCU technology to help maintain 33°F to 38°F with less condenser maintenance.

Self-Contained R290 Refrigeration

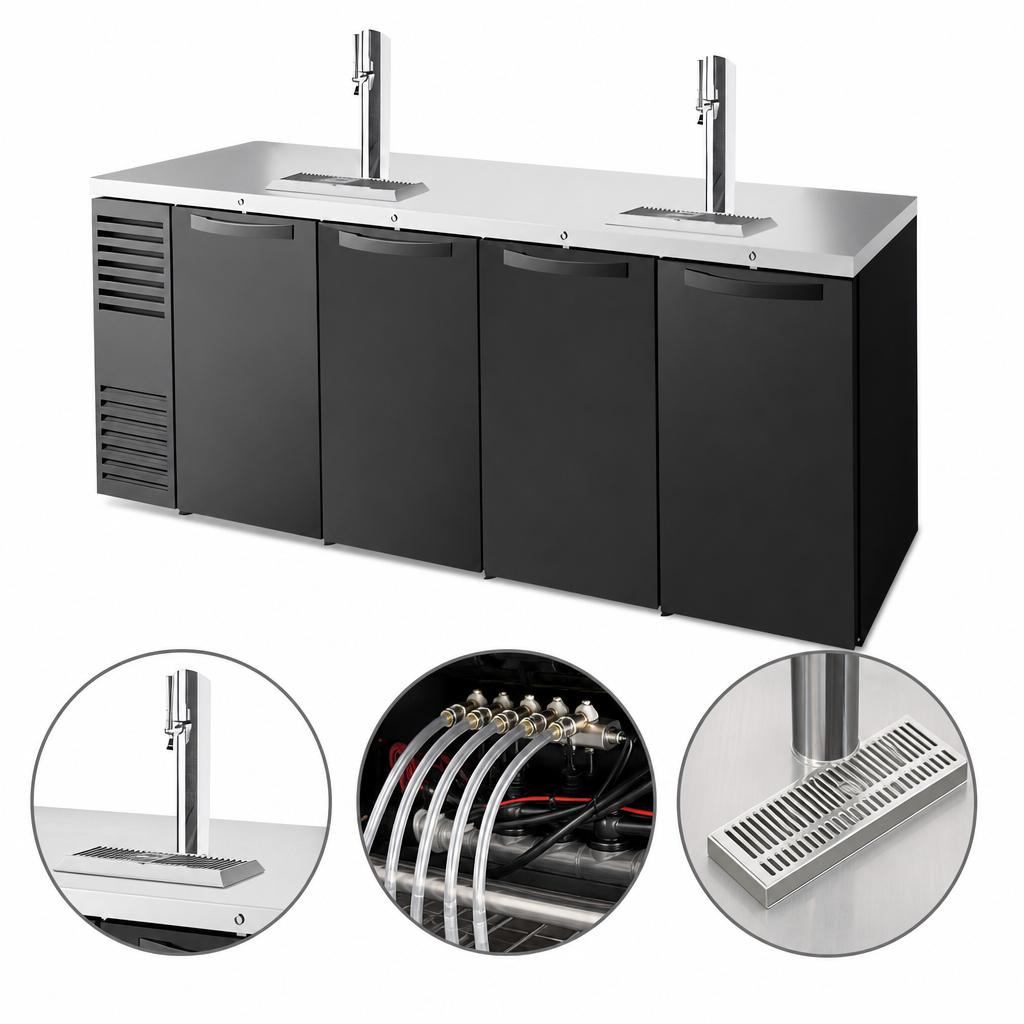

Dual Insulated Draft Columns

Includes two 3-inch insulated beer columns with single faucets, a 4-way manifold, and two 15-inch surface-mounted drip trays.

Dual Insulated Draft Columns

Durable Cabinet Construction

Black powder-coated steel exterior with a stainless steel countertop, stainless steel interior sides and floor, and ABS plastic ceiling.

Secure, Service-Friendly Doors

Solid hinged doors lock standard and are field reversible, with a reinforced door threshold for everyday service.

LED Lighting and Digital Control

White LED interior lighting and electronic temperature control with an exterior digital display make product monitoring easy.

Flexible Installation

Zero-clearance side and back design, front air intake and discharge, three interior access ports, and UL approval for outdoor use support flexible placement. NSF/ANSI 7 compliance supports packaged or bottled product storage.

Type Draft Refrigerator
Style Reach-In Single Zone
Installation Type Floor Model
Compartments 4
Capacity 16 Home Brew Barrels / 16 1/6 Barrels / 8 Slim 1/4 Barrels / 4 1/4 Barrels / 4 1/2 Barrels
Material Steel
Interior Finish Stainless Steel
Color Black
Finish Black Powder Coated
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Temperature Range 33°F to 38°F
Controls Electronic Digital
Voltage 115 Volts
Amps 3.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Breaker Size 15 Amps
Cord Length 10 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It maintains temperatures from 33°F to 38°F (0.5°C to 3.3°C).
The unit is pre-wired for a 115/60/1, 15 amp dedicated outlet and includes a cord and plug set with a NEMA 5-15P plug.
The cabinet can hold up to 16 home brew barrels, 16 1/6 barrels, 8 slim 1/4 barrels, 4 1/4 barrels, or 4 1/2 barrels.
Yes. Field reversible doors are standard, and a reverse hinge kit is included.
Yes. The unit is UL approved for outdoor use.
Yes. True's self-cleaning RCU technology helps eliminate the need to clean the condenser coil and reduces energy consumption.
