True Mfg. – Premier Bar

True Premier Bar 72-Inch Three-Section Refrigerated Draft Bar Cooler, Flat Top, Left-Side Refrigeration

SKU: TDR72-RI
$5,274.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Bar, Beverage & Wine Cooling Best Sellers Commercial Beer Dispensers Commercial Refrigeration Commercial Refrigerators New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment True Mfg. – Premier Bar

True Premier Bar 72-Inch Three-Section Refrigerated Draft Bar Cooler, Flat Top, Left-Side Refrigeration

Self-Contained, LED Lighting, R290, 115 Volts

Built for busy bar service, this 72-inch refrigerated draft cooler combines self-contained left-side refrigeration, digital controls, and LED-lit storage in a flat-top three-section cabinet.

  • 72-inch three-section refrigerated draft bar cooler for beer and beverage service.
  • Self-contained refrigeration with a left-side condensing unit and front-vented design.
  • Digital temperature control with automatic off-cycle defrost helps maintain consistent cooling.
  • Standard LED lighting improves visibility inside the cabinet; optional TruLumina lighting is available.
  • R290 hydrocarbon refrigerant and 115V cord-connected operation support efficient installation.
  • Net internal volume is 20.52 cubic feet with a 33°F to 38°F refrigerator temperature range.

Overall Dimensions:

72.0"W x 24.88"D x 34.75"H

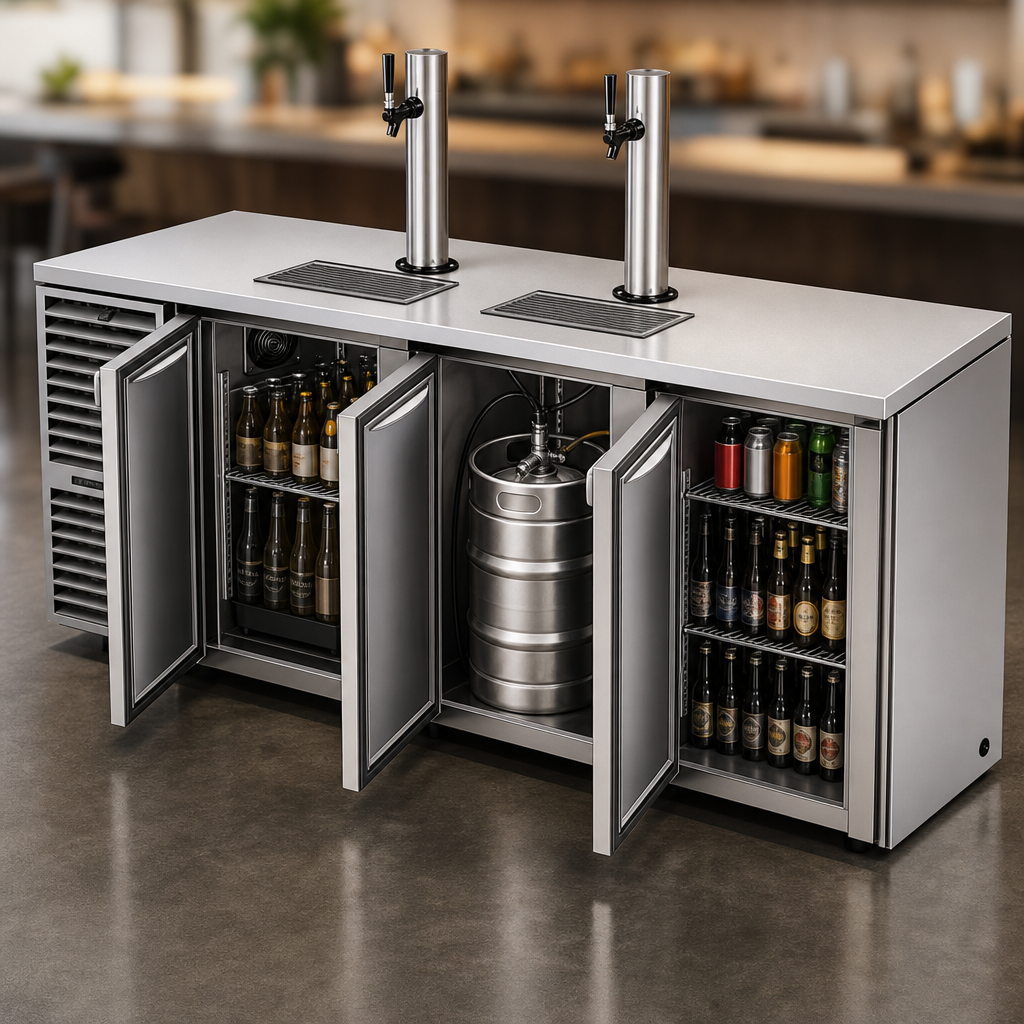

Three-Section Layout

The cabinet is divided into three compartments for organized draft and beverage storage.

Three-Section Layout

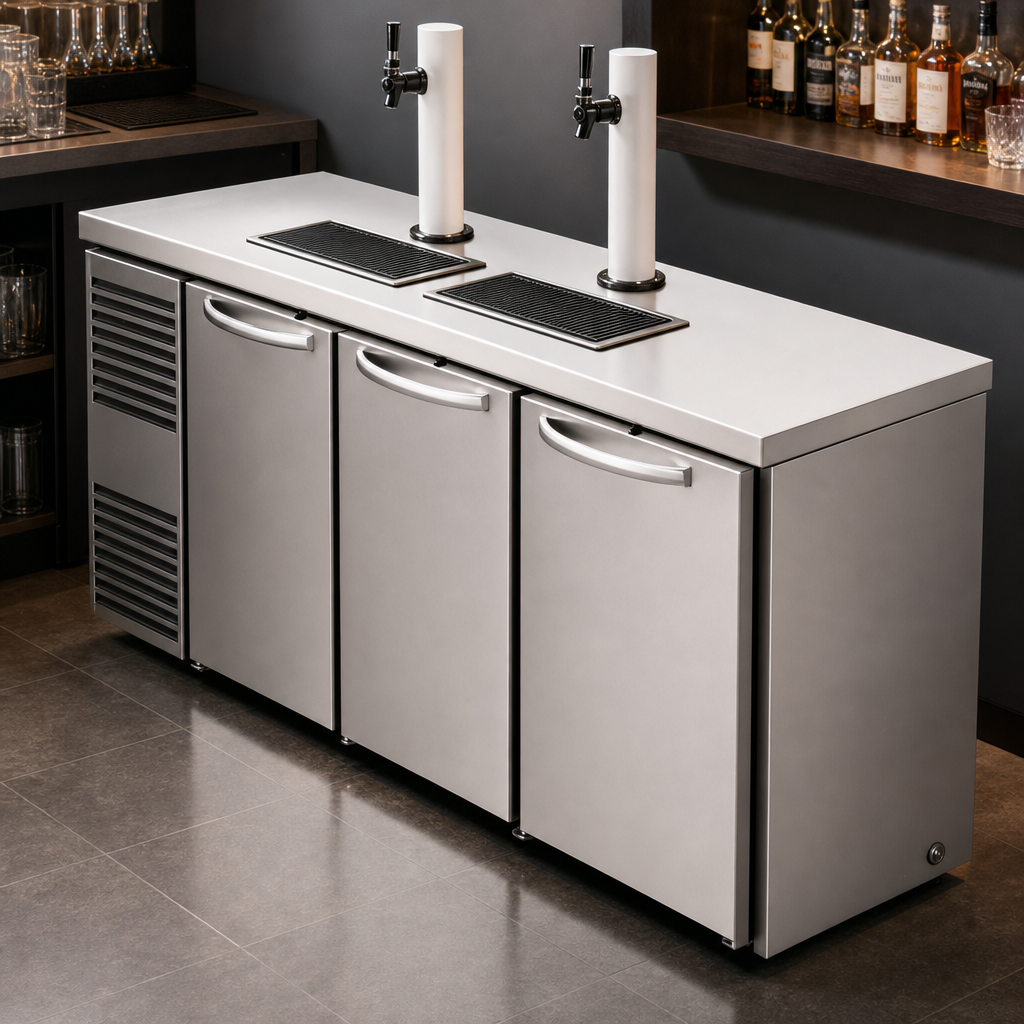

Flat-Top Design

Built with a flat top style to match back-bar and draft station applications.

Flat-Top Design

Self-Contained Refrigeration

The refrigeration system is built into the unit for easier installation and service.

Left-Side Condensing Unit

Condensing unit location is on the left side, with a pull-out design for access.

Front-Vented Cabinet

Front venting helps the unit exhaust heat without requiring rear clearance for ventilation.

Digital Temperature Control

Digital thermostat control provides straightforward temperature management.

LED Lighting

Standard LED lighting illuminates the interior; optional TruLumina lighting is available.

R290 Refrigerant

Uses R290 hydrocarbon refrigerant for modern commercial refrigeration performance.

Automatic Defrost

Automatic defrost initiation with off-cycle defrost helps reduce maintenance.

Cord-Connected Electrical

Ships cord connected with a NEMA 5-15 plug and 10-foot power cord.

Type Refrigerated Draft Bar Cooler
Style Flat Top
Compartments 3
Refrigeration Type Self-Contained
Controls Digital
Temperature Range 33°F to 38°F
Capacity 20.52 Cubic Feet
Refrigerant Type R290 Hydrocarbon
Voltage 115 Volts
Amps 3.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15
Cord Length 10 Feet
Shipping Width 72 Inches
Shipping Depth 25 Inches
Shipping Height 35 Inches
Shipping Weight 320 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is a three-section unit.
It uses self-contained refrigeration with a left-side condensing unit and a pull-out condensing unit design.
The unit is 115V/60Hz/1PH, cord connected, and uses a NEMA 5-15 plug with a 10-foot cord.
It uses R290 hydrocarbon refrigerant.
The refrigerator temperature range is 33°F to 38°F.
Yes, LED lighting is standard. Optional TruLumina lighting is also available with an upcharge.
