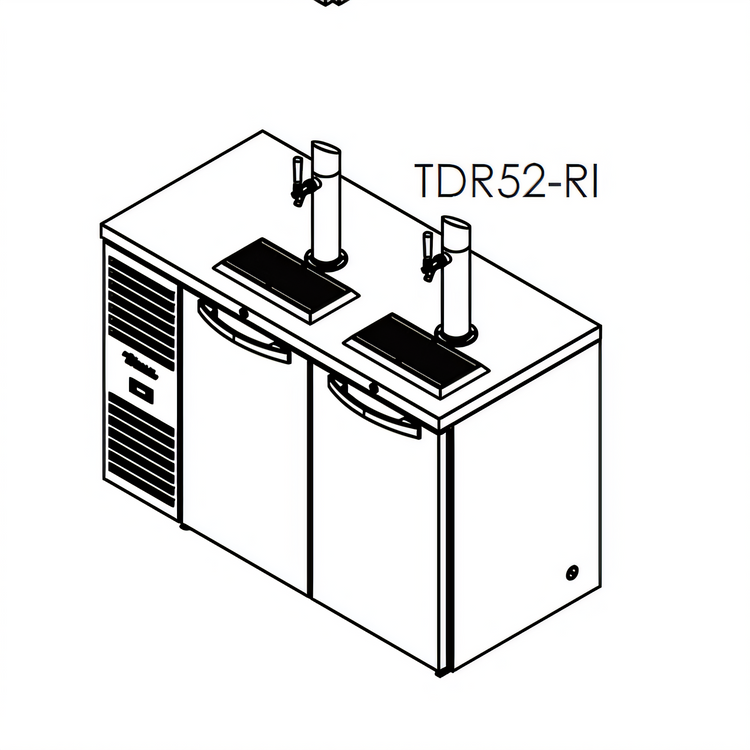

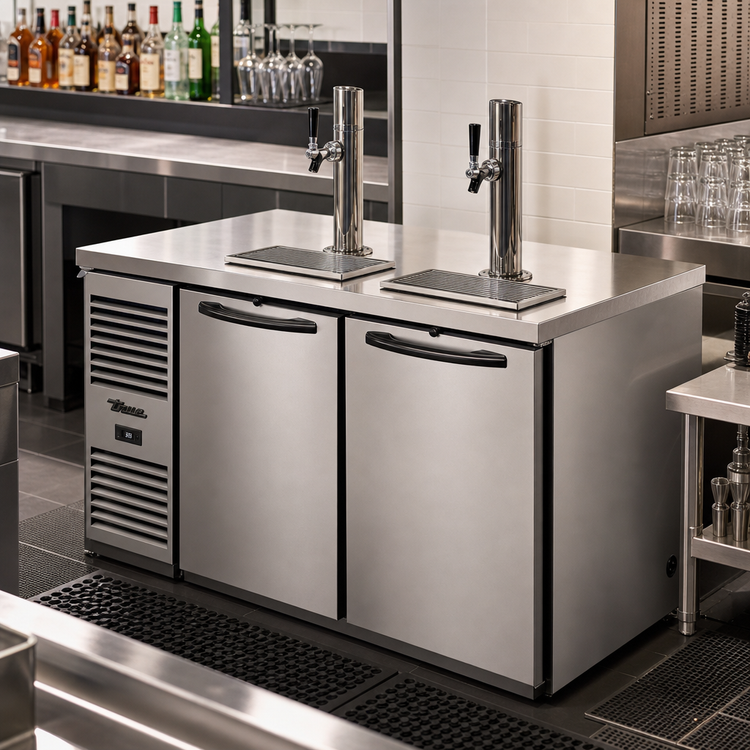

True Two-Section Refrigerated Draft Bar Cooler, 52-Inch Wide, Left-Side Refrigeration

SKU: TDR52-RI
$4,433.02
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Bar, Beverage & Wine Cooling Best Sellers Commercial Beer Dispensers Commercial Refrigeration Commercial Refrigerators New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment True Mfg. – Premier Bar

True Two-Section Refrigerated Draft Bar Cooler, 52-Inch Wide, Left-Side Refrigeration

Flat Top, Self-Contained, LED Lighting, R290 Hydrocarbon Refrigerant

Built for behind-the-bar service, this two-section draft cooler combines self-contained left-side refrigeration with efficient R290 cooling and digital temperature control.

  • Two-section, 52-inch-wide refrigerated draft bar cooler designed for commercial beverage service.
  • Self-contained refrigeration with left-side condensing unit, pull-out access, and front venting.
  • Digital controls with automatic off-cycle defrost help maintain consistent cold storage.
  • R290 hydrocarbon refrigerant and LED lighting support efficient, modern operation.
  • Maintains a 33°F to 38°F refrigerator range with a 34°F factory setting.
  • cULus listed, UL EPH Classified, NSF/ANSI 7 compliant, and made in the USA.

Overall Dimensions:

52.0"W x 24.88"D x 34.75"H

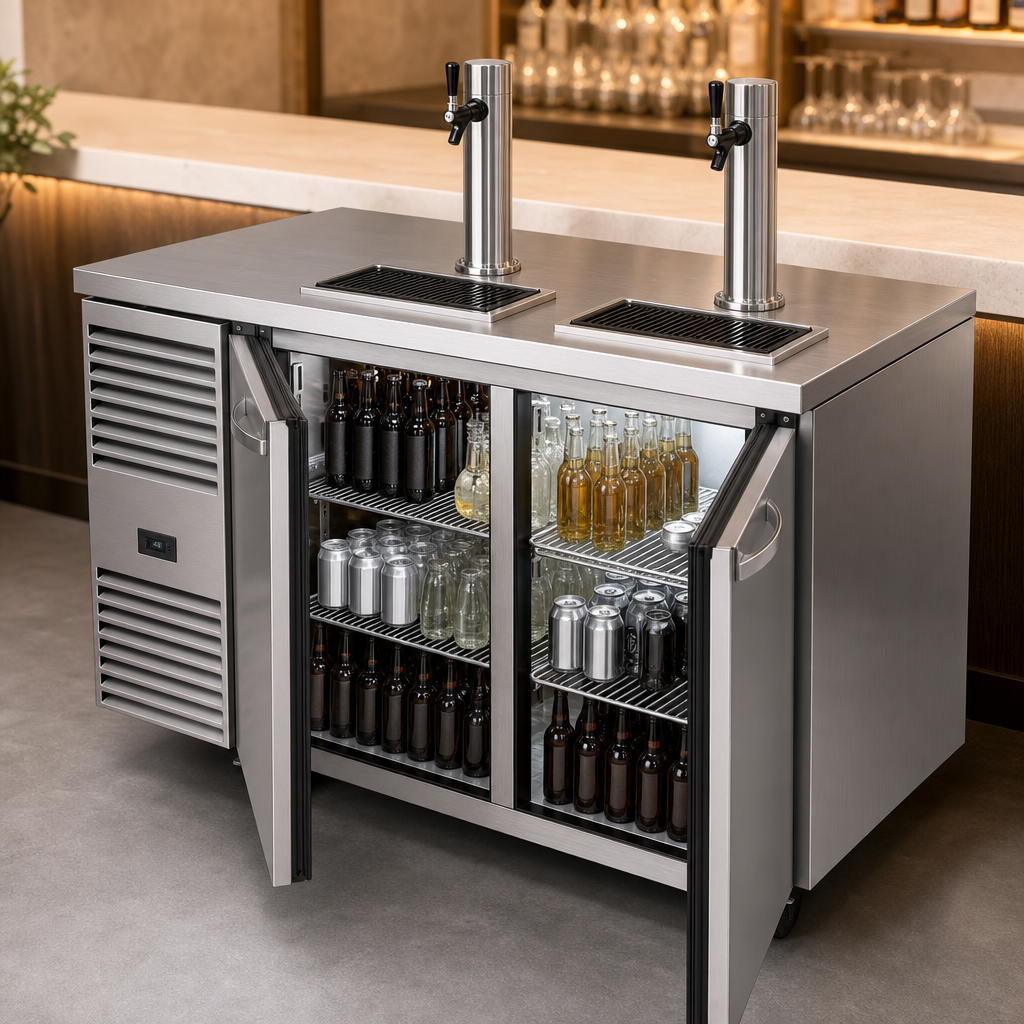

Two-Section Configuration

Two compartments provide organized refrigerated storage in a 52-inch-wide footprint.

Two-Section Configuration

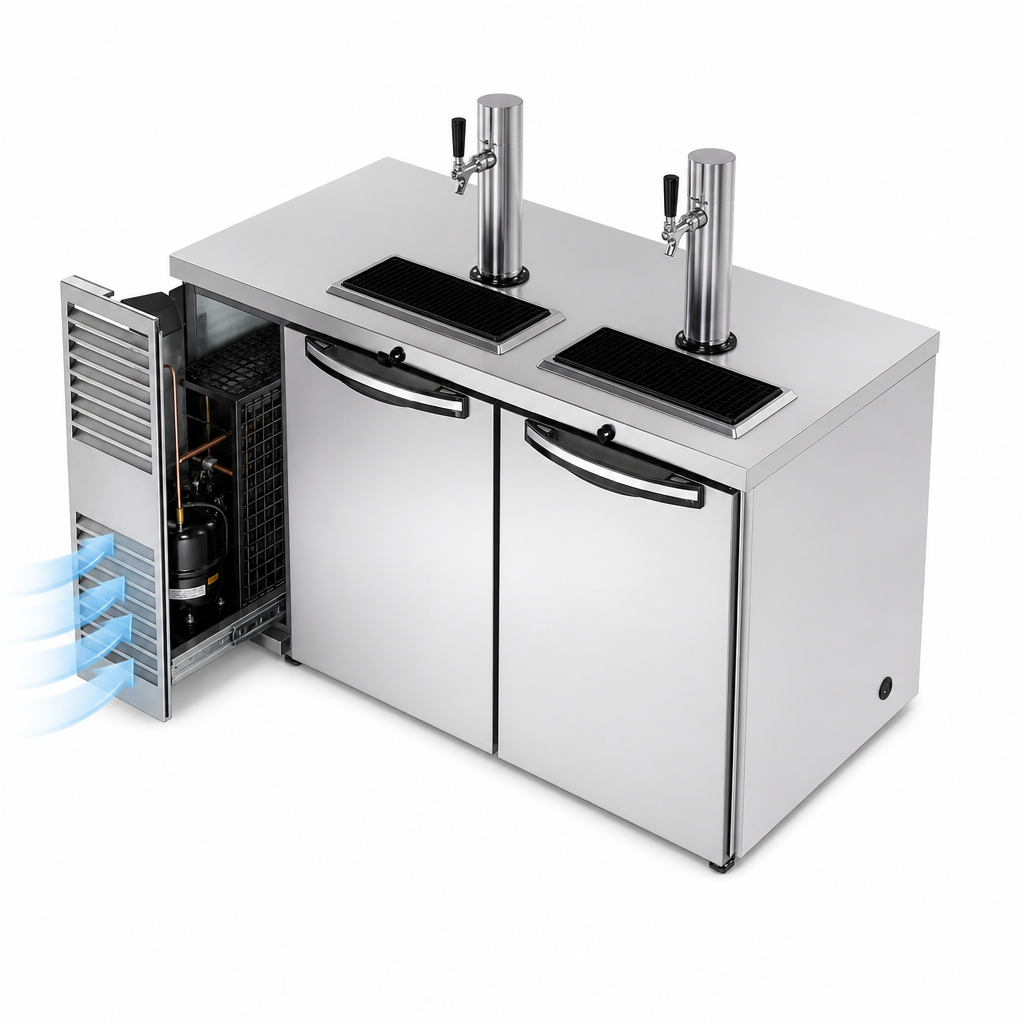

Self-Contained Left-Side Refrigeration

Built-in refrigeration system places the condensing unit on the left side and includes front venting and pull-out access for service.

Self-Contained Left-Side Refrigeration

Digital Temperature Control

Digital thermostat control with automatic off-cycle defrost helps maintain stable cabinet temperatures.

LED Lighting

Standard LED cabinet lighting improves visibility inside the unit.

R290 Hydrocarbon Refrigerant

Uses R290 refrigerant for efficient modern refrigeration performance.

Beverage Storage Capacity

Holds up to 38 six-packs of 12-ounce cans or 1-1/2 barrels.

Commercial Compliance

cULus listed, UL EPH Classified, NSF/ANSI 7 compliant, and made in the USA.

Cord-Connected Electrical

Operates on 115V/60Hz/1-phase power with a NEMA 5-15 plug and 10-foot cord.

Type Refrigerated Draft Bar Cooler
Style Single Zone
Installation Type Freestanding
Top Style Flat Top
Compartments 2
Capacity 13.27 Cubic Feet
Controls Digital
Voltage 115 Volts
Amps 1.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15
Cord Length 10 Feet
Horsepower 1/5 HP
Electrical Connection Cord Connected
Defrost Initiation Automatic
Defrost Type Off Cycle
Lighting Type LED
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Refrigerant Charge 85 Grams
Temperature Range 33°F to 38°F
Factory Temperature Setting 34°F
Condensing Unit Location Left Side
Shipping Width 52 Inches
Shipping Depth 25 Inches
Shipping Height 35 Inches
Shipping Weight 320 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It uses a self-contained refrigeration system with the condensing unit on the left side.
The refrigerator range is 33°F to 38°F, with a factory setting of 34°F.
It requires 115V/60Hz/1-phase power, draws 1.8 amps, and is cord connected with a NEMA 5-15 plug and 10-foot cord.
This model uses R290 hydrocarbon refrigerant.
Yes, LED lighting is standard, and optional TruLumina lighting is available.
The cutsheet lists capacity for up to 38 six-packs of 12-ounce cans or 1-1/2 barrels.
