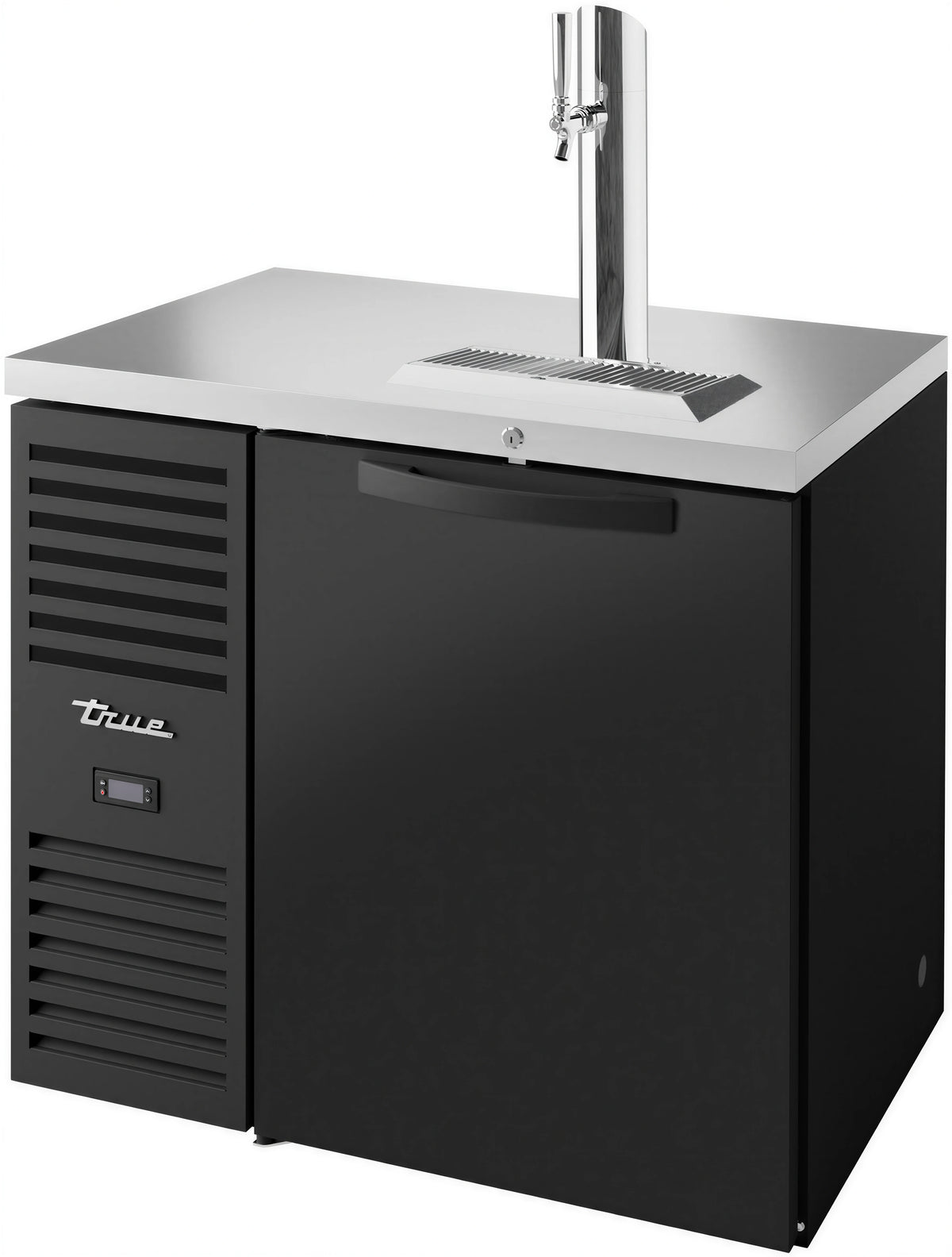

True Premier Bar TDR36-RISZ1-L-B-S-1 36-Inch Countertop Refrigerated Draft Beer Dispenser, Black, 1 Faucet Column
- Rated amperage
- 1.8 A
- Dimensions
- 36.0"W × 24.88"D × 34.75"H
- Configuration
- One-section, single-zone refrigerated draft bar cooler
- Door
- 1 solid hinged locking door
- Shelves
- 0
- Draft column count
- 1
Specifications
Description

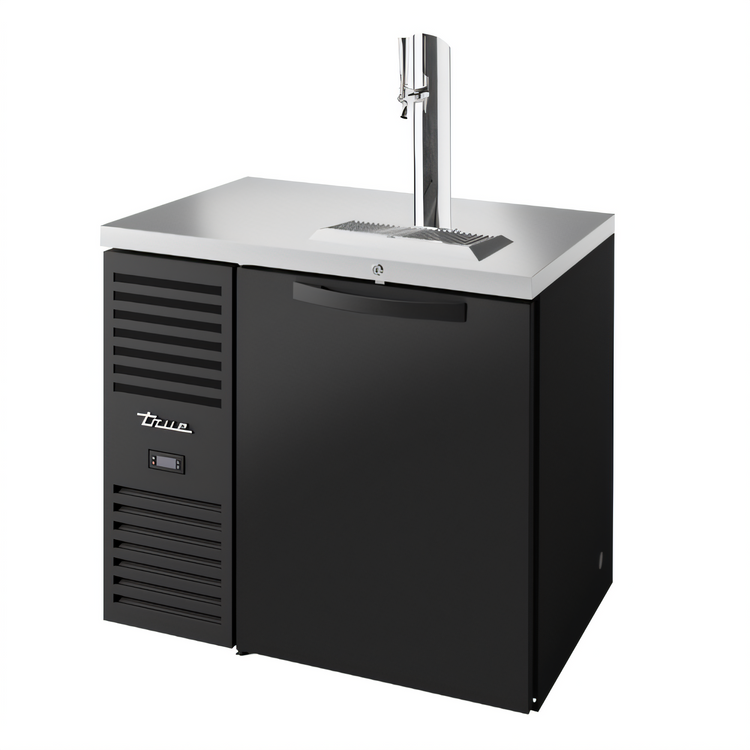

True Premier Bar TDR36-RISZ1-L-B-S-1 is a one-section refrigerated draft bar cooler with a 36-inch width, side-mounted self-contained refrigeration, and a stainless steel countertop.
- Features one 3-inch insulated draft column with a single faucet, 2-way manifold, and 15-inch surface-mounted drip tray.

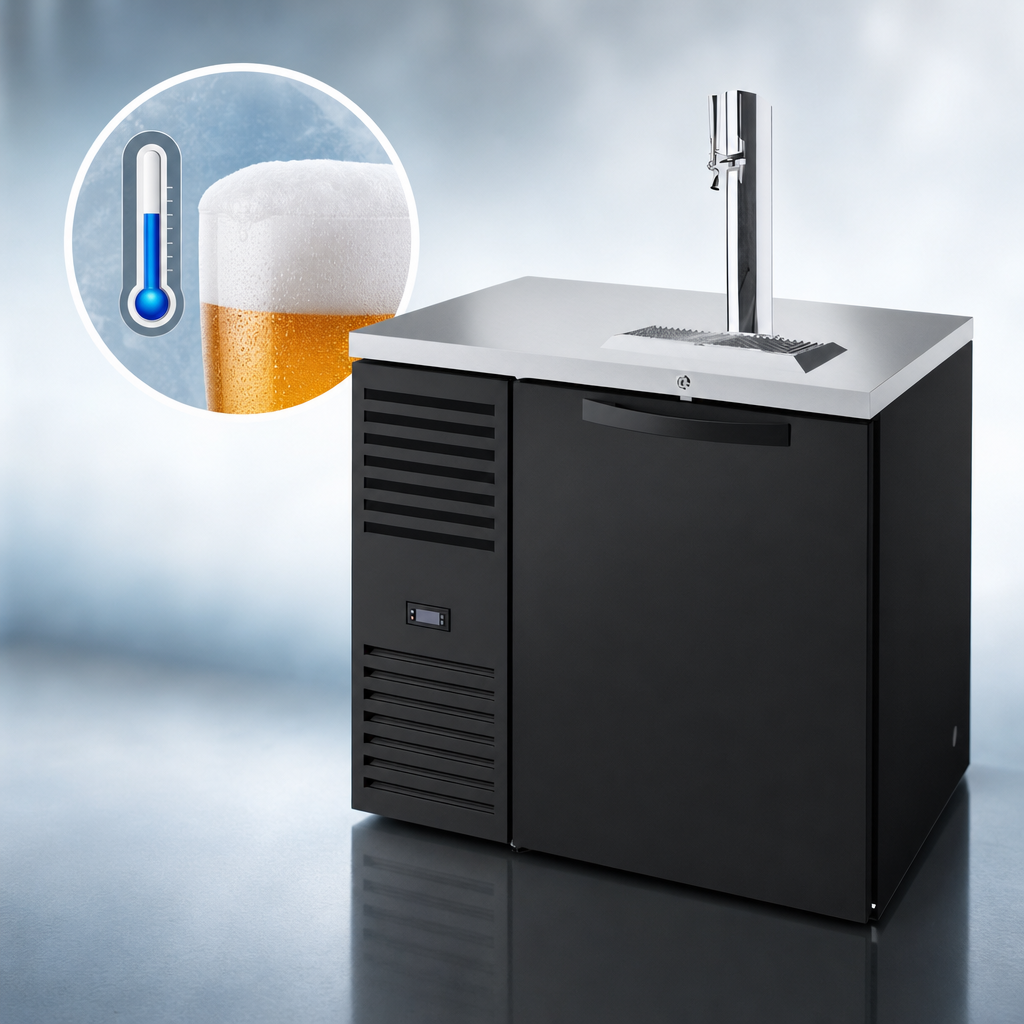

- Maintains product temperatures from 33°F to 38°F with R290 hydrocarbon refrigerant, forced-air refrigeration, and electronic temperature control with an exterior digital display.
- Includes one solid hinged locking door, field-reversible door capability, white LED interior lighting, and three interior access ports.
- Construction includes a black powder-coated cold-rolled steel exterior, stainless steel interior sides and floor, and ABS plastic ceiling.
The unit is factory pre-wired for a 115V/60/1 phase, 15-amp dedicated outlet and includes a cord and plug set.
Overall Dimensions:
36.0"W x 24.88"D x 34.75"HProduct Weight:
270.0 lbSelf-contained refrigeration

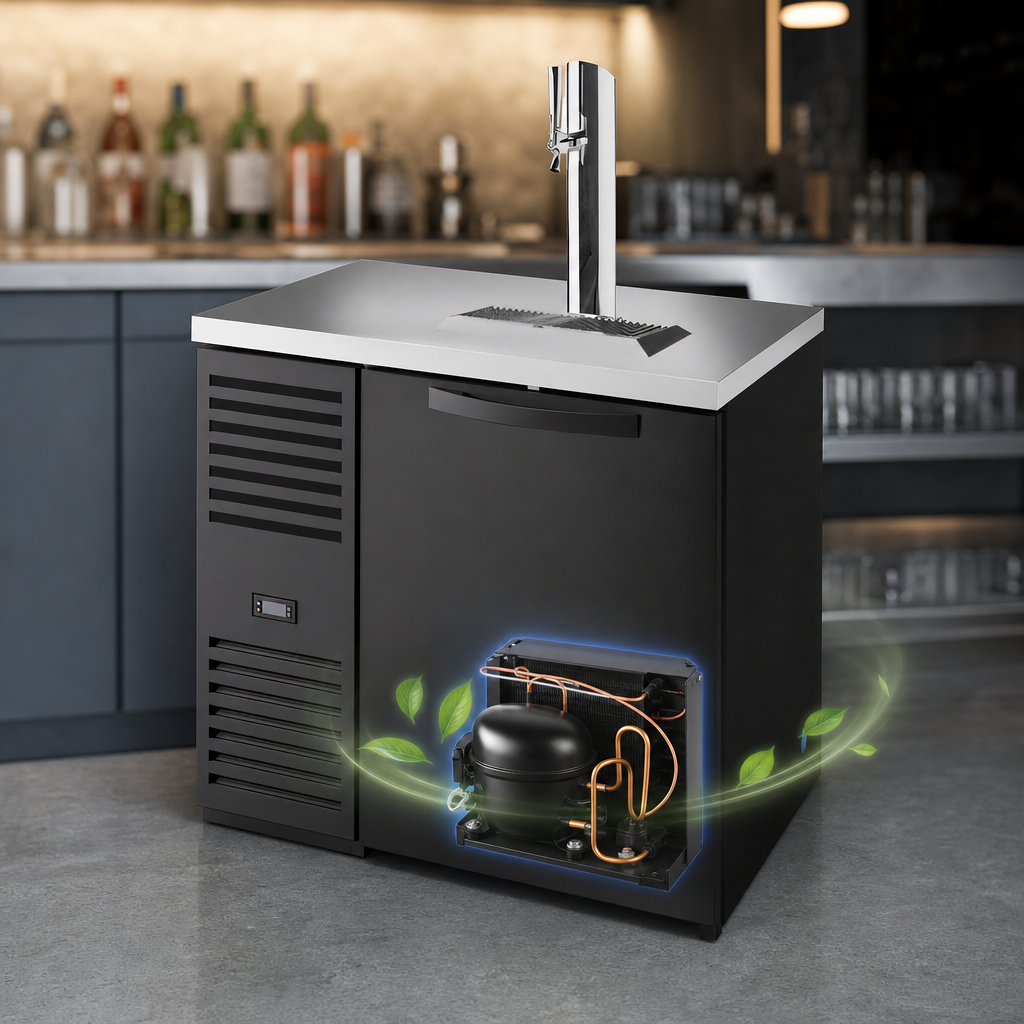

Side-mounted, forced-air refrigeration uses R290 hydrocarbon refrigerant and True self-cleaning RCU technology.
Temperature control
Electronic temperature control with an exterior digital display maintains product temperatures from 33°F to 38°F.
Draft dispensing
One 3-inch insulated draft column includes a single faucet and 2-way manifold.
Cabinet construction
Black powder-coated cold-rolled steel exterior with a stainless steel countertop; stainless steel interior sides and floor with an ABS plastic ceiling.
Door design
One solid hinged door has a standard lock and field-reversible capability; the reverse hinge kit is included.
Interior features
White LED interior lighting, three interior access ports, and a 15-inch surface-mounted drip tray are included.
Airflow and clearance
Front air intake and front air discharge support zero clearance at the sides and back.
Electrical setup
Factory pre-wired for a 115V/60/1 phase, 15-amp dedicated outlet with a cord and plug set included.
Outdoor-use listing
The cutsheet states that the unit is UL approved for outdoor use.
