True Premier Bar TDR108-RI Four-Section Refrigerated Draft Beer Bar Cooler, 108-Inch Wide, Flat Top
$6,582.52
/each
Ships in 15–18 business days
- Product type
- Refrigerated draft bar cooler
- Sections
- Four
- Top style
- Flat top
- Dimensions
- 108.0"W × 24.88"D × 34.75"H
- Refrigeration system
- Self-contained
- Net internal volume
- 33.66 cu. ft. (953 L)
Specifications
Product type
Refrigerated draft bar cooler
Sections
Four
Top style
Flat top
Width
108 in
Depth
24.88 in
Height
34.75 in
Refrigeration system
Self-contained
Net internal volume
33.66 cu. ft. (953 L)
Can capacity
220 six-packs of 12 oz cans
Bottle capacity
132 six-packs of 12 oz bottles
Barrel capacity
4 half-barrels
Refrigerator temperature range
33°–38°F (0.5°–3.3°C)
Factory refrigerator temperature
34°F (1.1°C)
Lighting
LED
Refrigerant
R290
Defrost
Automatic, off cycle
Temperature control
Digital control
Condensing unit location
Left side
Condensing unit
Pull-out
Ventilation
Front vented
Electrical supply
115V/60Hz/1PH
Running load
3.2 A
Electrical connection
Cord connected
Plug type
NEMA 5-15
Cord length
10 ft (3.04 m)
Horsepower
1/4 HP
Expansion device
Capillary tube
Country of origin
Made in USA
Description

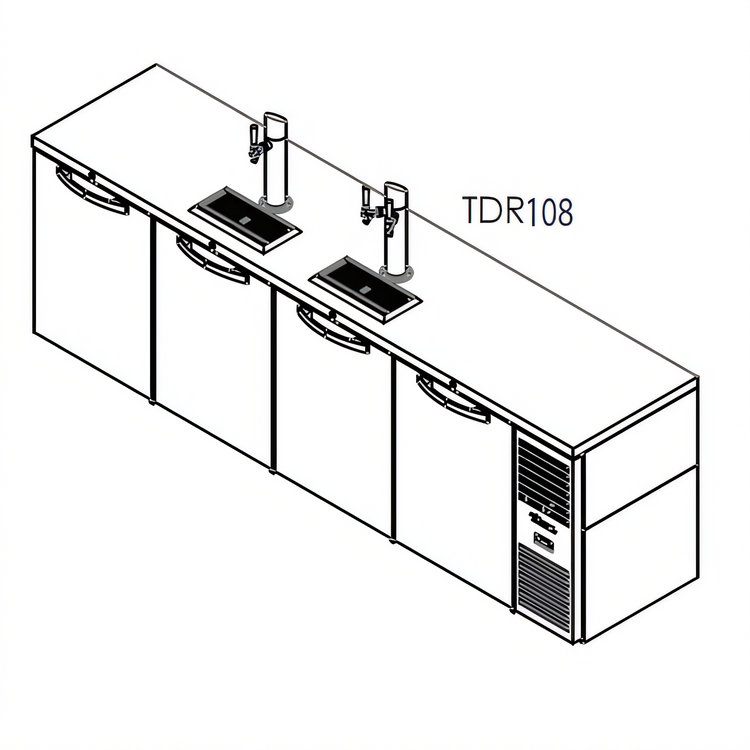

True Premier Bar TDR108-RI is a four-section refrigerated draft bar cooler with a 108-inch flat top and self-contained refrigeration.
- LED lighting and R290 refrigerant.
- Digital temperature control with automatic off-cycle defrost.
- Front-vented, pull-out condensing unit with left-side refrigeration.
- Made in USA, cULus listed, and UL EPH Classified.

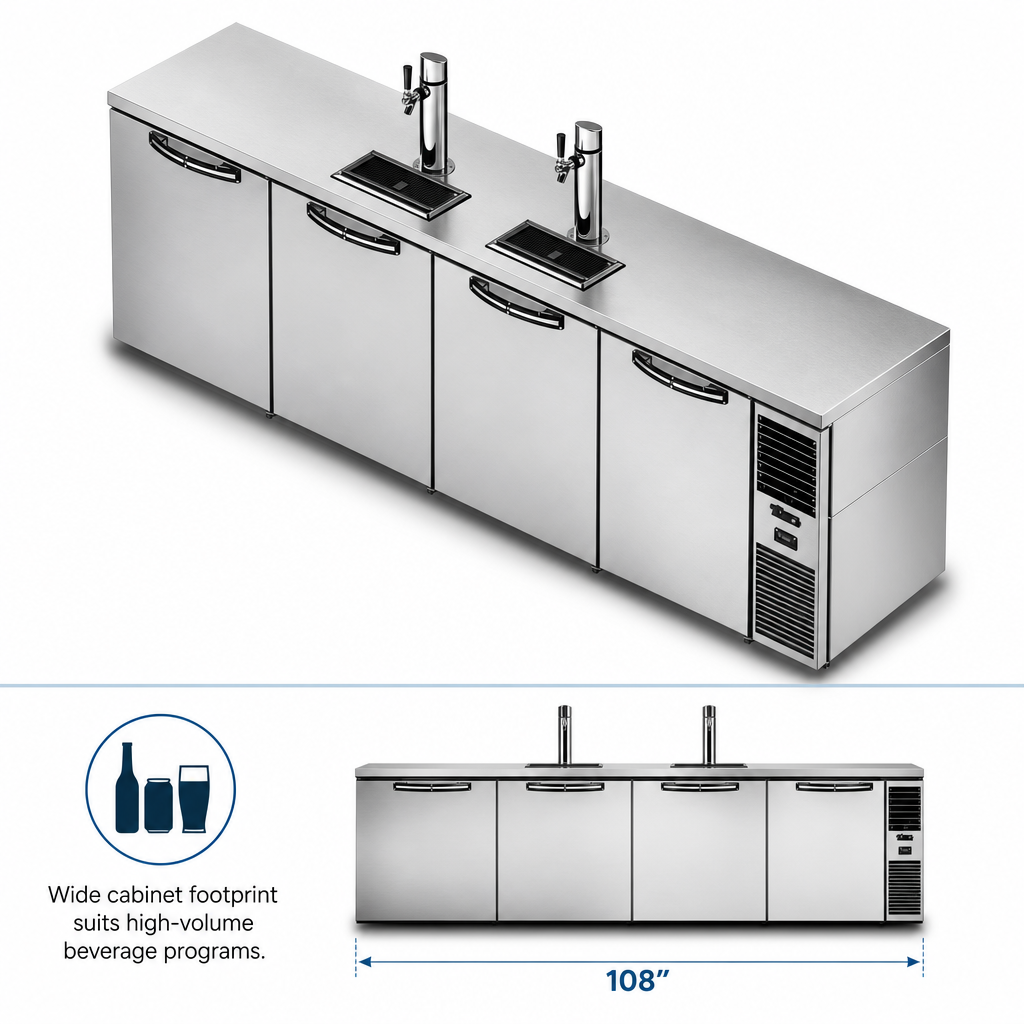

Overall Dimensions:
108.0"W x 24.88"D x 34.75"HProduct Weight:

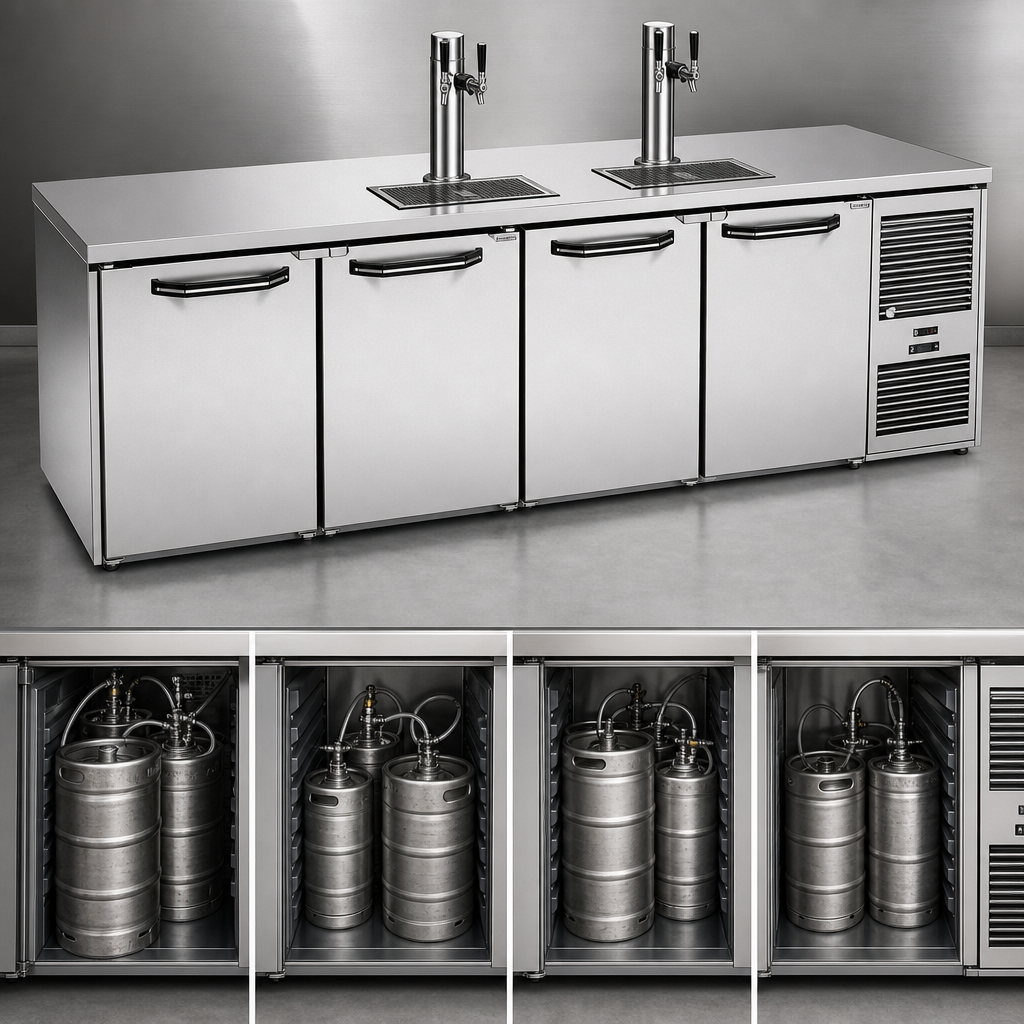

190.0 lbFour-section configuration
The TDR108-RI is specified as the four-section model.
Flat top
The unit has a flat-top design.
Self-contained refrigeration
Refrigeration is self-contained within the unit.
LED lighting
LED lighting is specified for the unit.
R290 refrigerant
The refrigeration system uses R290 refrigerant.
Digital temperature control
Digital control maintains a specified refrigerator range of 33°–38°F (0.5°–3.3°C).
Automatic off-cycle defrost
The unit uses automatic defrost initiation with an off-cycle defrost type.
Front-vented pull-out condensing unit
The condensing unit is front vented, pull out for service, and located on the left side.
Documentation
Certifications & Compliance
Frequently Asked Questions
The unit is 108 inches wide.
The TDR108-RI has a flat top.
It uses R290 refrigerant.
The specified refrigerator temperature range is 33°–38°F (0.5°–3.3°C).
The unit is specified for 115V/60Hz/1PH power with a cord-connected NEMA 5-15 plug.
