True Mfg. – Ice Makers

True Ice Series Half-Cube Self-Contained Air-Cooled Ice Maker, 640 lb./24 Hr, 30 Inch Wide

SKU: TCIM-630-HA1-A
$5,030.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

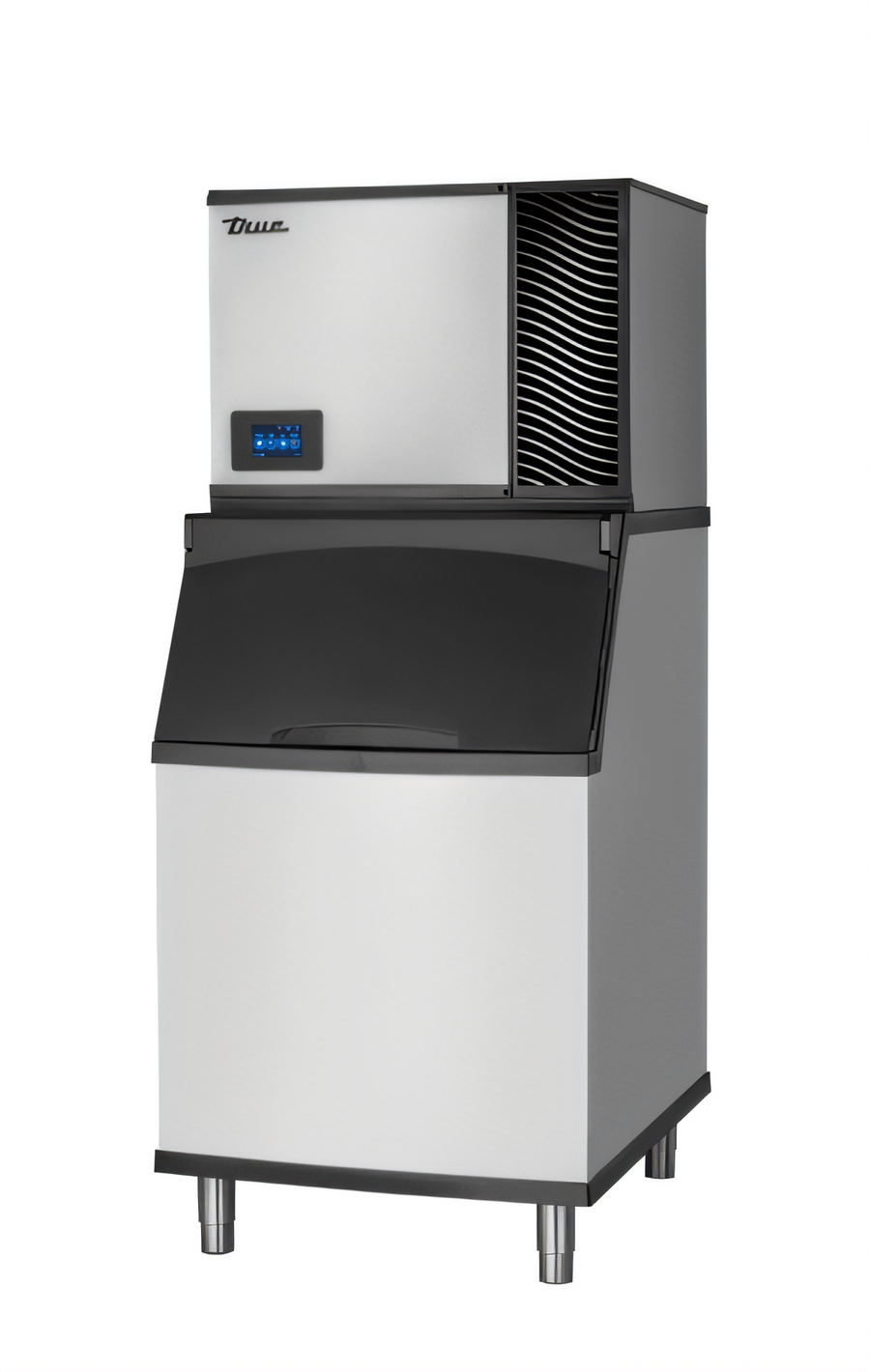

True Ice Series Half-Cube Self-Contained Air-Cooled Ice Maker, 640 lb./24 Hr, 30 Inch Wide

R290 Refrigerant, 115V, 4.3-Inch Touch Display

A compact 30-inch ice maker that delivers up to 640 lb. of sanitary half-cube ice per day with touchscreen controls and efficient R290 refrigeration.

  • Produces up to 640 lb. of half-cube ice per 24 hours.
  • Self-contained, air-cooled refrigeration system helps simplify installation.
  • R290 hydrocarbon refrigerant supports efficient, environmentally conscious operation.
  • 4.3-inch front touch display adds simple operation, diagnostics, alarms, and programmable production.
  • TrueNcapsuL8 insulated, sealed evaporator and TrueGuard antimicrobial protection support cleaner ice production.
  • Ice level sensing and remote monitoring capabilities help reduce downtime and service interruptions.
  • Truetech aluminum exterior and all-plastic interior are built for commercial durability.

Overall Dimensions:

30.0"W x 24.0"D x 22.0"H

Product Weight:

194.0 lb

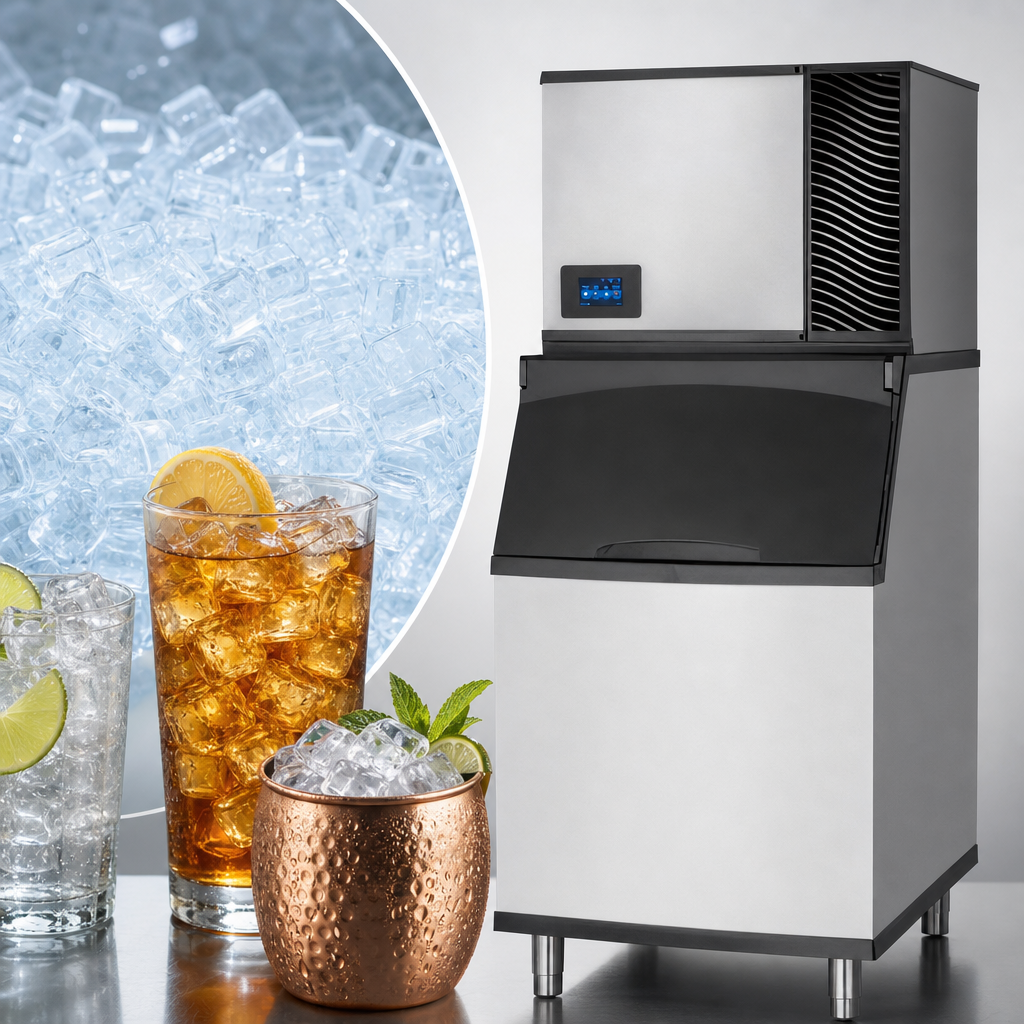

Half-Cube Ice Production

Makes half-size cubed ice for versatile beverage service and dispensing applications.

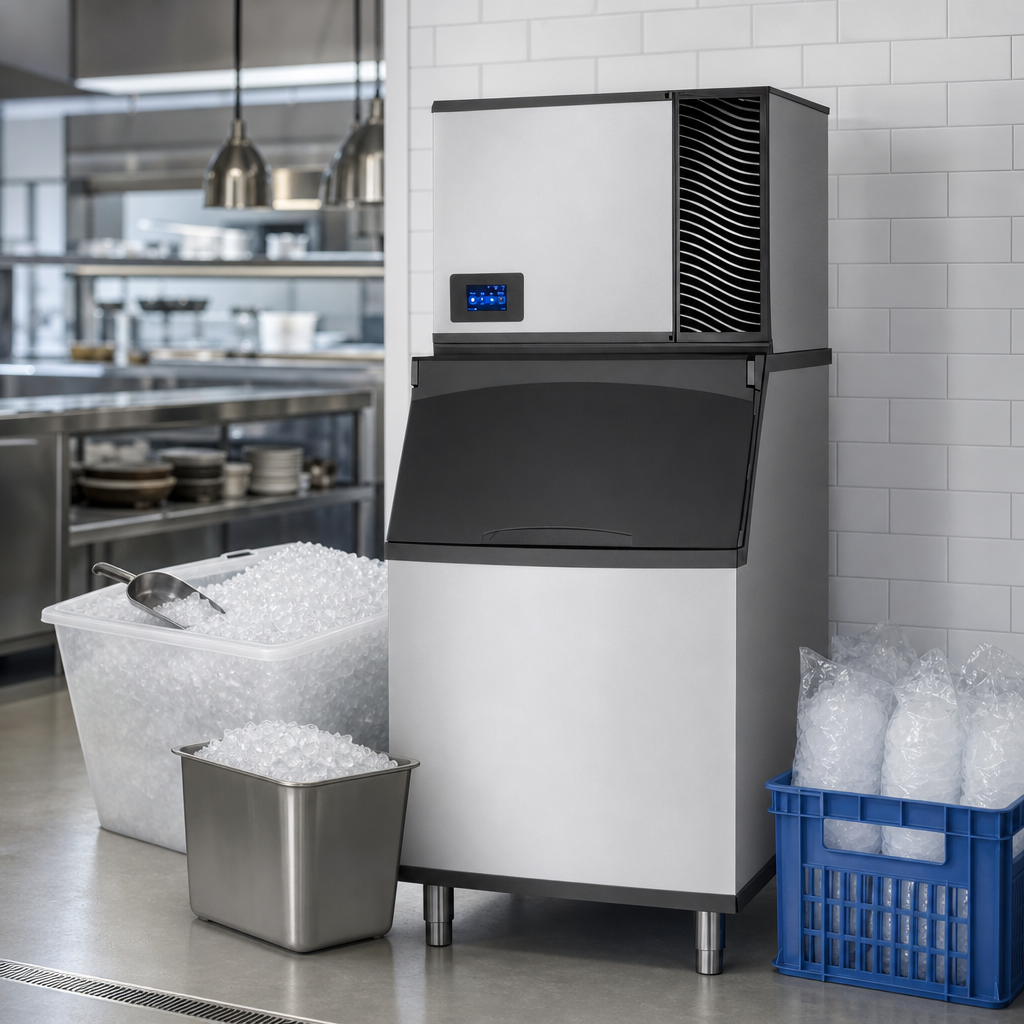

High Daily Output

Produces up to 640 lb. of ice per 24 hours under standard test conditions.

Self-Contained Air-Cooled System

Uses an air-cooled, self-contained refrigeration system to simplify setup and reduce dependence on remote equipment.

R290 Refrigerant

Environmentally friendly R290 refrigerant is designed for efficient ice production and energy-conscious operation.

Advanced Touchscreen Control

The 4.3-inch front display supports touch operation, programmable ice production, built-in alarms, and diagnostics.

Sanitary Evaporator Design

TrueNcapsuL8 insulated and sealed evaporator construction helps improve cleanliness and energy efficiency.

Antimicrobial Protection

TrueGuard antimicrobial protection is embedded in plastic components to help support sanitation.

Service-Friendly Monitoring

Ice level monitoring, predictive diagnostics, and remote monitoring features help streamline operation and service.

Durable Construction

Truetech aluminum exterior panels and an all-plastic interior are built for demanding commercial use.

Type Ice Maker
Style Modular Cubed
Cube Size Half Cube
Refrigeration Type Self-Contained
Condenser Type Air-Cooled
Ice Production per 24 Hr 640 lb. per 24 Hours
Refrigerant Type R290 Hydrocarbon
Material Aluminum
Interior Finish Plastic
Finish Truetech Aluminum
Controls Electronic Touch Screen
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch FNPT
Drain Connection Size 3/4 Inch FNPT
Voltage 115 Volts
Amps 9.7 Amps
Hertz 60 Hz
Phase 1-Phase
Minimum Circuit Ampacity 15 Amps
Peak Heat of Rejection 8,500 BTU/hr
Electrical Consumption 3.95 kWh per 100 lb.
Shipping Width 30 Inches
Shipping Depth 24 Inches
Shipping Height 22 Inches
Shipping Weight 194 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the compressor; 5 years parts and labor on the evaporator.

Frequently Asked Questions

This model produces half-cube ice with cube dimensions of 7/16" x 1-1/8" x 7/8".
It produces up to 640 lb. of ice per 24 hours at 70°F air / 50°F water, and 580 lb. per 24 hours at 90°F air / 70°F water.
The unit operates on 115/60/1 power, draws 9.7 amps, and has a minimum circuit ampacity of 15.
Yes. It is air-cooled and requires 6 inches of clearance at the front and back for air intake and exhaust.
It uses a 1/2" female NPT potable water inlet and a 3/4" female NPT water outlet.
The product sheet lists a commercial ice maker warranty of 3 years parts and labor on the ice maker, 5 years parts on the compressor, and 5 years parts and labor on the evaporator.
