True Mfg. – Ice Makers

True Ice Series 30-Inch Modular Half-Cube Ice Maker, Self-Contained Air-Cooled, 447 lb/Day

SKU: TCIM-430-HA1-A
$3,948.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

True Ice Series 30-Inch Modular Half-Cube Ice Maker, Self-Contained Air-Cooled, 447 lb/Day

115V, 1-Phase, R290 Refrigerant, 4.3-Inch Touch Display

A compact, high-output half-cube ice maker that delivers up to 447 lb. per day with self-contained air-cooled refrigeration and smart sanitation-focused controls.

  • Produces up to 447 lb. of half-size cube ice per 24 hours.
  • Self-contained, air-cooled design simplifies installation and service.
  • R290 refrigeration system supports efficient, environmentally friendly operation.
  • 4.3-inch touch display adds diagnostics, alarms, programmable production, and ice-level monitoring.
  • TrueGuard antimicrobial and a TrueNcapsuL8 sealed evaporator help support sanitation.
  • TrueTech aluminum construction with removable air filter and easy-clean components.
  • Remote monitoring and remote shutoff add convenience for operators.

Overall Dimensions:

30.0"W x 24.0"D x 22.0"H

Product Weight:

180.0 lb

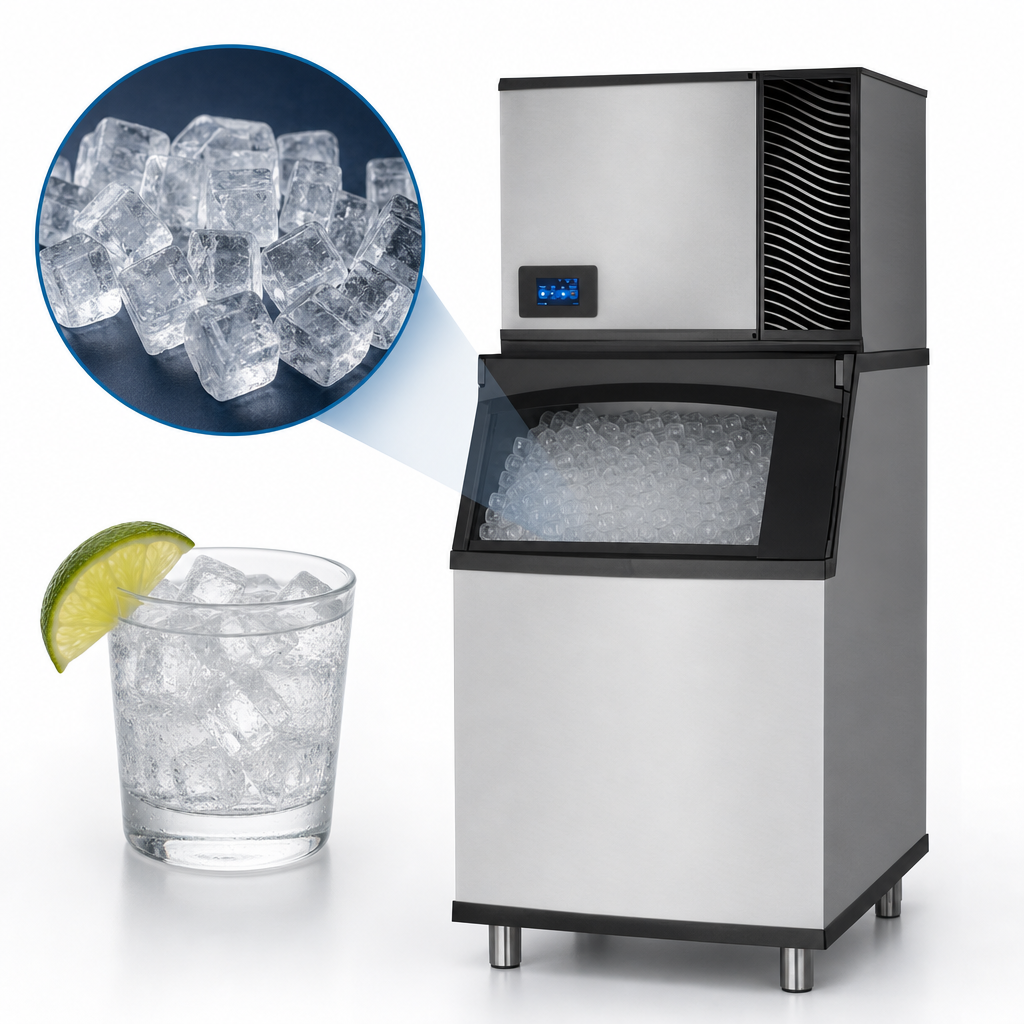

Half-Size Cube Ice

Produces half-size cubes for beverage service and fast cooling.

Half-Size Cube Ice

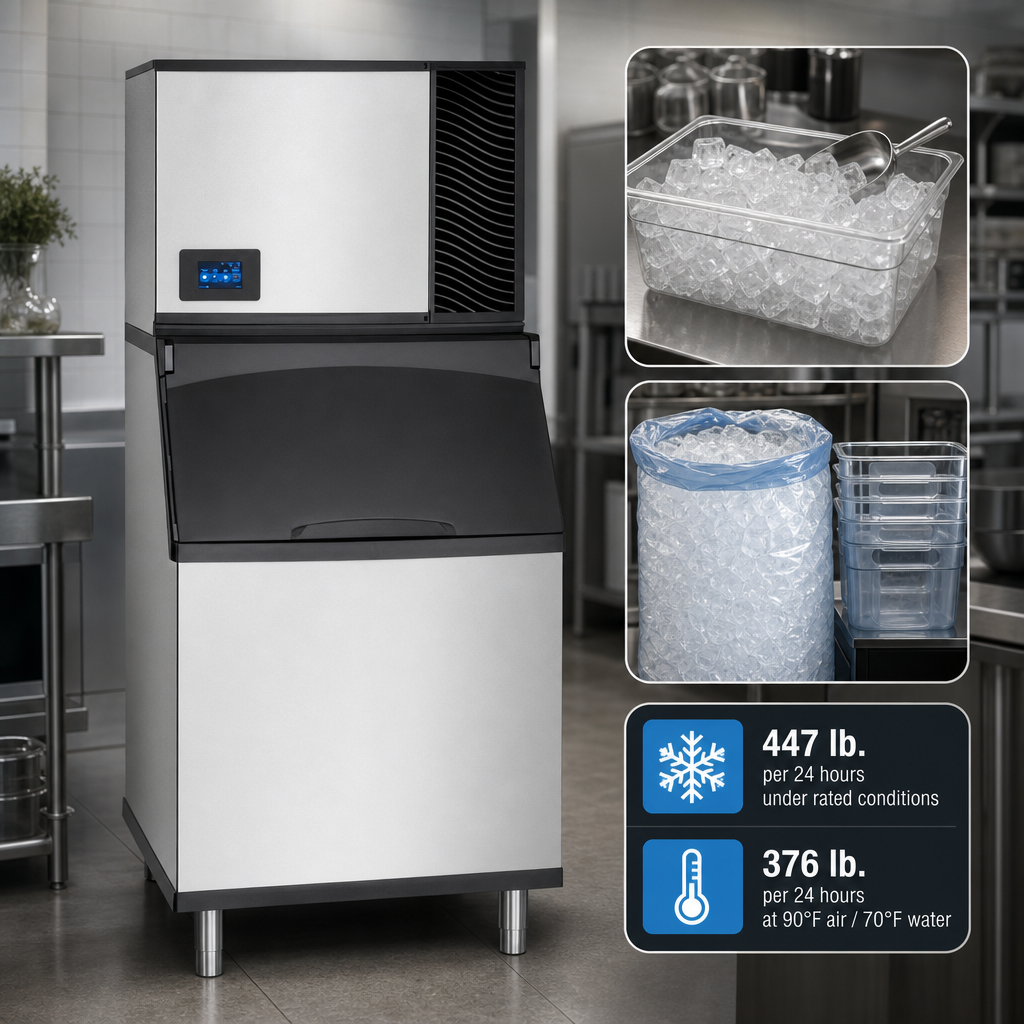

High Daily Output

Delivers up to 447 lb. of ice per 24 hours under rated conditions, with 376 lb. per 24 hours shown at 90°F air / 70°F water.

High Daily Output

Self-Contained Air-Cooled System

Built-in refrigeration and an air-cooled condenser simplify placement and reduce installation complexity.

R290 Refrigerant

Uses an environmentally friendly hydrocarbon refrigerant designed for efficient ice production.

4.3-Inch Touch Display

Front touchscreen control offers simple operation, advanced diagnostics, built-in alarms, push notifications, programmable ice production, and ice-level monitoring.

Sanitation-Focused Design

TrueGuard antimicrobial is embedded in plastic components, and the TrueNcapsuL8 evaporator is insulated and sealed for cleanliness and efficiency.

Remote Monitoring Capabilities

Supports remote monitoring, back-end data access, location-based performance enhancement, and remote shutoff.

Durable Construction

Features TrueTech aluminum front and sides, an all-plastic interior, and a single-piece case.

Type Ice Maker
Style Modular
Ice Type Half Size Cube
Refrigeration Type Self-Contained
Condenser Type Air-Cooled
Capacity 447 lb. per 24 hr
Refrigerant Type R290 Hydrocarbon
Voltage 115 Volts
Amps 6.8 Amps
Hertz 60 Hz
Phase 1-Phase
Breaker Size 15 Amps
BTU 5,800 BTU/hr
Controls Electronic Touch Screen
Temperature Range 35°F to 110°F Ambient
Material Aluminum
Water Inlet Size 1/2 Inch Female NPT
Drain Connection Size 3/4 Inch Female NPT
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3 years parts and labor; 5 years compressor parts; 5 years evaporator parts and labor.

Frequently Asked Questions

This model produces half-size cubes.
Yes. It uses a self-contained refrigeration system with an air-cooled condenser.
It produces up to 447 lb. per 24 hours at 70°F air / 50°F water, and 376 lb. per 24 hours at 90°F air / 70°F water.
The unit operates on 115V, 60 Hz, 1-phase power and draws 6.8 amps. The spec sheet lists 15 amp minimum circuit ampacity.
It requires a 1/2 inch female NPT water inlet and a 3/4 inch female NPT water outlet.
The cutsheet lists a 3-year parts and labor warranty on the ice maker, 5 years parts on the compressor, and 5 years parts and labor on the evaporator.
