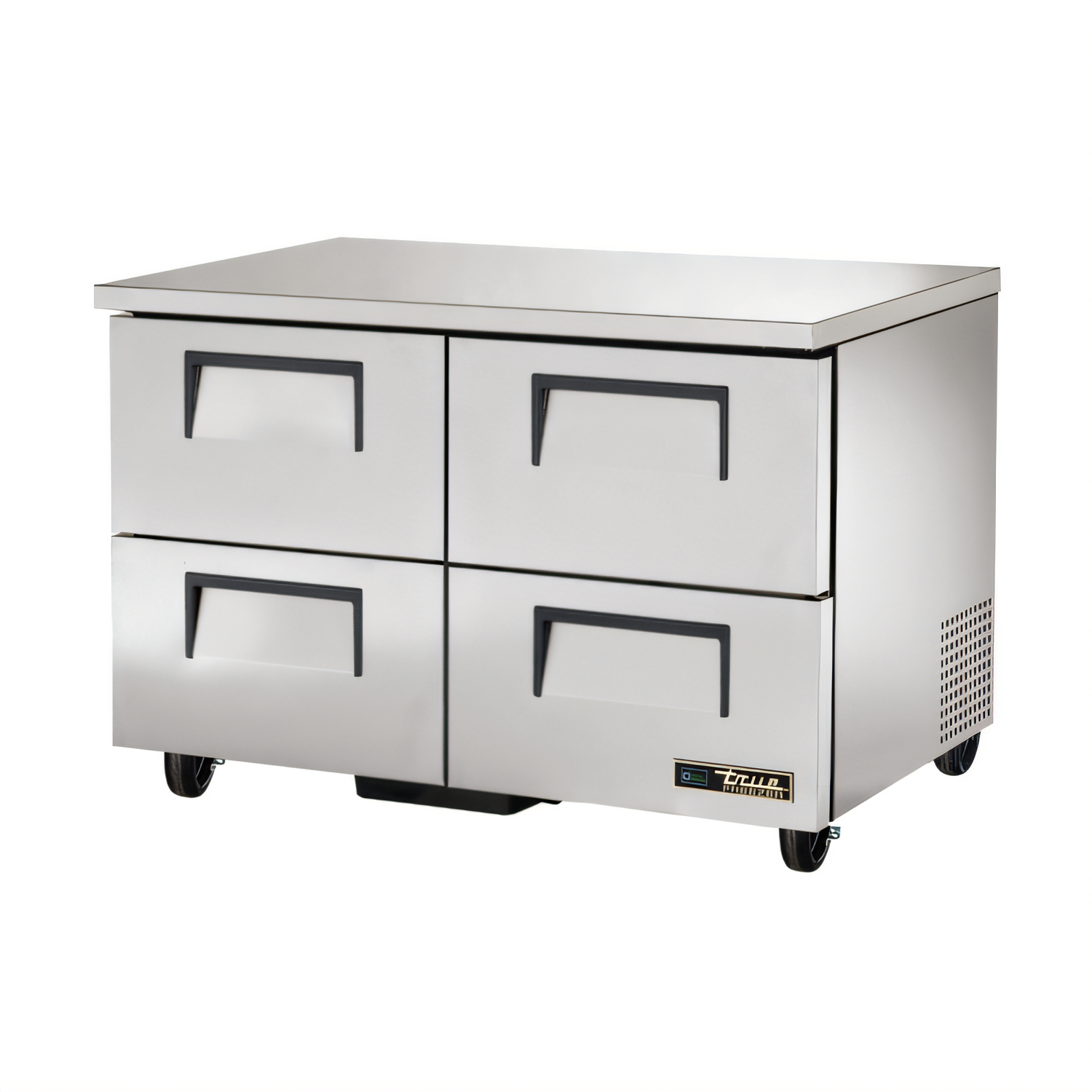

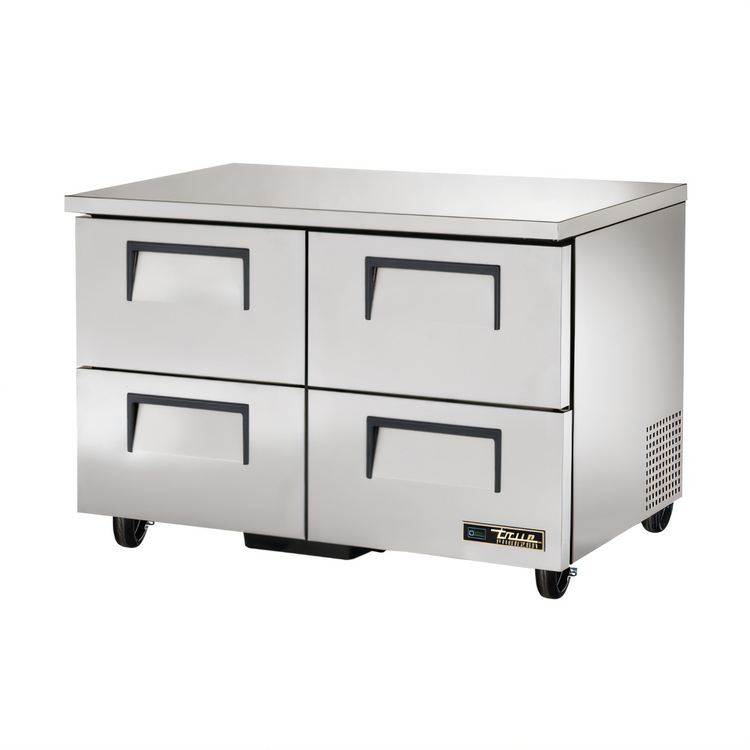

True 48-Inch 4-Drawer Undercounter Freezer with R290 Hydrocarbon Refrigeration

SKU: TUC-48F-D-4-HC
$7,835.14
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration New Arrivals Restaurant Equipment True Mfg. - General Foodservice Undercounter & Worktop Refrigeration Undercounter Freezers

True 48-Inch 4-Drawer Undercounter Freezer with R290 Hydrocarbon Refrigeration

Stainless Steel Exterior, -10°F Holding, 115V

Built for frozen food storage and ice cream, this compact undercounter freezer delivers -10°F performance in a durable stainless steel cabinet.

  • Maintains -10°F for reliable frozen food and ice cream storage
  • Four drawers keep product organized and easy to access during prep
  • Self-contained R290 hydrocarbon refrigeration supports efficient operation
  • Stainless steel exterior and clear-coated aluminum interior stand up to commercial use
  • Pre-wired for 115V/60Hz/1-phase service with cord and plug set included
  • 5-inch stem casters and 36-inch work surface height support daily kitchen workflow

Overall Dimensions:

48.38"W x 30.13"D x 29.75"H

Product Weight:

325.0 lb

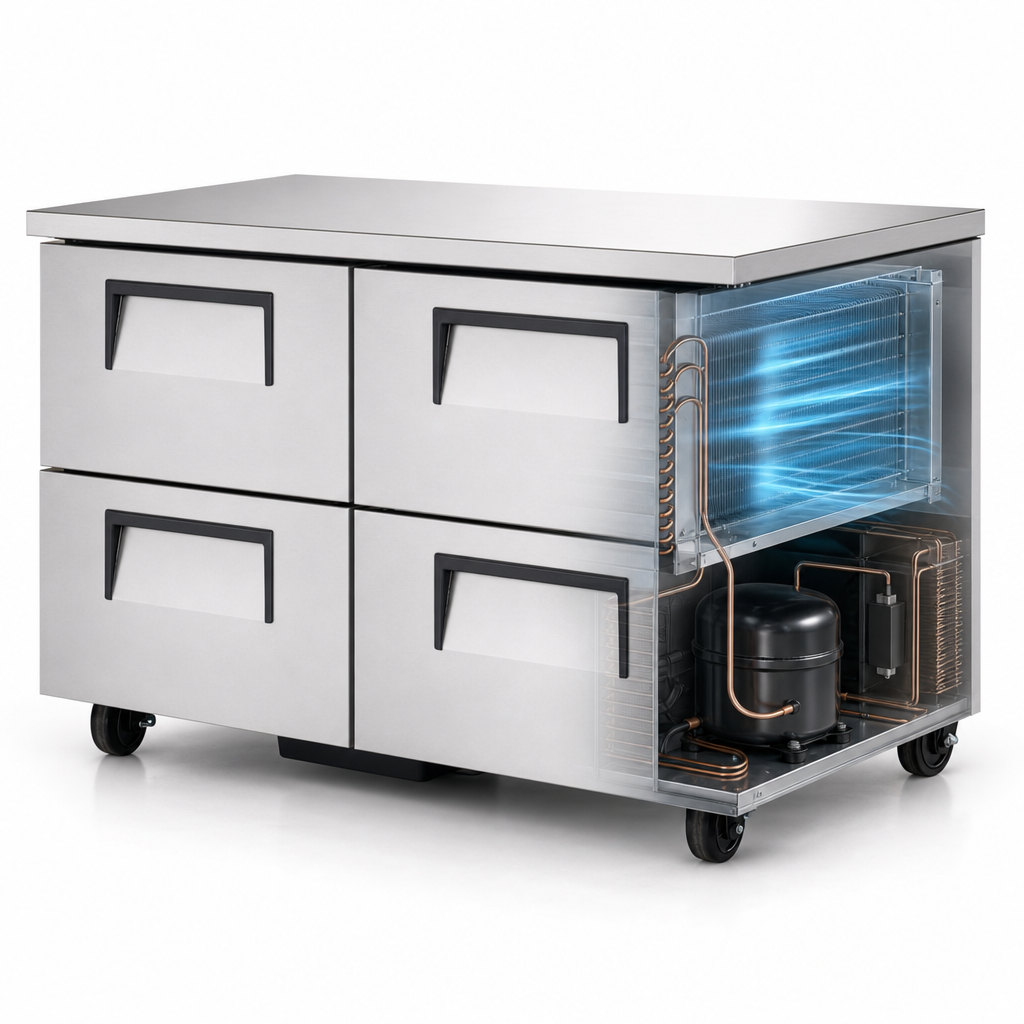

Self-Contained R290 System

Factory-engineered capillary tube refrigeration uses environmentally friendly R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.

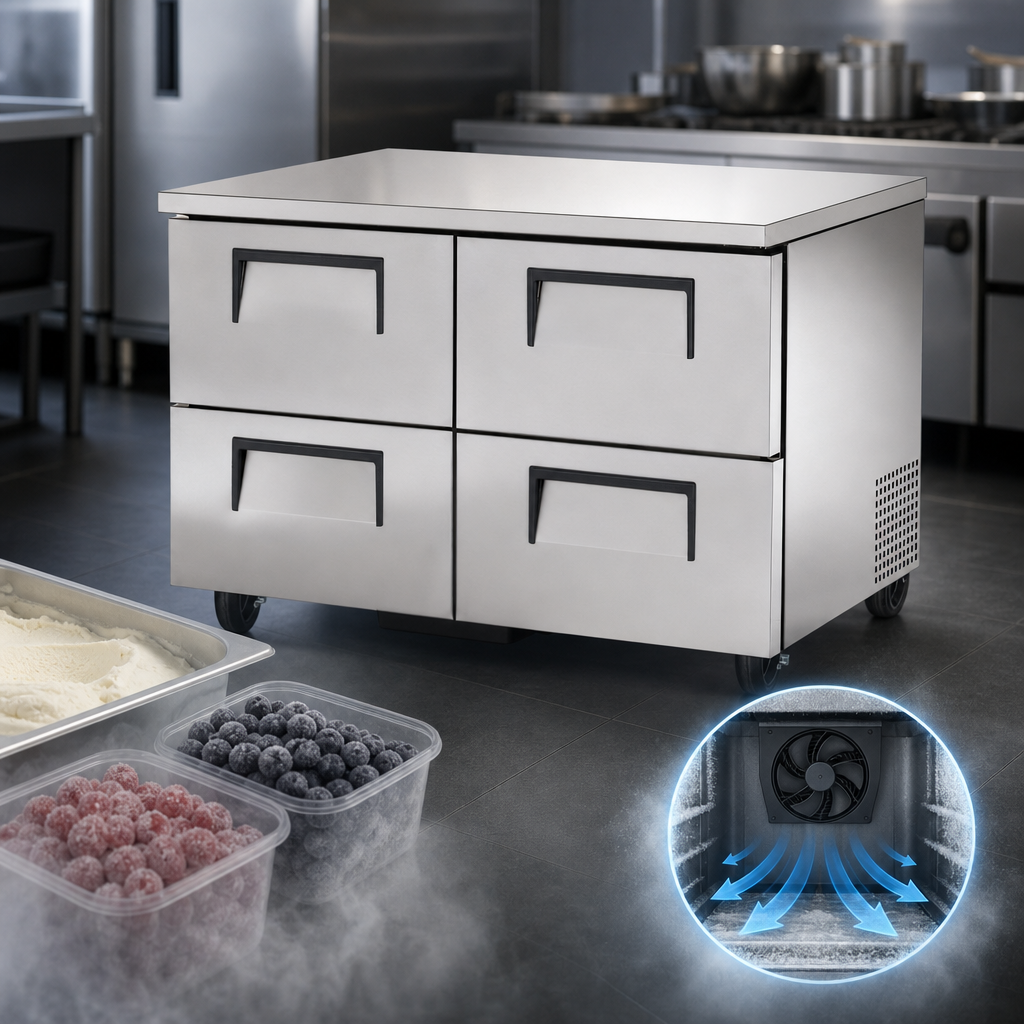

-10°F Freezer Performance

The oversized forced-air refrigeration system is designed to hold -10°F (-23.3°C), making it suitable for frozen foods and ice cream.

Stainless Steel Cabinet Exterior

Stainless steel front, top, and ends provide a durable commercial finish, while the back is corrosion-resistant GalFan-coated steel.

Clear-Coated Aluminum Interior

The cabinet interior uses a clear-coated aluminum liner with a stainless steel floor and coved corners for easier cleaning.

Four Heavy-Duty Drawers

Each drawer is built with stainless steel facings, liners, frames, slides, rollers, and magnetic gaskets, and each drawer accommodates a full-size 12 x 18 x 6 box or pan combination.

Automatic Defrost

Time-initiated, time-terminated automatic defrost helps reduce maintenance needs.

Factory Pre-Wired Electrical

Unit is pre-wired for 115/60/1 service and includes a cord and plug set for final connection to a dedicated outlet.

Rear Service Access

The condensing unit is accessible from the back of the cabinet for easier maintenance.

Mobility And Work Height

Standard 5-inch stem casters with front locks and a 36-inch work surface height help the unit integrate into a busy prep line.

Energy-Efficient ECM Fan Motors

Electronically commutated evaporator and condenser fan motors are designed for efficient airflow and improved reliability.

Type Freezer
Style Drawer
Installation Type Undercounter
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Compressor HP 1/2 HP
Drawer Count 4
Pan Size 12 x 18 x 6 Inches
Material Stainless Steel
Interior Finish Clear Coated Aluminum
Temperature Range -10°F
Voltage 115 Volts
Amps 5.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 7 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 49 Inches
Shipping Depth 31 Inches
Shipping Height 30 Inches
Shipping Weight 325 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Warranty coverage varies by purchase date; see details.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed to hold -10°F (-23.3°C), which is ideal for frozen foods and ice cream.
Each drawer accommodates one full-size 12" x 18" x 6" food storage box or a combination of one 1/2-size and one 1/3-size pan.
The unit is pre-wired for 115/60/1 service and a 15-amp dedicated outlet; a cord and plug set are included.
Yes. It uses a self-contained capillary tube system with R290 hydrocarbon refrigerant and rear cabinet access for the condensing unit.
The documents include two warranty references: the cutsheet lists 3 years parts and labor plus 2 years compressor coverage in the U.S.A. only, and a separate True Foodservice warranty sheet lists 7 years of labor, parts, and compressor coverage for eligible General Foodservice products purchased after Oct. 1, 2023.
