Description

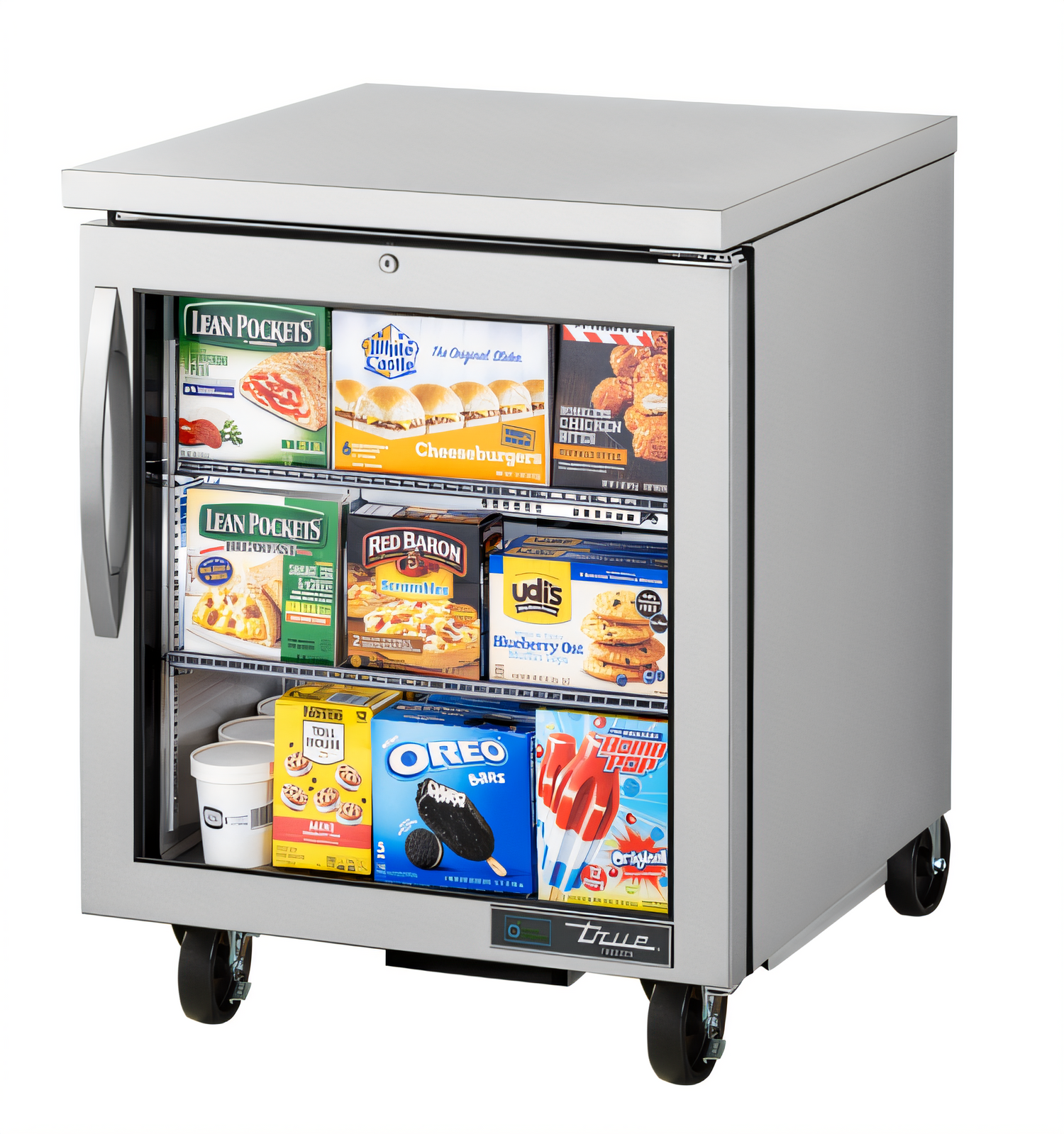

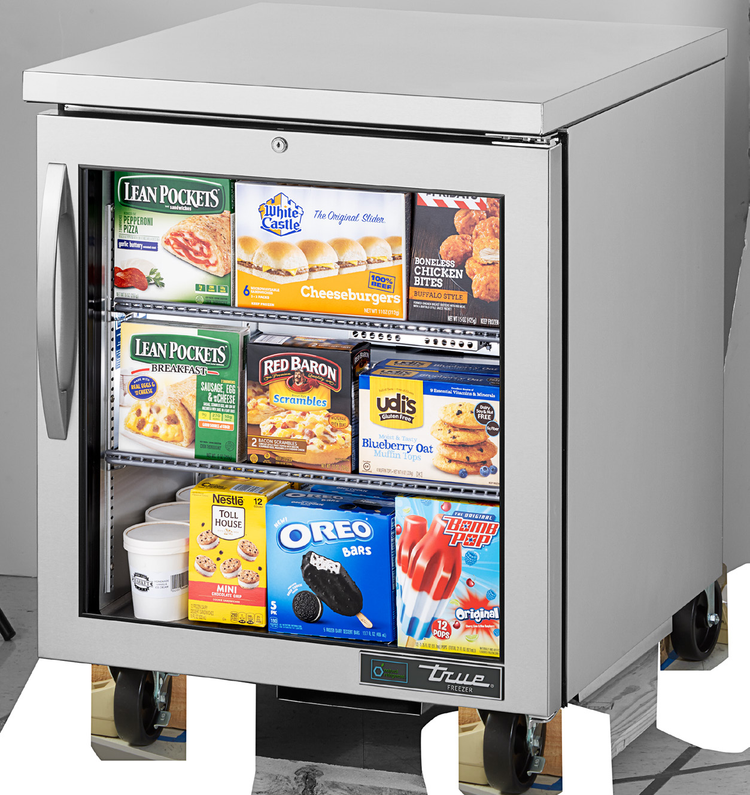

True TUC-27FG-HC~FGD01 Undercounter Freezer
-10 °F glass-door freezer with hydrocarbon refrigeration | Made in the USABuilt for kitchens that demand rock-solid cold holding in the footprint of a standard worktable, the True TUC-27FG-HC~FGD01 pairs a crystal-clear Low-E glass door with an energy-saving, self-cleaning condenser. Stainless construction inside and out, a balanced R290 refrigeration system, and True’s industry-leading 7-year parts, labor & compressor warranty protect your investment shift after shift.
Why you’ll love it
- Holds –10 °F to 6 °F (–23.3 °C to –14.4 °C) with an oversized, factory-balanced forced-air system.
- Self-Cleaning RCU technology sweeps dust from the condenser daily—no tools, no downtime.
- Low-E, triple-pane thermal glass door delivers maximum product visibility without heat gains.
- All-stainless top, front & sides; clear-coated aluminum interior with coved stainless floor for fast cleanup.
- Two heavy-duty, PVC-coated shelves adjust on ½" (13 mm) increments for flexible storage.
- ECM evaporator & condenser fan motors move more air with less energy and heat.
- Foamed-in-place, high-density polyurethane insulation (zero ODP, zero GWP).
- 5" locking stem casters provide a 36" (915 mm) work surface height right out of the box.
- NSF/ANSI 7, cULus & UL EPH Classified for safe, open-food storage.
Technical specifications
| Manufacturer / Model | True Manufacturing, TUC-27FG-HC~FGD01 |
|---|---|
| Exterior dimensions | 27 5⁄8" W × 30 1⁄8" D × 29 3⁄4" H (36" H with 5" casters) |
| Door | 1 Low-E, triple-pane glass door, self-closing with 12" handle & barrel lock |
| Shelving | 2 adjustable PVC-coated wire shelves (23¼" L × 19¼" D & 13¾" D) |
| Temperature range | –10 °F to 6 °F (–23.3 °C to –14.4 °C) |

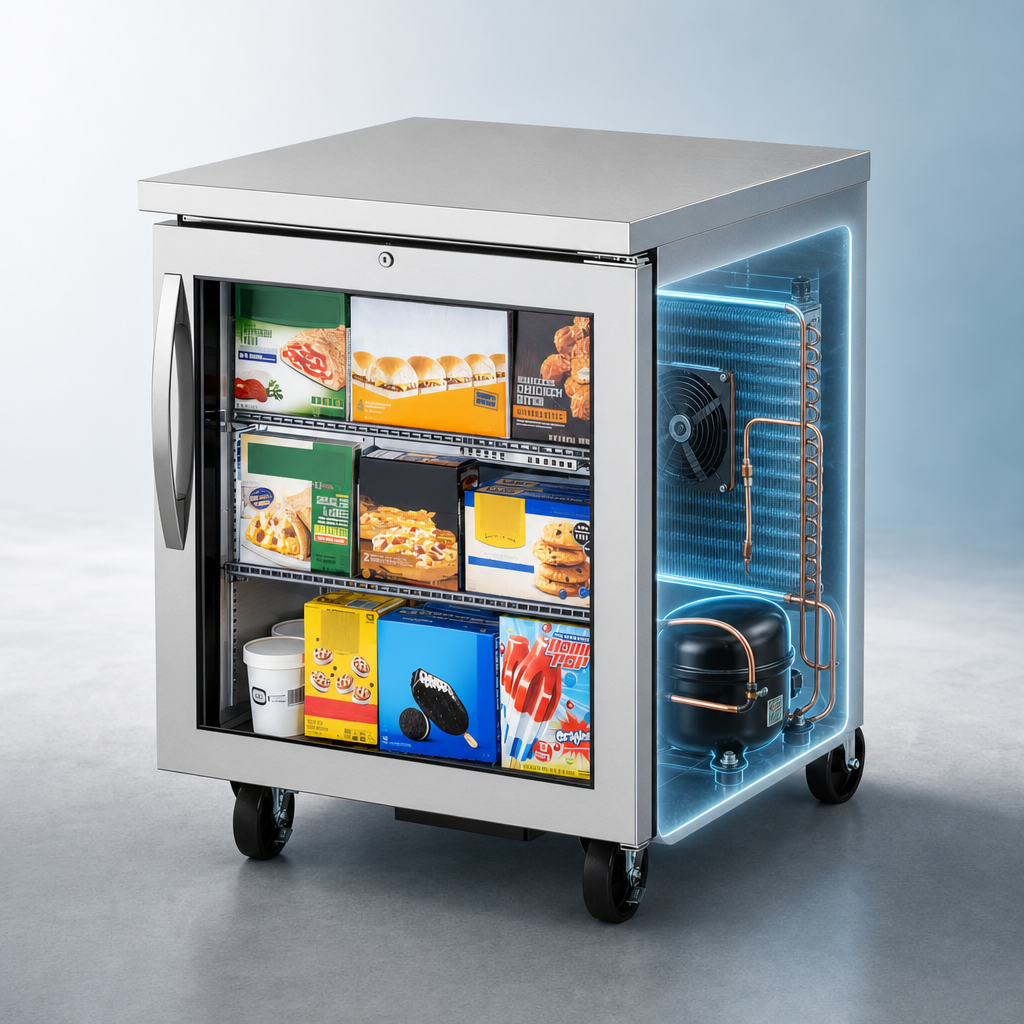

| Refrigerant | R290 hydrocarbon (0 ODP, 0.02 GWP) |
| Compressor | ½ HP, self-contained capillary tube system |
| Defrost | Automatic, time-initiated / time-terminated |
| Electrical | 115 V / 60 Hz / 1-ph, 2.3 A, 10 ft cord, NEMA 5-15P plug (dedicated 15 A circuit) |
| Insulation | Foamed-in-place high-density polyurethane |
| Certifications | cULus listed, UL EPH Classified, NSF/ANSI 7 compliant |
| Country of origin | Made in the USA |
| Warranty (USA/Canada) | 7-year labor, 7-year parts & compressor |
Included with your freezer
- (4) stainless shelf clips per shelf
- (2) front locking & (2) rear swivel 5" stem casters
- User, installation & warranty documentation
Height, depth and cord length are measured without 3⁄8" door handle or rear bumpers. For ADA or low-profile worktop models, contact us before ordering.
