True Mfg. - General Foodservice  |  SKU: TUC-24F-HC

True Mfg. - General Foodservice TUC-24F-HC Undercounter & Worktop Refrigeration

$3,214.50
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual Warranty sheet
Related Searches
Commercial Freezers Commercial Refrigeration Restaurant Equipment Undercounter Freezers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

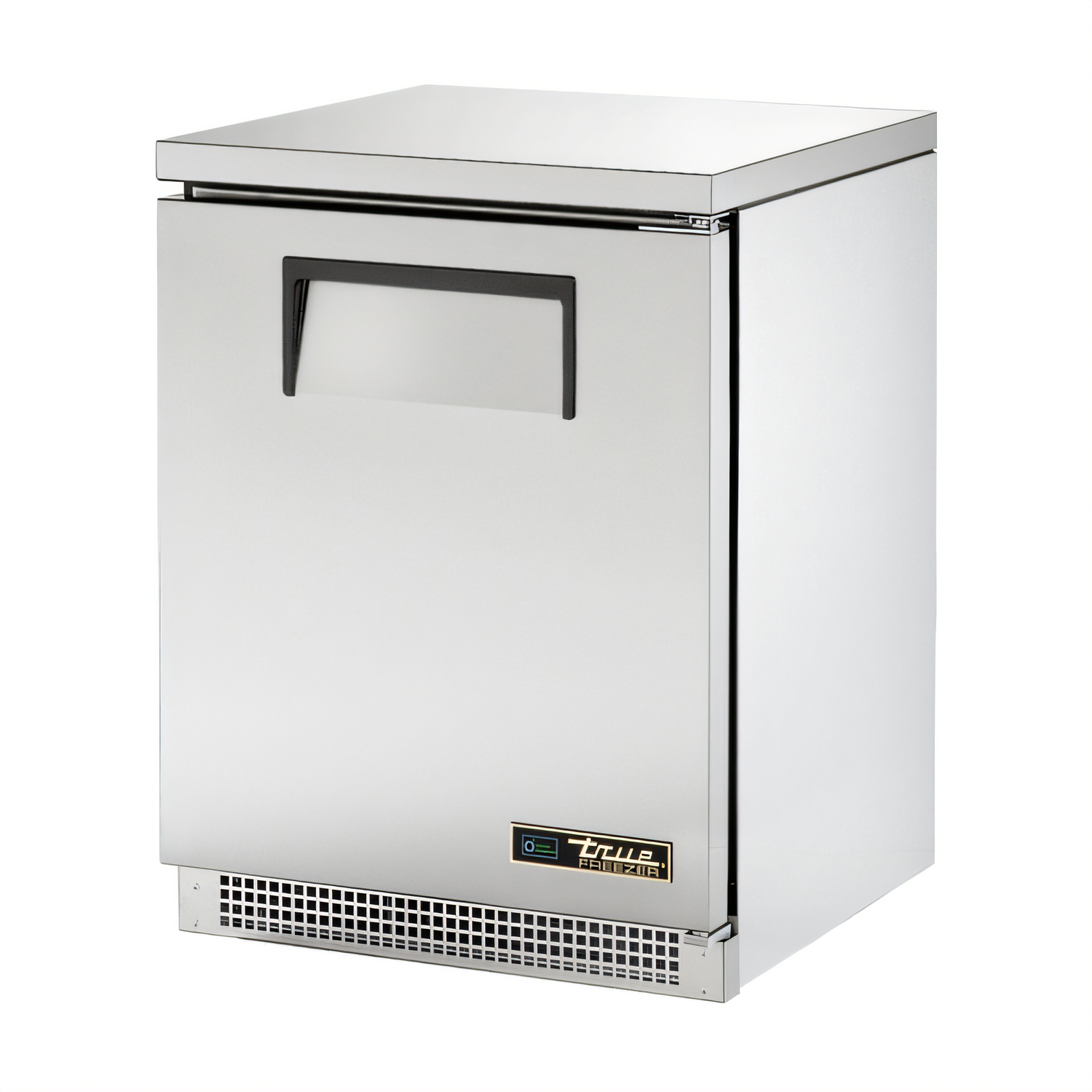

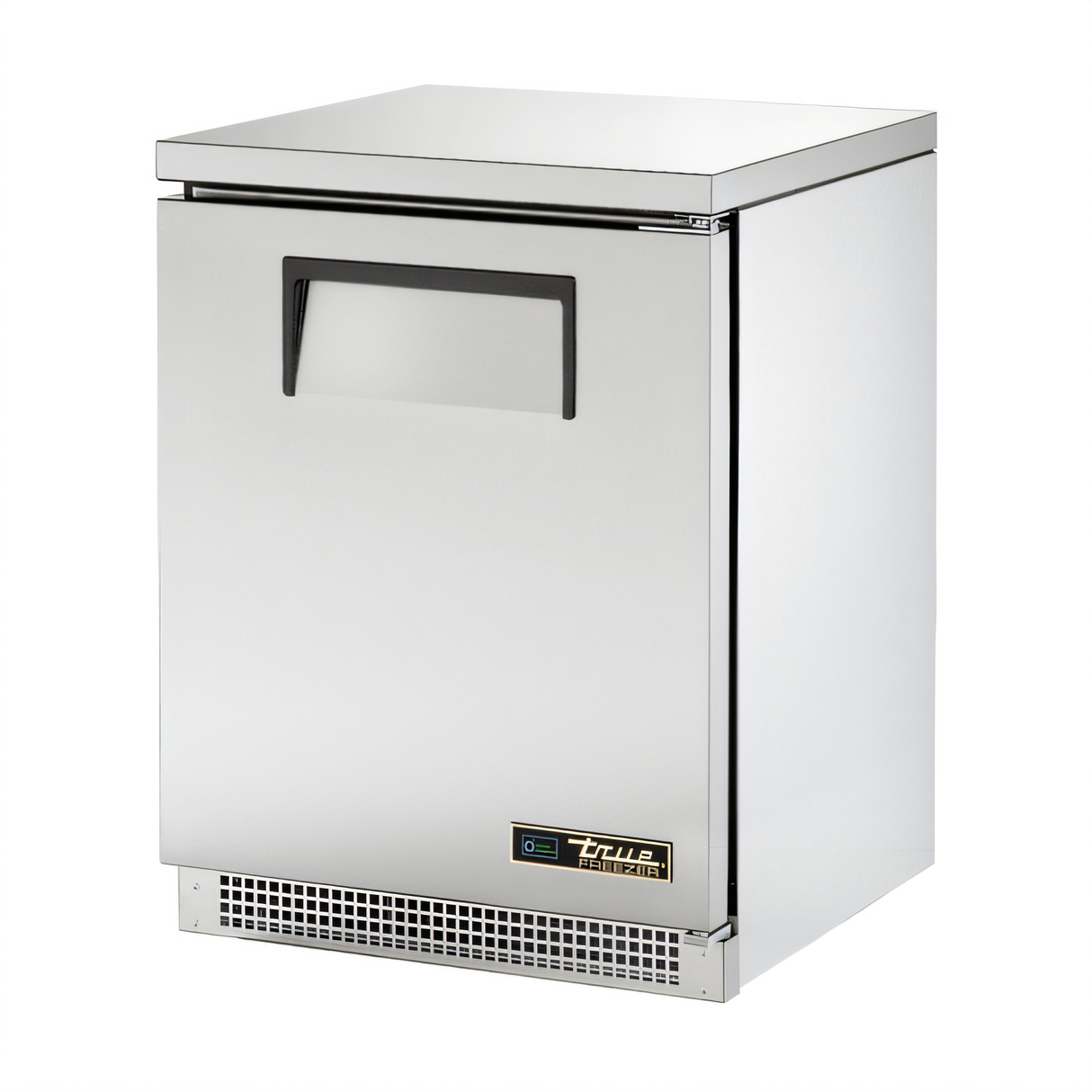

True TUC-24F-HC Undercounter Freezer

24" solid-door, -10°F performance, hydrocarbon refrigerant

Built for today’s energy-conscious kitchens, the TUC-24F-HC packs full-size freezer muscle into a compact, front-breathing undercounter design. Expect rock-solid -10°F (-23.3 °C) holding temperatures, industry-leading efficiency, and the lasting quality you only get from equipment made in the USA by True Refrigeration.

Why choose the TUC-24F-HC?

  • Factory-balanced refrigeration system with eco-friendly R290 hydrocarbon refrigerant
  • Electronically commutated condenser & evaporator fan motors reduce energy and heat output
  • All stainless-steel top, front and sides with corrosion-resistant GalFan-coated steel back
  • NSF-approved clear-coated aluminum interior with coved stainless-steel floor for fast cleaning
  • Self-closing door with 90° stay-open feature and 12" recessed handle
  • Two heavy-duty, PVC-coated wire shelves adjustable on ½" increments
  • Automatic, time-initiated/time-terminated defrost for worry-free operation
  • Foamed-in-place, high-density polyurethane insulation (zero ODP / zero GWP)

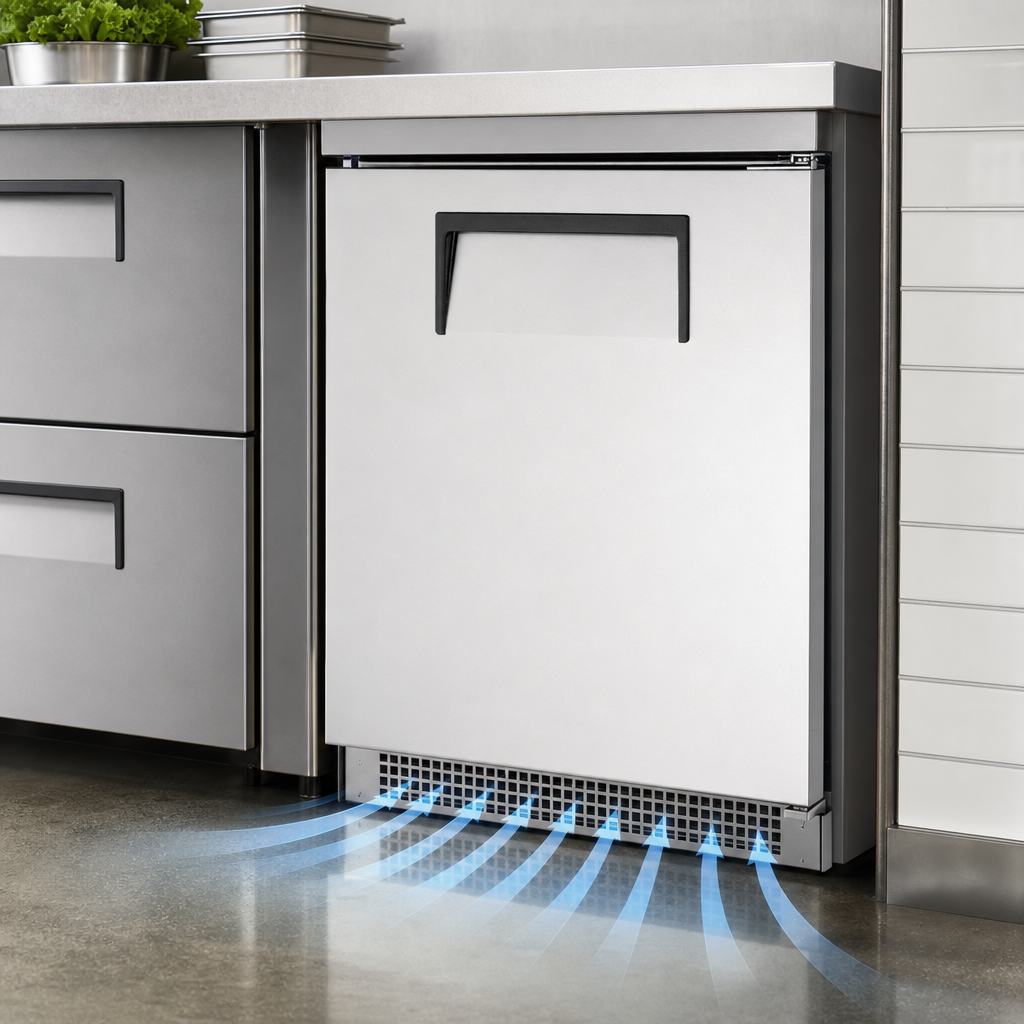

  • Front-breathing, slide-out condensing unit for easy service access
  • Shipped on four stationary castors (31⅝" work surface height) plus two optional front leg levelers

Technical specifications

Model True TUC-24F-HC
Exterior dimensions (W × D × H) 24" × 24 11⁄16" × 31 5⁄8"  (610 × 627 × 802 mm)
Depth excludes 1" rear bumpers.
Door(s) 1 × stainless steel, right-hand hinge (left hinge available by factory order)
Shelves 2 × adjustable PVC-coated wire, 20" L × 13 7⁄8" D (508 × 353 mm)
Holding temperature -10°F (-23.3 °C)
Refrigerant R290 hydrocarbon (0 ODP / 3 GWP)
Compressor ¼ HP, front-breathing
Defrost Automatic, time-initiated/time-terminated
Electrical 115 V / 60 Hz / 1-ph, 2.3 A, NEMA 5-15P factory-installed cord & plug
Certifications cULus, UL EPH Classified, CE
Country of origin Made in USA
Shipping weight 165 lb (75 kg)

Best-in-class warranty

True backs every TUC-24F-HC with an unmatched 7-year parts, labor & compressor warranty (USA/Canada/Puerto Rico). Confidence comes standard.

Installation note: For optimal performance, connect the freezer to a dedicated 115 V / 15 A grounded outlet and allow the front grille to remain unobstructed for proper airflow.

Features & Specs

Manufacturer

True Mfg. - General Foodservice

Certifications

CE, cULus, UL EPH Classified, Made in USA

Height

31.63in

Width

24.0in

Depth

24.75in

Shipping Weight

165.0lbs

Compressor HP

1/4 HP

Access Type

doors

Width

24" - 32"

Doors

solid door(s)

Size

1 section

Exterior Finish

all stainless steel exterior

Refrigeration

self-contained, rear mounted

Specifications

Undercounter Freezer, -10°F, (1) stainless steel door, (2) PVC coated adjustable wire shelves, stainless steel top, front & sides, clear coated aluminum interior with stainless steel floor, front breathing, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.3 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, Made in USA
