True Mfg. - General Foodservice TSSU-48-12M-B-HC Refrigerated Prep Tables
True Mfg. - General Foodservice TSSU-48-12M-B-HC Refrigerated Prep Tables is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
True Mfg. - General Foodservice TSSU-48-12M-B-HC Refrigerated Prep ...
Description

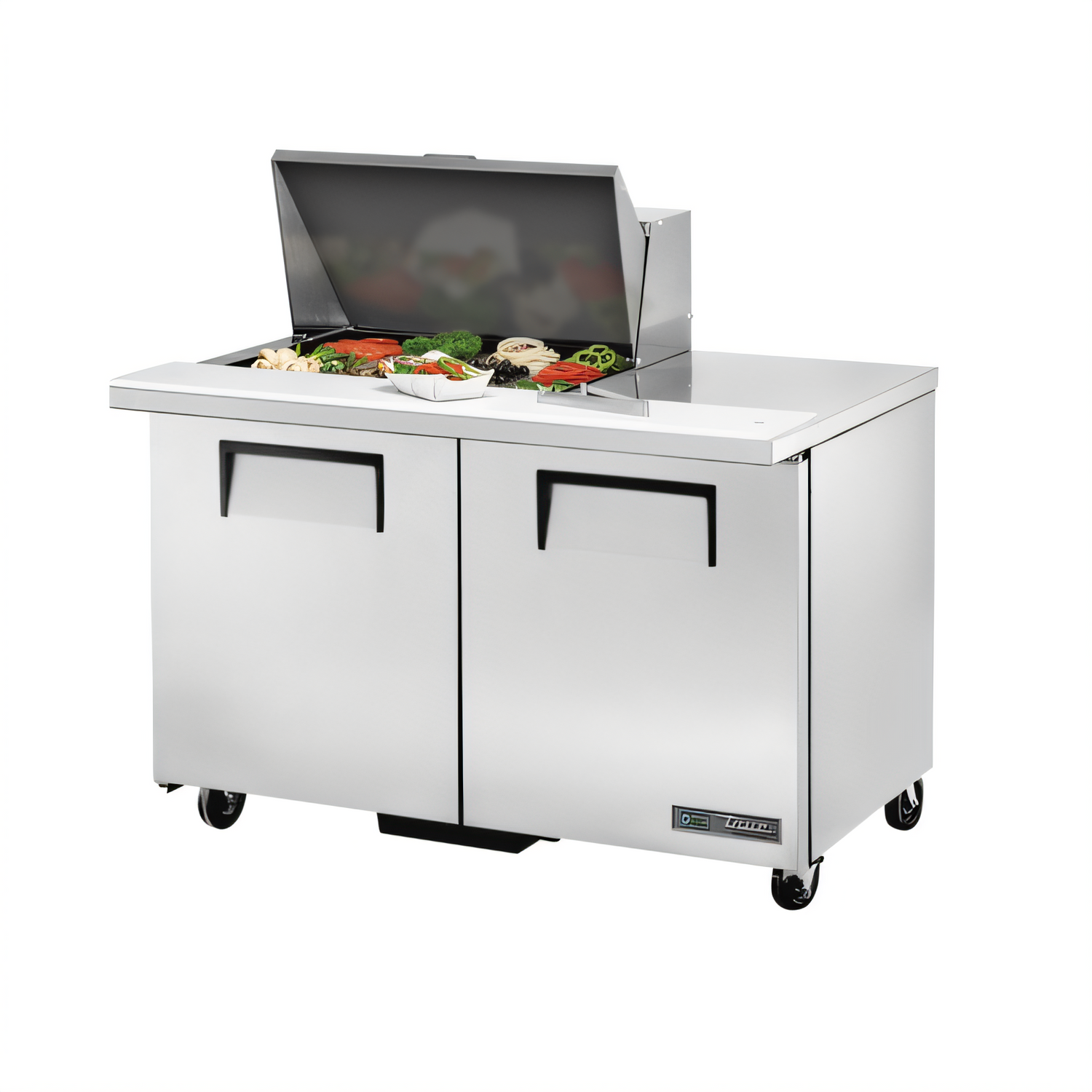

True TSSU-48-12M-B-HC Mega-Top Sandwich/Salad Prep Table
48 3/8" W • 12-Pan • 2 Solid Doors • Hydrocarbon RefrigerantBuilt for demanding, high-volume kitchens, the True TSSU-48-12M-B-HC keeps your freshest ingredients ice-cold and within arm’s reach while doubling as a rock-solid, NSF-approved prep station. From its patented forced-air system to its rugged all-stainless exterior, every detail is engineered to protect your investment and streamline service.
Why You’ll Love It
- Holds 33°F–41°F (0.5°C–5°C) in both food pans & cabinet thanks to True’s patented forced-air refrigeration.
- Comes ready to work with (12) 1/6-size, 4"-deep clear polycarbonate pans included—fits 6"-deep pans as well (supplied by others).
- Full-length 8 7/8" D × 1/2" thick removable cutting board provides a sanitary, high-density polyethylene work surface.

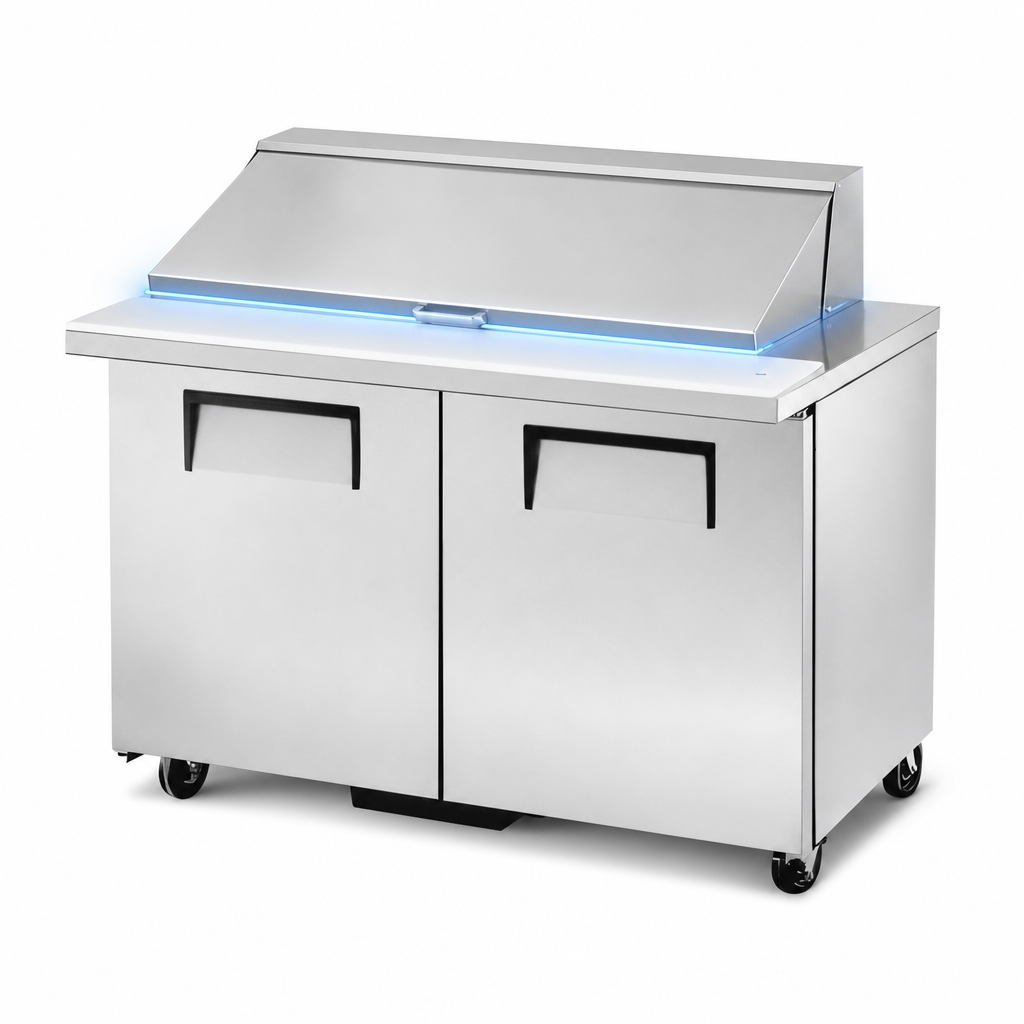

- Stainless steel, foam-insulated lid & hood lock in cold air, reduce condensation, and are fully removable for quick cleaning.
- (2) self-closing doors with 90° stay-open feature and removable magnetic gaskets for effortless loading and sanitation.
- (4) heavy-duty, PVC-coated, adjustable wire shelves maximize storage flexibility inside the cabinet.
- 5" locking stem castors deliver 36" work-surface height and easy mobility for cleaning or layout changes.
- Factory-engineered, self-contained capillary system uses R290 natural refrigerant (0 ODP, 3 GWP) for greener operation.
- Made in the USA with a 7-year parts, labor & compressor warranty for worry-free ownership.
Refrigeration Performance
- Energy-efficient 1/3 HP compressor and guided-airflow design chill both pans & cabinet evenly.
- Condensing unit slides out the rear for fast, front-line maintenance.
- Epoxy-coated evaporator combats corrosion and extends service life.
- High-volume, low-velocity fan motor is sealed & self-lubricating for quiet, reliable operation.
Built to Take a Beating
- All-stainless top, front & ends with corrosion-resistant GalFan coated steel back.
- Clear-coated aluminum interior walls; stainless steel floor with coved corners for quick wipe-downs.
- Foamed-in-place high-density polyurethane insulation—zero ODP & GWP.
- 12" recessed door handles are foamed-in-place with a metal interlock for a lifetime hold.
Technical Specifications
| Model | TSSU-48-12M-B-HC |
|---|---|
| Exterior Dimensions (W × D × H)* | 48 3/8" × 34 1/8" × 40 3/8" *Add 1" for rear bumpers & 6 1/4" for castors. |
| Doors / Shelves | 2 solid doors / 4 adjustable wire shelves |
| Prep-Top Capacity | (12) 1/6-size pans, 4" deep (included) |
| Cutting Board | 8 7/8" D × full width, 1/2" thick, removable HDPE |
| Refrigerant | R290 hydrocarbon (natural refrigerant) |
| Temperature Range | 33°F – 41°F (0.5°C – 5°C) |
| Compressor | 1/3 HP, self-contained |
| Electrical | 115 V / 60 Hz / 1-phase • 5.8 A • NEMA 5-15P (11 ft cord) |
| Shipping Weight | 340 lb (155 kg) |
| Listings | cULus, UL EPH Classified, ANSI/NSF-7 compliant |
What’s Included
- (12) 1/6-size 4"-deep clear polycarbonate pans
- Full-length removable cutting board
- (4) PVC-coated adjustable wire shelves with clips
- Factory-installed 5" stem castors (front two locking)
- 11-ft power cord with NEMA 5-15P plug
- Owner’s manual & warranty registration
Peace-of-Mind Warranty
True backs this unit with an industry-leading 7-year parts & labor warranty and 7-year compressor coverage (USA, Canada & Puerto Rico). See full warranty statement for terms & exclusions.
Made in the USA • Natural Refrigerant • Model TSSU-48-12M-B-HC
