True Mfg. - General Foodservice

True TS-72FG-HC~FGD01 Three-Section Reach-In Glass Door Freezer

SKU: TS-72FG-HC~FGD01
$18,368.02
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

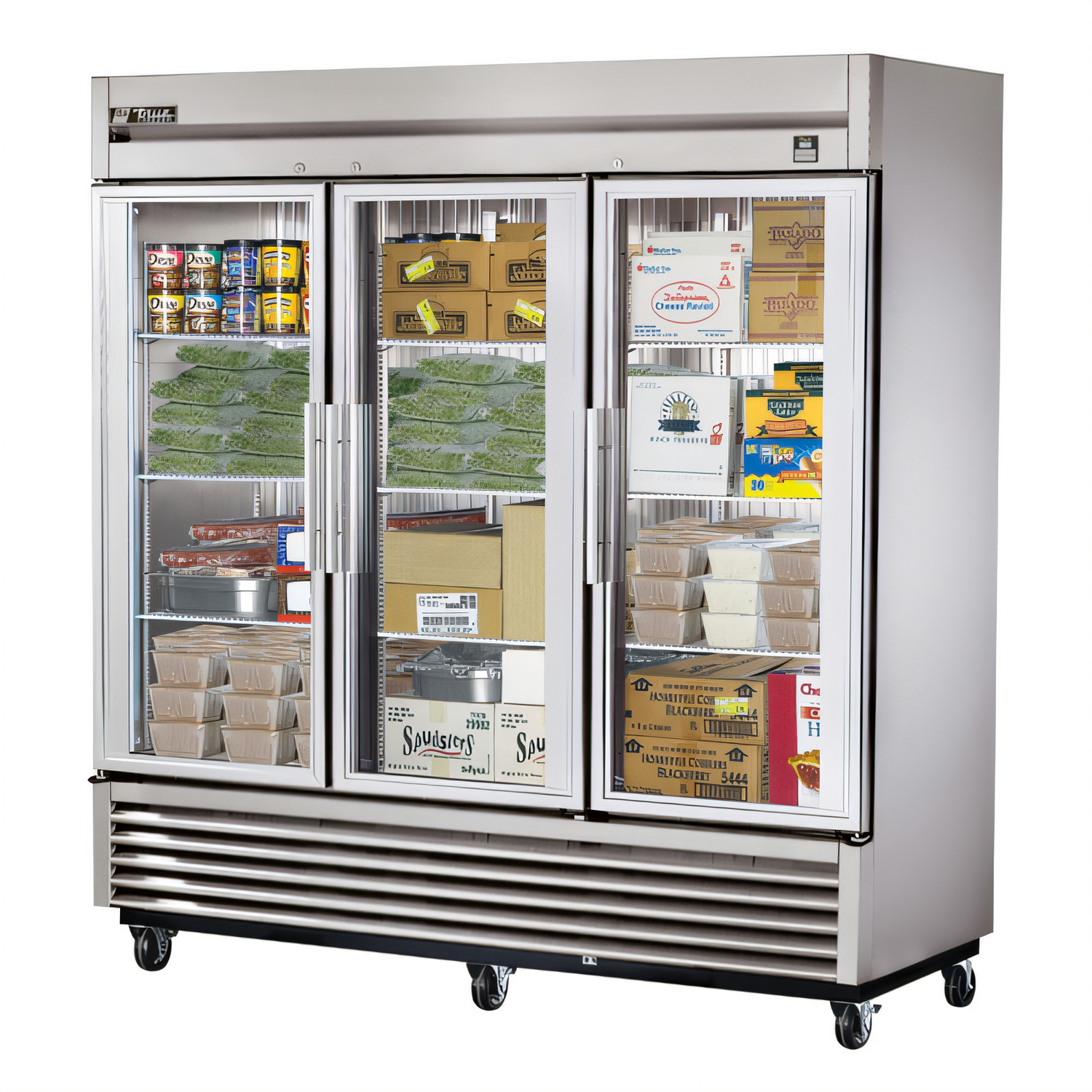

True TS-72FG-HC~FGD01 Three-Section Reach-In Glass Door Freezer

Stainless Steel, Self-Contained, Bottom-Mounted, -10°F Display Freezer

A three-section glass-door freezer that combines stainless steel durability, bright LED lighting, and bottom-mounted R290 refrigeration to hold frozen product at -10°F.

  • Three-section reach-in design with 3 triple-pane glass doors for easy product viewing.
  • Self-contained, bottom-mounted refrigeration system uses R290 hydrocarbon refrigerant.
  • Maintains -10°F to support frozen foods and ice cream storage.
  • Stainless steel interior, front, and sides for durability and easy cleaning.
  • Includes 9 adjustable gray PVC-coated wire shelves and LED interior lighting.
  • Self-closing doors with standard locks, magnetic gaskets, and 4-inch casters for convenience.

Overall Dimensions:

78.13"W x 29.75"D x 78.38"H

Product Weight:

760.0 lb

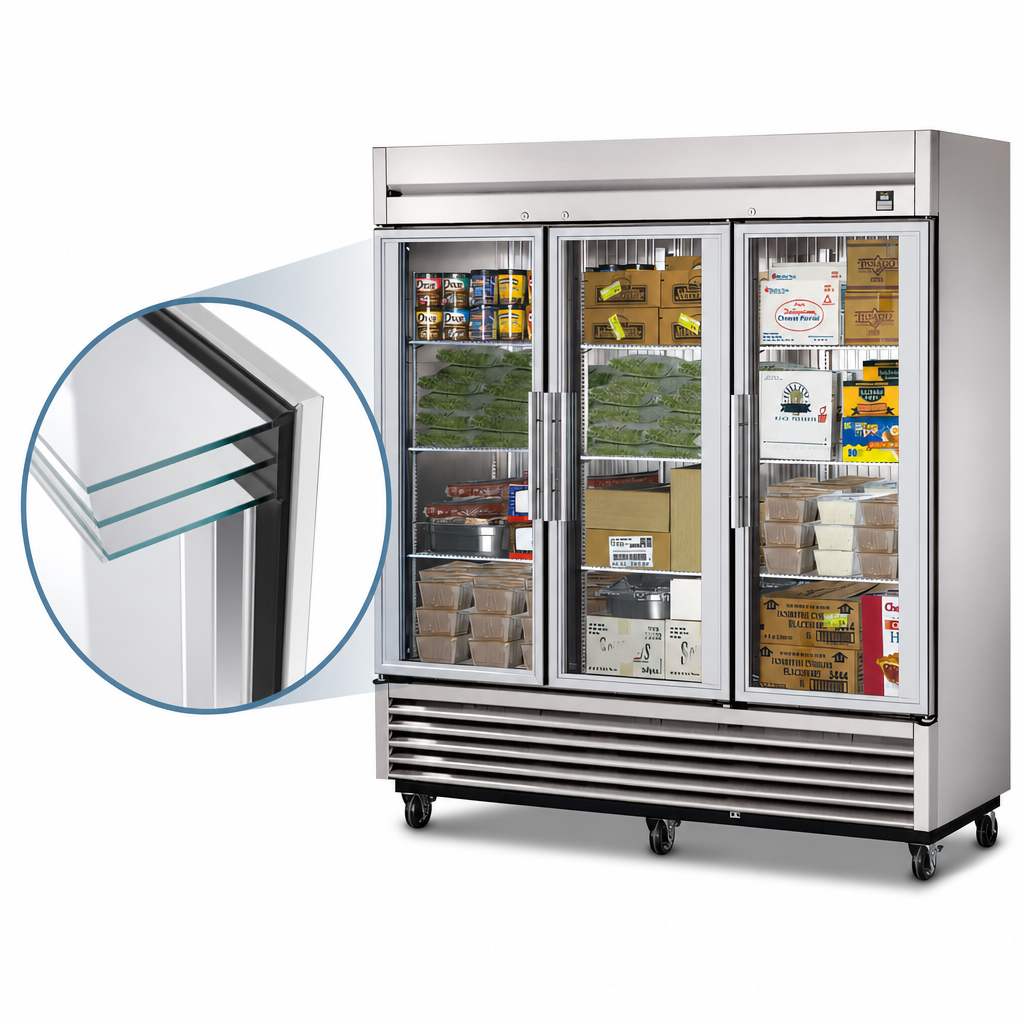

Triple-Pane Glass Doors

Framed triple-pane thermal glass door assemblies provide visibility into the cabinet while helping maintain temperature.

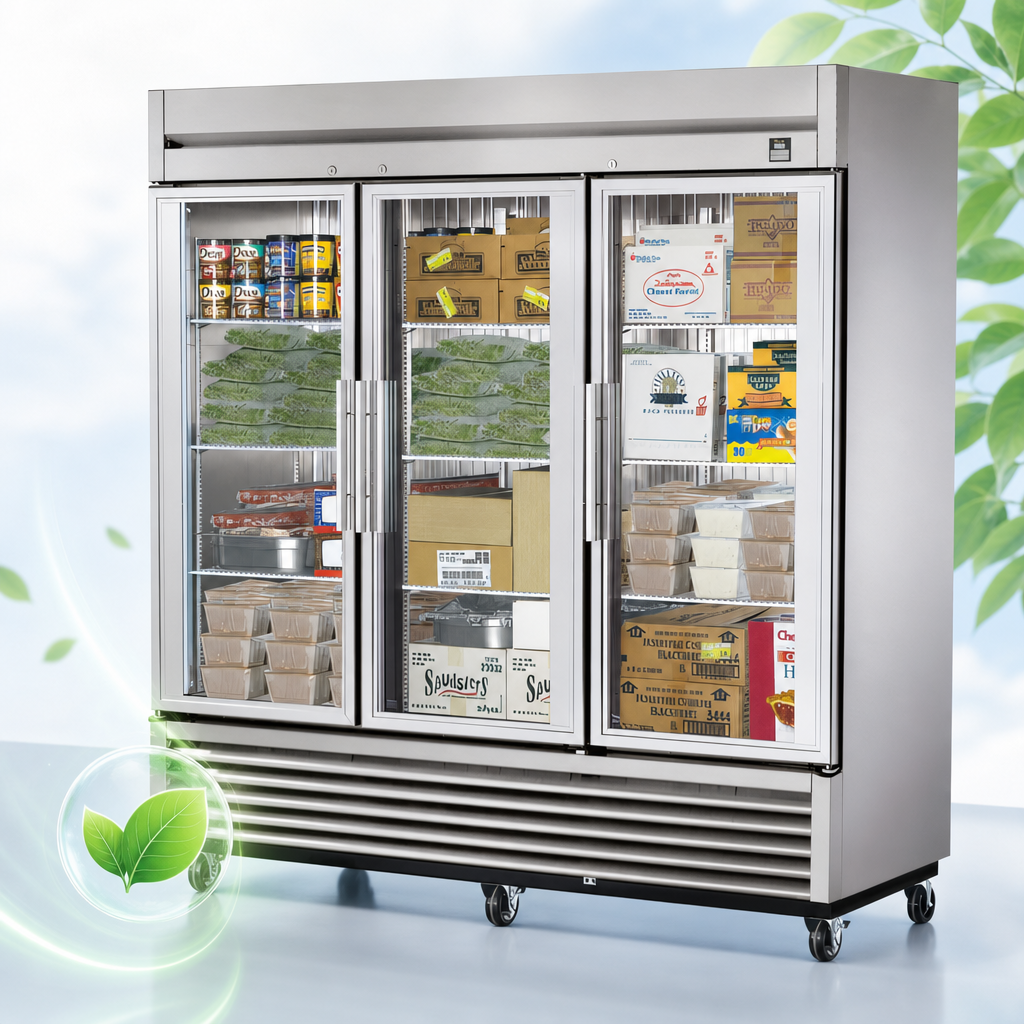

R290 Self-Contained Refrigeration

Factory-engineered capillary tube refrigeration system uses environmentally friendly R290 hydrocarbon refrigerant.

-10°F Freezer Performance

High-capacity refrigeration is designed to maintain -10°F, making it suitable for frozen foods and ice cream.

Bottom-Mounted Condensing Unit

The bottom-mounted compressor is positioned for easier cleaning and places the condensing system in a cooler operating area.

Stainless Steel Construction

Stainless steel front, sides, interior liner, and floor provide a durable, corrosion-resistant cabinet.

Adjustable Shelving

Nine heavy-duty gray PVC-coated wire shelves adjust in 1/2-inch increments for flexible product storage.

LED Interior Lighting

Safety-shielded LED lighting provides bright, even illumination throughout the cabinet.

Self-Closing, Locking Doors

Positive-seal doors include standard locks, magnetic gaskets, and lifetime-guaranteed hinges with torsion-type closure.

Mobility Castors

4-inch stem castors are standard, with locks provided on the front set.

Type Reach-In Freezer
Style Glass Door
Installation Type Floor Model
Sections 3
Capacity 54 - 85 Cubic Feet
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R290
Horsepower 3/4 HP
Temperature Range -10°F
Voltage 115 Volts
Amps 13 Amps
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 9 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 79 Inches
Shipping Depth 30 Inches
Shipping Height 79 Inches
Shipping Weight 760 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor, plus an additional 2-year compressor warranty (U.S.A. only).

Frequently Asked Questions

It includes 3 glass doors and 9 adjustable gray PVC-coated wire shelves.
The freezer is designed to maintain -10°F (-23.3°C).
It uses R290 hydrocarbon refrigerant in a self-contained capillary tube system.
It is bottom mounted, which also allows storage space on top of the cabinet.
The unit is pre-wired for 115/60/1, draws 13.0 amps, and includes a NEMA 5-20P cord and plug set. The document also notes a dedicated 20-amp outlet.
