Description

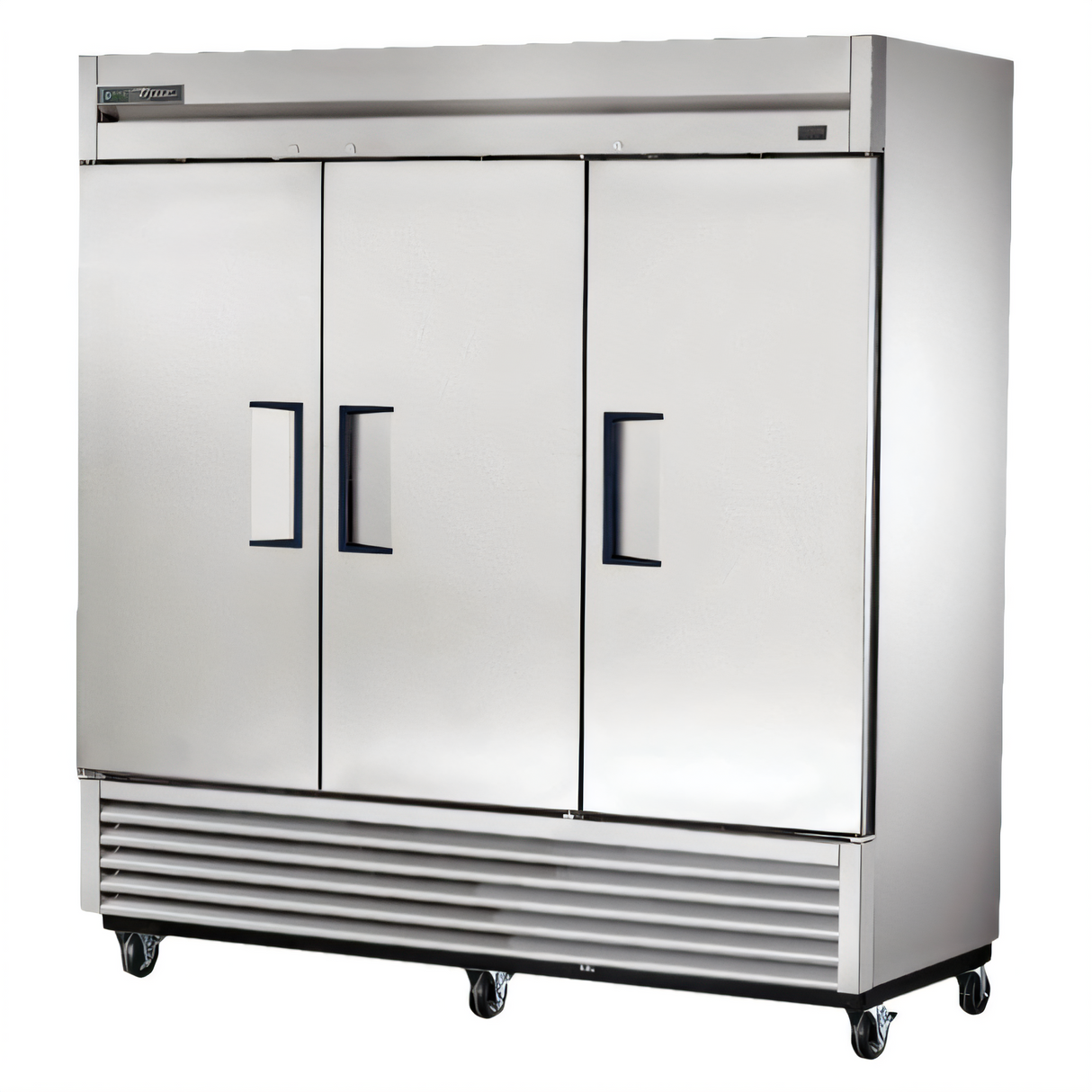

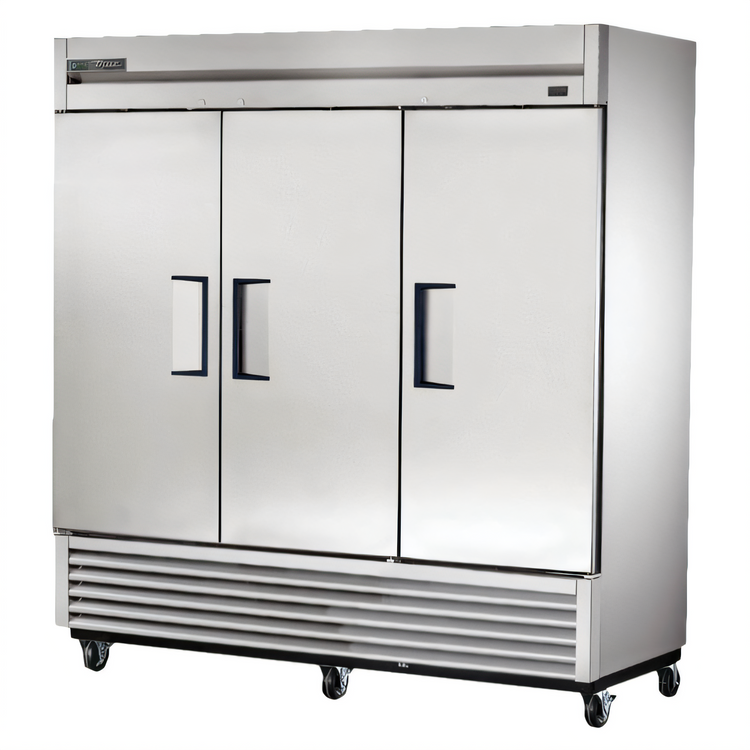

True TS-72F-HC Reach-In Freezer
78 in-wide, three-section | -10 °F holding temperatureBuilt for high-volume commercial kitchens, the True TS-72F-HC delivers rock-solid -10 °F performance in a fully-welded stainless steel cabinet that stands up to years of daily abuse. A high-capacity R290 hydrocarbon refrigeration system, oversized insulation and LED-lit interior protect food quality while lowering utility costs—backed by an industry-leading seven-year, all-inclusive warranty.
Key performance features

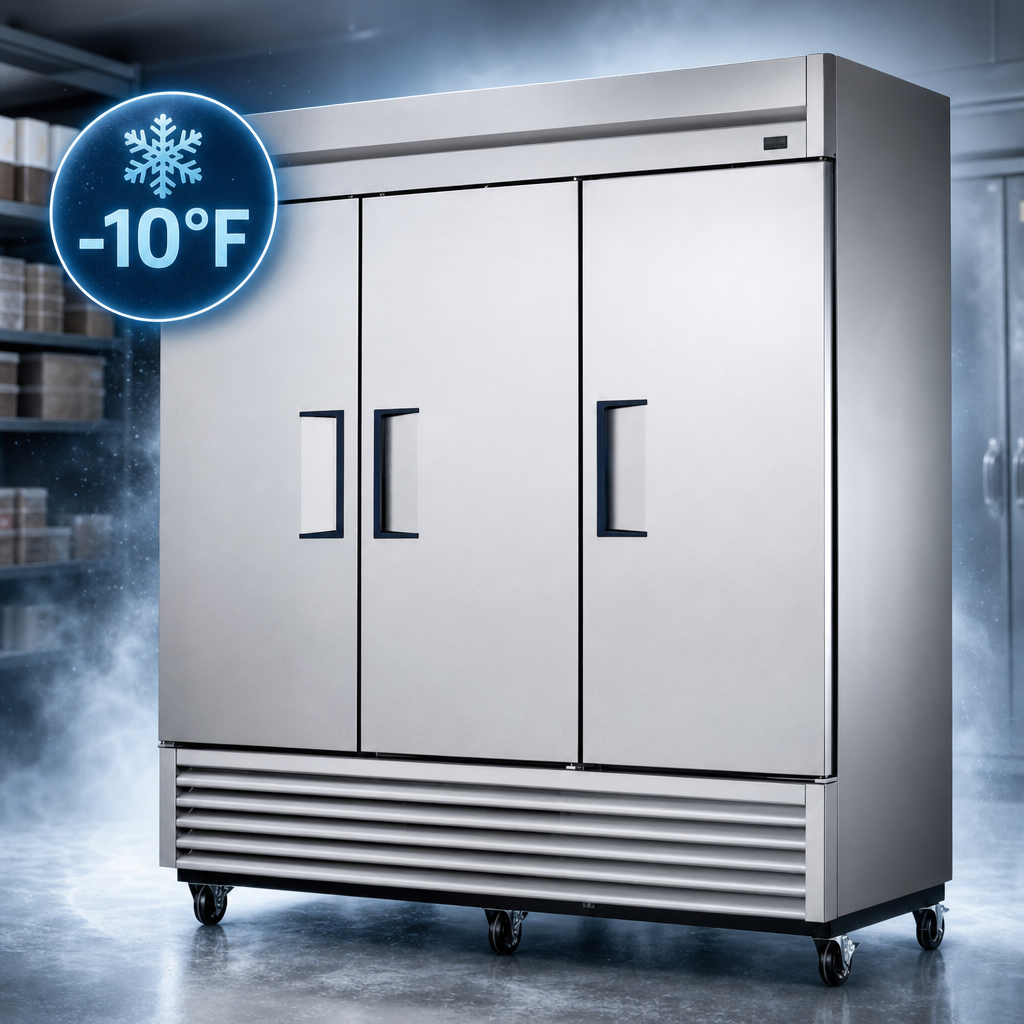

- -10 °F (-23.3 °C) holding temperature—ideal for ice cream & frozen foods.
- Factory-balanced, bottom-mounted ¾ HP compressor runs in the coolest, most grease-free area of the kitchen.
- Eco-friendly R290 refrigerant (0 ODP, GWP = 3) meets the most stringent environmental standards.
- All stainless steel interior, exterior front & sides with GalFan-coated steel back—maximum dent, scratch & corrosion resistance.

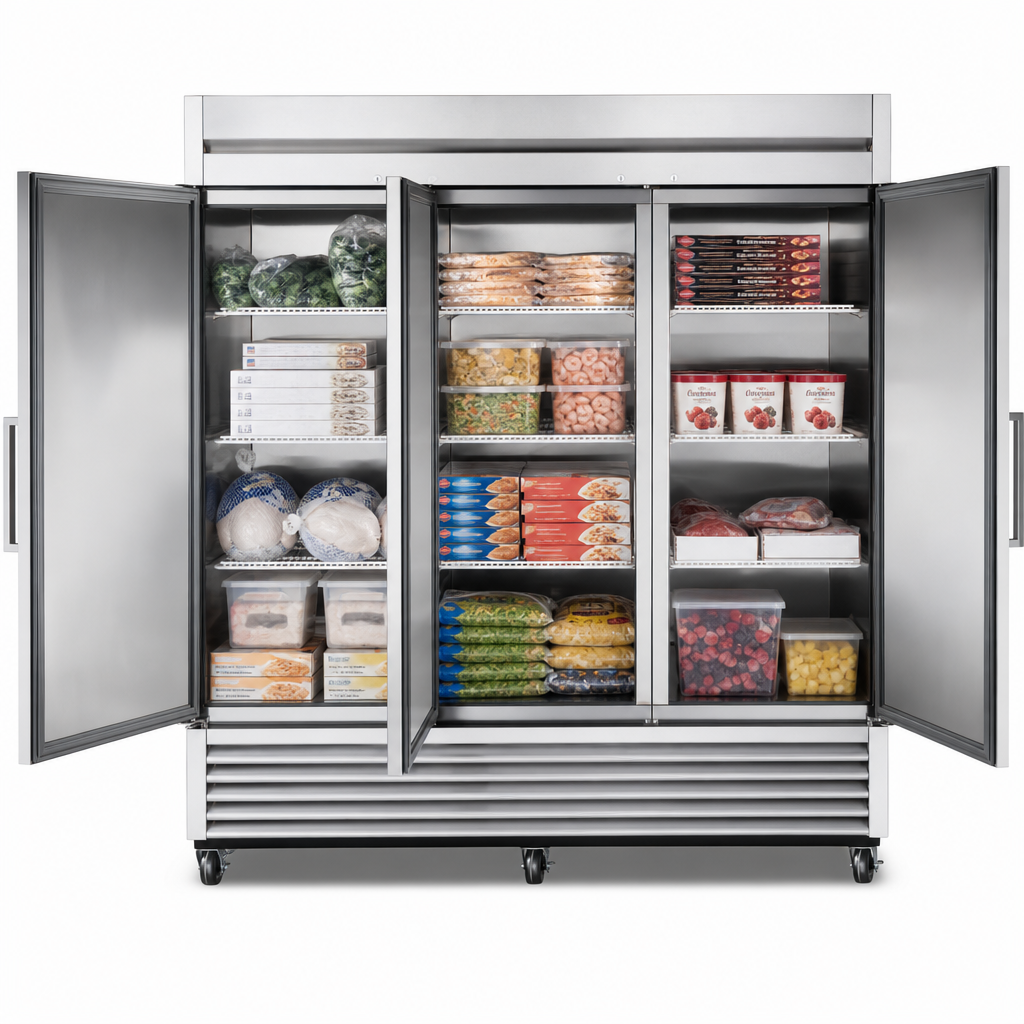

- (3) self-closing, lockable stainless steel doors with lifetime-guaranteed hinges & torsion system.
- (9) heavy-duty, PVC-coated wire shelves—adjustable on ½ in increments for flexible storage.
- Energy-saving LED interior lighting activated by a convenient rocker switch.
- Time-initiated, temperature-terminated automatic defrost shortens cycles and saves energy.
- 4 in swivel castors (front locking) for easy mobility & “no-stoop” bottom shelf loading.
- NSF/ANSI-7 listed for open food storage; cULus & UL EPH Classified.
- Made in the USA with globally sourced components.
Why choose the TS-72F-HC?
- Oversized insulation: entire cabinet and doors are foamed-in-place with high-density, zero-GWP polyurethane.
- ECM evaporator & condenser fan motors move a constant volume of air while using less energy and generating less heat.
- Bottom compressor location opens storage space on top of the unit and simplifies condenser coil cleaning.
- Exterior solar digital temperature display gives staff at-a-glance verification of safe holding temperatures.
Technical specifications
Model | TS-72F-HC |
---|---|
Sections / Doors | 3 solid swing doors (right-hand hinged; field-reversible option) |
Shelf count | 9 adjustable PVC-coated wire shelves |
Exterior dimensions (W × D × H) | 78 3⁄8 in × 29 1⁄2 in × 78 3⁄8 in 1985 mm × 750 mm × 1991 mm |
Overall height on castors | 83 3⁄8 in (2117 mm) |
Refrigerant | R290 Hydrocarbon |
Compressor | ¾ HP, bottom mounted |
Electrical | 115 V / 60 Hz / 1-phase | 14.0 A | NEMA 5-20P cord & plug |
Approvals | cULus, UL EPH Classified, NSF/ANSI-7 |
Country of origin | Made in USA |
What’s included
- (9) shelves with (36) chrome clips
- 4 in locking castors (factory-installed)
- Factory-installed door locks & magnetic gaskets
- 9 ft (2.74 m) power cord with plug
Popular add-ons (sold separately)
- 6 in adjustable legs or seismic-rated flanged legs
- Full or half-door bun tray racks (18 × 26 in pans)
- Additional shelves or novelty baskets
Industry-leading warranty
- 7-year parts & labor coverage on the entire cabinet
- 7-year part-only coverage on the compressor
Warranty applies to original purchaser and installation within the U.S., Canada and Puerto Rico.
