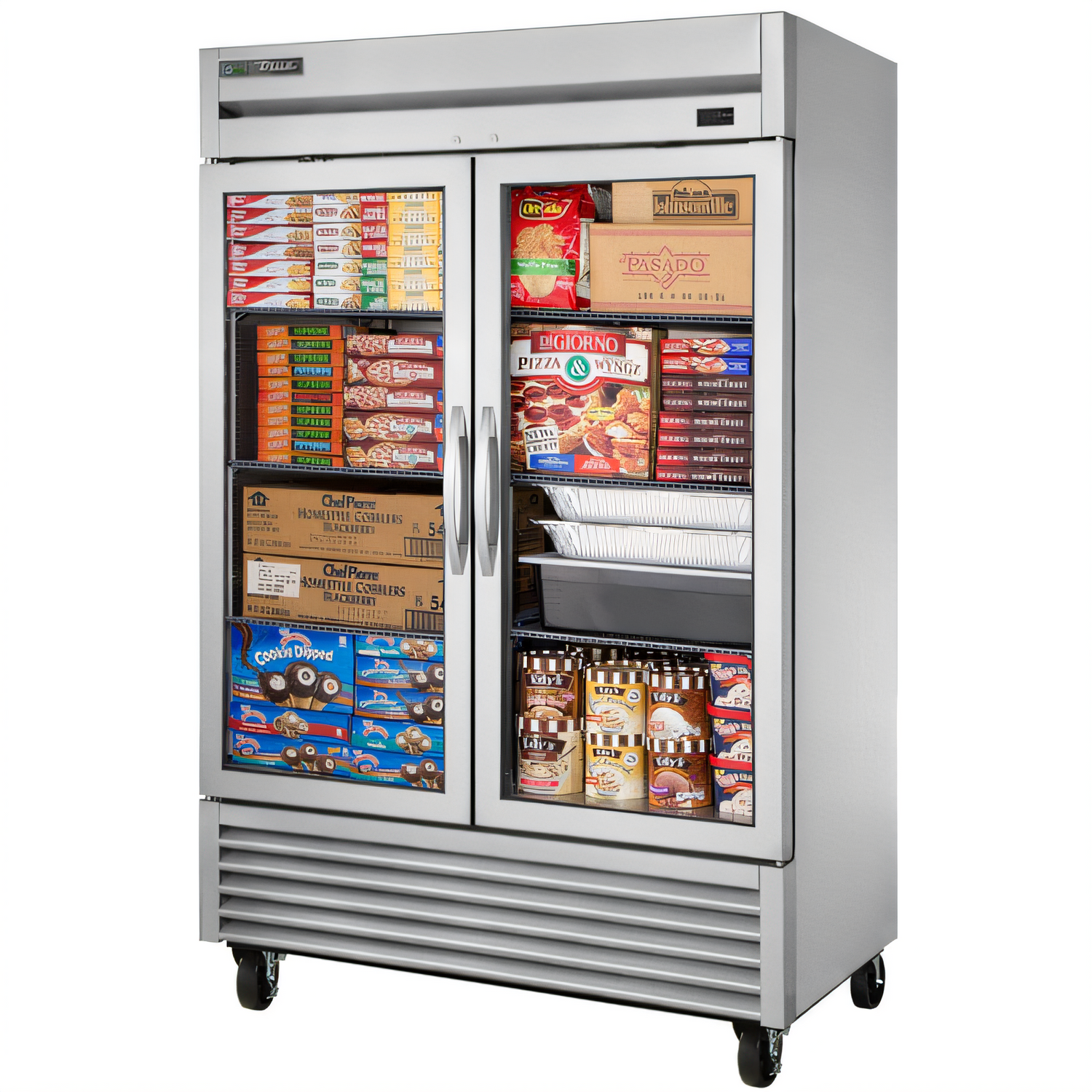

True TS-49FG-HC~FGD01 Two-Section Glass Door Reach-In Freezer
Stainless Steel Inside & Out • -10°F Holding Temperature • Made in USAEngineered for the busiest commercial kitchens, the TS-49FG-HC~FGD01 delivers rock-solid -10°F performance, ultra-efficient R290 refrigeration, and the premium durability of an all-stainless cabinet—all backed by True’s industry-leading 7-year parts, labor & compressor warranty.
Built-In Advantages
- High-capacity, factory-balanced refrigeration system maintains -10°F (-23.3°C) for ice cream & frozen food.

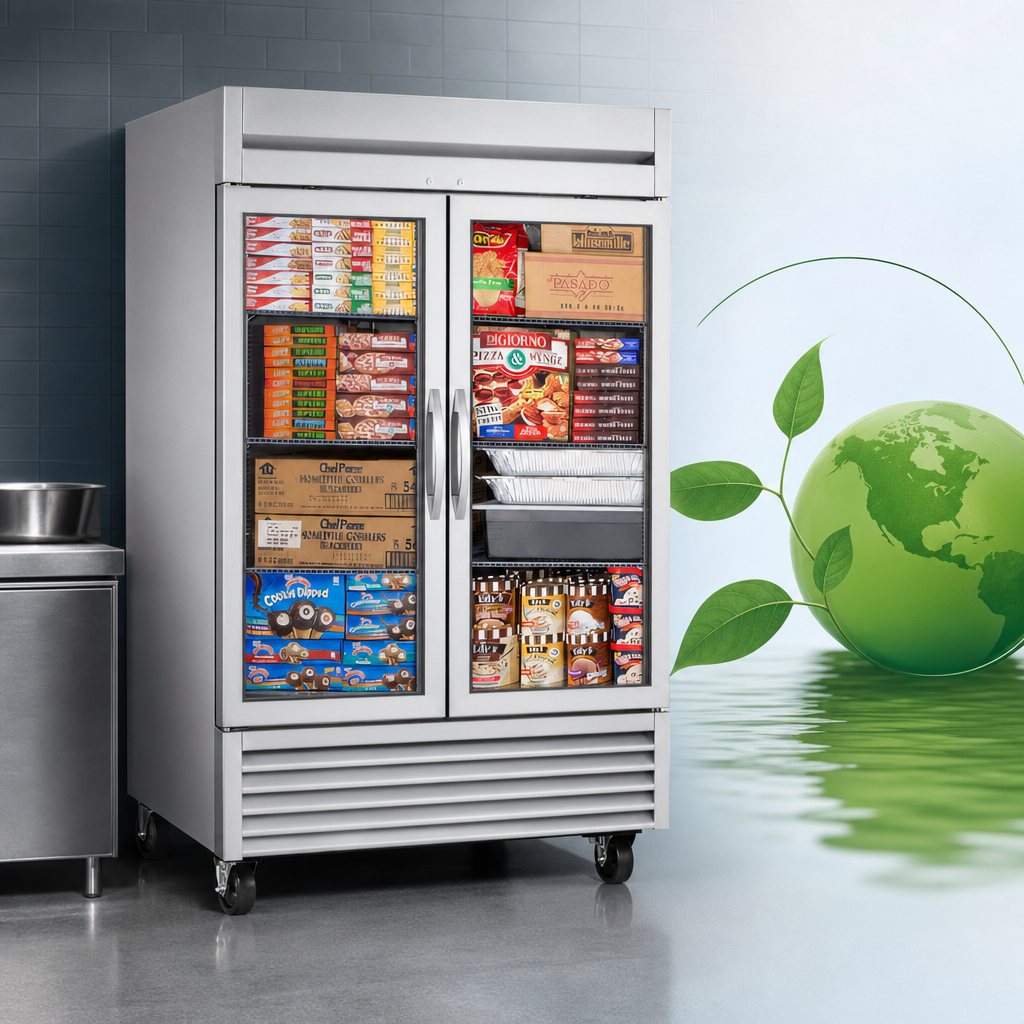

- Eco-friendly R290 hydrocarbon refrigerant with 0 ODP and 3 GWP.

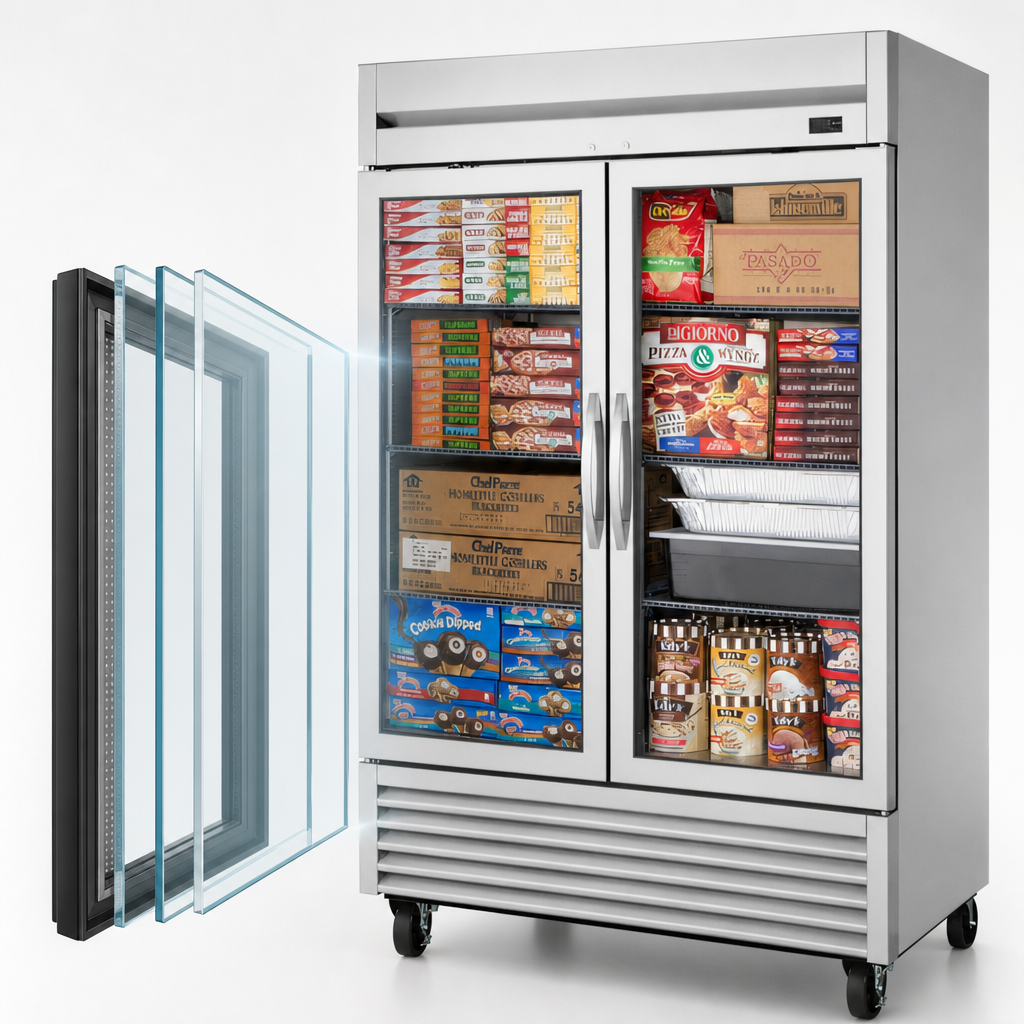

- Two triple-pane framed glass doors with standard locks and 15" aluminum handles; lifetime-guaranteed hinges & self-closing torsion system.
- Six (6) heavy-duty, PVC-coated adjustable wire shelves (24 9⁄16" L × 22 3⁄8" D) on ½" increments.
- Bright, energy-saving LED interior lighting.
- Bottom-mounted ½ HP compressor runs in the coolest part of the kitchen and provides “no-stoop” lower shelf plus top-of-cabinet storage.
- Electronically commutated evaporator & condenser fan motors reduce energy use and heat output.
- Automatic, time-initiated/temperature-terminated defrost for shorter cycles and lower utility costs.
- 4" stem castors (front locking) for effortless mobility and cleaning access.
- cULus, UL EPH Classified & NSF/ANSI 7 for open food storage.
Eco & Efficiency Highlights
- Foamed-in-place, high-density polyurethane insulation—zero ODP, zero GWP.
- Triple-pane glass and one-piece magnetic gaskets minimize temperature loss.
- ECM fan technology lowers kWh consumption while improving airflow.
Electrical & Certifications
| Voltage / Phase | 115 V / 60 Hz / 1-ph |
|---|---|
| Full-Load Amps | 11.0 A |
| Compressor | ½ HP, bottom mounted |
| Plug | NEMA 5-20P (9 ft / 2.74 m cord) |
| Certifications | cULus, UL EPH Classified, NSF/ANSI 7 |
Dimensions & Capacity
| Exterior (W × D × H) | 54 1⁄8" × 29 3⁄4" × 78 3⁄8" Height excludes 5" castors | Depth excludes 1 3⁄8" door handle
|
|---|---|
| Doors / Sections | 2 glass swing / 2 sections |
| Shelves | 6 adjustable PVC-coated wire shelves |
| Holding Temperature | -10°F (-23.3°C) |
| Crated Weight | 605 lb (275 kg) |
What’s Included
- (6) PVC-coated wire shelves with shelf clips
- 4" locking stem castors
- Exterior solar digital temperature display
- Factory-installed door locks & magnetic gaskets
Popular Options (Call to Order)
- 6" standard, seismic or flanged legs
- Additional shelves or novelty baskets
- Full or half-door bun tray racks for 18" × 26" sheet pans
- Alternate door hinging (factory installed)
Industry-Leading Warranty
Enjoy peace of mind with 7-year parts, labor & compressor coverage (USA/Canada). True stands behind every freezer it builds.
