Description

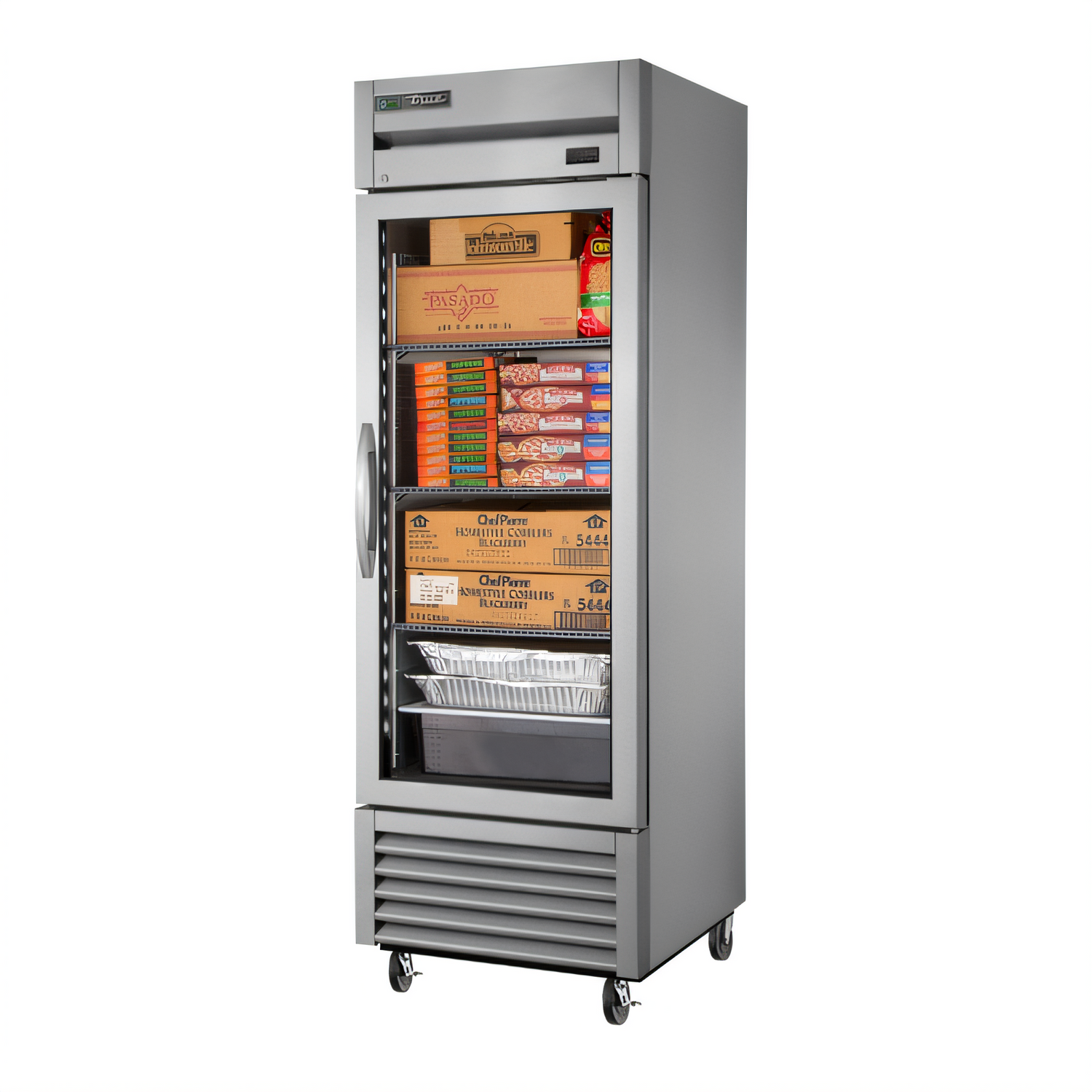

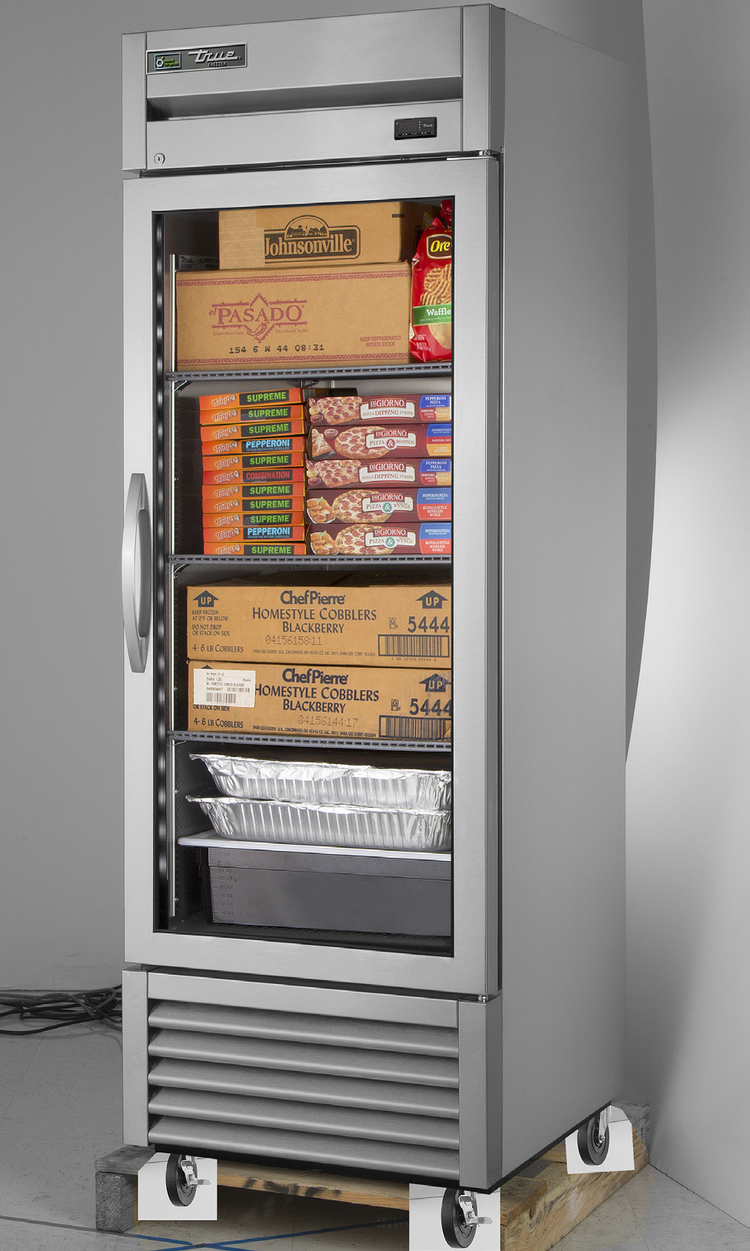

True TS-23FG-HC~FGD01 Glass Door Reach-In Freezer
One section • -10°F holding temperature • All-stainless constructionGive your frozen program the rock-solid reliability True is famous for. The TS-23FG-HC~FGD01 pairs a triple-pane glass door with a high-performance ¾ HP bottom-mount refrigeration system that locks in -10°F (-23.3 °C) cabinet temperatures— perfect for ice cream, frozen entrées and more.
Key advantages
- Factory-balanced to maintain -10°F (-23.3 °C) for exceptional product integrity.

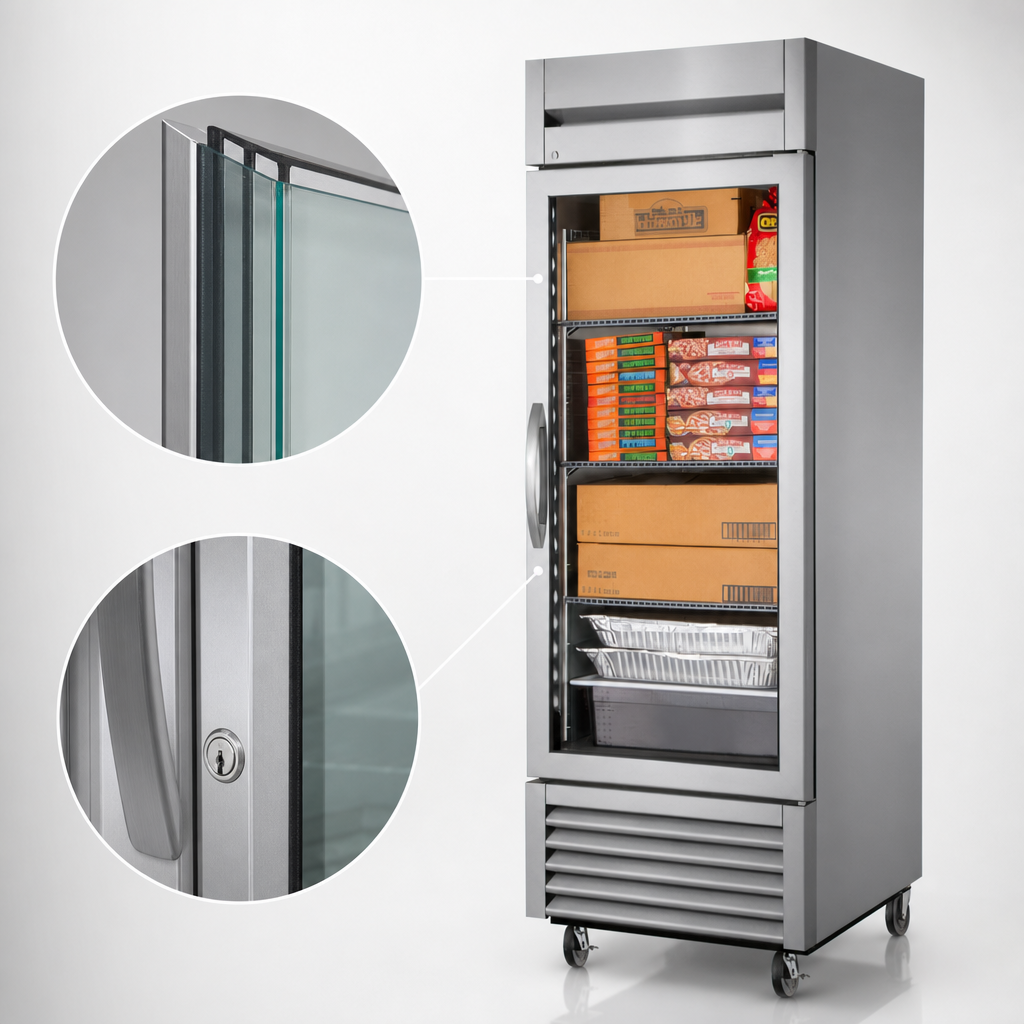

- Triple-pane, thermal-insulated glass door maximizes visibility and minimizes heat gain.
- Stainless steel front, sides, liner & floor resist dents, scratches and rust.
- Bright, safety-shielded LED lighting delivers even illumination on every shelf.
- Three adjustable, heavy-duty PVC-coated gray wire shelves—re-position in ½" (13 mm) increments.
- Self-closing door with 15" aluminum handle, built-in lock and lifetime-guaranteed hinges.
- Bottom-mounted condensing unit keeps the compressor in the coolest, most grease-free zone.
- Energy-saving ECM evaporator & condenser fan motors reduce heat and utility costs.
- Time-initiated, temperature-terminated automatic defrost shortens cycles and saves energy.
- Natural R290 hydrocarbon refrigerant (0 ODP / 3 GWP) for a smaller environmental footprint.
- 4" stem castors (front locking) provide effortless mobility for cleaning or layout changes.
- NSF/ANSI 7 compliant, cULus & UL EPH Classified for open food product.
- Designed, engineered & Made in the USA.
Specifications
| Model | TS-23FG-HC~FGD01 |
|---|---|
| Capacity | One section / 1 glass swing door |
| Exterior dimensions (W × D × H) |
27" × 29 7/8" × 78 3/8" (686 mm × 756 mm × 1 991 mm) Add 5" (127 mm) for castors. |
| Shelves supplied | 3 adjustable PVC-coated wire (22 7/8" L × 23 1/4" D) |
| Holding temperature | -10°F (-23.3 °C) |
| Refrigeration system | Self-contained, bottom-mount, ¾ HP compressor |
| Refrigerant | R290 Hydrocarbon |
| Electrical | 115 V / 60 Hz / 1-phase • 6.2 amps • NEMA 5-15P cord & plug |
| Mobility | 4" stem castors (front locking) |
| Certifications | cULus • UL EPH Classified |
| Construction | All stainless steel interior & exterior front/sides • GalFan coated steel back |
Optional accessories
- 6" standard legs or seismic/flanged legs
- Additional shelves or novelty baskets
- Alternate door hinging (factory installed)
Warranty coverage
- 7-year parts warranty*
- 7-year labor warranty*
- 7-year compressor warranty*
*Applies to commercial foodservice installations in the U.S. & Canada. See True’s full warranty statement for complete terms and conditions.
Ideal applications
- Restaurants & cafés
- Ice cream parlors & dessert shops
- School, hospital & institutional kitchens
- Convenience stores & concession stands
