True Mfg. - General Foodservice

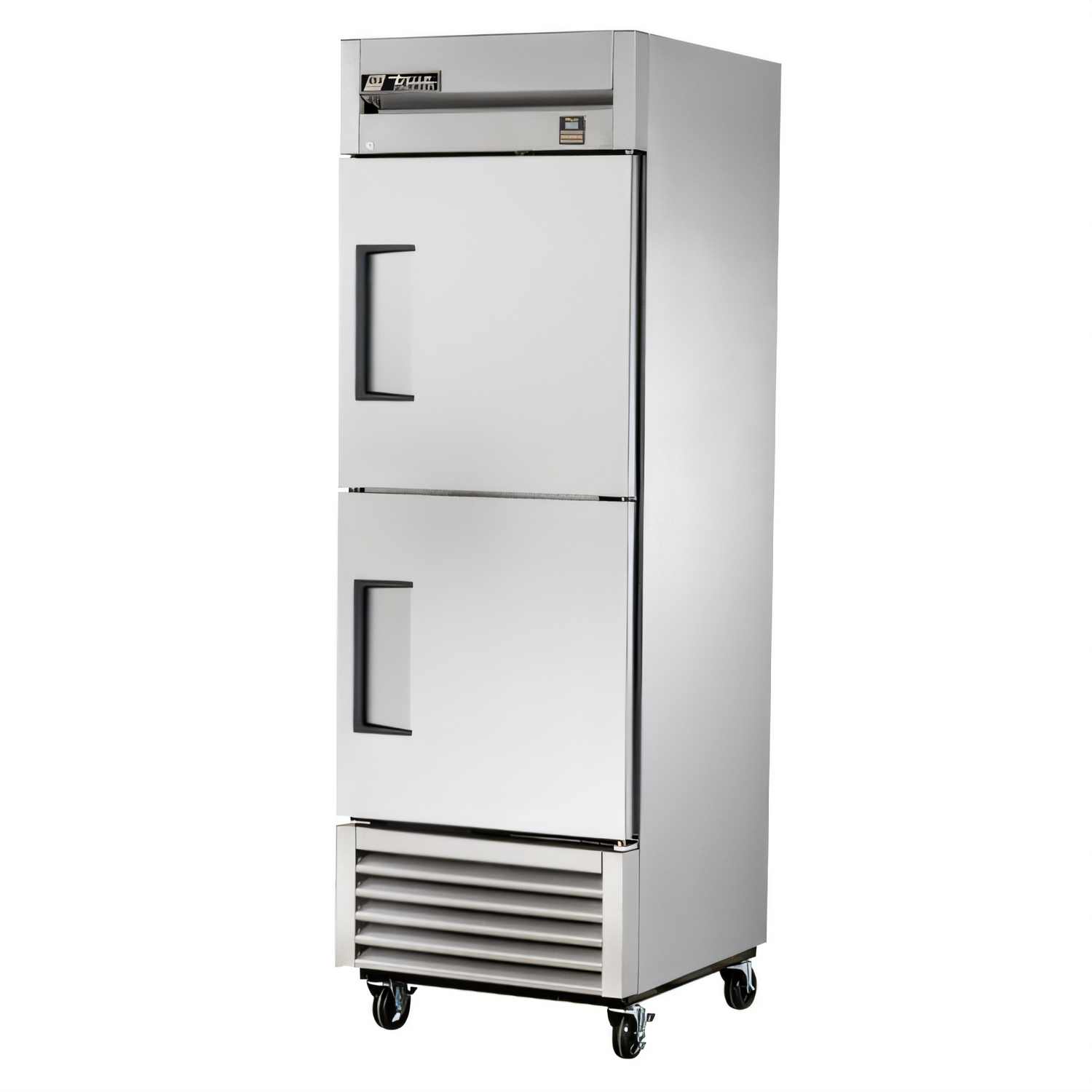

One-Section Reach-In Stainless Steel Freezer with Two Half Doors, Bottom-Mounted Self-Contained Refrigeration

SKU: TS-23F-2-HC
$6,680.14
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

One-Section Reach-In Stainless Steel Freezer with Two Half Doors, Bottom-Mounted Self-Contained Refrigeration

-10°F Performance, R290 Hydrocarbon Refrigerant, 3 Adjustable Shelves

Built for dependable frozen storage, this reach-in freezer combines stainless steel construction, half-height doors, and bottom-mounted self-contained refrigeration to hold -10°F efficiently.

  • Maintains -10°F for frozen foods and ice cream storage.
  • Two stainless steel half swing doors help reduce cold air loss during frequent access.
  • Stainless steel exterior and interior construction supports long-term durability and easy cleaning.
  • Self-contained R290 hydrocarbon refrigeration system is factory engineered for efficient operation.
  • Includes three adjustable gray PVC-coated wire shelves and interior lighting.
  • Bottom-mounted condensing unit and 4" castors make installation and cleaning easier.

Overall Dimensions:

27.0"W x 29.5"D x 78.38"H

Product Weight:

330.0 lb

R290 Hydrocarbon Refrigeration

Factory engineered self-contained capillary tube system uses environmentally friendly R290 refrigerant with zero ozone depletion potential and low global warming potential.

-10°F Freezer Performance

High-capacity refrigeration system maintains -10°F, making the unit suitable for frozen foods and ice cream.

Stainless Steel Construction

Stainless steel exterior front, sides, doors, interior liner, and floor provide durability and a clean commercial appearance.

Half Swing Door Design

Two stainless steel half-height doors offer convenient access while helping reduce cold air loss.

Adjustable Wire Shelving

Three heavy-duty gray PVC-coated wire shelves are included and can be adjusted in 1/2-inch increments.

Interior Lighting

Safety-shielded interior lighting is activated by a rocker switch above the top doors.

Bottom-Mounted Condensing Unit

Bottom-mounted refrigeration places the compressor in a cooler, less greasy area and leaves storage space on top of the cabinet.

Automatic Defrost System

Time-initiated, temperature-terminated automatic defrost helps save energy and shorten defrost cycles.

Type Reach-In Freezer
Style Half Swing Door
Installation Type Floor Model
Compartments 1
Capacity 10 - 23 Cu. Ft.
Shelves 3
Compressor HP 1/2 HP
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R290
Voltage 115 Volts
Amps 3.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 9 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 27 Inches
Shipping Depth 30 Inches
Shipping Height 79 Inches
Shipping Weight 330 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor, plus 2-year compressor warranty (U.S.A. only).

Frequently Asked Questions

It maintains -10°F (-23.3°C), which is ideal for frozen foods and ice cream.
The unit includes two stainless steel half swing doors and three adjustable gray PVC-coated wire shelves.
It is pre-wired for 115/60/1 operation on a 15 amp dedicated outlet, and the cord and plug set are included.
It uses a self-contained capillary tube refrigeration system with R290 hydrocarbon refrigerant and a bottom-mounted condensing unit.
Yes, it includes safety-shielded interior lighting with a rocker switch mounted above the top doors.
