Description

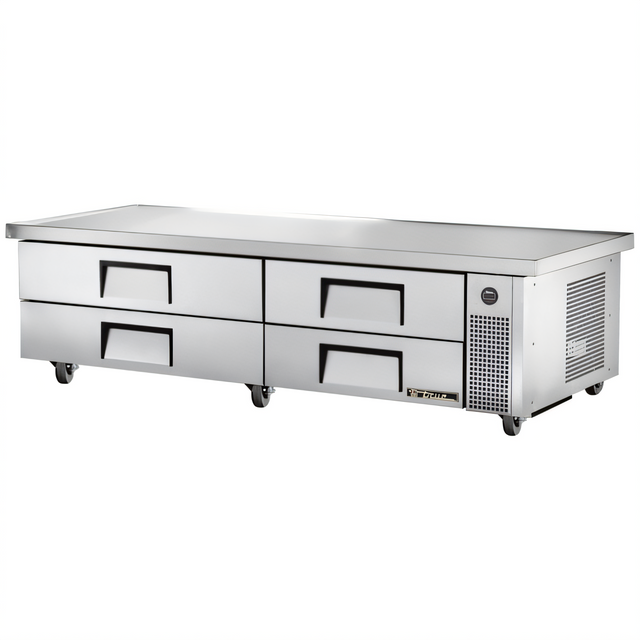

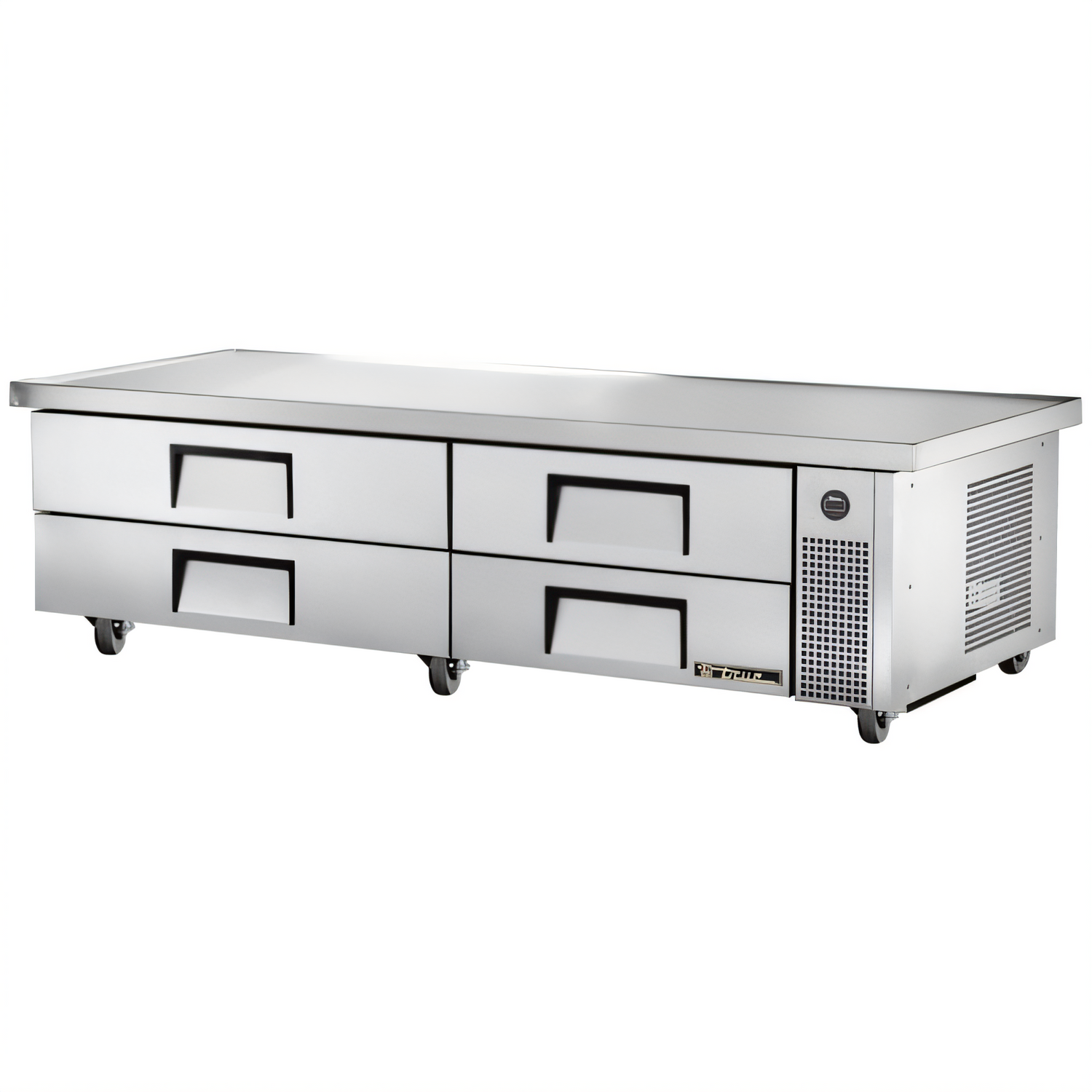

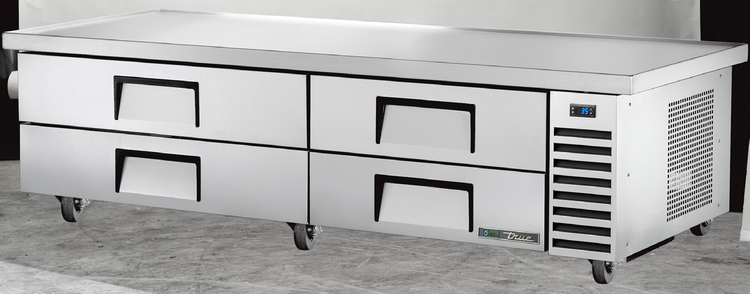

True TRCB-82-86-HC Refrigerated Chef Base
82-3/8″ four-drawer base with eco-friendly hydrocarbon refrigerationBuilt for the heat of a busy line, the TRCB-82-86-HC keeps ingredients ice-cold while bearing the weight of heavy countertop cookers. True’s legendary all-stainless construction, oversized refrigeration system and industry-leading seven-year warranty make this USA-made chef base the last you’ll need to buy.
Key performance advantages

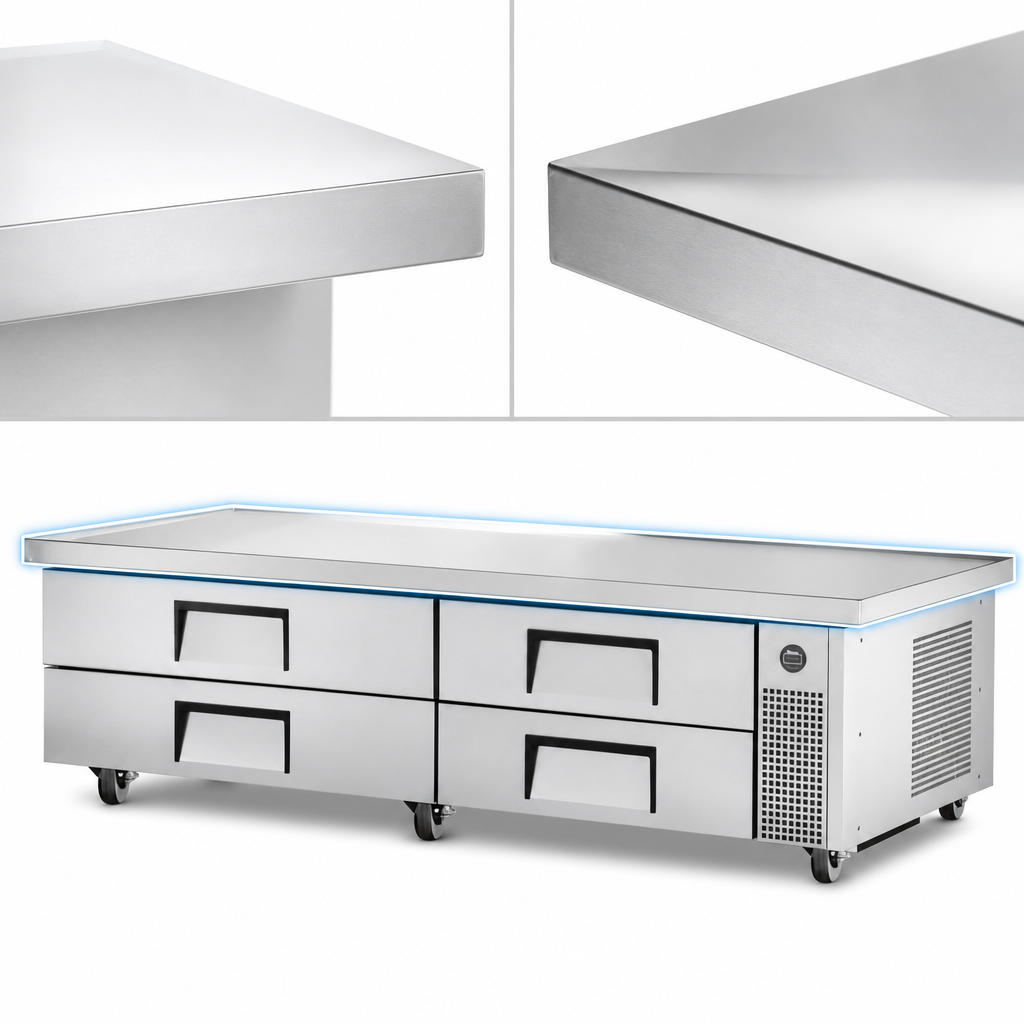

- One-piece 86-1/4″ (18-gauge, 300 series) stainless steel top with drip-resistant “V” edge—rated to support up to 1,084 lbs (492 kg) of cooking equipment.
- Factory-balanced capillary tube refrigeration uses natural R290 refrigerant and an extra-large evaporator coil to hold 33°F–38°F (0.5 °C–3.3 °C), even during peak rush.
- Four spacious drawers: left side fits three (3) full-size 12″ × 20″ × 4″ pans, right side fits two (2) (food pans sold separately).
- Durable stainless steel front, sides and drawer facings; corrosion-resistant GalFan back and bright aluminum interior with coved stainless floor for effortless wipe-downs.
- Heavy-duty stainless drawer slides and rollers are removable without tools for deep cleaning and quick service.
- Slide-out condensing unit, self-lubricating fan motors and exterior digital temperature display simplify maintenance and monitoring.
- Foamed-in-place, high-density polyurethane insulation contains zero ODP and zero GWP.
- NSF/ANSI Standard 7 listed for open food product; cULus, UL EPH Classified and CE certified.
Technical specifications
| Model | TRCB-82-86-HC |
|---|---|
| Exterior size (W × D × H) cabinet only |
86-1/4″ × 32-1/8″ × 20-1/2″ (2191 × 814 × 520 mm) |
| Working height with 4″ casters |
25-1/2″ (647 mm) |
| Drawers / pan capacity | 4 drawers • Left: 3 × 12″ × 20″ × 4″ Right: 2 × 12″ × 20″ × 4″ |
| Top load rating | 1,084 lbs (492 kg) |
| Temperature range | 33°F to 38°F (0.5 °C to 3.3 °C) |
| Refrigeration / refrigerant | Self-contained capillary tube • R290 hydrocarbon |
| Horsepower | 1/3 HP |
| Electrical | 115 V / 60 Hz / 1-phase • 4.4 amps • NEMA 5-15P (10 ft cord) |
| Crated weight | 495 lbs (225 kg) |
| Certifications | cULus • UL EPH • CE • Made in USA |
Perfect for
- Chef lines needing refrigerated storage directly beneath grills, griddles or charbroilers.
- High-volume restaurants, hotels, universities and institutional kitchens.
- Operators seeking lower utility costs and a reduced environmental footprint.
What’s in the box
- True TRCB-82-86-HC chef base with factory-installed refrigeration system
- 4″ locking plate casters (front set locking)
- Pre-wired cord & NEMA 5-15P plug
Full-size food pans and divider bars are not included and may be ordered separately.
Industry-leading warranty
True backs every TRCB-82-86-HC with an unmatched 7-year parts, labor and compressor warranty for customers in the USA, Canada and Puerto Rico—proof of the brand’s confidence in its craftsmanship.
